BFT Phobos AC B25 / B50 | Swing door 230V up to 500 kg semi-intensive
Referencia: PHOBOS AC B
€217.00
IVA excluido
262,57 €
IVA incluido

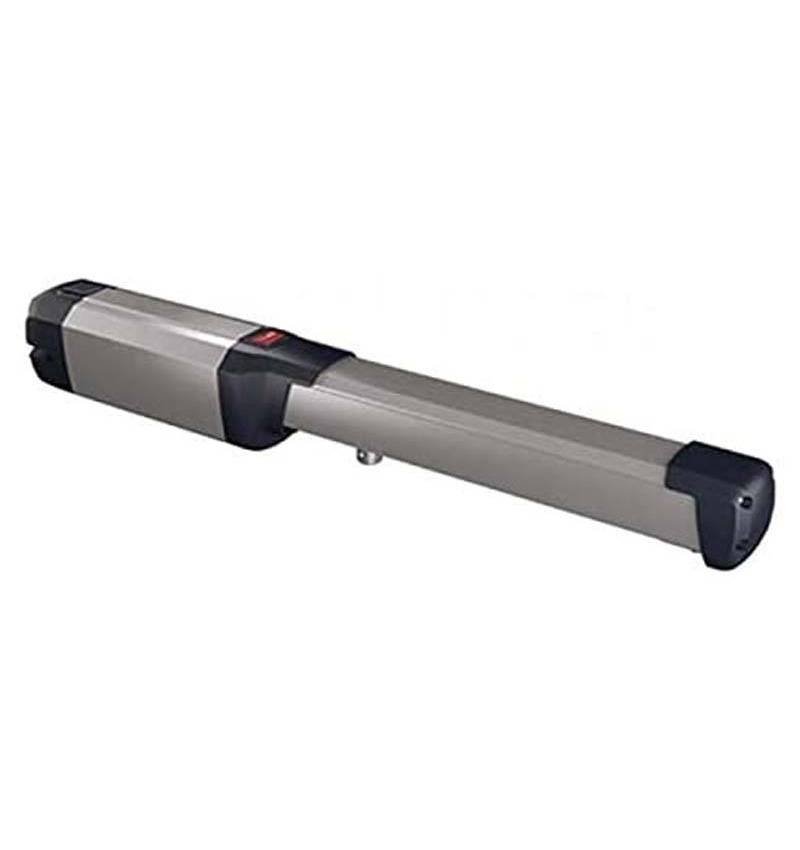

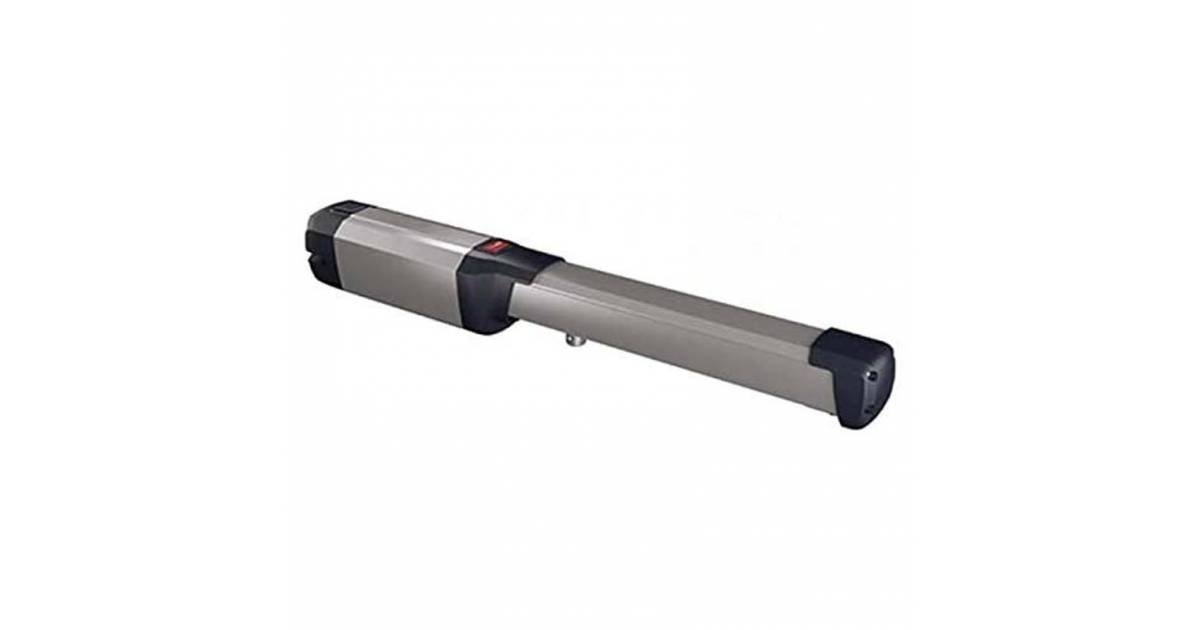

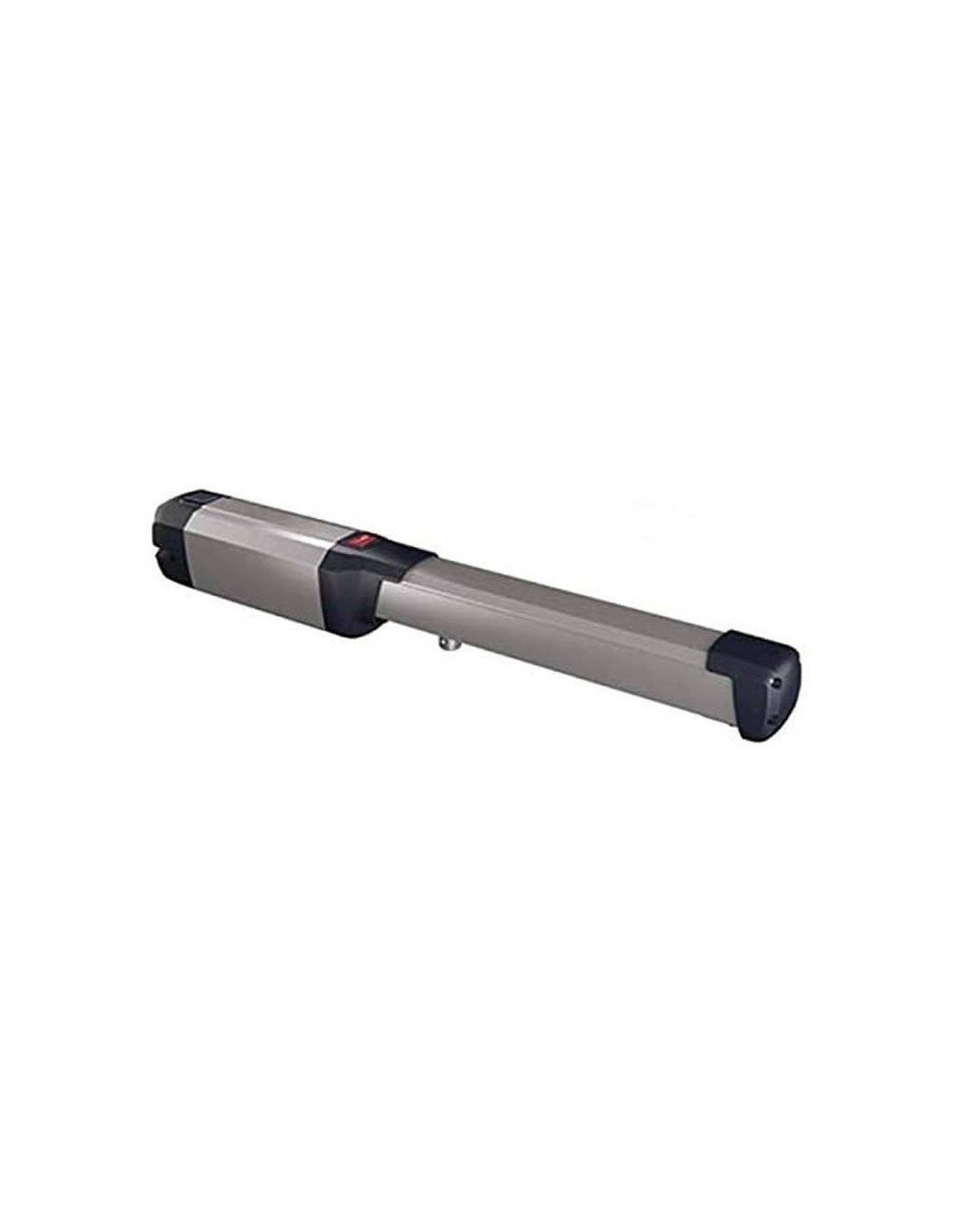

The electromechanical engine BFT Phobos AC B It is a reliable, robust and lasting solution for the automation of Residential or Community swing doors of semi-intensive use. Available in versions Phobos AC B25 and Phobos AC B50, allows you to automate cancelas up to 400 kg and 2.5 meters per leaf up to 500 kg and 5 meters respectively, offering soft, safe and silent movements.
Phobos AC B is the full range of electromechanical residential pistons, suitable for residential swing gates with semi-intensive use with deceleration system and electronic clutch.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
BFT Phobos AC B25 / B50 | 230V electromechanical motor for residential swing doors
The electromechanical engine BFT Phobos AC B it is a reliable, robust and lasting solution for the automation of residential or Community swing doors of semi-intensive use. Available in versions Phobos AC B25 and Phobos AC B50, allows you to automate cancelas up to 400 kg and 2.5 meters per leaf up to 500 kg and 5 meters respectively, offering soft, safe and silent movements.
Phobos AC B is the full range of electromechanical residential pistons, suitable for residential swing gates with semi-intensive use with deceleration system and electronic clutch.
Simple installation with Central Rigel 6
The control unit BFT Rigel 6 allows a quick and professional installation thanks to its programming screen and clearly identified terminals, facilitating the connection of motors, photocells, receivers and security accessories.
It also allows you to configure decelerations, work times and safety parameters to adapt the maneuver to each type of swing cancel.
Features
✔ 230V electromechanical motor for semi-intensive use.
✔ Integrated irreversible mechanical lock.
✔ Soft movement with adjustable decelerations from the control plant.
✔ Electronic clutch for protection against obstacles.
✔ Simple manual unlocking by customized key.
✔ Simplified wiring thanks to colored terminals.
✔ Compatible with central BFT Rigel 6 and Alena SW2.
✔ Silent and reliable operation.
Technical characteristics - Phobos AC B25 / Phobos AC B50
| Phobos AC B25 | Phobos AC B50 | |
|---|---|---|
| Card Feeding | 230 V | 230 V |
| Control plant | Rigel 6, Alena SW2 | Rigel 6, Alena SW2 |
| Operator weight | 5 kg | 7.7 kg |
| Operator type | electromechanical swing cancers | electromechanical swing cancers |
| Maximum door of the door / leaf | 400 kg | 500 kg |
| Maximum width of the door / leaf | 2.5 m | 5 m |
| Maximum length of the cancel without electric closure | 1.8 m | 3 m |
| Motor voltage | 230 V | 230 V |
| Entry power | 210 W | 210 W |
| Traction force and momentum | 2000 | 2000 |
| Useful stem career | 360 mm | 470 mm |
| Maximum angle | 119 ° | 130 ° |
| Maneuver time (90 °, except decelerations, maximum length of the door and maximum weight) | 18s approximately | 22s approximately |
| Career end | Working time | Working time |
| Slowdown | Yes | Yes |
| Impact | Electronic clutch | Electronic clutch |
| Block | Mechanic | Mechanic |
| Unlock | Personalized key | Personalized key |
| Maximum opening cycles per hour | 30 | 30 |
| Environmental conditions | -20 ÷ 55 ° C | -20 ÷ 55 ° C |
| Degree | Ip44 | Ip44 |
| Actuator | 5 kg | 7.7 kg |
Measures BFT Phobos AC B
Models available
- Phobos AC B25 (P935132 00002): 230V operator for swing cancels up to 400 kg of weight and 2.5 m in length. Work time limit switch.
- Phobos AC B50 (P935133 00002): 230V operator for swing cancels up to 500 kg of weight and 5 m long. Work time limit switch.
Manual
Product Details
PHOBOS AC B
Data sheet
- Type of engine
- Electromechanical 230V
