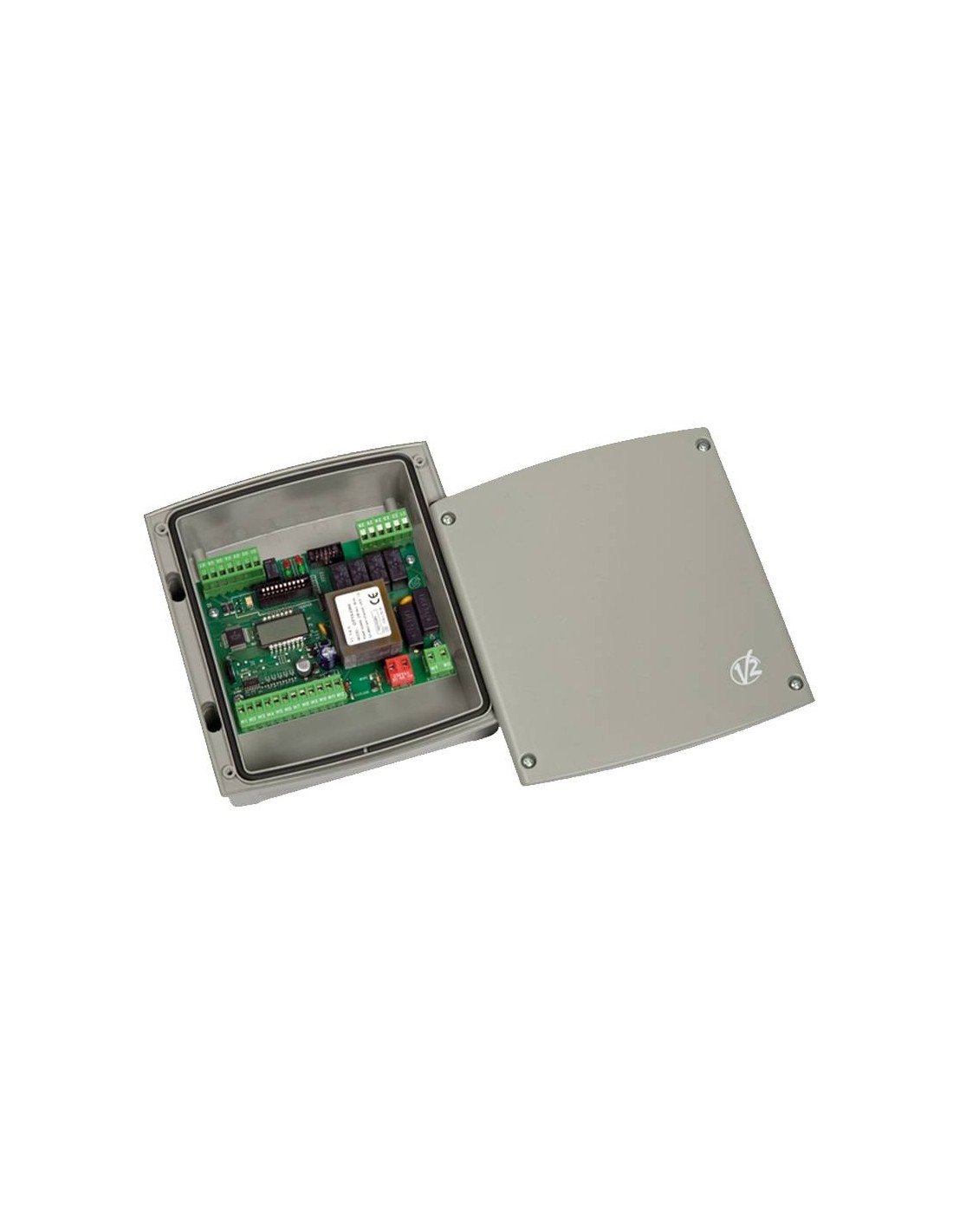

Table of manoeuvres V2 CITY5 230V digital for the management of a traffic light installed near a vehicle crossing with a two-way direction of travel.

TECHNICAL CHARACTERISTICS

• Power supply: 230 / 50 V / Hz
• Power supply traffic lights: DC or AC, max 250 Vac
• Maximum load of traffic lights: 5 A
• Maximum load of accessories at 24 VAC: 3 W
• Operating temperature: -20 ÷ +60 °C
• Size: 195 x 145 x 80 mm
• Weight: 800 g
• Protection degree: IP55

FUNCTIONS

• Programming with three buttons and screen

• Management of two sets of traffic lights

• Power supply of the traffic light independent of mains voltage

• Connector for the MR2 modular radio receiver

• 2 input for buttons input, output

• 1 code entry for radio devices

• two vehicle presence detection inputs (N.A. or N.C.)

• 1 emergency entrance, to ensure green at exit

• Independent radio input and output management

• 2 exits for controlling the door maneuver box (N.A. or N.C.) opening and closing

• 2 24V outputs for powering accessories

• LEDs displaying traffic lights

• Vehicle counter with access inhibition when reaching maximum parking capacity

• Programming of the two-way preference criterion

• View the status of entries on screen
