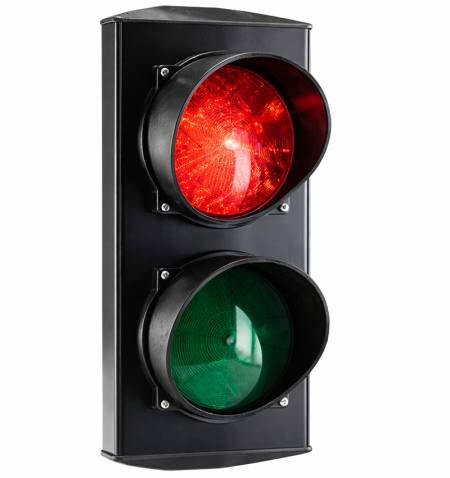

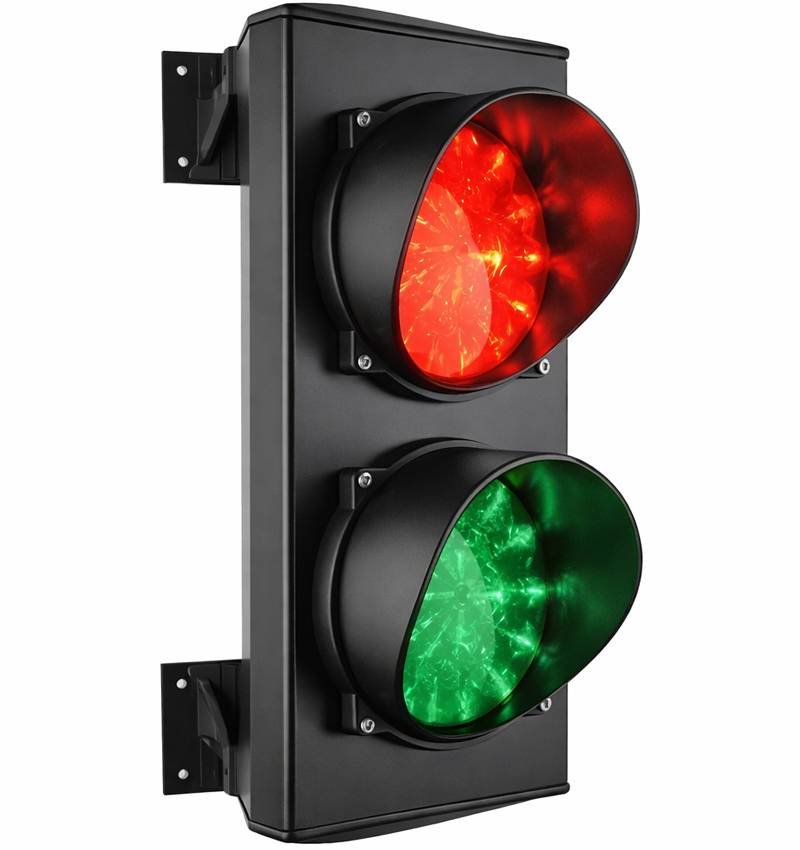

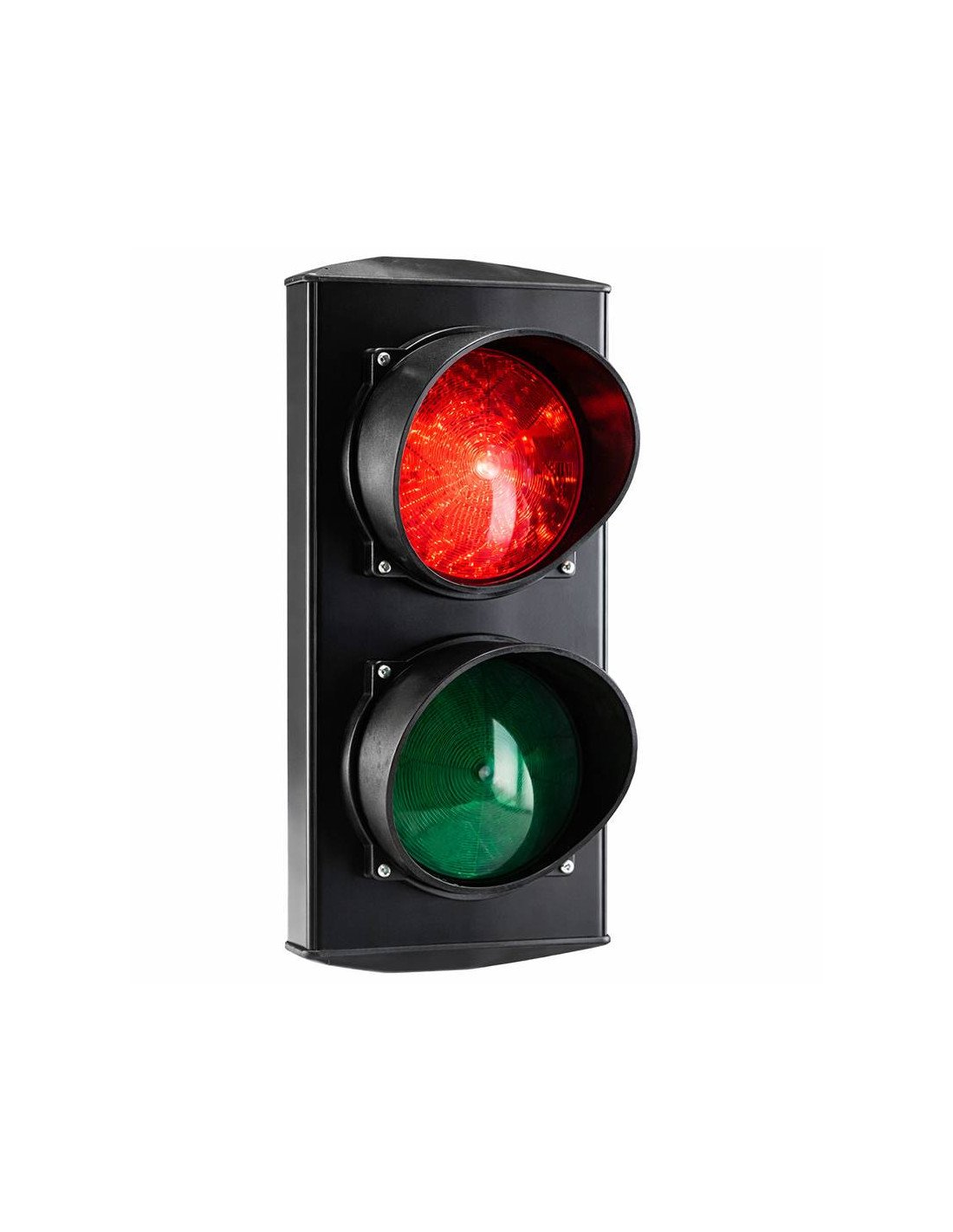

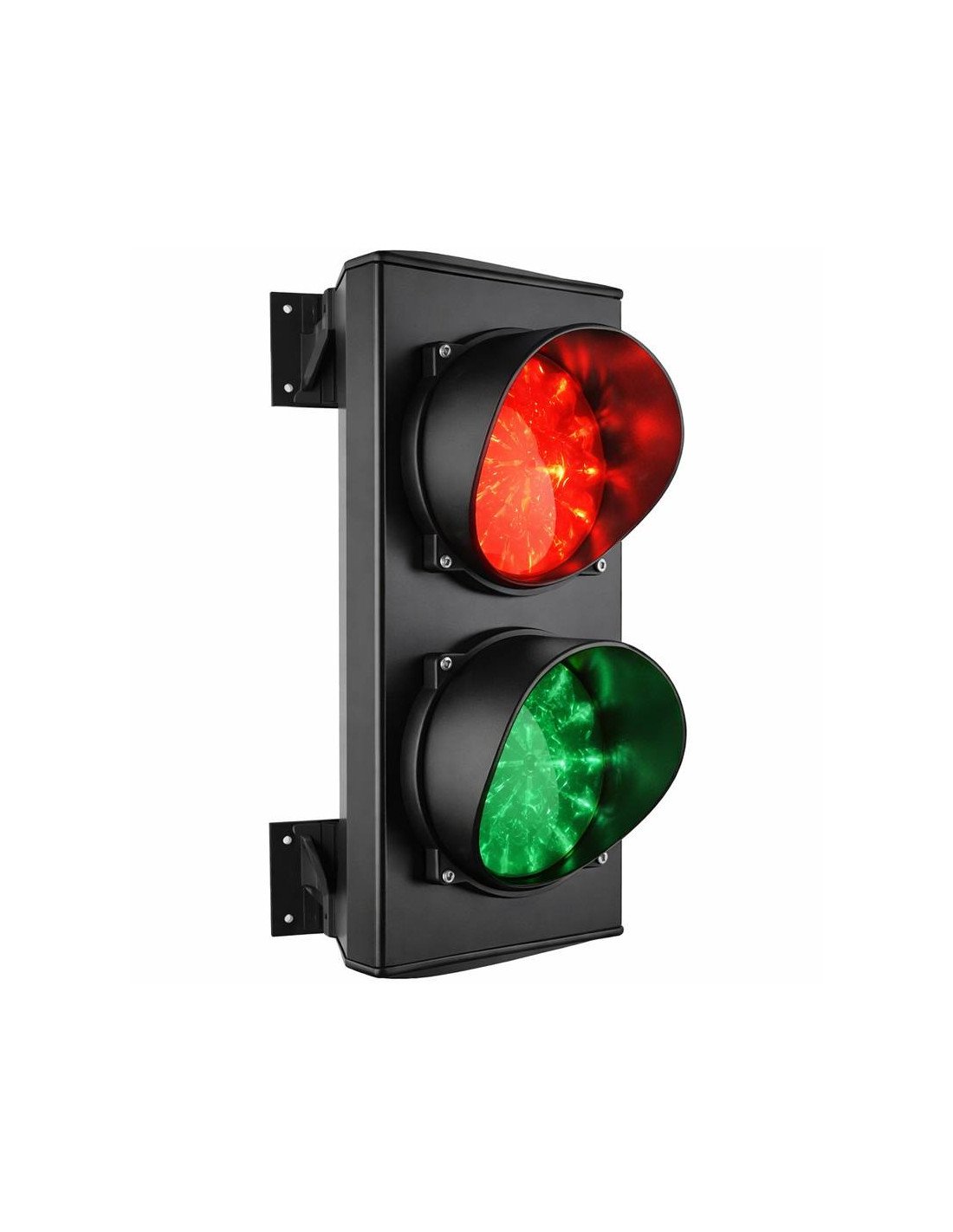

Red and green LED traffic light for garages and access from a lane

The LED traffic light for garage Erreka Semled is a professional signaling system designed to regulate the passage of vehicles in Narrow access, Ramps, Community parkings and automatic doors. Fed 230 VAC, use high visibility LED technology in colors Red and green To clearly indicate when you can circulate or when the step is prohibited.

It is an indispensable element in facilities with traffic in both directions, where you need to avoid collisions and improve safety during the opening and closing maneuver of the motorized door.

LED traffic light functions

✔ Green light: Open door, allowed step.

✔ Red light: Movement door or closed, prohibited step.

Features

• LED technology low consumption and long life.
• Double group of independent LEDs in red and green colors.
• Savings in maintenance and exploitation costs.

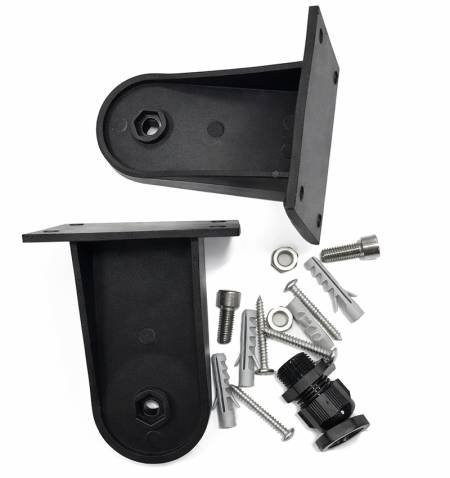

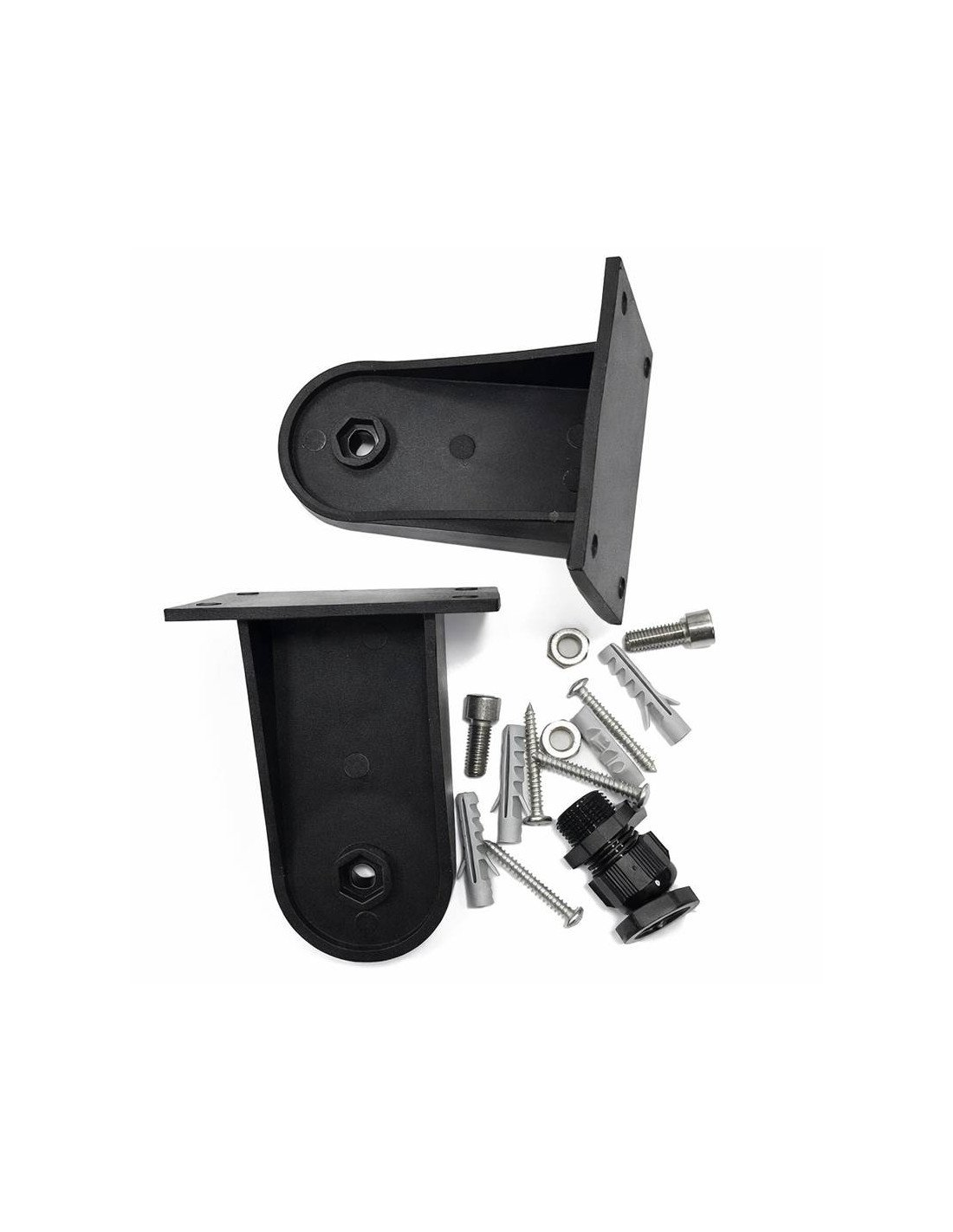

• Two adjustable supports that allow adjusting the traffic light to 200 ° in 3rd steps.
• High visibility even indoors with little lighting.

Technical characteristics

• Card with two groups of LEDs (Red color and green color). LED technology, allowing you to save on exploitation and maintenance costs.
• Feed: 230VAC
• Consumption: 2 x 3W (3W Each individual card)
• Average duration of the lampD (by individual card): 100,000 h
• Dimensions: 180 x 290 x 410 mm; Diameter of the lens: 124mm
• Weight: 2.7kg
• Operating temperature: -30ºC A + 80ºC
• Degree: IP65
• Meets the requirements of the directives: 2004/108 / EC (Electromagnetic compatibility), 2006/95 / EC (Low Voltage), 2011/65 / EU (ROHS)
• Applied rules: EN 61000-6-3: 2007 + A1: 2011, at 61000-6-2: 2005, EN 60335-1: 2012, EN 50581: 2012

Traffic management and traffic management

The traffic light can be integrated with a specific control box to manage the preference of passage between two accesses by Safety photocells, Embedded magnetic ties or even remote control. The system grants priority automatically to the first vehicle that reaches and operates the door, guaranteeing a fluid and safe circulation.

It is compatible with management plants such as:

✔ Asemgay

✔ Tsm2u

✔ Mcs01

Common applications

• Community garages.
• Private parkings.
• A single-lane ramps.
• Industrial access.
• Sliding doors, tilting or automated swing.

Technical manual

Consult instruction manual Erreka Smf01
