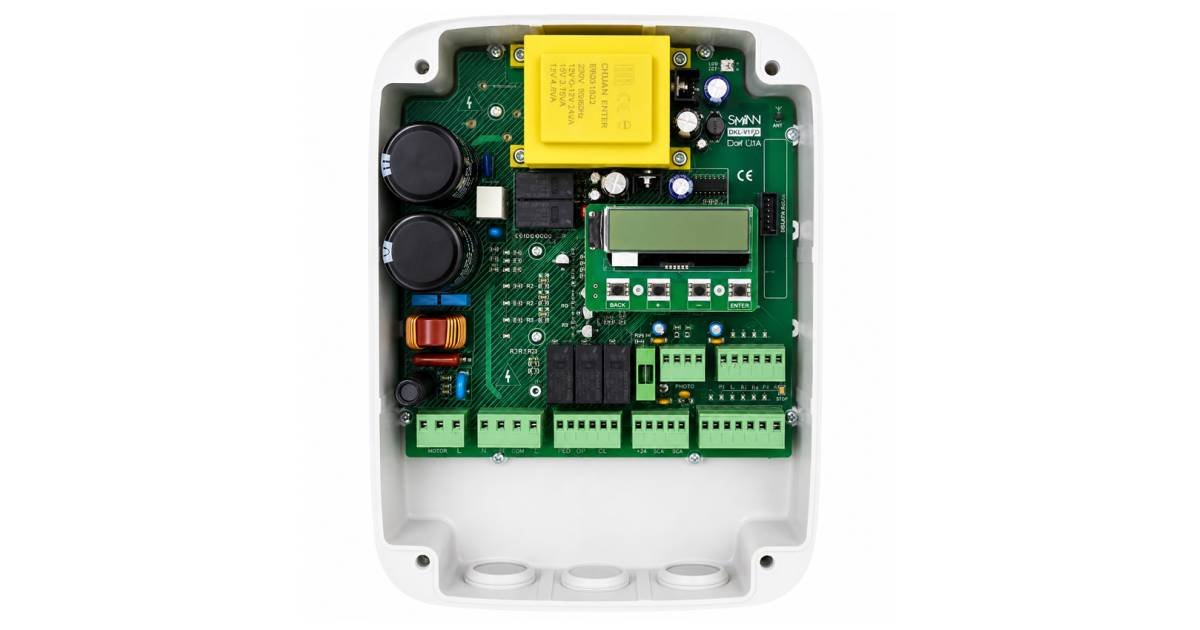

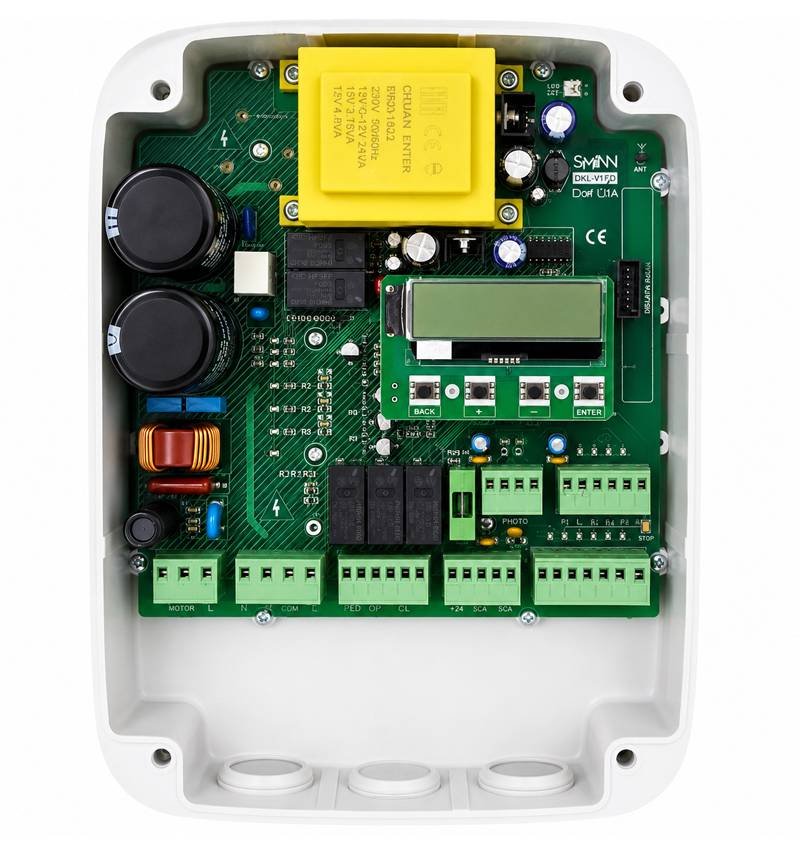

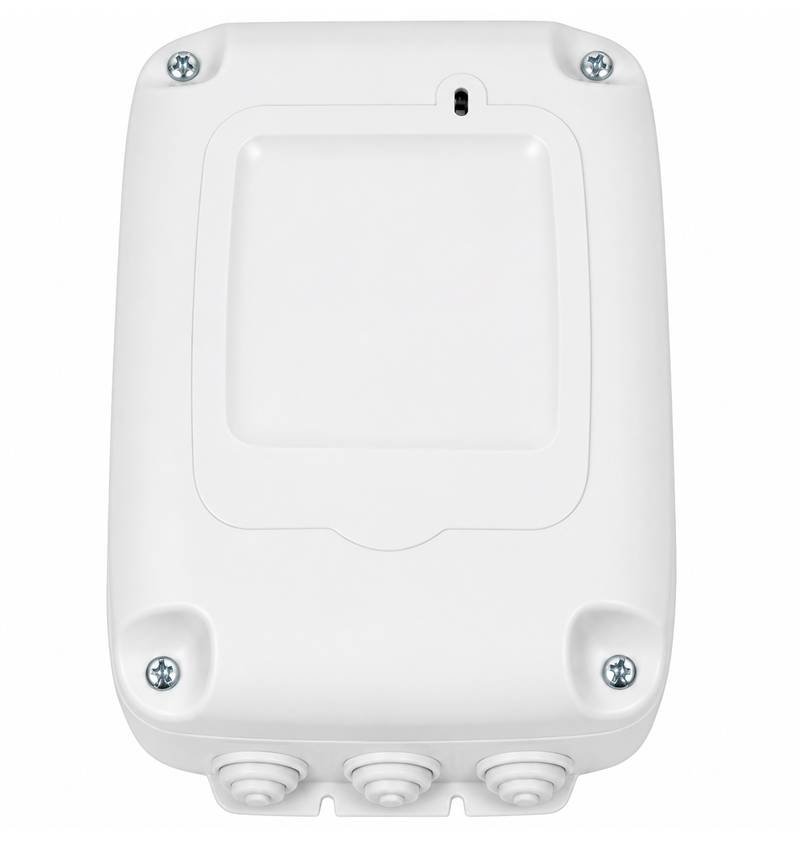

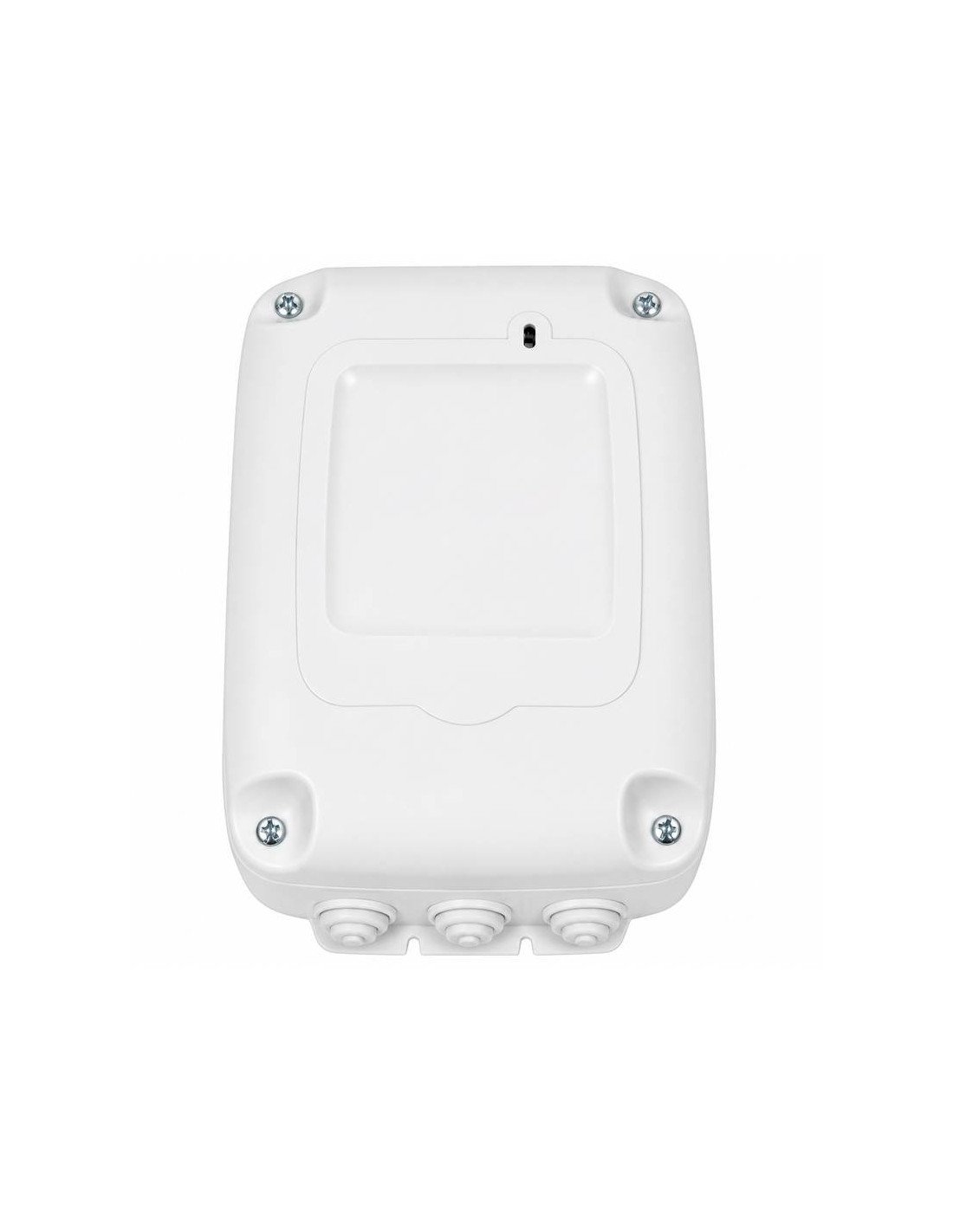

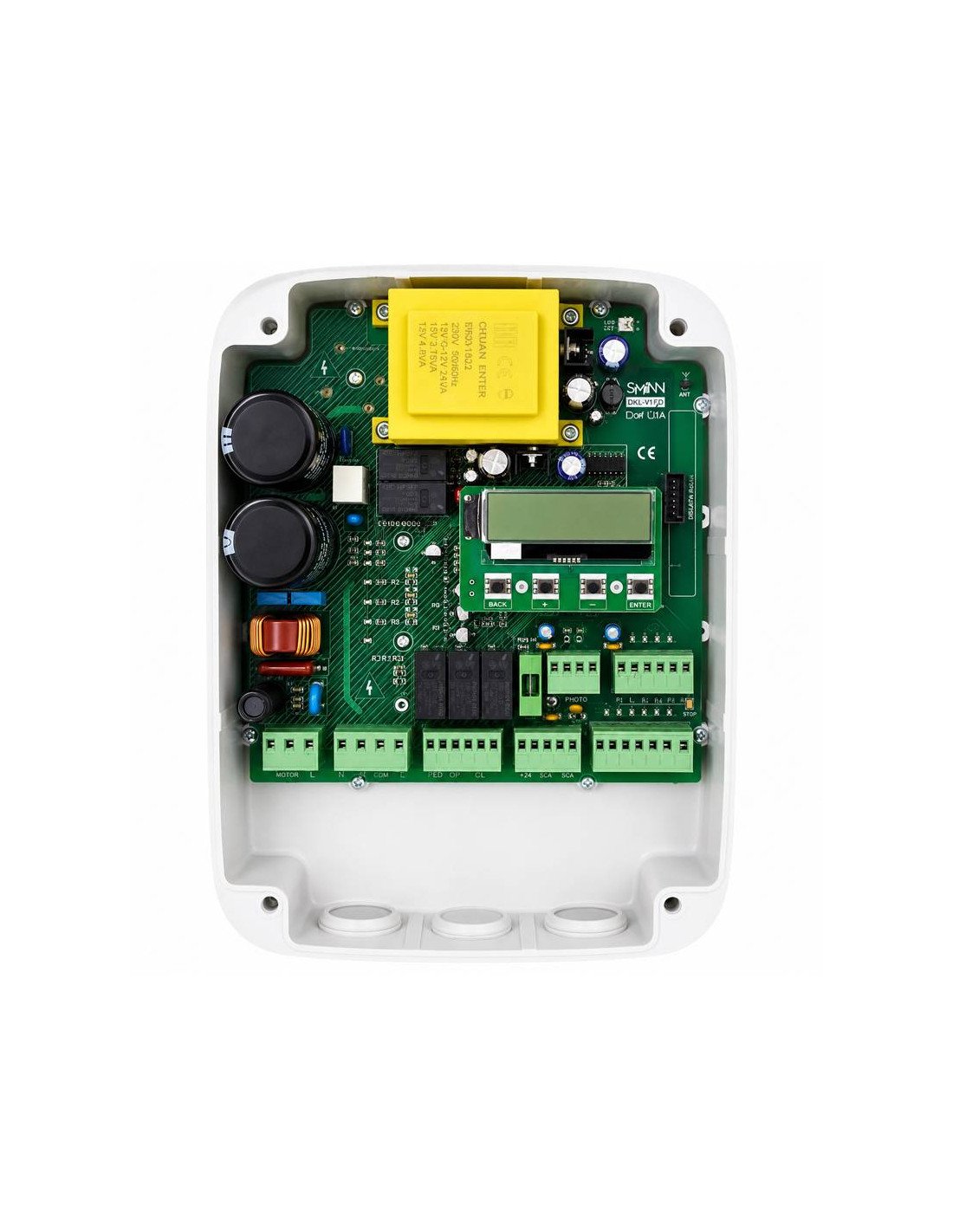

Maneuver box Sminn Box L VF1D for 230V three-phase motor

The Sminn Box L VF1D It is a universal maneuver picture designed for the automation of fast doors, tilting doors, ascending doors and sliding doors equipped with 230V three-phase motor.

This picture incorporates frequency, allowing the speed and power of the motor independently in each phase of the maneuver. Thanks to this, a smoother, controlled and adaptable operation is achieved to the needs of each installation.

Main applications

• Rapid industrial doors.
• Automated tilting doors.
• Ascending doors.
• Sliding doors with 230V three-phase motor.
• Industrial, community or commercial facilities.

Main features

• Universal chart For 1 three-phase motor at 230V.
• Maximum power power: Up to 1.5 kW with triangle connection.
• Integrated frequency inverter To adjust speed and power.
• Intuitive programming menu via backlit LCD and 4-button keyboard.
• Maneuvering Learning System To facilitate the start-up.
• Independent regulation of speed and power in opening, closure and soft stop.
• Entrance for incremental encoder of 1 or 2 channels.
• Obstacle detection by amperimeter sensor and / or encoder.
• Two tickets for photocells Configurable independently.
• Two tickets for safety bands, compatible with resistive or contact bands.
• Stop entry For emergency stop.
• Three independent key tickets For different activation modes.
• SMINN RADIO CARD SHOP of 6 pins.
• Three programmable potential relays For auxiliary functions.
• 24VAC for peripheral feeding.
• Departure from 15vdc For photocells or other accessories.
• Configurable test of security devices before each maneuver.
• Partial and total maneuver counter To facilitate maintenance.
• Registration of events and errors for diagnosis of the installation.

Advanced control of the maneuver

The Sminn Box L VF1D allows you to adjust the door maneuver precisely. It has parameters for control Normal, soft stop speed, motor power, acceleration ramps, deceleration ramps and maneuvering times.

Also allows you to configure functions as automatic closure, pedestrian opening, maneuver investment, alternative stop, present man and auxiliary present man in case of insurance failure.

Security in installation

The table has different security entries to improve the protection of the door during its operation:

• Stop entry for emergency stop.
• Two independent entrances for photocells.
• Two independent entries for safety bands.
• Obstacle detection by amperimeter sensor.
• Control of obstacles by encoder.
• Configurable photocell test before opening or closing.

These functions allow the table to adapt the table to facilities that require a high level of security, especially in industrial, community doors or intensive use.

Programmable auxiliary outputs

The picture incorporates three potential free relays Configurable for different functions, such as flash lamp, traffic light, garage, brake, electronement or other auxiliary installation elements.

Simple programming via LCD screen

Thanks to its backlit LCD screen and integrated keyboard, the box allows you to configure the parameters clearly and easily. The menu system facilitates the start-up, the adjustment of the maneuver and the review of states or errors.

Main connections

• Power: 230VAC 50Hz.
• Engine: three-phase 230vac.
• Auxiliary outputs: 3 Potential free relays.
• Departure Accessories: 24vac.
• Peripheral output: 15vdc.
• Security entries: Photocells, Safety Bands and Stop.
• Control entries: LL1, LL2 and LL3.
• ENTRODUCTION: Inculvenum encoder of 1 or 2 channels.

Recommended product for professional facilities

The Sminn Box L VF1D It is an advanced solution for automations that require precise control of the engine, speed regulation, secure management and personalized maneuver configuration.

It is especially suitable for professional installers who need a versatile, configurable and prepared picture for industrial or community doors with 230V three-phase motor.
