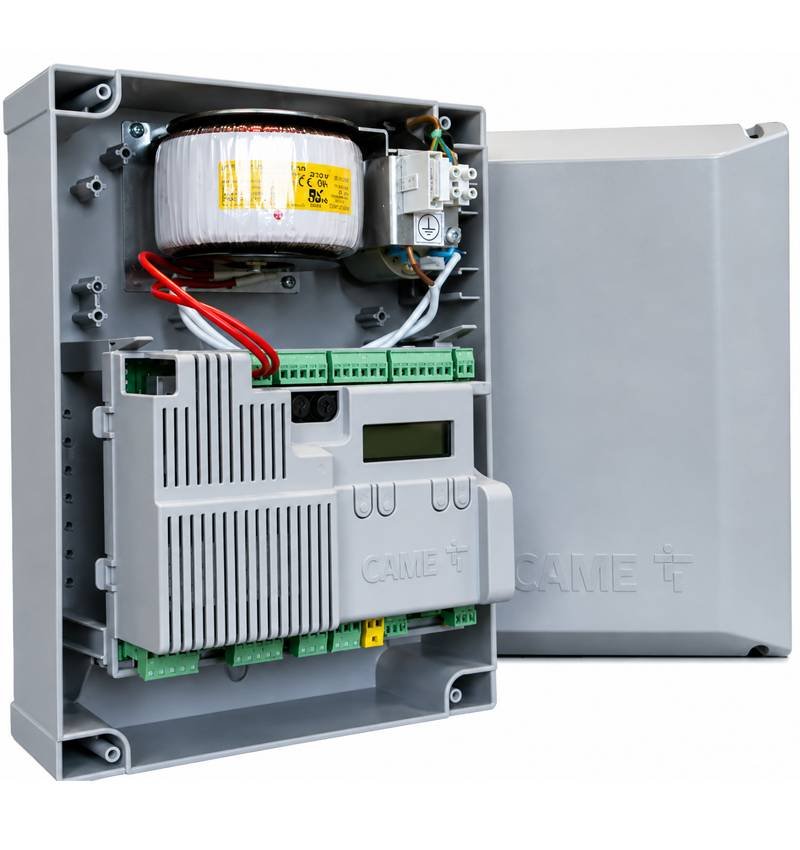

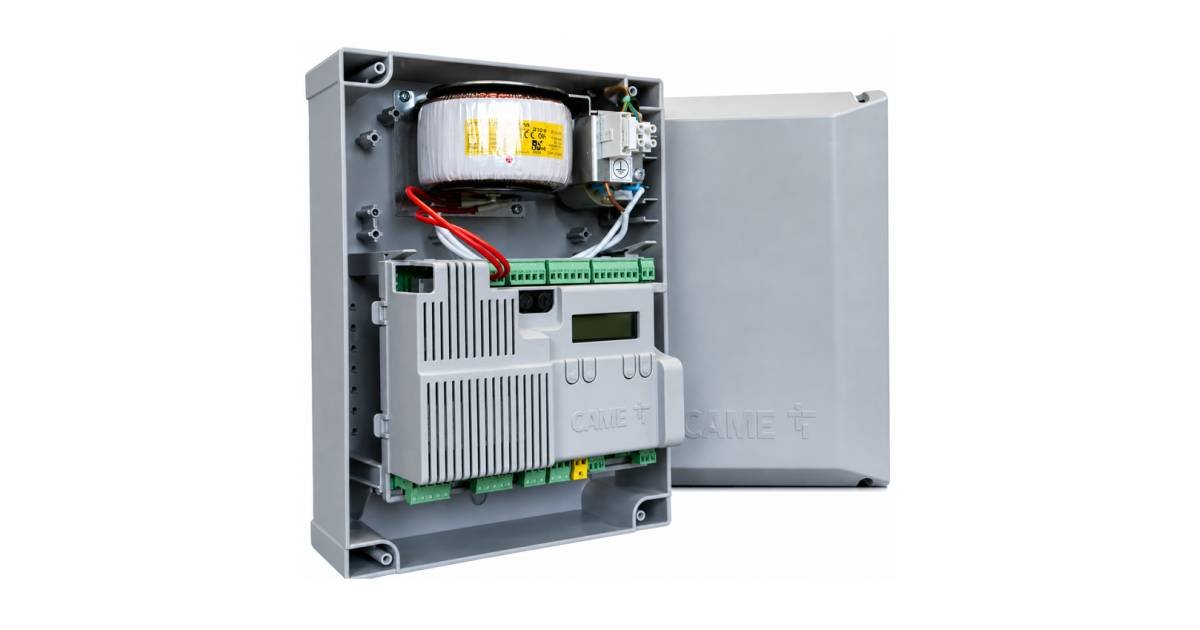

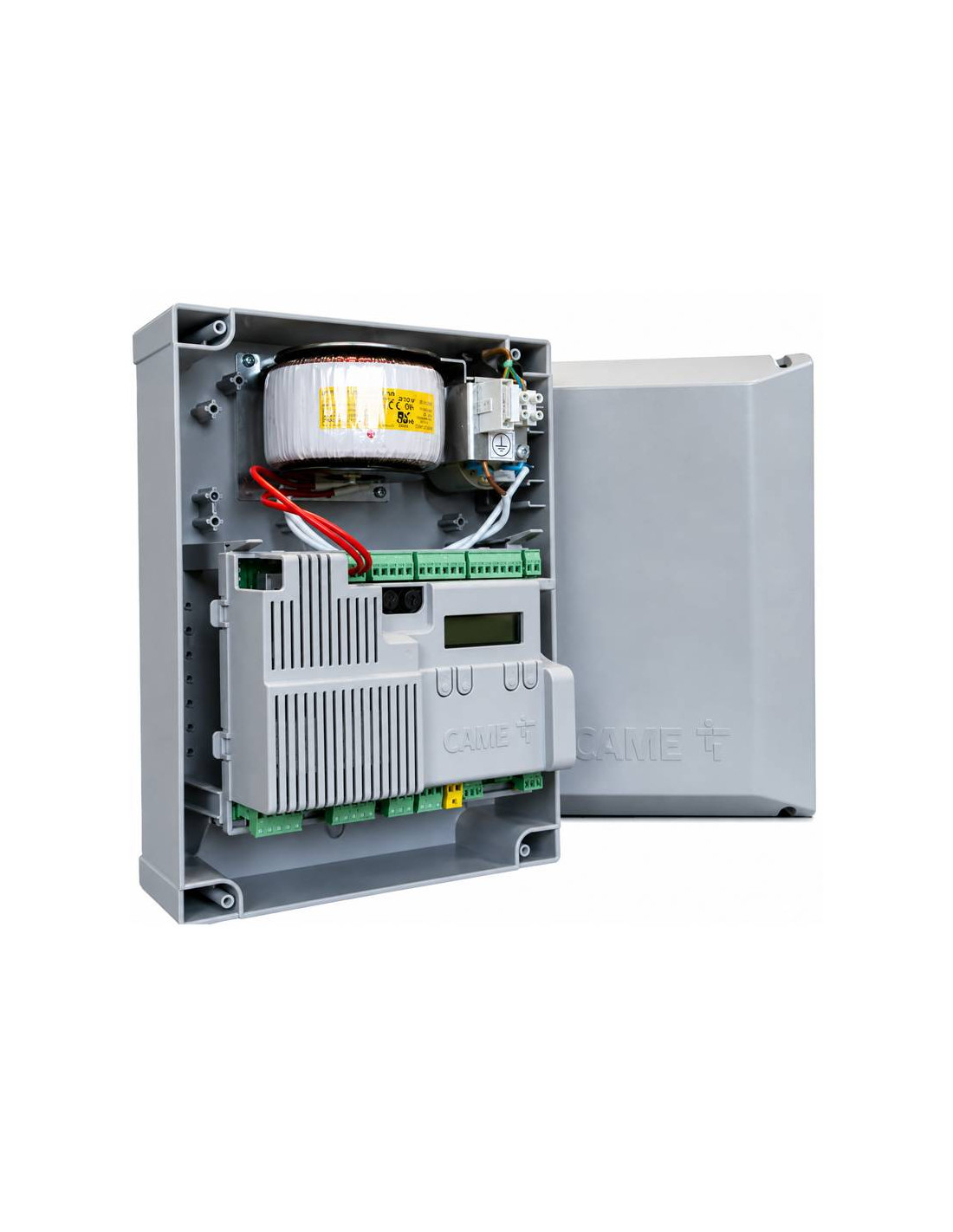

Maneuvering CAME ZLX24SA (801QA-0060)

CAME Zlx24sa it is a multifunction maneuver chart designed for automatisms of two-leaf swing doors with engines 24v. Incorporates feeding 230V AC, Programming and Signaling Graph Display, Self-diagnosis of Security Devices and Advanced Speed Control and Pair Control Technology.

This electronic table is designed for residential, community or professional facilities where accurate, safe and configurable management of automatism is required. Thanks to its compatibility with multiple engines CAME of 24V, it is a very versatile solution for both new facilities and for substitutions of compatible ancient frames.

Main advantages of the picture CAME Zlx24sa

• Multifunction picture: prepared to control two-leaf swing doors with 24V engines.
• Integrated graphic display: it facilitates the programming, configuration and diagnosis of automation.
• Self-diagnosis of assurances: it allows monitoring the connected security devices.
• Technology Adaptive Speed & Torque: advanced speed and pair management for a more controlled movement.
• Bus cxn: compatible with accessories using CXN bus system.
• Compatible with Encoder: it allows a more precise management of the engine movement.
• 4 Security Inputs: greater flexibility to connect photocells, sensitive bands or other devices.
• Memory up to 1000 users: ideal for installations with multiple controls or registered users.
• IP54 protection: case prepared for protected exterior installation.

Recommended applications

• Automatic swing doors of one or two leaves.
• Automation CAME with 24V engines.
• Residential and community facilities.
• Replacement of electronic paintings CAME compatible.
• Installations that require Encoder, security control and advanced programming.

Technical characteristics

Compatible motors

The maneuvering box CAME Zlx24sa it is compatible with different automations CAME of 24V for swing doors and other compatible systems. Among the compatible models are:

• AXI
• STYLO
• ATS
• ATI
• AXO
• FROG
• FTX
• FAST
• FERNI
• F4000
• EMEGA

Configurable models from the box

From the configuration menu of the box you can select different types of engine to adapt the operation of the equipment to the installation. Among the models indicated in the manual are included:

• Stylo-I
• Stylo-rme
• FTX
• Fast-70
• AXI
• A1824
• FERNI
• Ferni-v
• AXO
• A3024N / A5024N / F7024N
• Frog-a24
• Frog-a24e
• ATS
• F1024
• F4024e
• F4024ep
• Em4024
• ATI-30DGF / ATI-50DGF

Compatible optional accessories

• Module RGSM001 806SA-0010: optional accessory for GSM functions.
• SMA module 009SMA: optional accessory for expansion of functions.
• Battery charger card RLB 002RLB: it allows the connection of emergency batteries.
• Batteries 7Ah 846XG-0030: recommended to control all the necessary motors from the box, installed in an external box.

Installation recommendation

The installation and programming of the box CAME 801QA-0060 ZLX24SA it must be done by qualified personnel. Before replacing an old box or installing this equipment in an existing automation, it is recommended to check the exact motor model, the type of encoder, the race endings and the safety devices installed.

In installations with a single motor, the manual indicates that the connection must be made on the output corresponding to m2 engine. For two-sheet installations, connections to M1 and M2 according to the delayed leaf in opening and closing.
