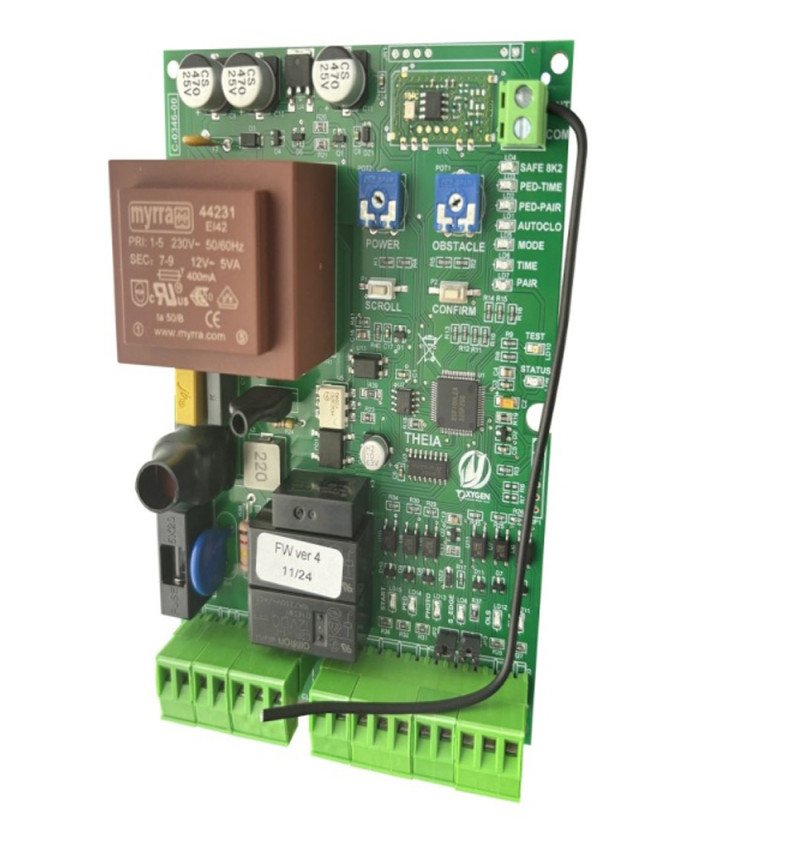

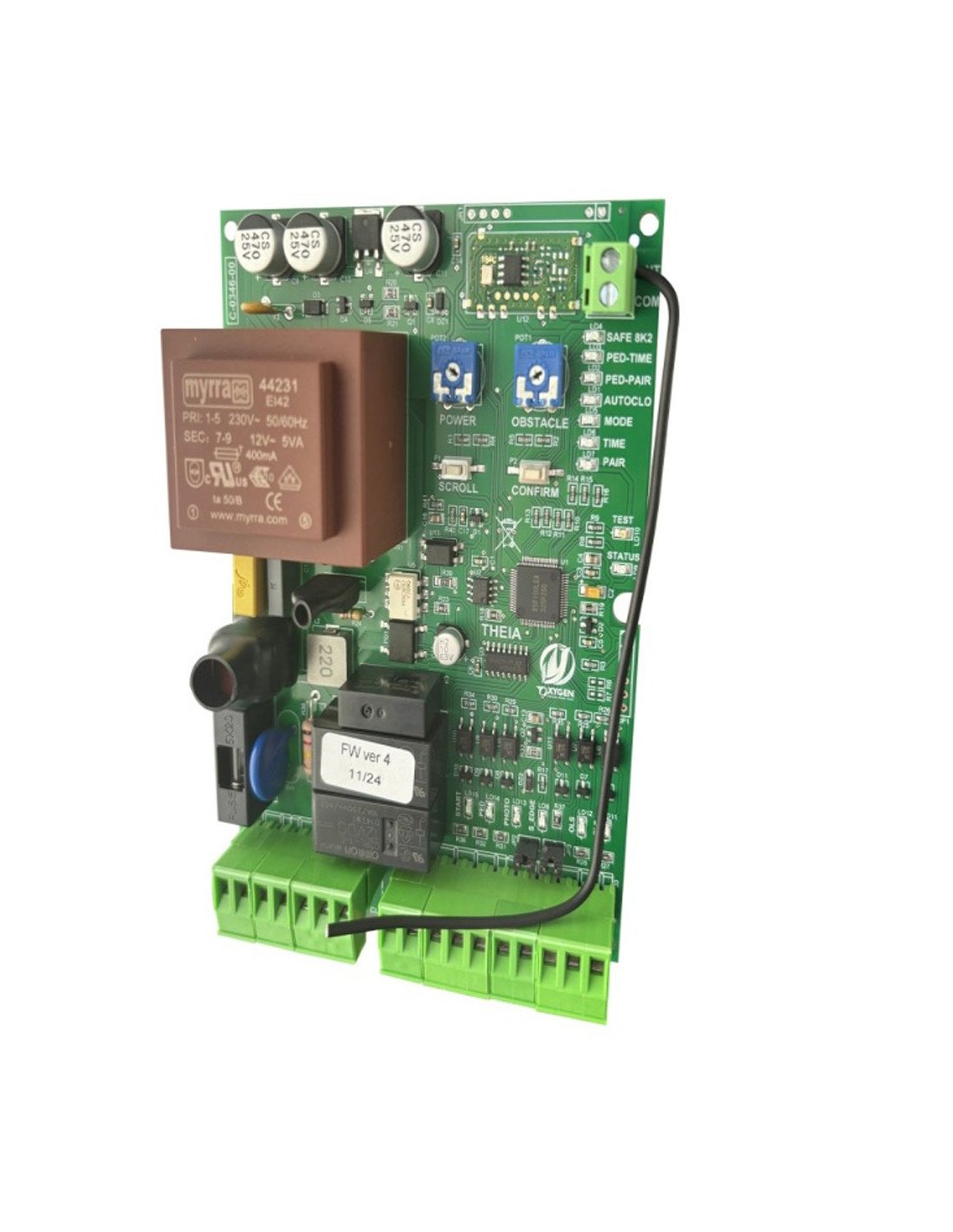

Maneuvering Oxygen Theia 230V for sliding engine
GAT9.2003
€55.00
VAT excluded
66,55 €
Tax incl.
Oxygen Theia 230V It is an electronic center designed for automation of Sliding door with a single-phase 230 vacuum engine. Allows you to control engines up 500 W and incorporate radio receiver Rolling Code at 433 MHz, Power regulation, obstacle detection, pedestrian opening and configurable slowdown.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Maneuvering Oxygen Theia 230V for sliding engine
Oxygen THEIA 230V it is an electronic center designed for automation of sliding door with a single-phase 230 vacuum engine. Allows you to control engines up 500 W and incorporate radio receiver Rolling Code at 433 MHz, power regulation, obstacle detection, pedestrian opening and configurable slowdown.
Your menu through the push buttons SCROLL and CONFIRM, together with the diagnostic LEDs, facilitates the programming and checking of the status of the entries, the end of the race and the security devices.
Compatibility
Suitable for:
- Sliding doors equipped with a 230 Vac single-phase engine.
- Motors with a maximum power of 500 W.
- Automation with independent connections opening, common and closing.
- Motors with career finishes wiring opening and closing.
- Controls Oxygen Automation compatible with the receiver Rolling Code of 433 MHz.
Main advantages
- Integrated radio receiver with memory for a maximum of 100 controls.
- Programmable pedestrian opening by wired input or a second button on the control.
- Slowdown in opening and closing with configurable points during the learning of times.
- Regulation of motor power by means of a potentiometer, from 50% to 100%.
- Advilled obstacle detection and possibility of deactivating it.
- Programmable automatic closure with a maximum time of 5 minutes.
- Logic operation step by step or collective.
- Entrance for security band NC or resistive 8k2.
- Status LED to facilitate the diagnosis of tickets and assurance.
Functions of the Central Oxygen THEIA 230V
Engine control and slowdown
The Central manages a 230 Vac engine through the outputs of opening (OP), common (COM) and closure (CL). Learning allows you to set the opening and closing times and select the time when the slow down before each end of the race.
Total and pedestrian opening
The entrance STR performs the opening and closing control, while the entry PET it allows a partial opening for the pedestrian passage. Both entries work through a contact normally open and tension-free.
Security Device Management
It has an entrance PHO for photocells with NC contact. If the beam is interrupted during closing, the door stops and reopens completely. The entrance EDG supports an NC or resistive security band 8k2; When activated, it stops the movement and invests the maneuver for approximately 5 seconds.
ROLLING CODE receiver integrated
The integrated receiver works 433 MHz and can memorize up 100 controls Oxygen Compatible Automation. It also has a connection for the short antenna supplied or for an external antenna.
Technical characteristics
| Feature | Specification |
|---|---|
| Main power | 230 VAC, 50 Hz |
| Type of automatism | Sliding door with an engine |
| Motor output | 230 VAC, 500 W max. |
| Exit for flashing light | 230 VAC, 100 W max. |
| Food for photocells | 12 VDC, 3 W max. |
| Integrated receiver | Rolling Code, 433 MHz |
| Memory capacity | Up to 100 compatible controls |
| Control entries | STR General and pedestrian PED, contact no |
| Security entries | NC photocell and NC / 8K2 BAND |
| Race | Opening, common and closing |
| Operating temperature | 10 ° C to 55 ° C |
| Dimensions of the plate | 100 × 138 × 45 mm |
Available connections
| Borne or entrance | Function |
|---|---|
| 230VAC | Network feeding, phase and neutral |
| LIGHT 230VAC | Exit for 230 V flashing light |
| OP / COM / CL | Engine: Opening, Common and Closing |
| + 12V / -12V | Food accessories and photocells |
| STR / COM | General Command Contact Not Free Voltage |
| PED / COM | Contact pedestrian opening control NO |
| PHO / COM | Input for photocell with NC contact |
| EDG / COM | Entrance for NC or 8K2 security band |
| OLS / COM / CLS | Finals of opening and closing race |
| ANT / COM | Connection for radio antenna |
Important before buying
- This central is destined to a 230 VAC slide engine and up to 500 W.
- It is not suitable for engines 24 VDC nor for systems that depend on encoder or a proprietary bus, unless expressly compatible confirmation.
- The frequency of 433 MHz on its own does not guarantee the compatibility of any command; emitters should be used Oxygen Automation compatible with your Rolling Code system.
- When the PHO or EDG safety entries are not used, they must be kept correctly closed using their bridges, according to the manufacturer's instructions.
- Installation and any intervention on the 230 V feeding must be performed by qualified personnel.
