Maneuvering Pujol Junior and pro

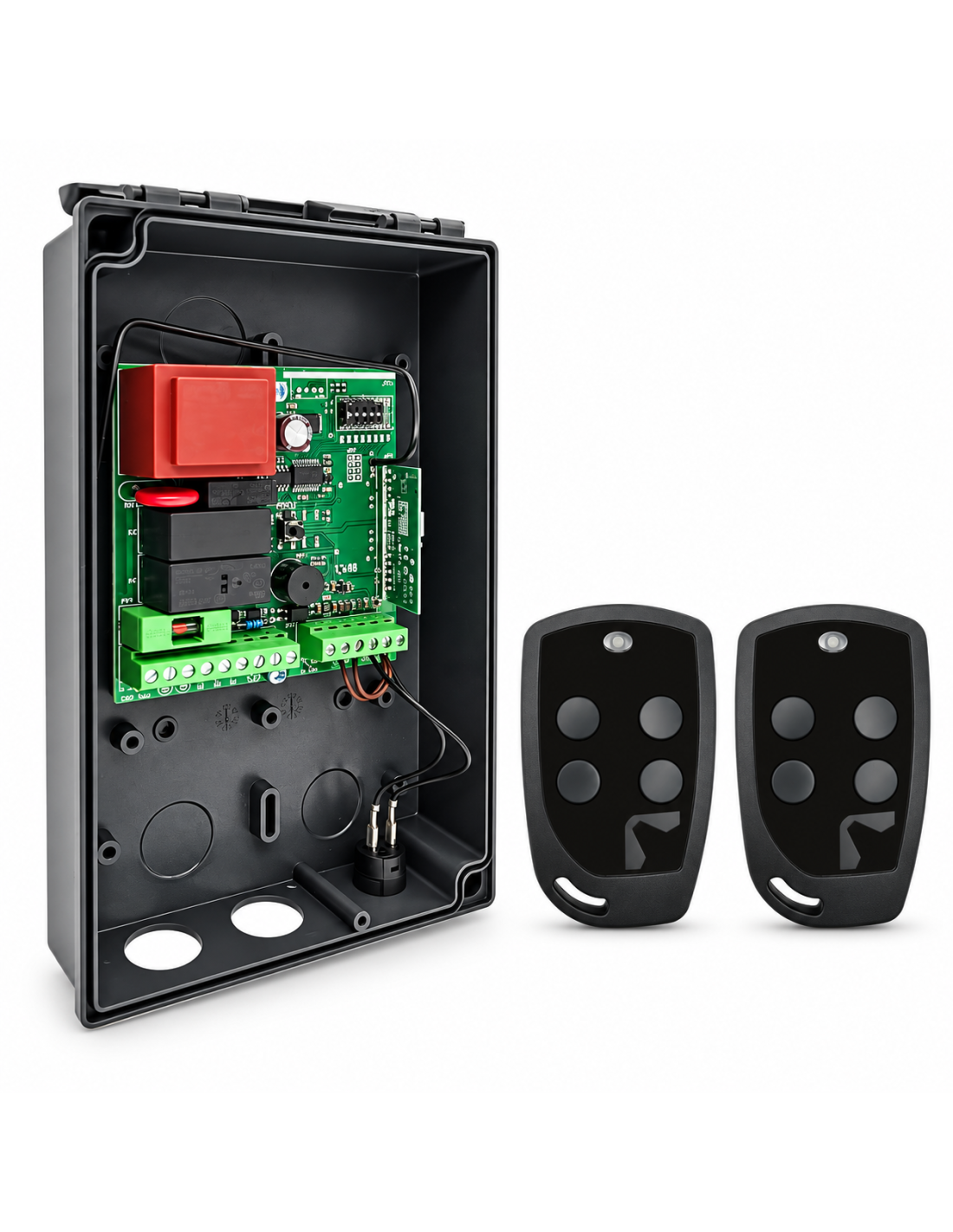

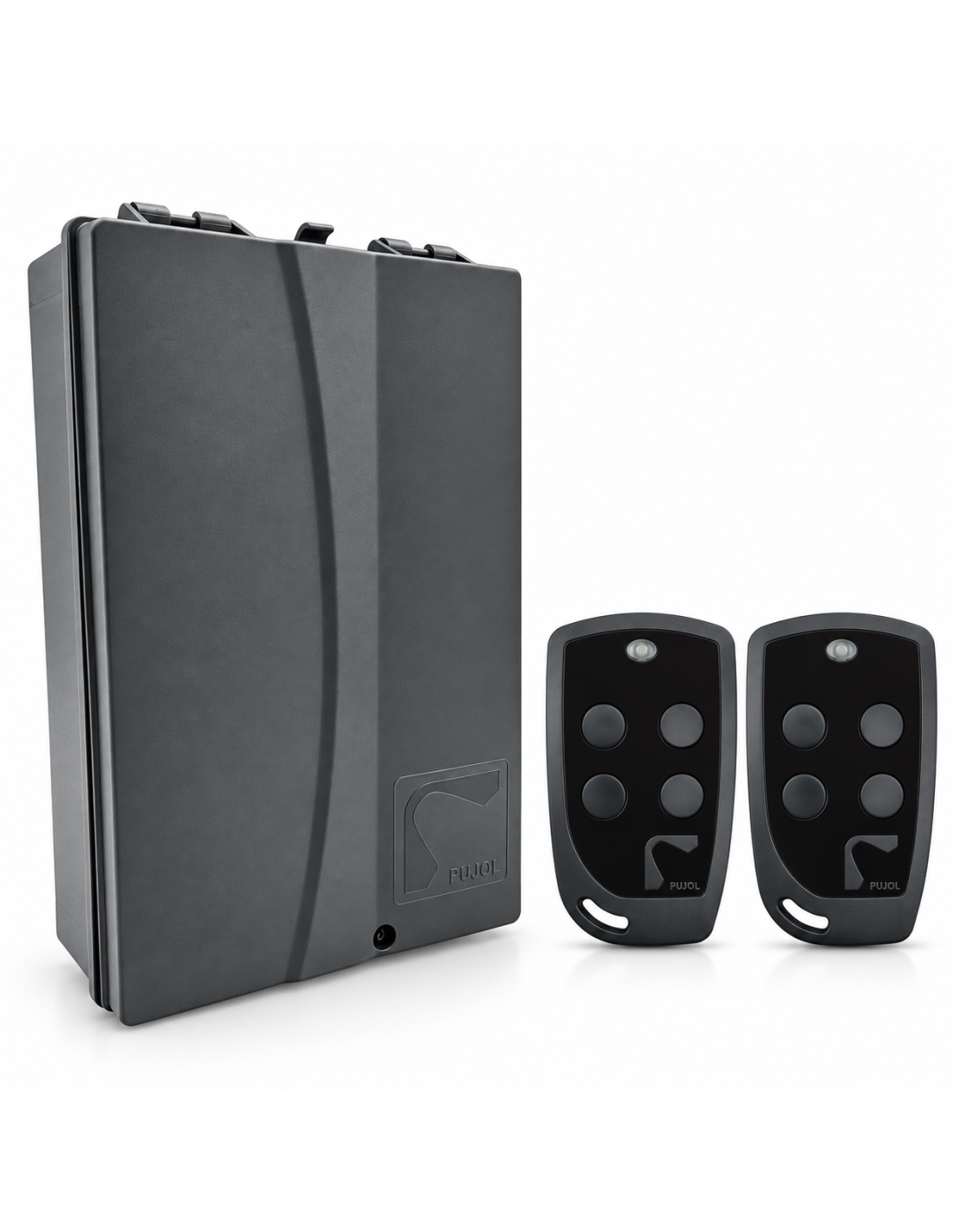

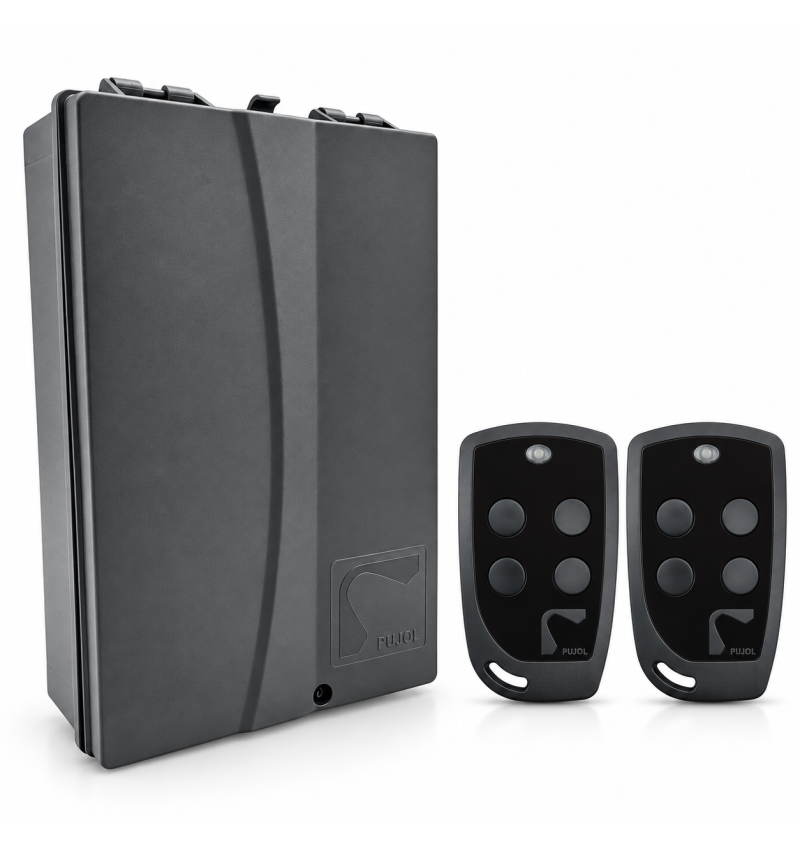

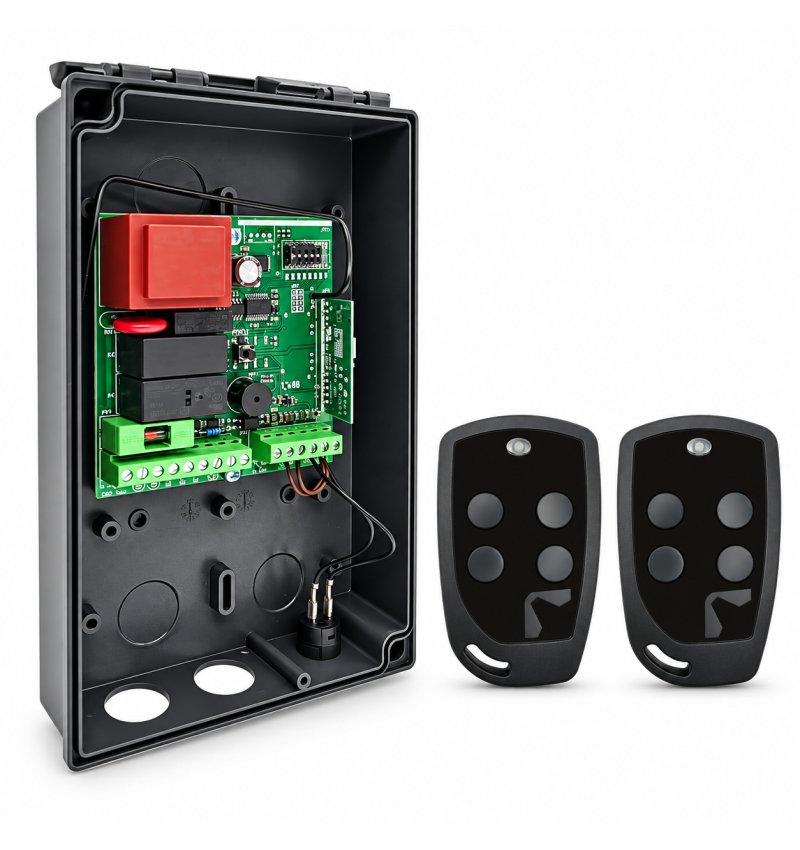

Electronic control box PUJOL JUNIOR E PRO for roller doors with receptor built to 433.92 MHz Compatible with transmitters Pujol Vario and Secure.

Protection of the entry of the power and motor by means of 6.3 AF fuses.

LED network indicator.

Alternative pushbutton and safety contacts (photocells)

Functions Table Maneuvers Pujol:

• Automatic descent
• Selection of maneuver times in opening and closing
• Programming via radio to schedule future controls from one already scheduled
• Man present to close the door by holding the control button or alternative
• Safety settings such as security bands type 8k2

Specs Pujol Junior and Pro:

• Feed: 220-230v 50/60 Hz
• Engine power: 1200 W
• Time: 2 minutes and 30 seconds
• Closing time: Programmable in 3 minutes
• Combinations of codes: 72 million codes
• Code numberS: 63 Various / Secure codes
• Programming the codes selection of functions: Self-learning, memorizes the code function
• Frequency: 433,92 MHz
• Auxiliary: 50mA
• Sensitivity: greater than -100 dBm
• Application field: Standard 70 m
• Antenna: Built-in
• Operating temperature: -10ºC / + 55ºC
• Acoustic pressure: <70 dB (A)

Description of the Borneros:

• L: Power phase 230 V CA
• N: Feed Neutral 230 V CA
• 3. Feeding ground
• 4. Earth Motor
• 5. Motor Closing or motor down
• 6. Engine opening or rise of the motor
• 7. Common of the engine
• 8. Intermittent or flashing light
• 9. Intermittent or flashing light
• 10. External 12 V AC power
• 11. External 12 V AC power
• 12. Safety side
• 13. Safety contact
• 14. Alternative pushbutton (N.O.)
• 15. Common of the maneuver

Instruction Manual:

Manual Pujol Junior and pro
