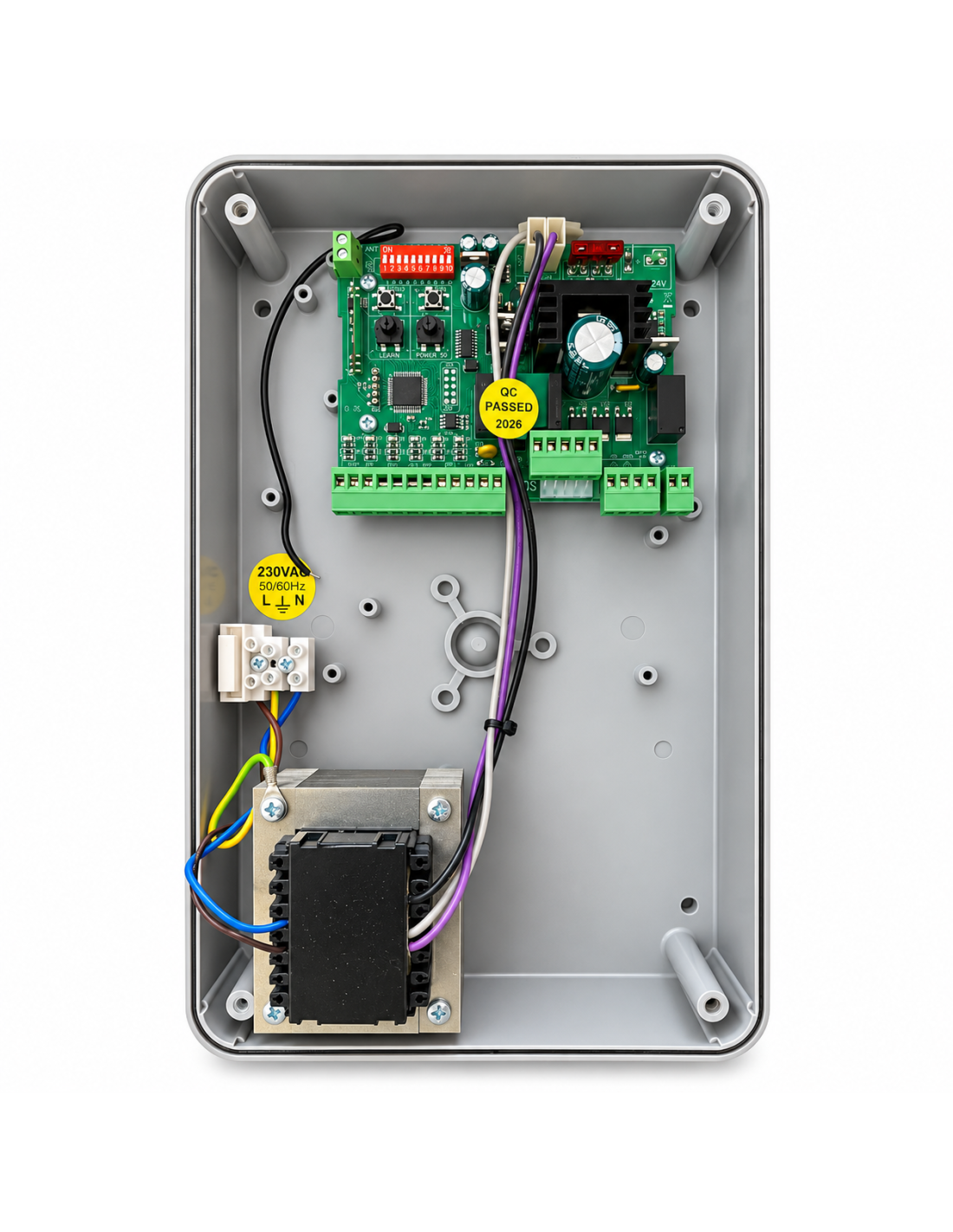

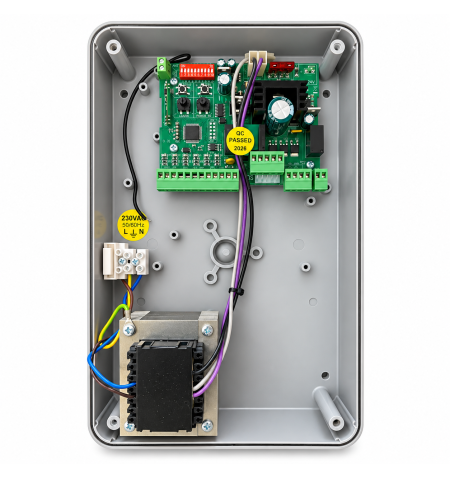

Picture VDS EURO24M1 24V with receiver, transformer and sealed box

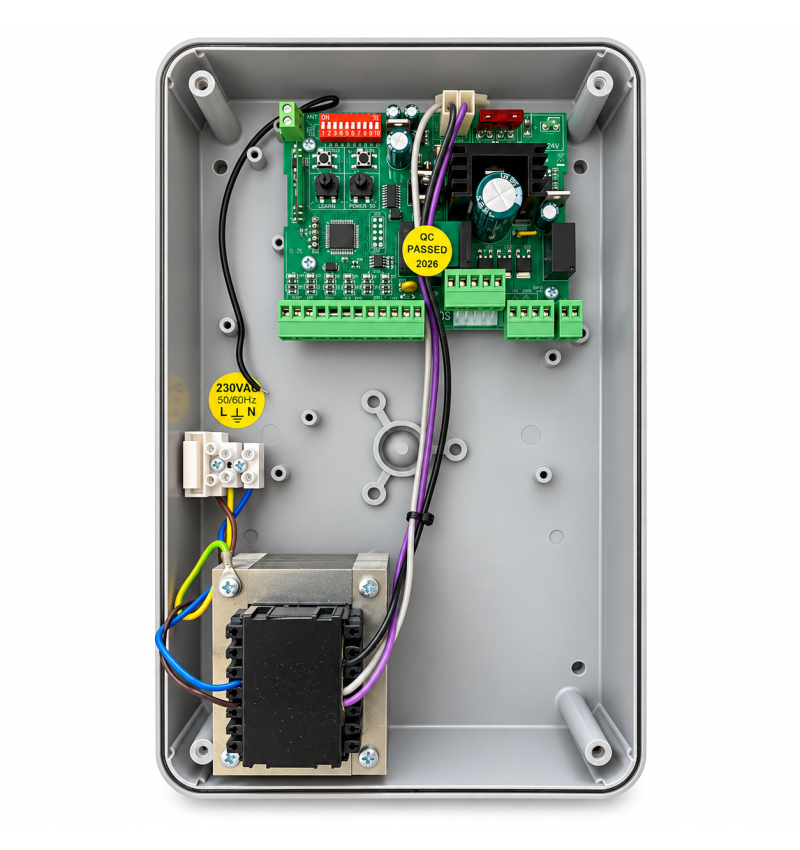

Maneuvering VDS Euro24M1 24V for 1 motor with receiver, transformer and sealed box

The VDS Euro24M1 Ref. E103 / AND is a complete set of control for automation equipped with 1 24 vDC engine.

The set includes the electronic plate euro24m1, radio receiver, power transformer and protective bench, facilitating its installation as a complete maneuver box.

The plant can work with engines with or without career end, as well as with encoder o encoder combination and race enders.

It is indicated for different automations VDS of 24V, as sliding doors, countered tilting doors and automatic barriers, provided that the electrical and operating characteristics are compatible.

Complete set Ready for installation

✓ Electronic plate VDS EURO24M1.

✓ Radio receiver included.

✓ Feeding transformer.

✓ Stacked protective box.

✓ 1 24 vDC engine.

✓ Control for 1 24 vDC engine.

✓ Supported motor power up 60 W / 2.5 A.

✓ Compatible with race.

✓ Entry for encoder.

✓ Independent regulation of force in normal speed and slowdown.

✓ AMPER-STOP for obstacle detection.

✓ Function of slowdown configurable.

✓ Automatic closure adjustable.

✓ crosswalk.

✓ Entry for closing photocell.

✓ Entry for safety band or photocell in opening.

✓ Entry of STOP.

✓ Exit for flashing.

✓ Exit for courtesy light.

✓ Possibility of connecting 24 vDC backup battery.

The Central has two independent regulators:

■ Trimmer T1 - POWER: it regulates strength and sensitivity during normal speed movement.

■ Trimmer T2 - POWER SLOW: it regulates strength and sensitivity during the slowdown phase.

The EURO24M1 it has an entrance for encoder, activated by the corresponding Dip-switch.

The plant also incorporates the system AMPER-STOP, which allows controlling the behavior of the automation when it detects a resistance or obstacle.

With the activated encoder, the response and control capacity of the security system is improved.

✓ START with sequence Open / STOP / CLOSES / STOP.

✓ Entry for pedestrian opening.

✓ Entry of STOP.

✓ Entry for closing photocell.

✓ Entry for safety band or photocell in opening.

✓ Tickets for end of opening and closing race.

✓ Entry for encoder.

✓ Entry for external antenna.

The table has 8 DIP-switches to adapt the operation of the central to the installed automation.

Among the main configurable functions are:

■ Selection of the type of automation.

■ Activation or deactivation of automatic closure.

■ Community operation or step by step.

■ Investment of the direction of progress.

■ Configuration of safety in opening.

■ Operation of the flashing lamp.

■ Activation of slowdown.

■ Activation or deactivation of the encoder.

The plant can manage issuers of fixed code or Rolling Code.

The first memorized control determines the coding system that the installation will use, since both systems they can not be used simultaneously.

Memory admits 254 controls.

The Euro24M1 has an entrance to 24 vDC backup battery up to 7 ah.

A 24 VDC battery can be used or 2 12 vDC batteries connected in series. In case of absence of normal power, the plant can automatically use the emergency battery.

The central VDS Euro24M1 can be used in different automations equipped with a 24 VDC engine.

✓ Sliding doors.

✓ Counterbered tilting doors.

✓ Automatic barriers.

Important before placing the order

Check that the motor to control works 24 VDC and that its power and operating system are compatible with the EURO24M1 central. The compatibility must be verified especially when it is used as a replacement of another maneuvering box.
