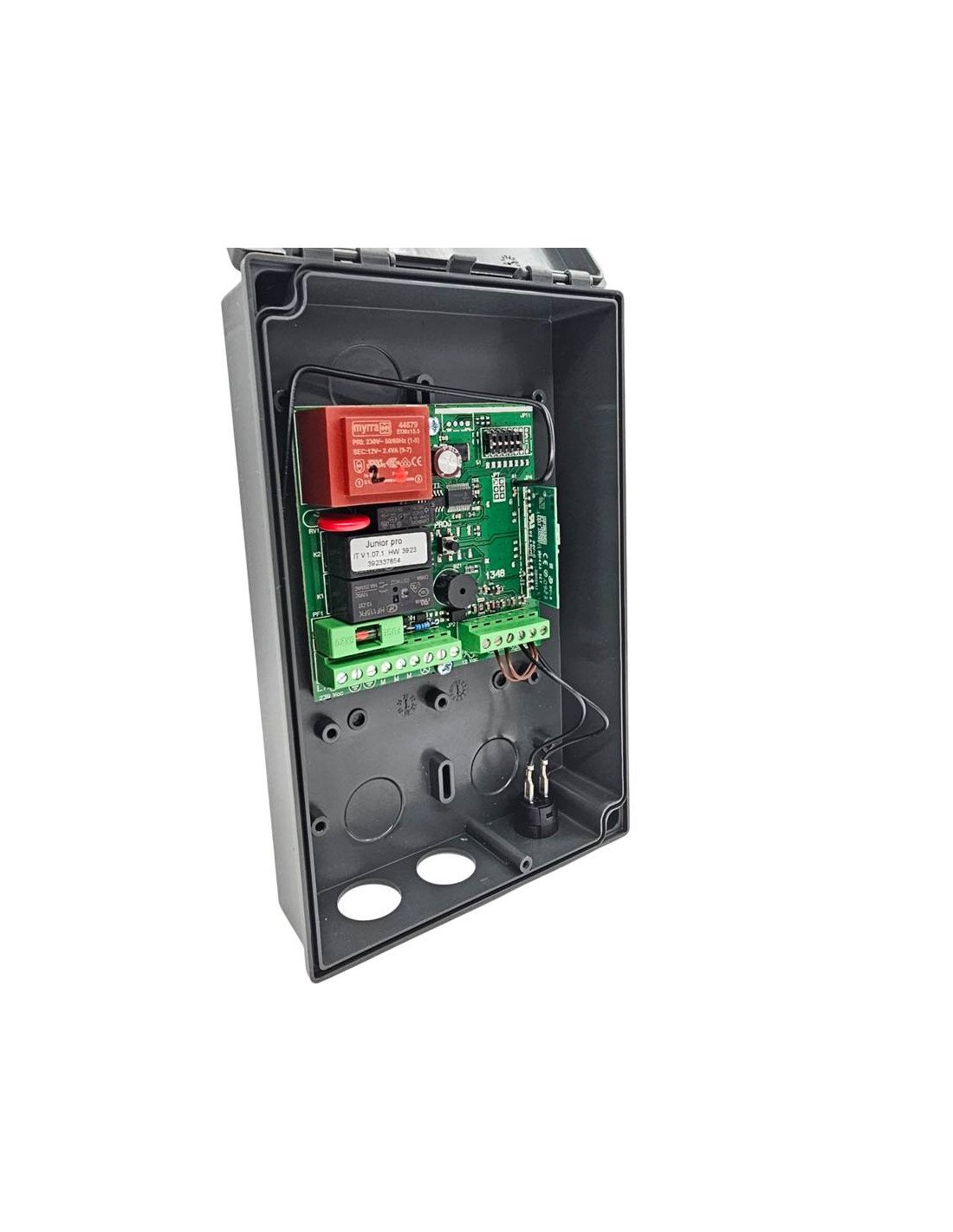

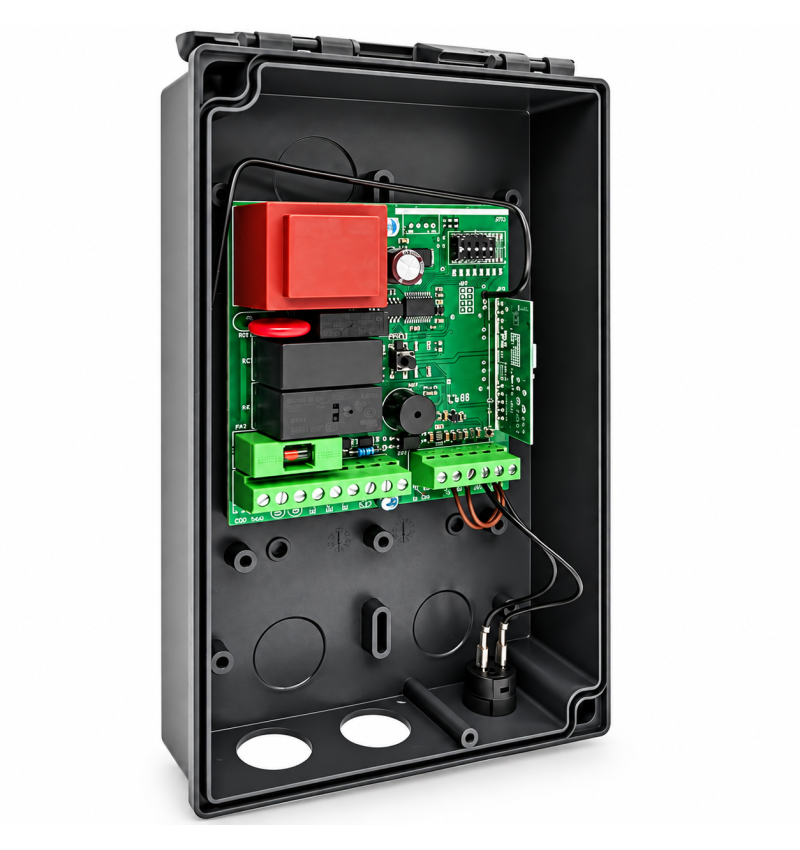

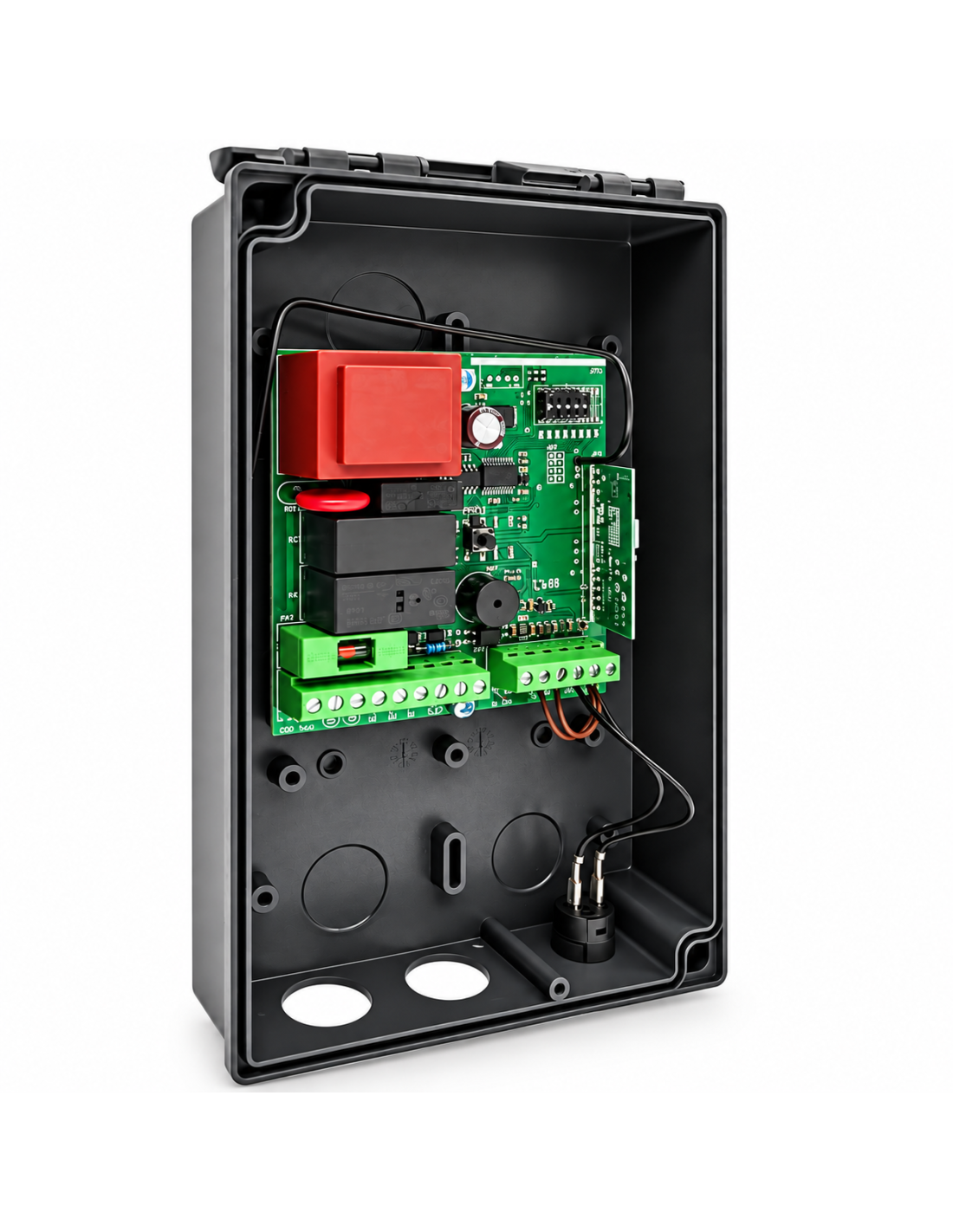

PUJOL JUNIOR E PRO electronic control panel for roll-up doors with built-in 433.92 MHz receiver compatible with Pujol VARIO and SECURE transmitters.

Power and motor input protection by 6.3 AF fuses.

LED network indicator.

Reciprocating push-button input and safety contacts (photocells)

FUNCTIONS

• Automatic Lowering
• Selection of manoeuvring times at opening and closing
• Radio programming to program future controls from an already programmed one
• Man present to close the door by holding down the button on the remote control or alternate
• Safety settings such as 8k2 safety belts

TECHNICAL SPECIFICATIONS

• Power supply: 220-230V 50/60 Hz
• Motor power: 1200 W
• Operating time: 2 minutes and 30 seconds
• Closing time: programmable in 3 minutes
• Code combinations: 72 million codes
• Number of codes: 63 VARIO/SECURE codes
• Programming the Codes Function Selection: Self-Learning, Memorizes the Code Function
• Frequency: 433.92 MHz
• Auxiliary current: 50mA
• Sensitivity: greater than -100 dBm
• Application: Standard 70 m
• Antenna: Built-in
• Operating temperature: -10ºC/+55ºC
• Sound pressure: <70 dB (A)

DESCRIPTION OF THE TERMINALS

• L: Power Phase 230 V AC
• N: Neutral power supply 230 V AC
• 3. Feeding Ground
• 4. Ground Motor
• 5. Engine shutting down or lowering the motor
• 6. Motor Opening or Raising Motor
• 7. Common Engine
• 8. Flashing or flashing light
• 9. Flashing or flashing light
• 10. 12V AC external power supply
• 11. 12V AC external power supply

MANEUVER

• 12. Safety Side
• 13. Safety Contact
• 14. Alternate Push Button (N.O.)
• 15. Common Maneuver

MANUAL

Instruction manual Pujol Junior E Pro
