Kit Motorline Puma 24V for swing door of 1 sheet up to 1.8 m

Name: Kit Motorline Puma 24V for swing door of 1 sheet up to 1.8 m
Brand: Motorline
SKU: KIT PUMA400-24V-1BR
Price: 276 EUR
Availability: InStock

Reference KIT PUMA400-24V-1BR

€276.00

VAT excluded

333,96 €

Tax incl.

Kit Motorline Puma 24V for swing door of 1 leaf. Includes 1 Motor PUMA of 24 VDC and 2200 N, Central Mc62, 2 Mandos Falk, MF30 photocells and mounting accessories.

Maximum length: until 1.80 m of leaf without electrobery or even 2.00 m Using Electronement.

Engine side

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Kit Motorline Puma 24V for swing door of 1 leaf

The Kit Motorline Puma for 1 sheet is designed for automation of residential beating doors of a leaf, through an electromechanical engine 24 VDC.

The Motorline Puma combines a compact design with an aluminum structure and a reduced consumption of only 2 A, offering an efficient and reliable solution for the motorization of swing doors.

The engine develops a nominal power of 50 W and has a maximum blocking force of 2200 N, with an opening speed of 20 mm / s.

Is indicated for leaves up 1,800 mm without electrobell. For 2,000 mm a electrocerradura.

Maximum length of the leaf

✓ 1.80 m without electronement.

✓ 2.00 m using electrocerradura.

Swinging Motorline PUMA

The PUMA uses a compact structure with aluminum components and a telescopic arm designed to facilitate its integration into different types of residential swing doors.

Its design combines the body of the motor, planetary reducer, telescopic arm and front and rear fixing brackets.

Despiece motor batiente Motorline PUMA 24V

Features Motorline PUMA

✓ Electromechanical motor 24 VDC.

✓ Nominal power of 50 W.

✓ Nominal consumption of 2 A.

✓ Maximum blocking force of 2200 N.

✓ Opening speed of 20 mm / s.

✓ Useful race of 400 mm.

✓ Compact structure and aluminum components.

✓ Unlocking manual by key.

✓ Degree of protection IP54.

✓ Designed for residential use.

Características principales motor Motorline PUMA

Ventajas y características motor batiente Motorline PUMA

Technical characteristics Motorline PUMA

Feature	Motorline PUMA
Feeding the electronic power station	230/110 VAC
Engine output voltage	24 VDC
Nominal power	50 W
Nominal consumption	2 A
Opening speed	20 mm / s
Engine speed	78 rpm
Sound level	≤65 dB
Maximum blocking force	2200 N
Operating temperature	-25 ° C / +65 ° C
Degree	IP54
Labor	Residential use
Race	400 mm
Maximum leaf width without electrons	1,800 mm
Maximum leaf width with electronement	2,000 mm

Kit content Motorline Puma for 1 sheet

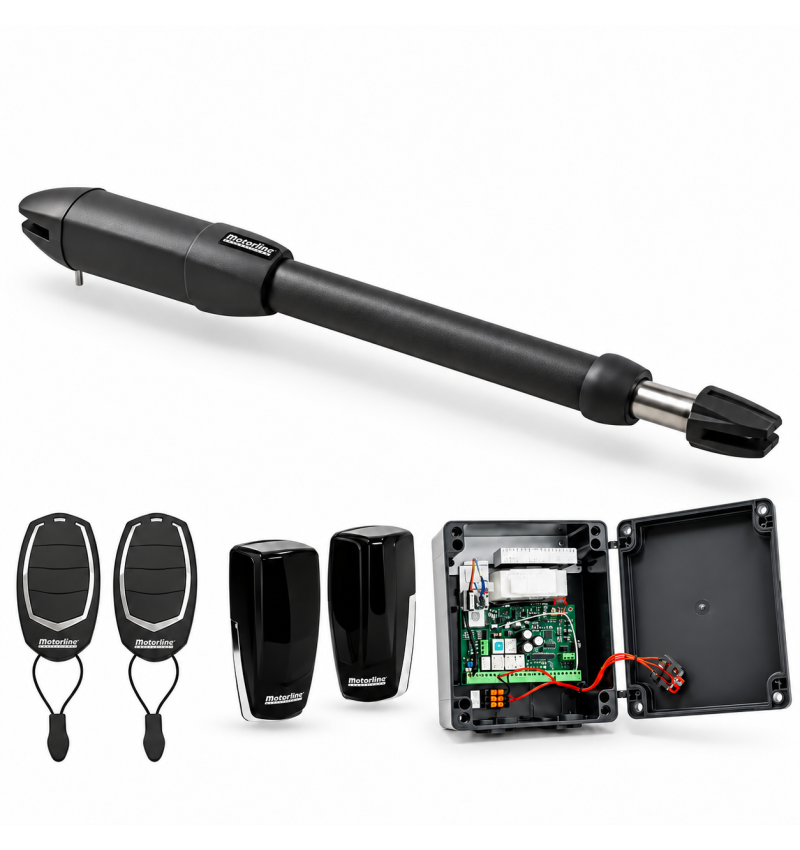

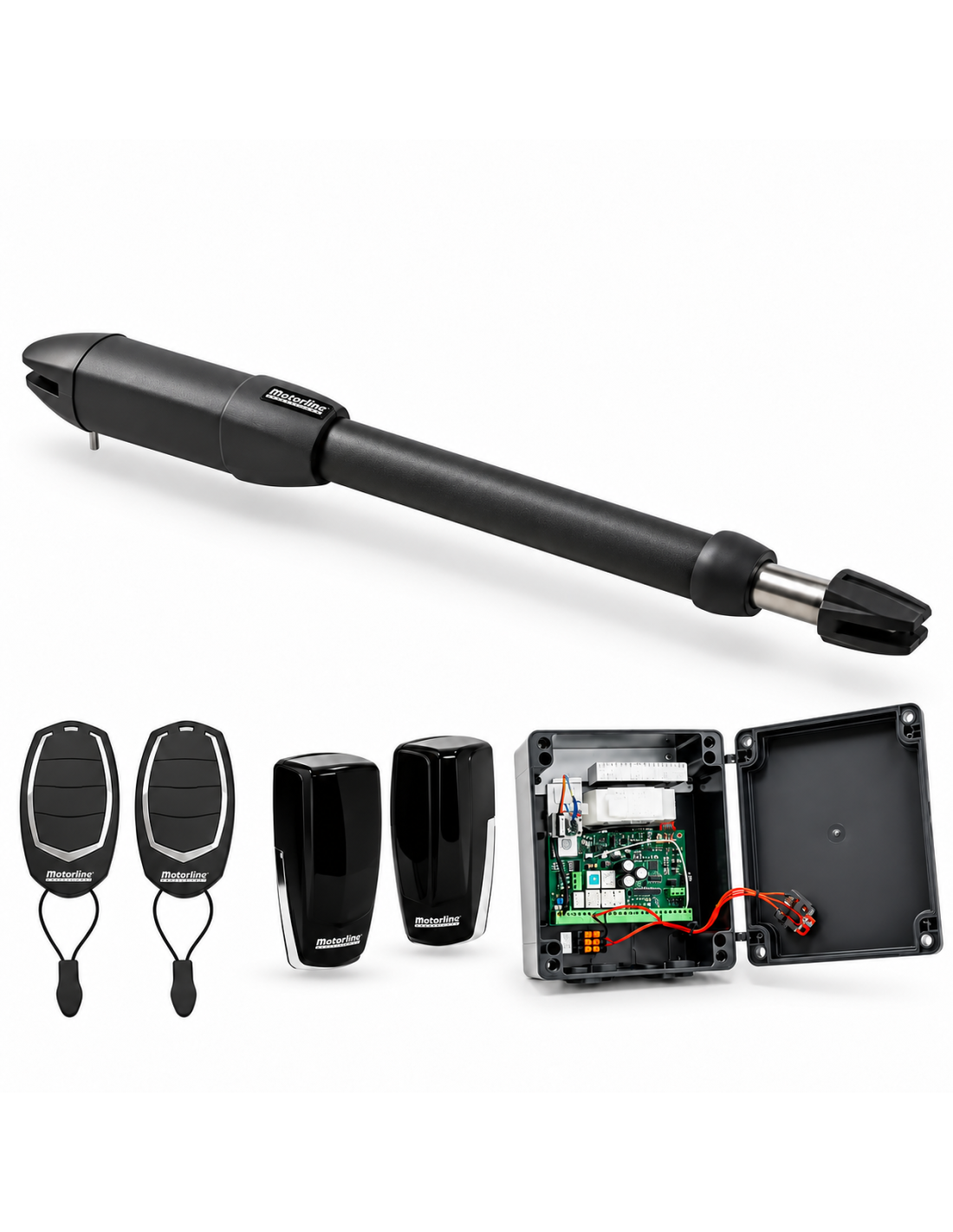

KIT MOTORLINE PUMA - SWING DOOR OF 1 SHEET

■ 1 × engine Motorline PUMA — Telescopic electromechanical engine of 24 VDC.

■ 1 × MC62 — Electronic control center.

■ 2 × FALK — Controls Motorline.

■ 1 × MF30 — Setting of security photocells transmitted / receiver.

■ 1 × front support and 1 × rear support.

■ Manual unlock key.

■ Mounting accessories corresponding to the engine.

Note: the kit does not include battery system.

Unlocking

The Motorline Puma has unlocking manual by key. In case of need, the key allows blocking or unlocking the engine to manually move the door.

Measures Motorline PUMA

The total length indicated by the manufacturer is approximately 1,272 mm, with a useful career from the actuator of 400 mm.

Before performing the installation it is important to check the space available on the pillar and on the sheet and respect the dimensions indicated in the manual.
