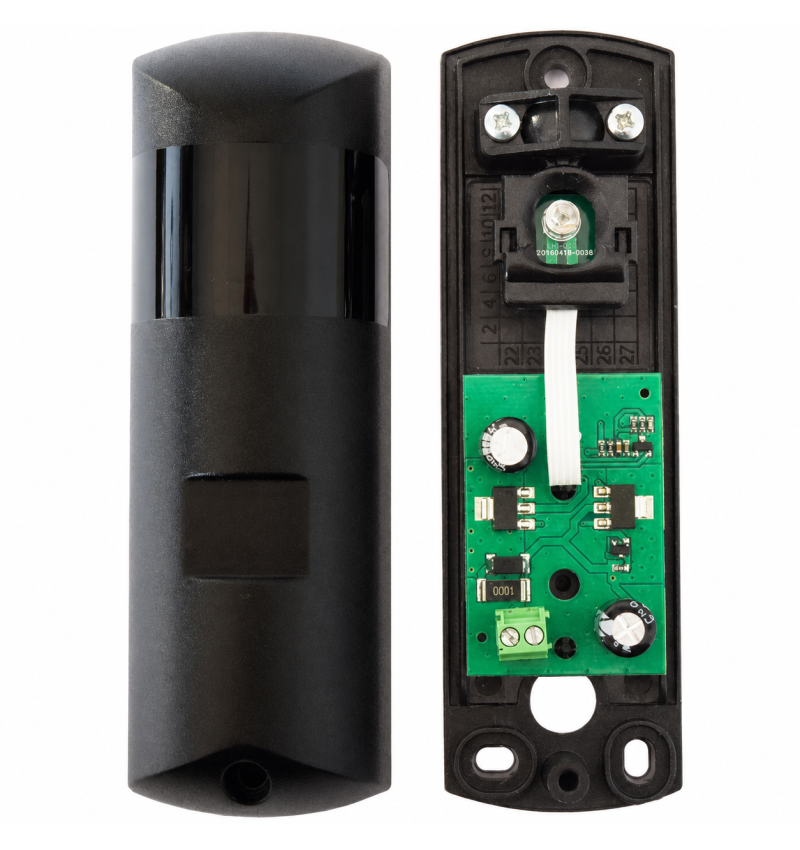

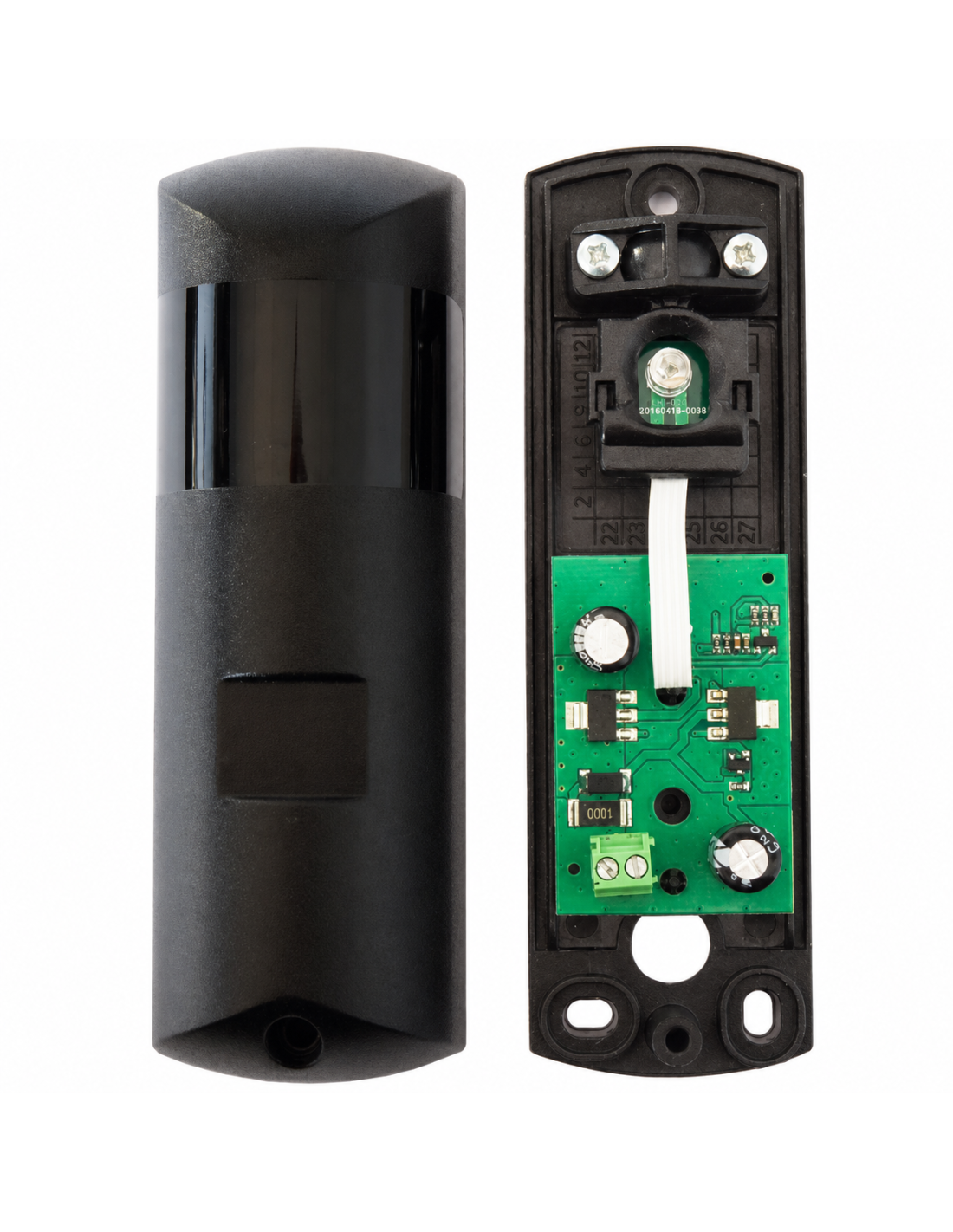

Photocell Prastel Foto-R ORIENTABLE 12-24V Up to 30 meters

The photocell Prastel Foto-R is a wired and adjustable safety device for automatic doors, gates and motorized cancers. Its regulation system allows precisely aligning the TX emitter and the RX receiver, even when they can not be installed fully confronted.

Has a 180 ° adjustable head in horizontal and 30 ° vertical, LED indicator of alignment and test points to check the quality of the signal by a voltmeter.

Ballocell Prastel Photo-a

Photo-R works with a feeding 12-24 V AC / DC Both on the transmitter and the receiver. Its scope is 15 meters in outdoor installations and can reach 30 meters nominal in optimal conditions.

The receiver incorporates a Relay output with contacts normally open, common and normally closed, Facilitating its connection to maneuvers for automatic doors.

Main features

• Wired photocell For doors, gates and motorized cancels.
• Composed system TX transmitter and RX receiver.
• Feeding 12-24 V AC / DC.
• Scope of 15 meters abroad.
• Nominal maximum range of 30 meters in optimal conditions.
• 180 ° adjustable head in horizontal and 30 ° vertical.
• LED indicator to facilitate alignment.
• Test points TP + and TP- To measure the quality of the signal.
• Relay output through contacts No, common and NC.
• Inferior response time 15 ms.
• Surface installation.
• Degree Ip44.

Simple and precise alignment

The orientable heads of the transmitter and the receiver allow to easily adjust the direction of the infrared beam. When the receiver correctly detects the signal, the Red alignment LED.

To perform a more accurate adjustment, TP + and TP-TRI - allow measuring a voltage between 0 and 4 V by a voltmeter. The higher the voltage obtained, the better the alignment of the infrared beam.
