CAME Fluo-SW | Automatic pedestrian batten motor 36V Brushless

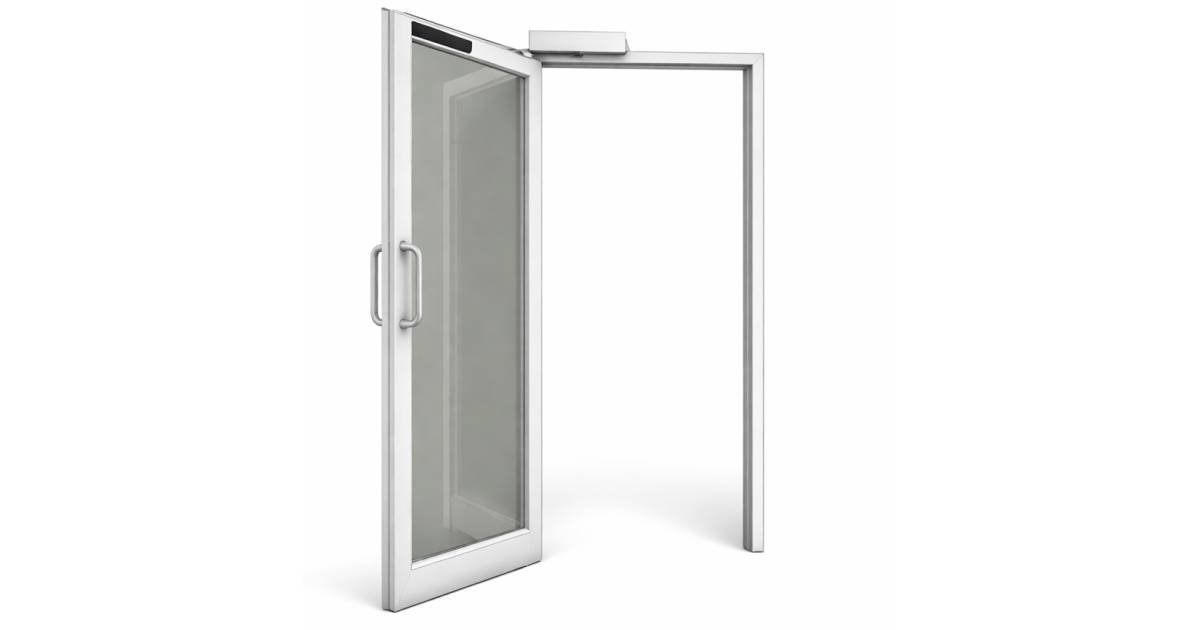

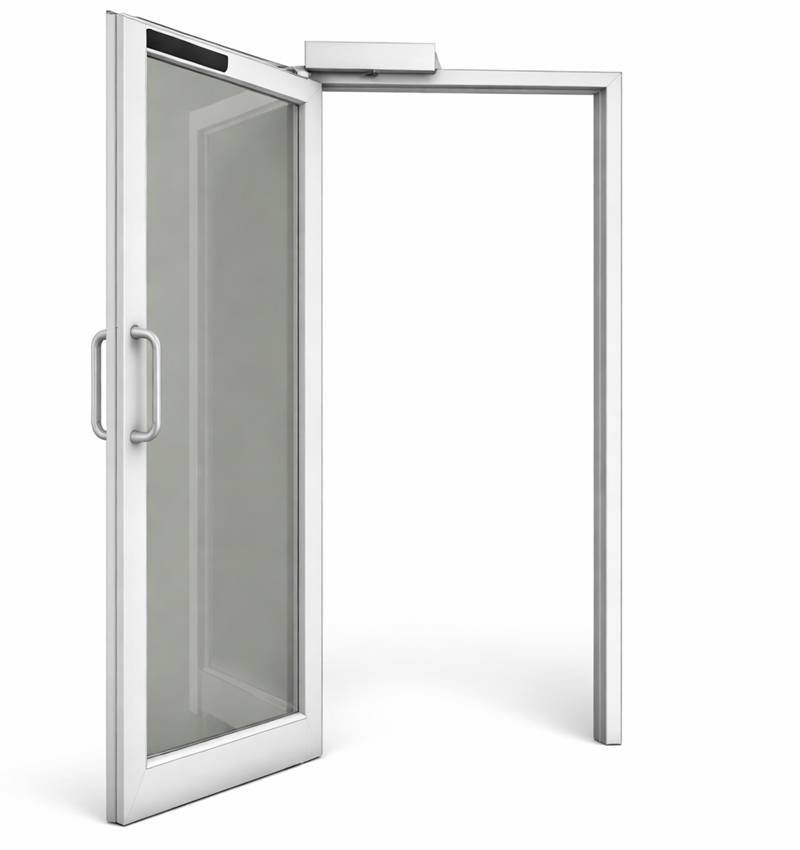

CAME Fluo-sw is a Automatic pedestrian swing motor technology Brushless 36Vdc, designed for interior access of intensive use as Lobbies, Offices, Public Buildings, Clinics, Shops and Communities. It is a reversible automatism of extremely silent operation, ideal for installations where acoustic comfort and reliability are priority.

Thanks to its advanced electronics and brushless motor, the system guarantees Low energy consumption, long service life and continuous service, complying with European regulations In 16005 For automatic pedestrian doors.

✔ Certification in 16005 For safety at pedestrian automatic doors.
✔ Compatible with emergency batteries For operation in case of electric cut.
✔ Technology Brushless 36V High efficiency and minimum maintenance.

Quick and adaptable installation

Automatism It does not require special structures. It can be installed directly at the top of the door, facilitating clean and professional integration. Accessories (sensors, selectors, electric locks, etc.) are directly connected to the main card using dedicated connectors, reducing installation times.

It is compatible with leaves of Wood, aluminum or plastic materials, as long as they have a correct structural quality.

Advantages of the system CAME Fluo-sw

• Brushless engine: Greater reliability, lower wear and low consumption.
• Ultrasilence, Ideal for professional environments.
• Fully reversible For manual opening if necessary.
• Continuous service For high traffic installations.
• Available with different Push or traction arms.
• Version available with spring closure.

Advanced electronic center

• Preconfigured card for standard installations.
• Fully customizable parameters.
• Alphanumeric For configuration and monitoring.
• Individual connectors dedicated for each accessory.
• Electronic obstacle detection For maximum security.
• Optimized maneuvering torque and speed management.

Technical characteristics

Models available

Fluo-SW2 (818SW-0010)

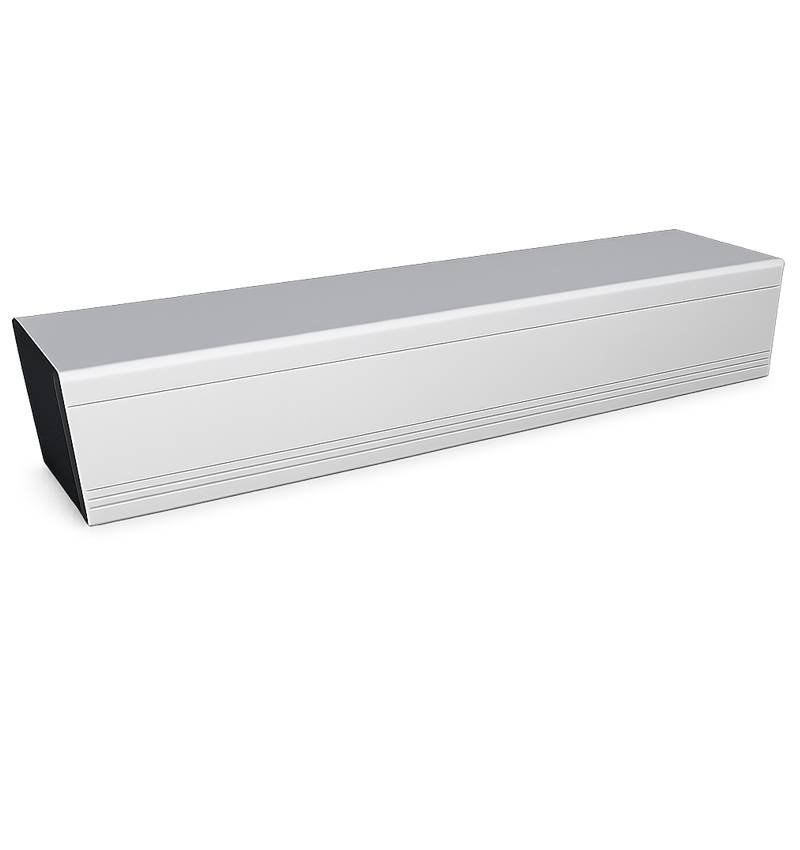

Automatism Brushless for 1 swing leaf. Standard Profile L = 443 mm. Maximum weight sheet: up to 200 kg.

Fluo-SW3 (818SW-0020)

Automatism Brushless for 1 swing leaf. Standard Profile L = 463 mm. Maximum weight sheet: up to 300 kg.

Supported arm types

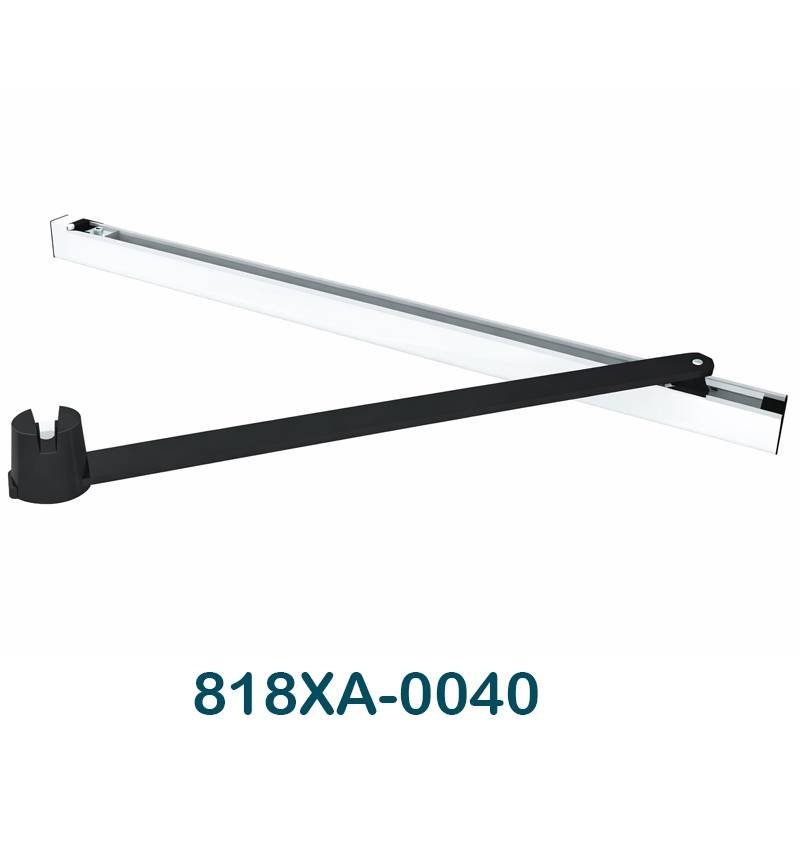

• 818xa-0040: Straight traction arm (for doors throwing).

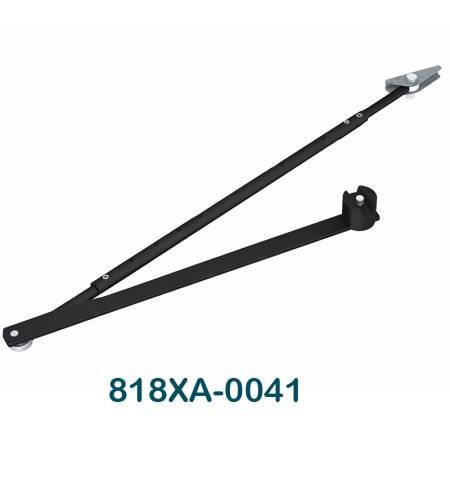

• 818xa-0041: Handiculated arm of thrust.

Self introduction CAME Fluo-sw

Performance demonstration CAME Fluo-sw

Documentation

Manual CAME Fluo-sw
