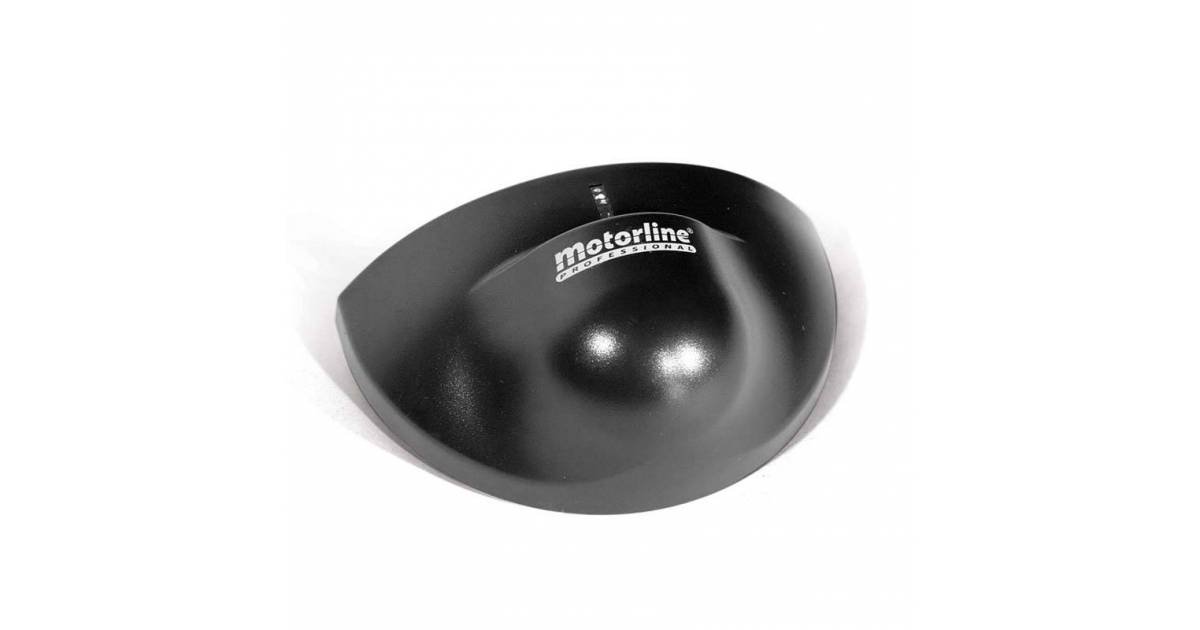

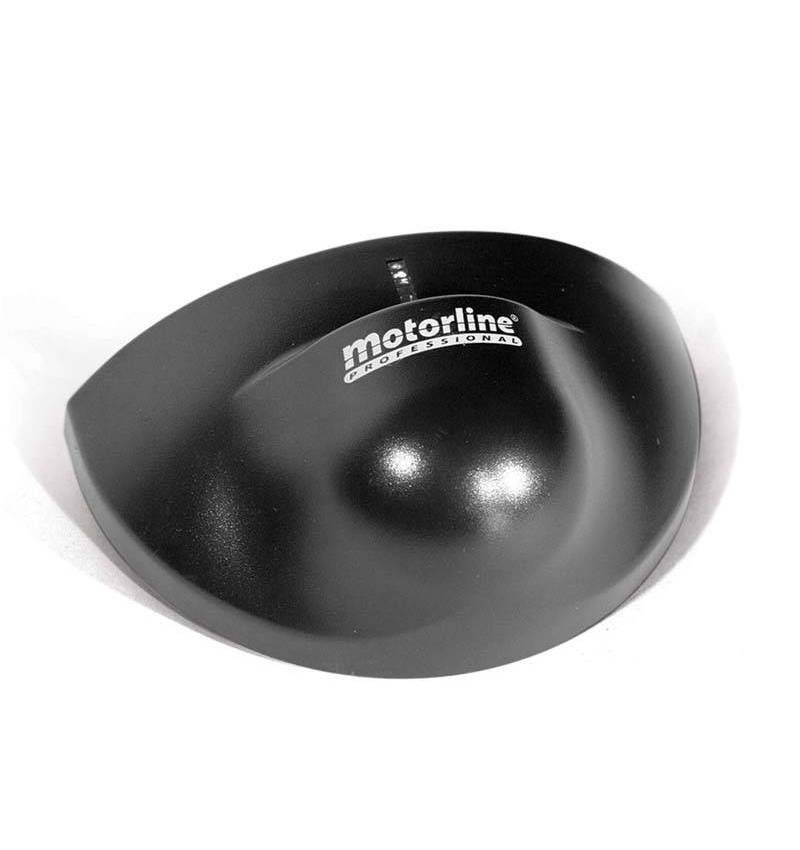

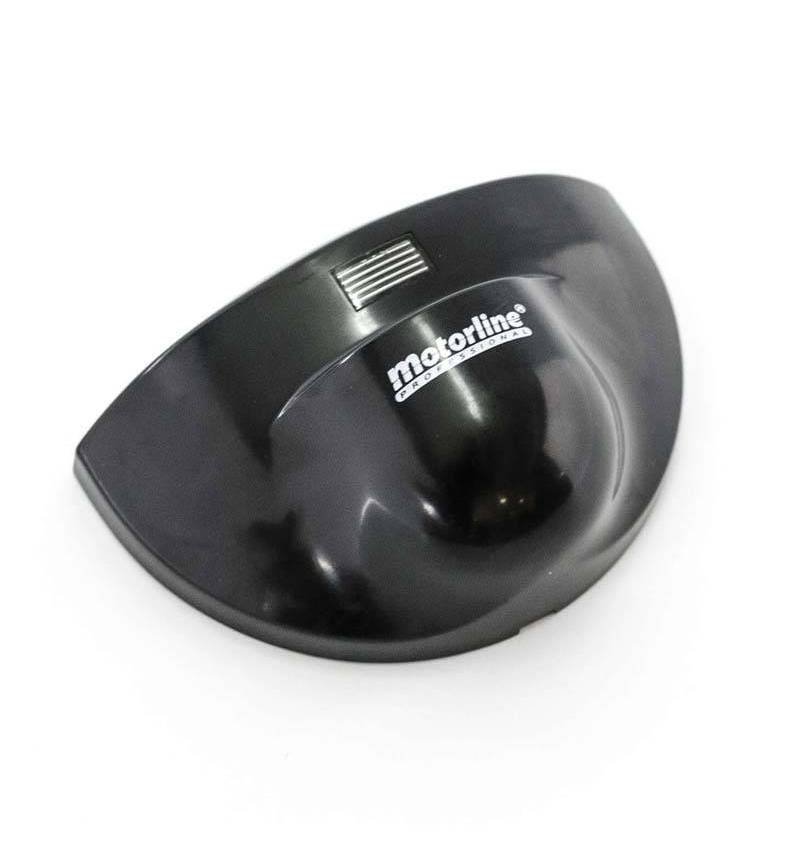

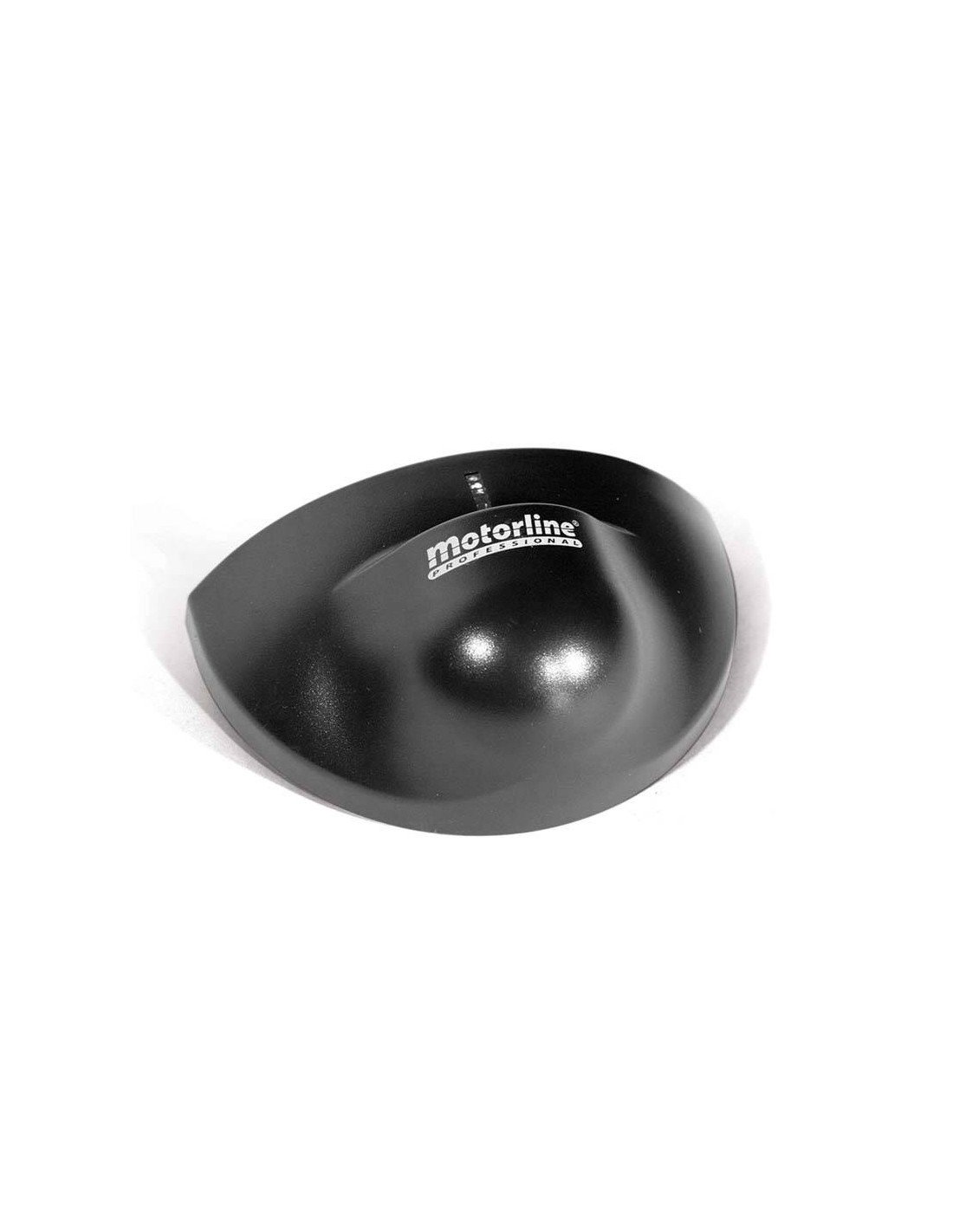

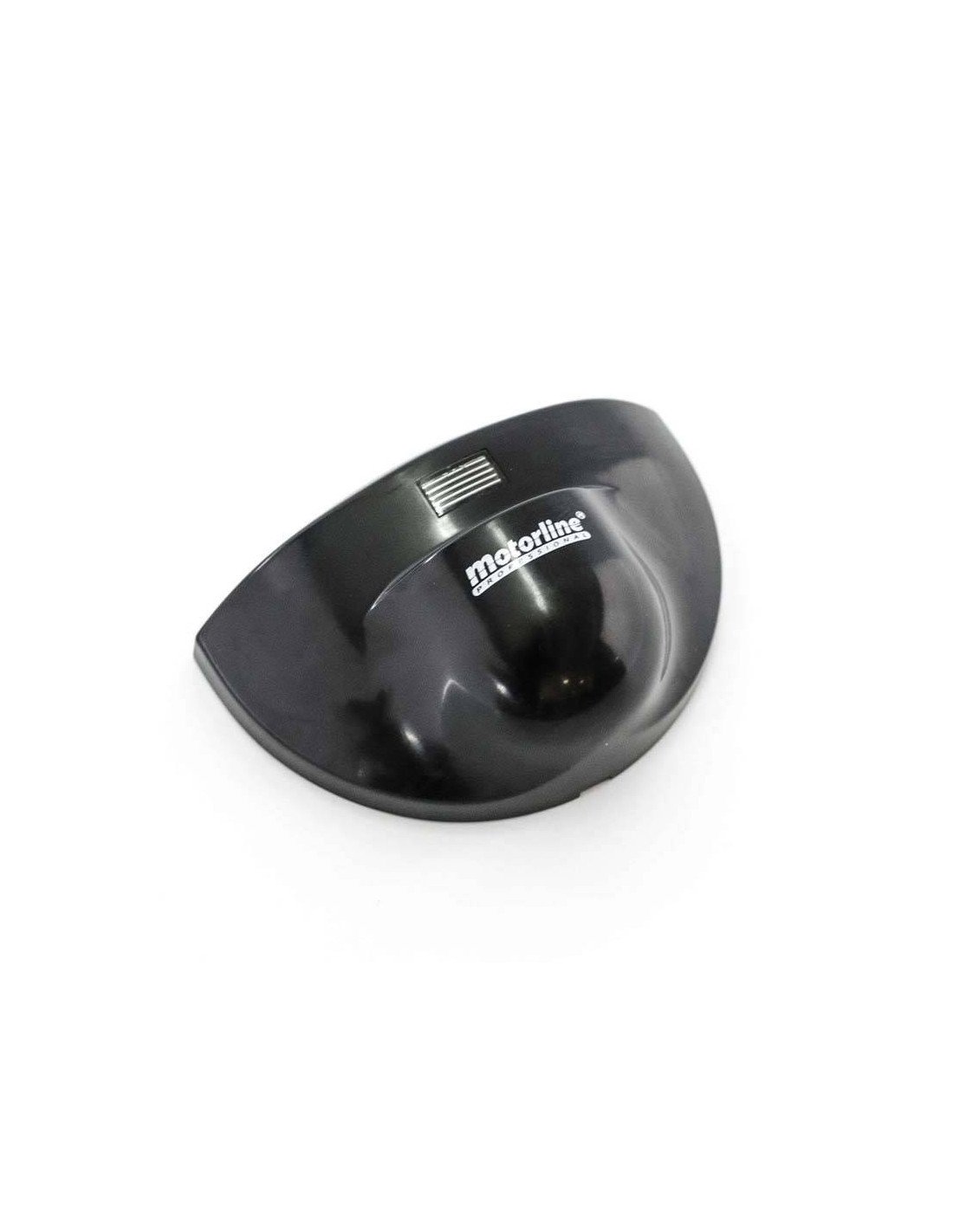

Motion detection radar Motorline M1601 by microwave

Motion detection radar Motorline M1601, Designed for automatic automatic doors, pedestrian doors, fast doors and access where you need to detect the movement of people or vehicles through microwave technology.

The Motorline M1601 food 12V to 24V AC / DC and has a relay, which allows its connection to different compatible maneuver and automatisms.

Thanks to its microwave detection technology in frequency X-band 24.125GHz, This Radar allows you to activate the opening of an automatic door when it detects movement within its area of action.

Main characteristics of the radar Motorline M1601

• Microwave-up radar for automations of doors.
• Maximum installation height: up to 3500 mm.
• Power: 12V to 24V AC / DC.
• Relay for connection to the maneuver box.
• Adjustable detection area by adjusting sensitivity and orientation of the sensor.
• Adjustable vertical and lateral installation angle to adapt the detection zone.
• Degree of protection IP54, suitable for protected or interior protected installations.
• Regular application: automatic doors, pedestrian access, fast doors, commercial doors and automatic opening automatisms.

Radar operation M1601

Radar Motorline M1601 it detects the movement within its action field and activates its relay output. This output can be connected to the opening entry in the maneuver box to sort the automatic opening of the door.

The detection zone can be adjusted by the sensitivity potentiometer and by orienting the detector, allowing adapting the action area according to the mounting height, the desired depth and the passage position.

Table of technical characteristics

Characteristics of relay output

Radar connections Motorline M1601

The radar has connection for power and contact output by relay. According to the team connection scheme:

Note: the exit COM it is normally used to connect the radar to the opening entry in the maneuver box.

Sensitivity adjustment and detection zone

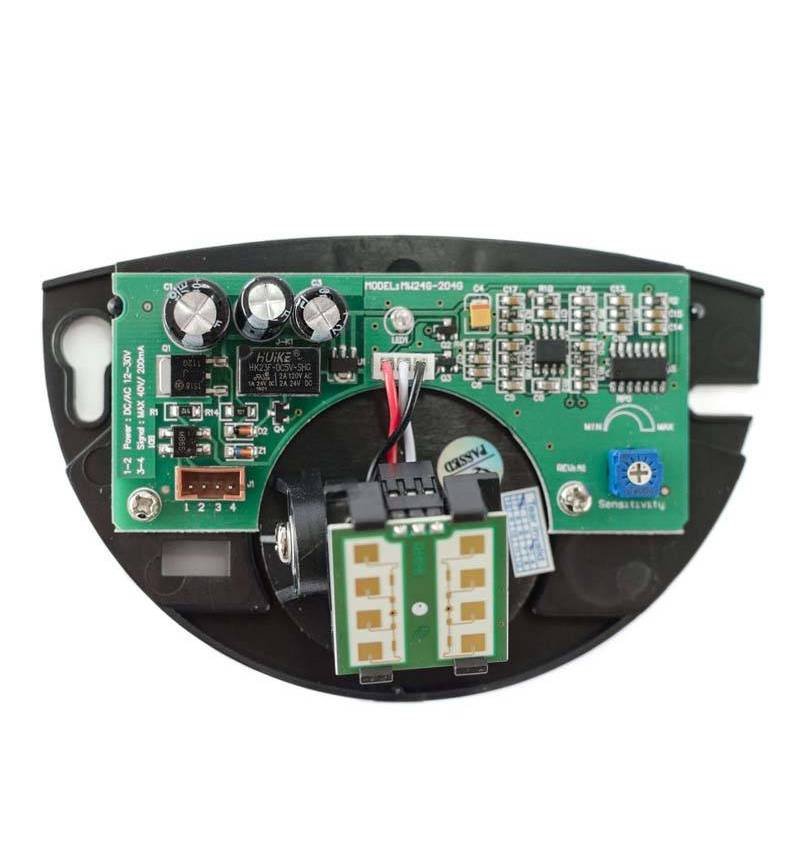

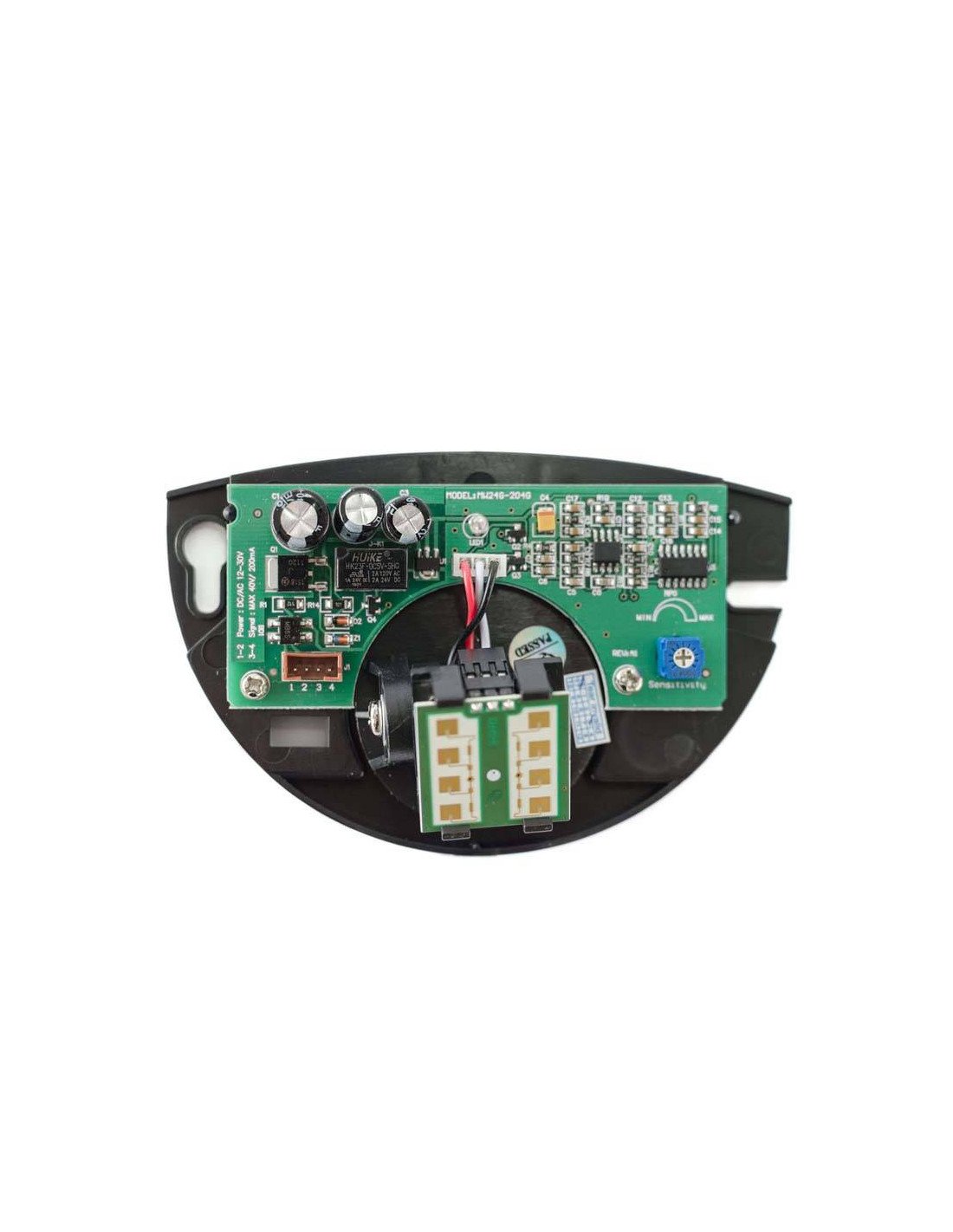

The Motorline M1601 it allows adjusting the sensitivity of the action area by an internal potentiometer. This setting helps adapt the radar to the installation type, avoiding too short or excessively wide detections.

It also allows you to orient the detector laterally and vertically to modify the detection zone:

• Sensitivity adjustment: it allows to expand or reduce the detection area.
• Side adjustment: it allows you to move the detection zone to the left or right.
• Vertical adjustment: it allows to modify the depth of the detection area.

Recommended applications

• Automatic pedestrian doors.
• Fast industrial or commercial doors.
• Automatisms of access with automatic opening.
• Garage doors or access where motion detection is required.
• Facilities where an opening order without physical contact is needed.

Installation recommendations

For proper operation, it is recommended to install the radar firmly, avoiding vibrations and ensuring that the detection area is not blocked.

• Do not cover or block the sensor's actuation area.
• Avoid moving objects near the radar that may cause unwanted detections.
• Avoid installing it close to fluorescent lamps.
• Do not manipulate internal electronic components.
• Regulate the sensitivity potentiometer slowly and without applying strength.

Important: the installation and connection of the radar must perform it qualified personnel, always respecting the manufacturer's instructions and disconnecting the power before handling the maneuver box.

Radar Motorline M1601 for Automatic Opening

The Motorline M1601 it is a practical solution to automate the opening of doors by detection of movement. Its exit by relay, multivoltage feeding and sensitivity regulation make it a versatile radar for different types of automation.

Measures Motorline M1601

Documentation

Manual MotorlineM1601
