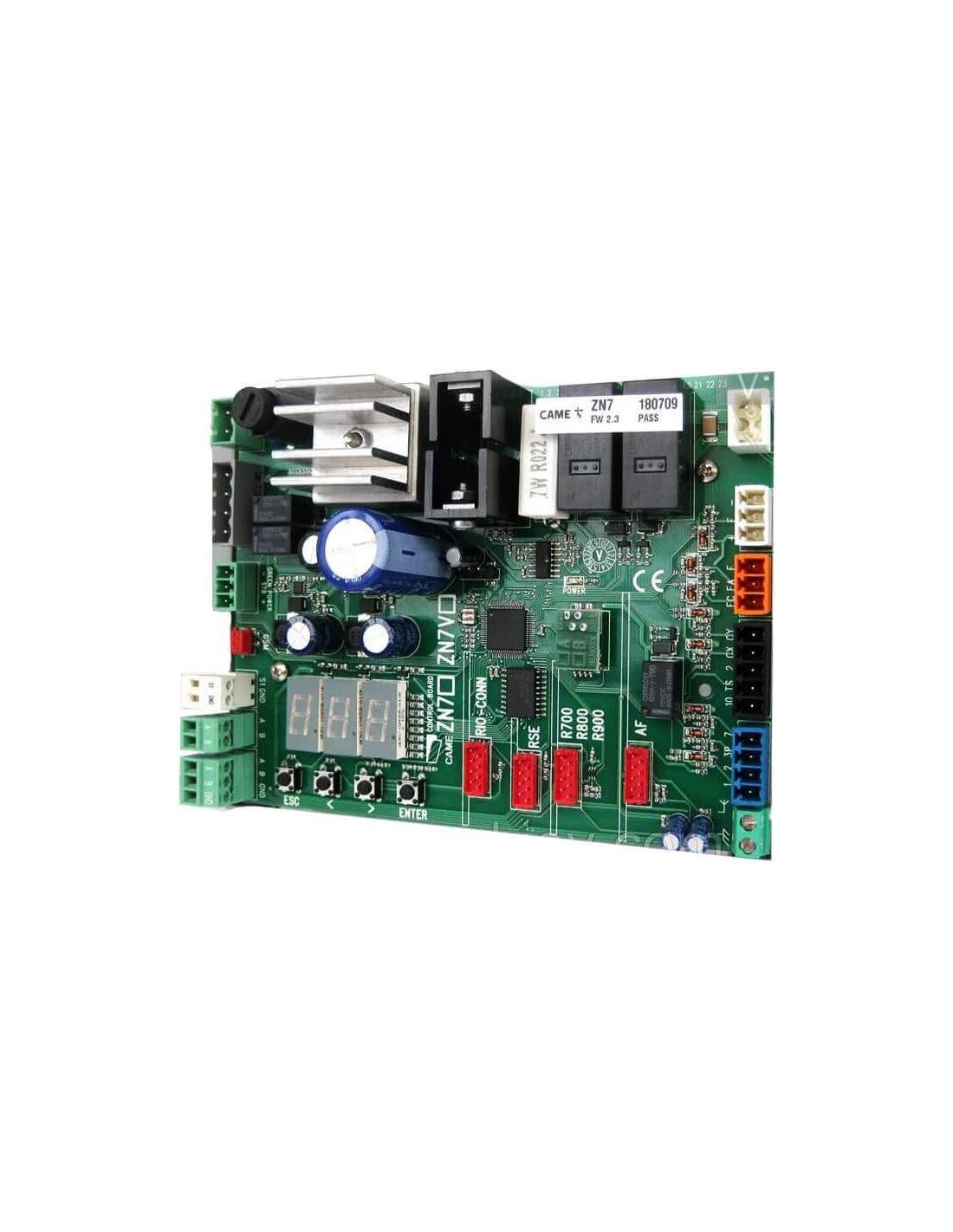

Electronic plate CAME ZN7 for BXV series 24V sliding motors.

CHARACTERISTICS

• Input power supply electronic card 24 V AC/DC
• Power supply for accessories 24 V AC – maximum 40 W
• Motor gearbox 24 V DC
• Encoding
• End of race at opening (NC contact)
• End of race closing (NC contact)
• 24 V output for security connection of photocells
• Output connection flashing light, cycle light (Contact capacity: 24 V AC/DC 25 25 W maximum)
• Output indication open door (Contact capacity: 24 V AC/DC – 3 W maximum). See function F 10

MANUAL

Instruction manual CAME ZN7
