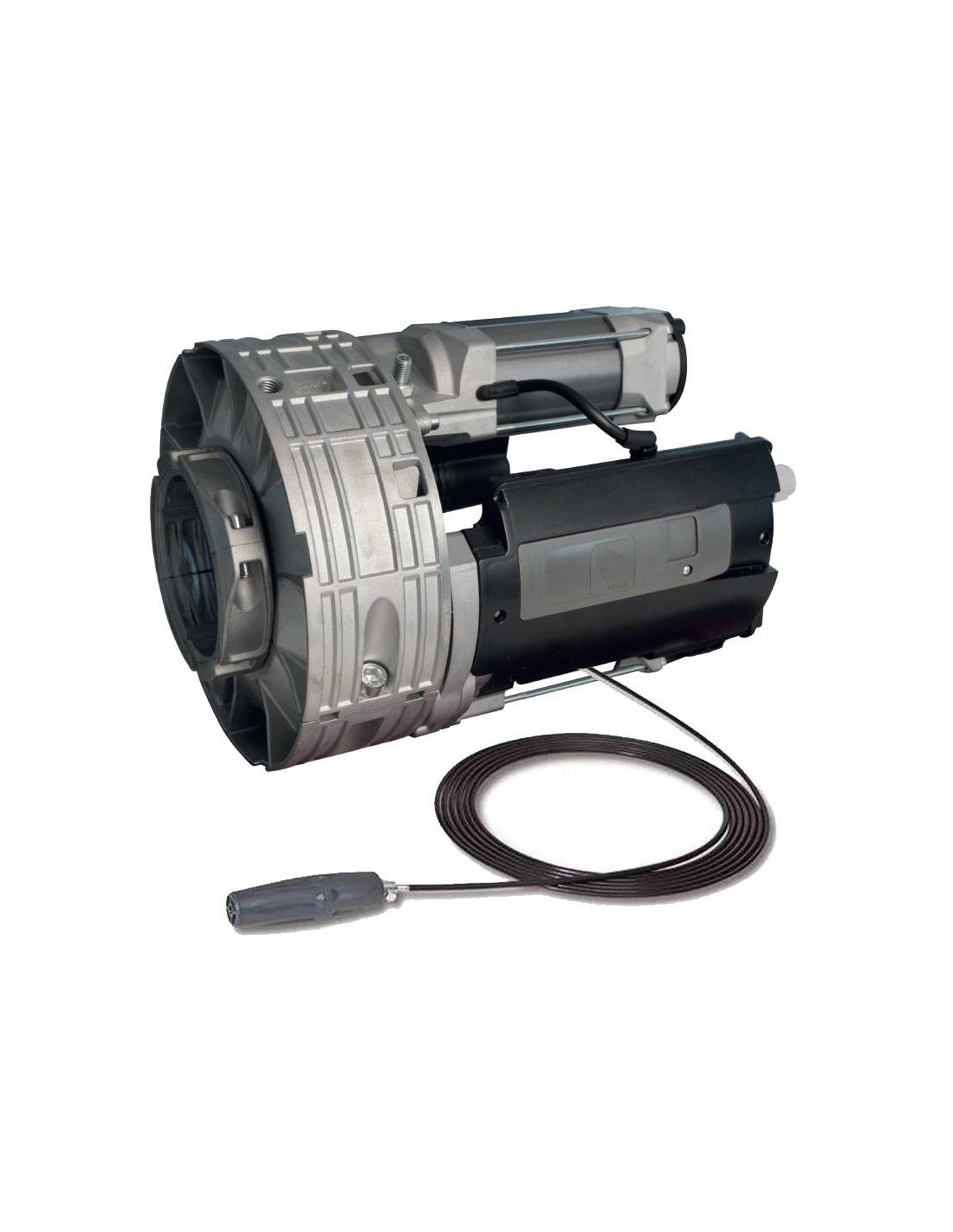

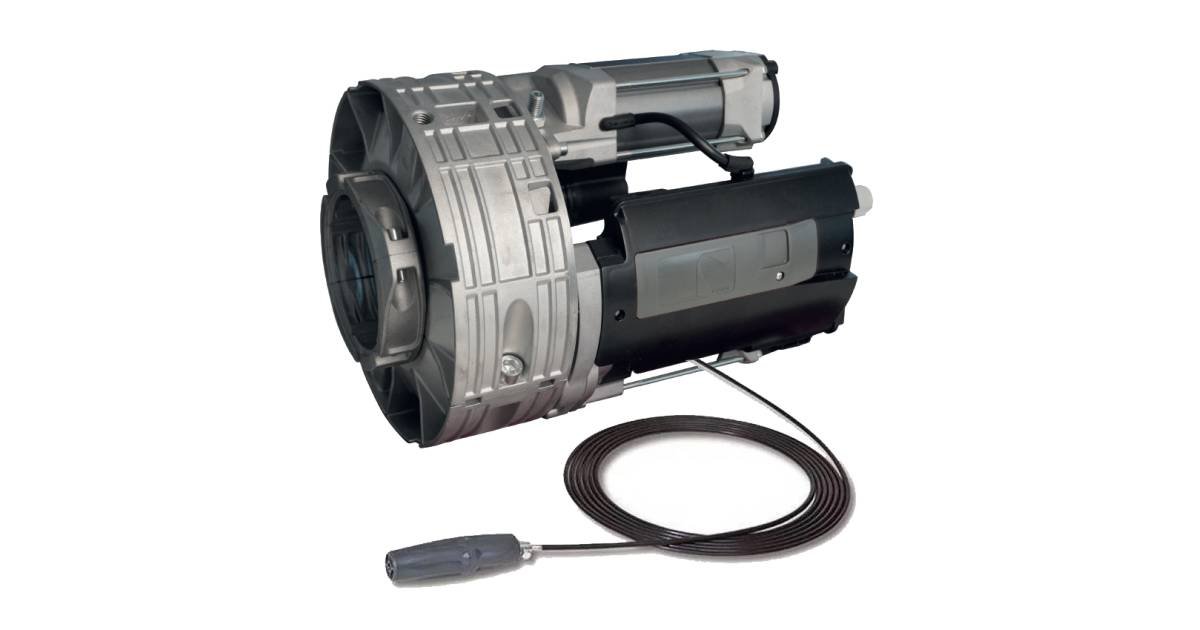

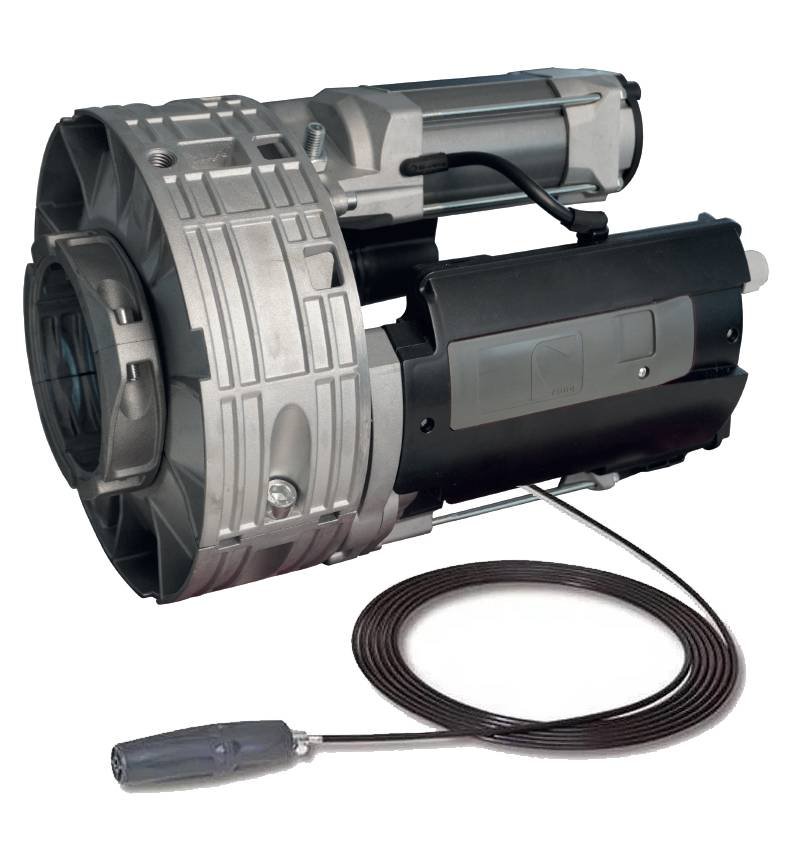

Twin Pujol Winner AC A1260 60/200 EF for roller shutters up to 350 kg Ø60 axis
Referencia: WINNER AC A1260 60/200 EF
€180.00
IVA excluido

217,80 €

IVA incluido

Twin Pujol Winner AC A1260 / 200-60 EF is a Double coil motor for roller doors, designed to automate Metal shutters, roller garage doors and commercial closures.

This model is compatible with Blind tube of 60/48 mm and he works with a Base crown of 200 mm. Offers a lifting capacity up 350 kg with crown Ø 200 mm and up 330 kg with crown Ø 220 mm.

The Winner AC A1260 / 200-60 EF It has a power of 1260 W, a torque 350 nm and a work speed of 10 rpm, being a robust solution to automate rolling doors for commercial or residential use.

Quantity



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum

  Fast shipping from Spain

Except bulky

Twin Pujol Winner AC A1260 / 200-60 EF for roller shutters

Twin Pujol Winner AC A1260 / 200-60 EF is a Double coil motor for roller doors, designed to automate Metal shutters, roller garage doors and commercial closures.

This model is compatible with Blind tube of 60/48 mm and he works with a Base crown of 200 mm. Offers a lifting capacity up 350 kg with crown Ø 200 mm and up 330 kg with crown Ø 220 mm.

The Winner AC A1260 / 200-60 EF It has a power of 1260 W, a torque 350 nm and a work speed of 10 rpm, being a robust solution to automate rolling doors for commercial or residential use.

The version Eph incorporates electrofreno, which allows blocking the shutter once closed. In addition, it has Manual unlocking system In order to operate the door in case of electric current cut.

Thanks to your diet 230 V / 50-60 Hz, This bimotor offers a versatile and adaptable installation to different environments. Has Final race with manual regulation and is recommended for a use of up 20 cycles daily.

Main features

  • Twin Pujol Winner AC for roller door
  • Model: Winner AC A1260 / 200-60 EF
  • Double-coil engine
  • Compatible with a 60/48 mm shutter tube
  • Base crown of 200 mm
  • Elevation capacity up to 350 kg with crown Ø 200 mm
  • Elevation capacity up to 330 kg with crown Ø 220 mm
  • 1260 W power
  • 350 nm spin torque
  • Built-in electrower
  • Unlocking For opening in case of electric cut
  • Indicated for Metal shutters, commercial closures and roller garage doors

Technical characteristics

Model Winner AC A1260 / 200-60 EF
Sponge 350 nm
Power 1260 W
Lifting capacity with crown Ø 200 mm 350 kg
Lifting capacity with crown Ø 220 mm 330 kg
Voltage 100-230 V / 50-60 HZ
Consumption 5.6 A
Speed 10 rpm
Career-end capacity 8 Pulley Turns
Weight 12 kg
Compatible with shutter tube 60/48 mm
Size of the base crown 200 mm
Run-up Manual regulation system
Unlock With electrofreno and manual unlocking system
Operating temperature +5 ºC / +40 ºC
Protection index Ip20
Power cord H05VV-F of 4 threads, peeling and with terminals
Daily cycles 20

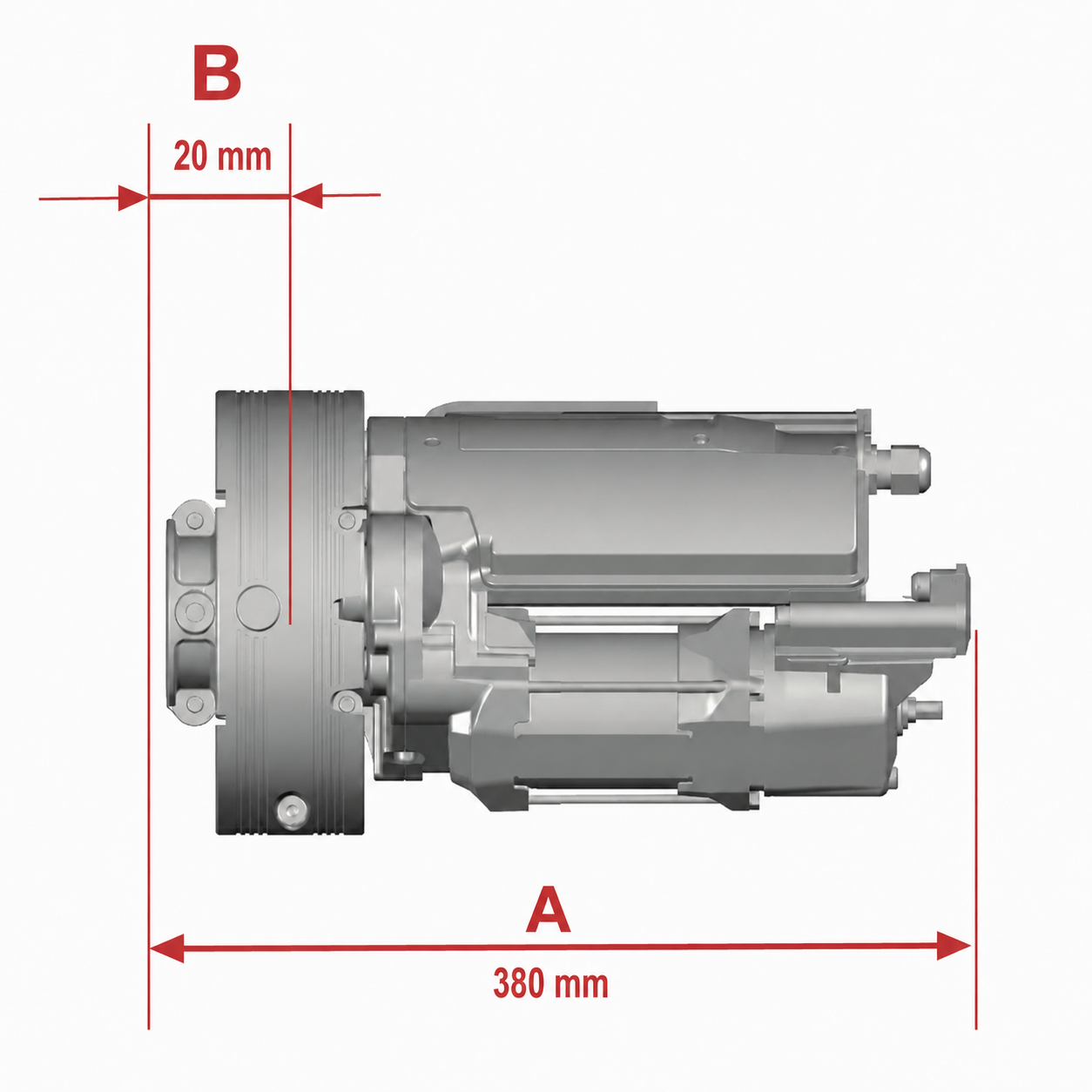

Measures Winner AC A1260 60/200 EF

WINNER AC A1260 60/200 EF

Data sheet

Type of engine
Electromechanical 230V
Number of coils
For the purposes of this Regulation, the following definitions apply:

Specific References

Download

Characteristics Winner AC

Download (918.93KB)
