260,15 €

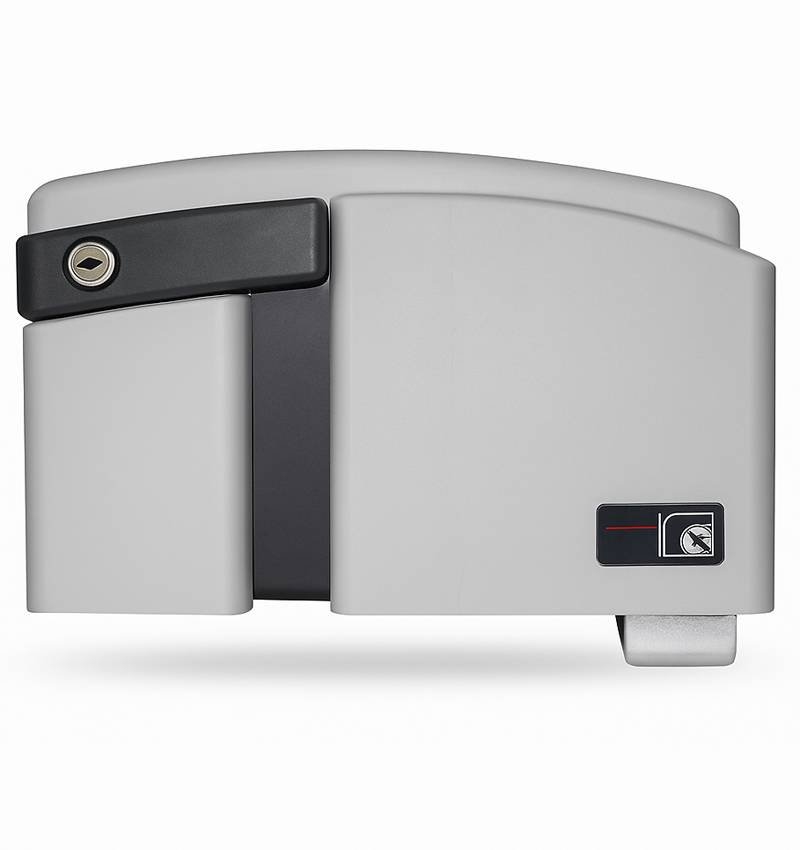

PUJOL MINI MARATHON engine for residential sliding doors up to 400 kg.
The MINI MARATHON model is a single-phase electromechanical 24V with manoeuvre box and built-in receiver at 433,92 MHz. What. It's a very quiet equipment ideal for semi-intensive use for residential cancellations.
Prepared with module of M4 zipper pin. Unlocking with lever for manual operation. What. Patented tilting restraint system, which absorbs the deformations of the door and makes the assembly easy.
Optional emergency battery kits (not included) allowing a range of 40 manoeuvres without power supply.
We ship your order in 24/7 hours
Payment by credit card, bank transfer, Paypal or Bizum
Free shipping to the peninsula

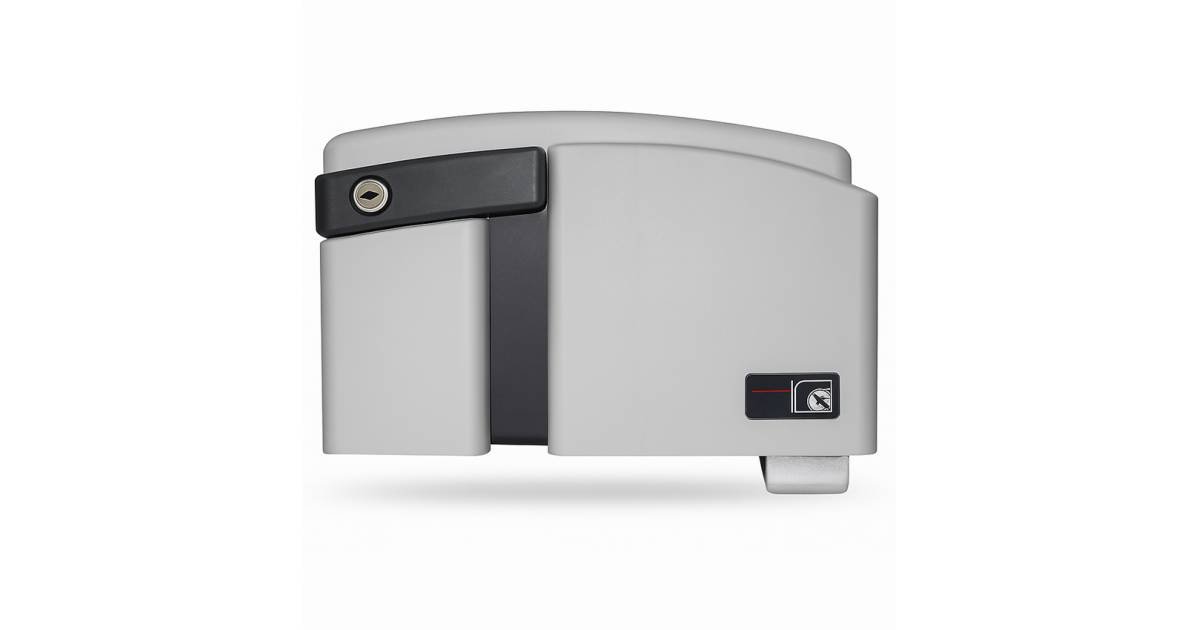

PUJOL MINI MARATHON Engine
Sliding motor for residential doors up to 400 KG.
PUJOL MINI MARATHON motor for sliding doors for residential use up to 400 KG.
The MINI MARATHON model is a 24V single-phase electromechanical motor with a built-in control panel and receiver at 433.92 MHz. It is a very quiet piece of equipment ideal for semi-intensive use for residential gates.
Prepared with M4 rack and pinion module. Lever release for manual operation. Patented tilting clamping system, which absorbs deformations of the door and facilitates assembly.
Optional emergency battery kit (not included) that allows an autonomy of 40 manoeuvres without power.
Functions of the control panel incorporated in the engine:
- Soft stop and speed reduction when opening and closing.
- Anti-crush safety system.
- Optional automatic closing by setting the desired time.
- Safety inputs for photocells or security band.
- Output for flashing lamp.
FEATURES PUJOL MINI MARATHON
- Power supply: 230Vac
- Internal motor power: 24Vdc
- Power: 30W
- Intensity: 0.6 Amp.
- Torque: 4Nm
- RPM: 60
- Operating temperature: -10º C / 40º C
- Service Factor: 80%
- Maximum speed: 12m/min
- Engine weight: 8 KG
- Max. towing capacity: 400 KG
- Sprocket Type: M4
PUJOL MINI MARATHON MEASUREMENTS
MANUAL PUJOL MINI MARATHON
Instruction manual PUJOL MINI MARATHON
MINI MARATHON ASSEMBLY VIDEO
Product Details
Data sheet
- Maximum door weight
- Up to 400kg
- Type of engine
- Electromechanical 24V
- Type of door
- Residential door
Specific References
