Kit Motorline Bravo500 230V for sliding doors up to 500 kg

Motorline Bravo500 to 230 Vac it is designed to automate residential sliding doors up to 500 kg of weight and 7 meters long, Providing reliable, compact and silent operation.

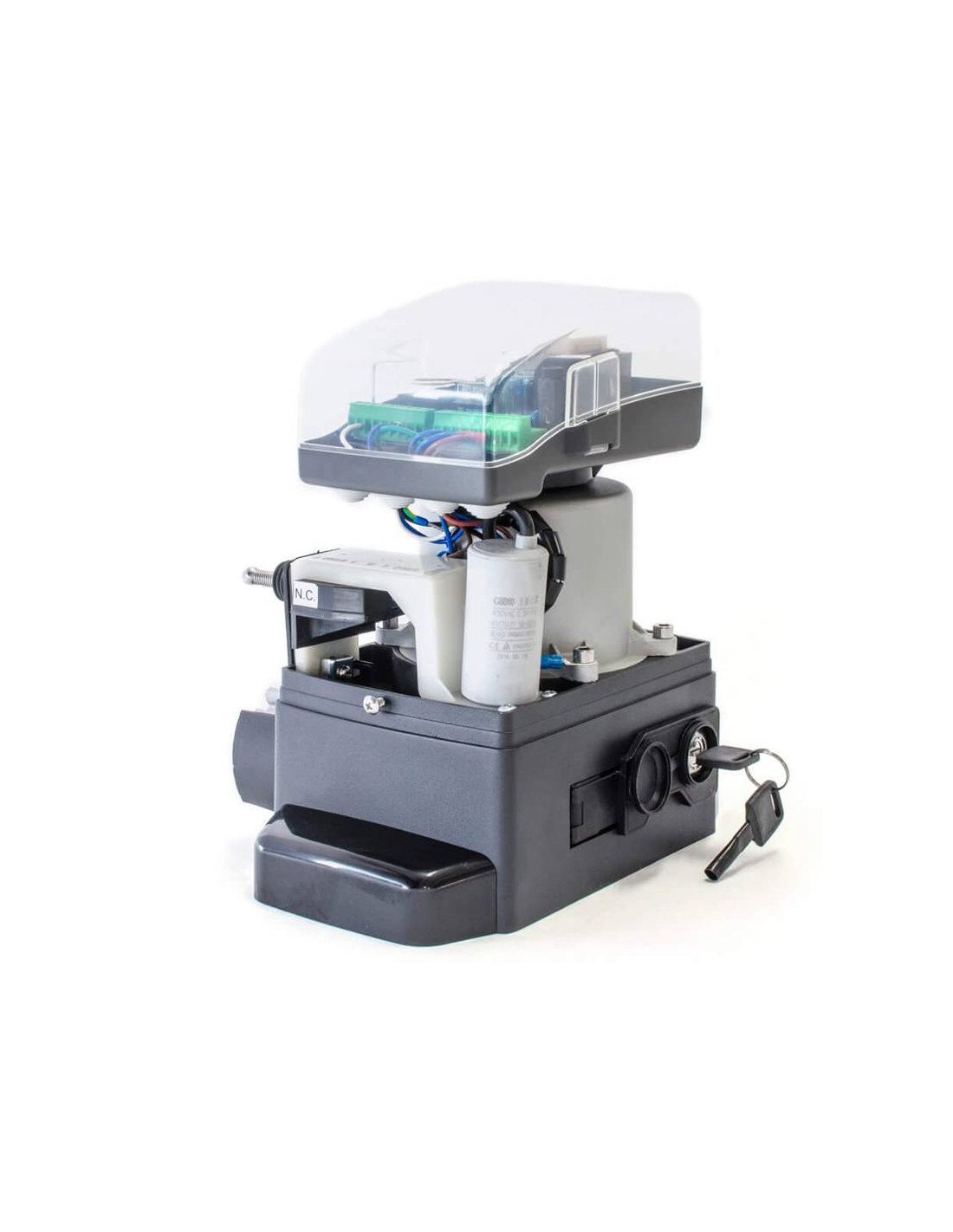

The engine incorporates a reducer lubricated in oil and fat, Robust aluminum structure, thermal protection and a mechanical system developed to achieve a smooth movement during opening and closing the door.

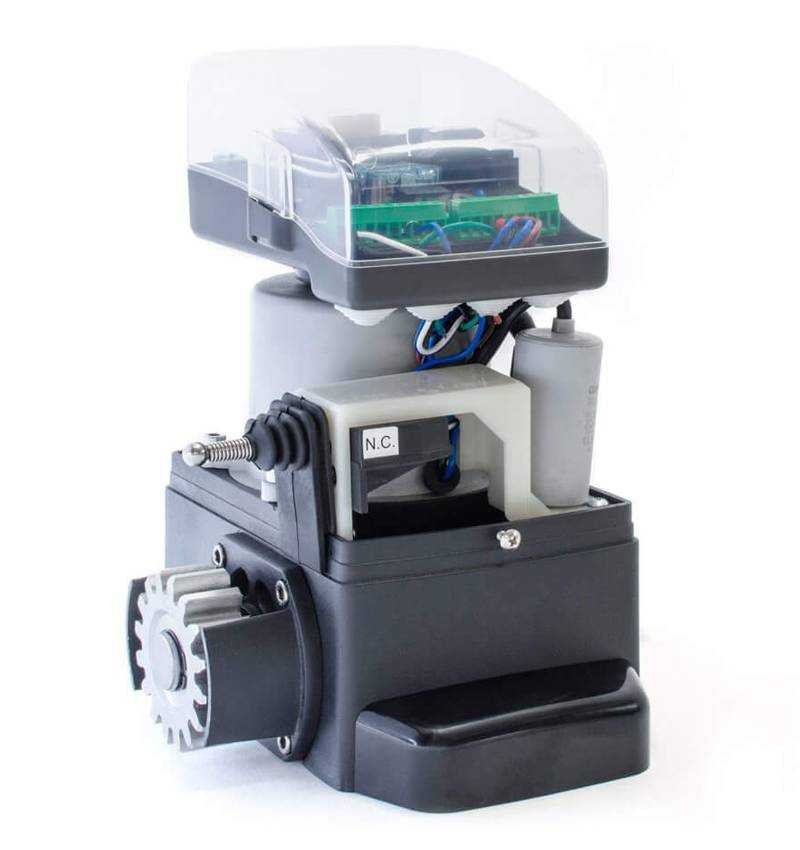

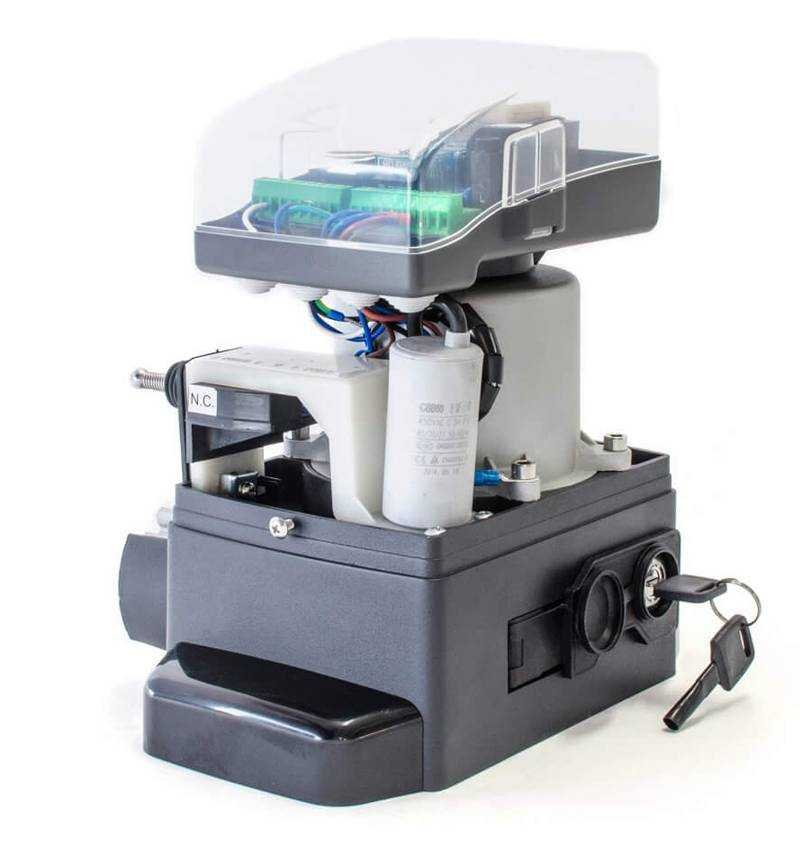

The electronic Motorline Mc50 it is installed and protected inside the automatism, facilitating access during installation, programming and maintenance. In addition, it incorporates radio frequency receiver 433,92 MHz Rolling Code for direct programming of the controls Motorline compatible.

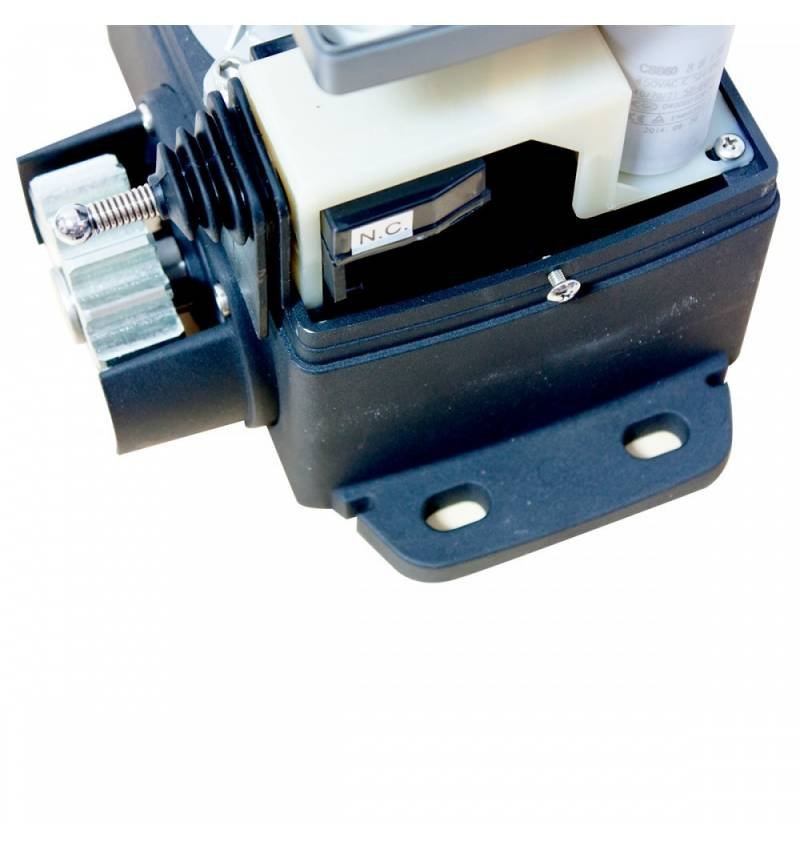

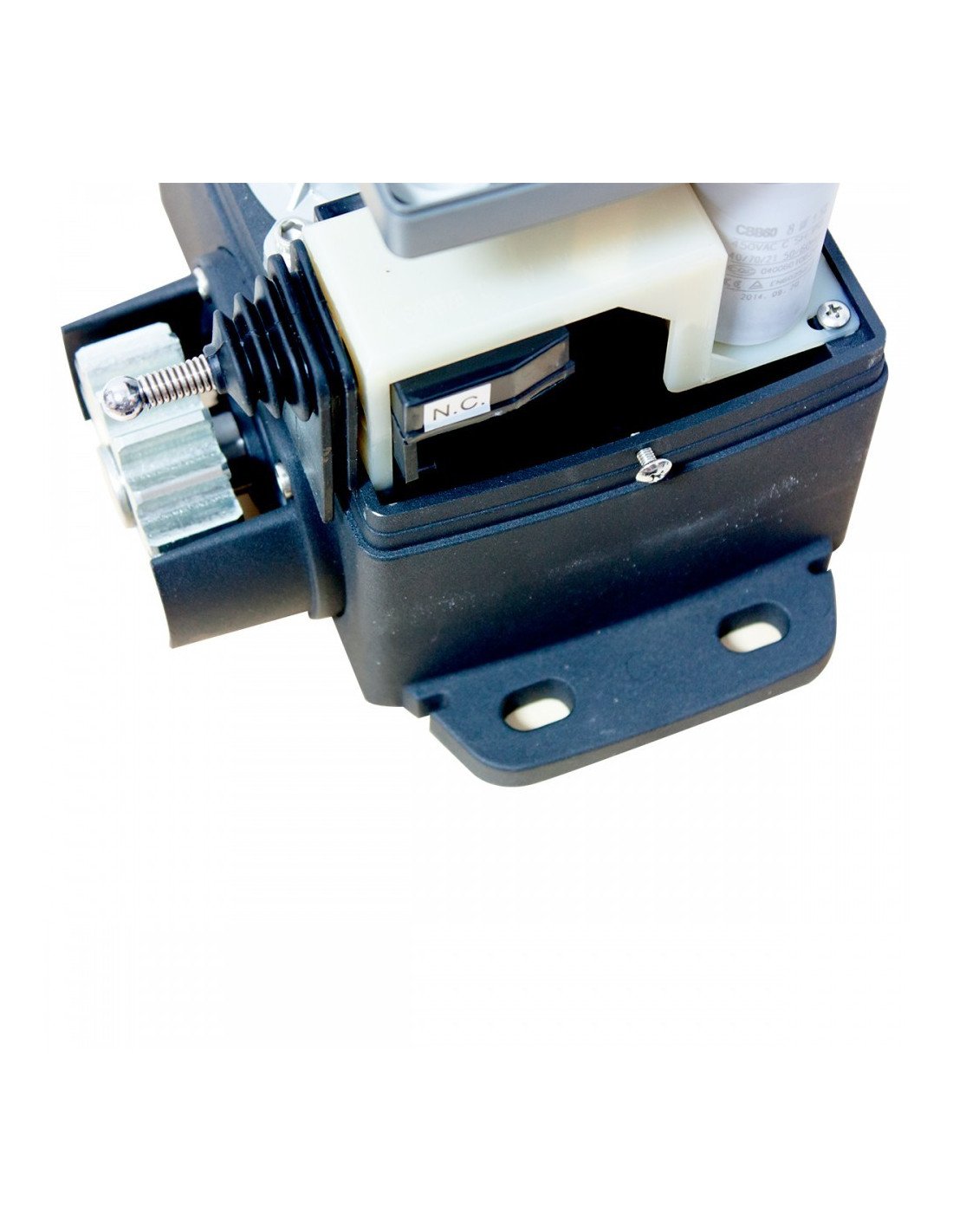

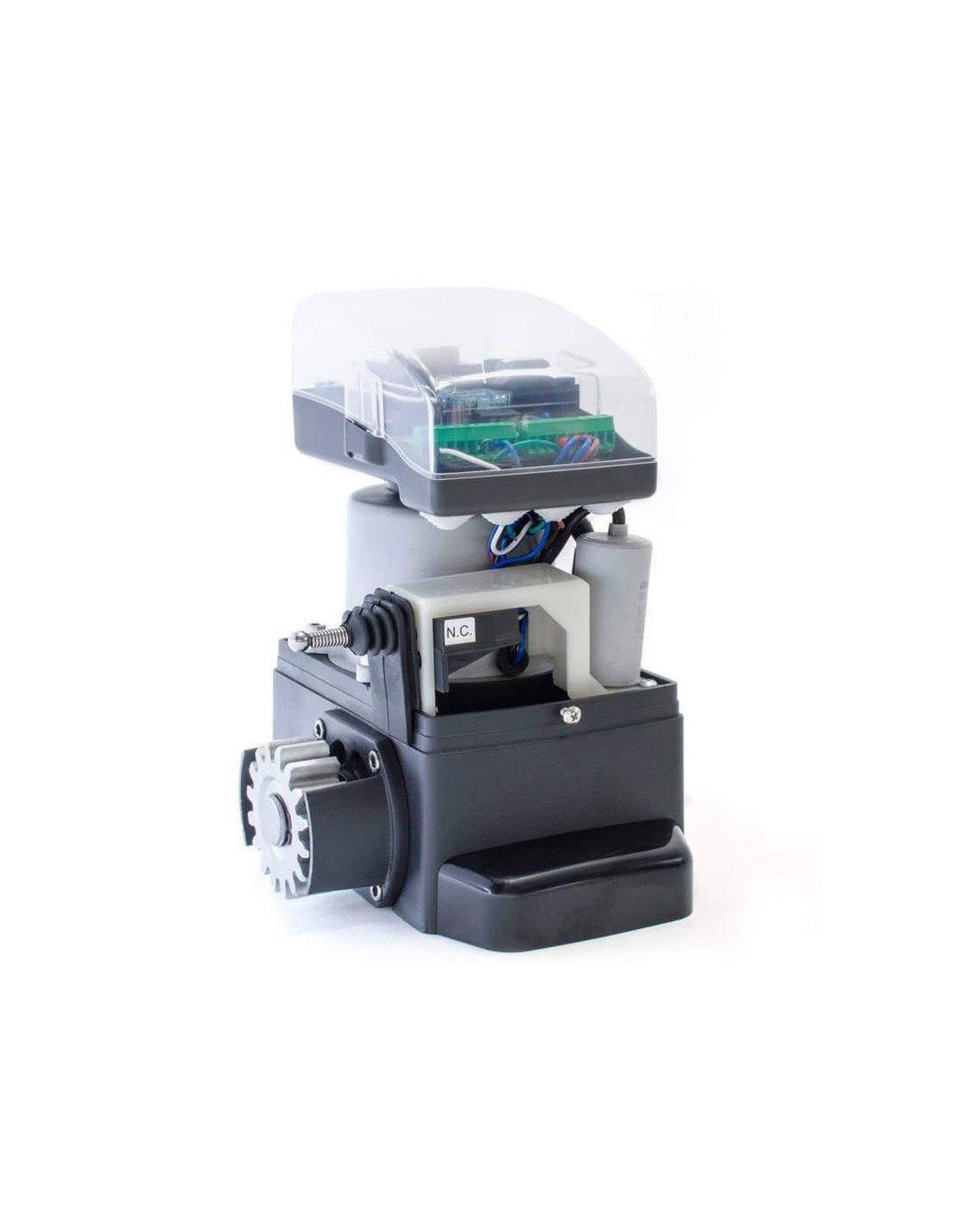

Depending on the selected version, the engine can incorporate end of mechanical career or magnetic career end, allowing to choose the most suitable system for each installation.

Main features of Motorline Bravo500

• Doors up to 500 kg: especially indicated to automate sliding doors for residential use.
• Maximum length of 7 meters sheet: it allows automating sliding doors of different dimensions.
• Food at 230 Vac: single-phase motor with a power of 280 W.
• Lubricated reducer: mechanical system lubricated in oil and grease to achieve a soft and silent movement.
• Robust construction: body made of aluminum to offer resistance and stability during operation.
• Compact design: its reduced dimensions facilitate installation even in limited spaces.
• IP44 protection: prepared for installation outdoors under the conditions indicated by the manufacturer.
• Thermal protection: protects the engine against excessive temperatures during its operation.
• End of mechanical or magnetic career: available according to the chosen version of the automatism.

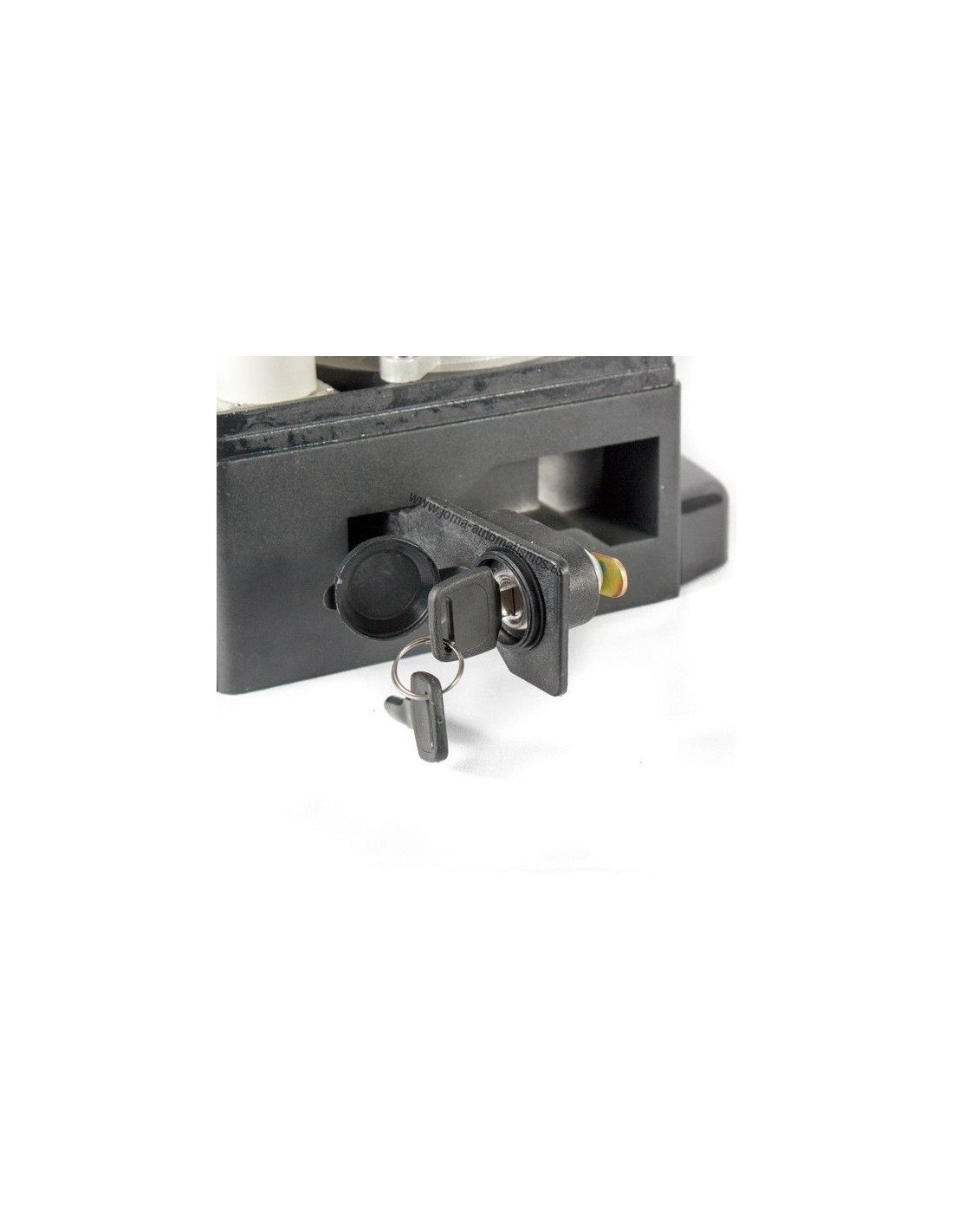

• Emergency unlocking: it allows to open and close the door manually in case of lack of power or fault.

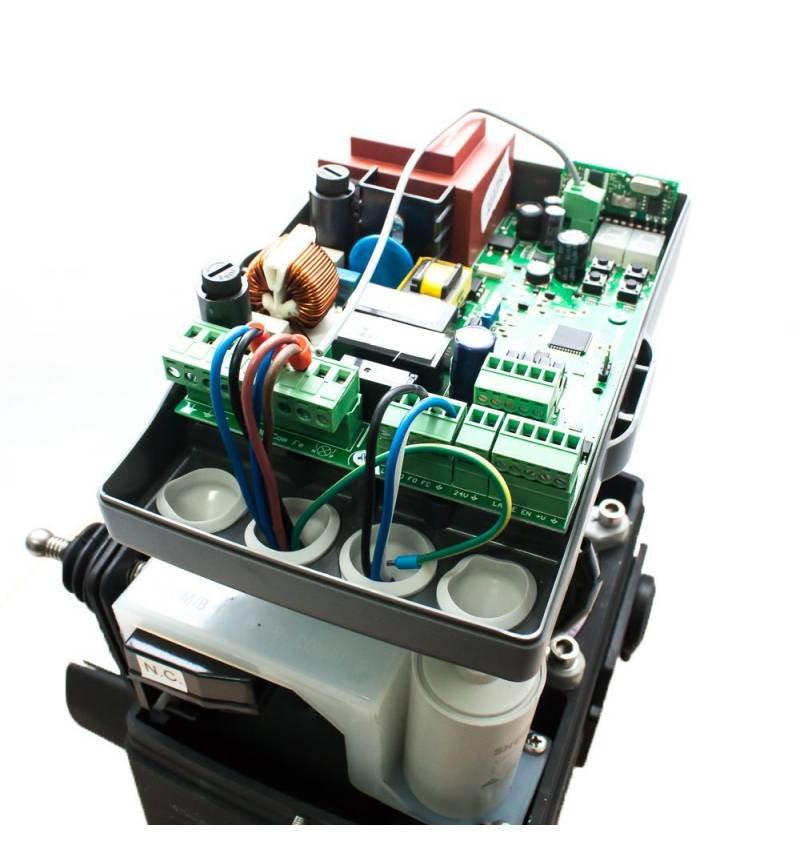

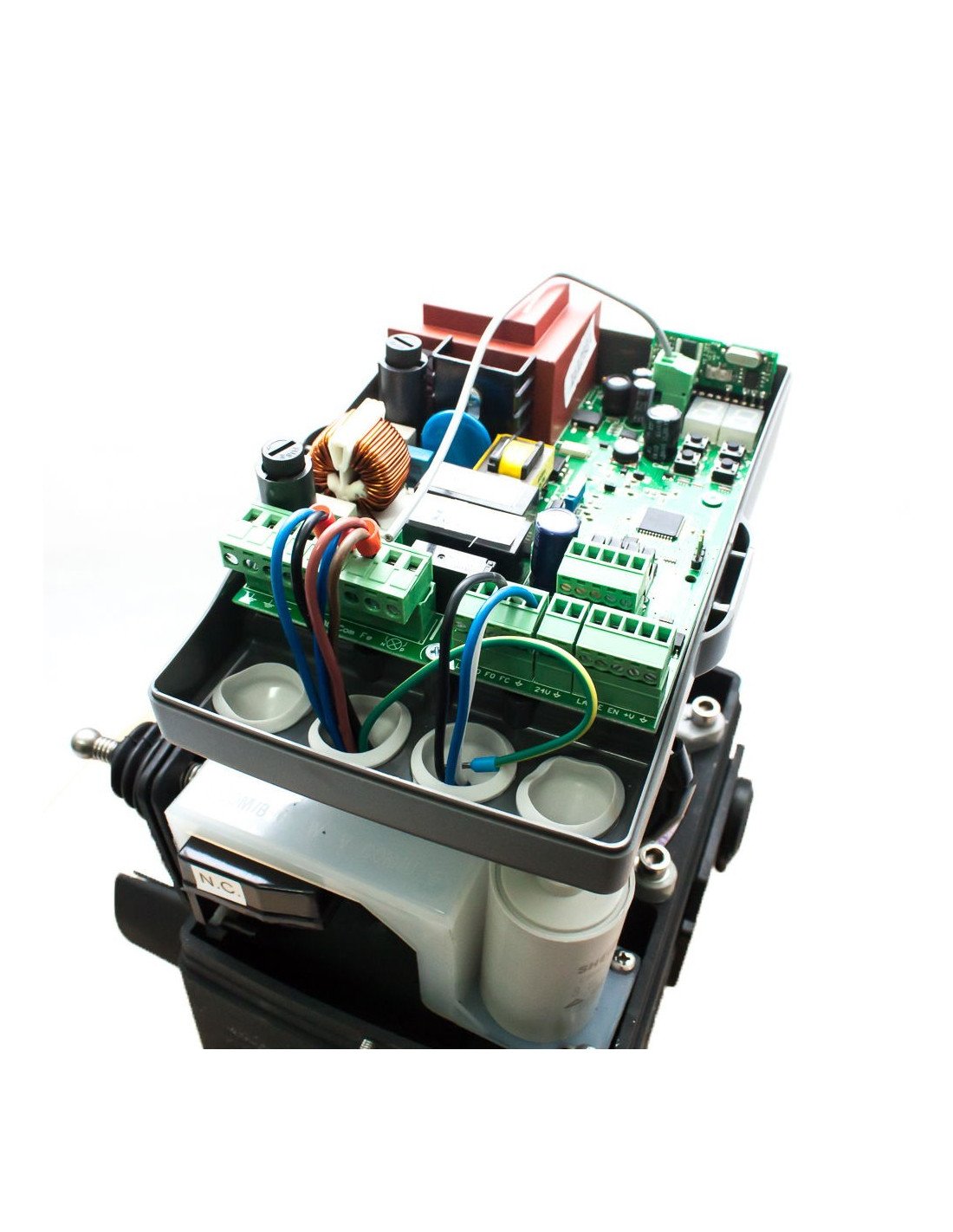

• Integrated electronic center: the MC50 plate is protected within automatism and is easily accessible.

Characteristics and functions of the Central Motorline Mc50

The Motorline Mc50 it is a single-phase electronic power station with an incorporated radio display and receiver, developed to control sliding door engines at 230 Vac.

• Integrated radio receiver of 433,92 MHz: compatible with transmitters Motorline OP ROLLING CODE.
• Memory for controls: it allows to memorize up to 100 controls for total opening and 100 controls for pedestrian opening.
• Programming Display: it facilitates the configuration of parameters and the display of the status of the entries and securities.
• Automatic or semiautomatic travel programming: performs the learning of opening, closing and slowing times.
• Regulation of force: it allows adjusting the operating force of the engine.
• Obstacle detection: adjustable sensitivity to detect efforts during movement and reverse the maneuver.
• Adjustable slowdown: allows you to configure the time and speed of slowdown in opening and closing.
• Soft Start and Soft Stop: it allows to perform a progressive start and a gradual reduction of speed before the end of the maneuver.
• Pedestrian opening: it allows to partially open the door to facilitate the passage of people without performing a complete opening.
• Automatic closure: independent and adjustable pause time for total opening and pedestrian opening.
• Different operating logic: automatic mode, step by step and Condominium mode.
• Man mode present: available to control the movement using held brackets.
• Entrance for photocells: configurable to act during opening or during closure.
• Fotocell Test: allows you to check the correct operation of the security devices before starting the maneuver.
• Entry for security band: compatible with 8.2 kΩ resistive band or band with normally closed contact.
• Total and pedestrian push button entry: it allows connecting key selections, pushbuttons, accessed control systems or other opening devices.
• Exit for flashing lamp: configurable as intermittent light, fixed light, courtesy light or output for electromagnet.
• Exit for RGB lamp of 24 VDC: it allows signaling different operating states of automation.
• Follow Follow Me: it allows starting the closure after the user crosses the photocells.
• Electronic brake: it helps reduce the inertia of the door when the engine stops or changes direction.
• Remote control programming: it allows you to memorize new transmitters using a previously programmed knob.
• Maneuver counter: registers the number of complete cycles performed by automation.
• Factory reset: it allows to recover the original parameters of the plant.
• Compatible with Mconnect Link: optional connection for the control of the central firmware.

Kit content Motorline Bravo500

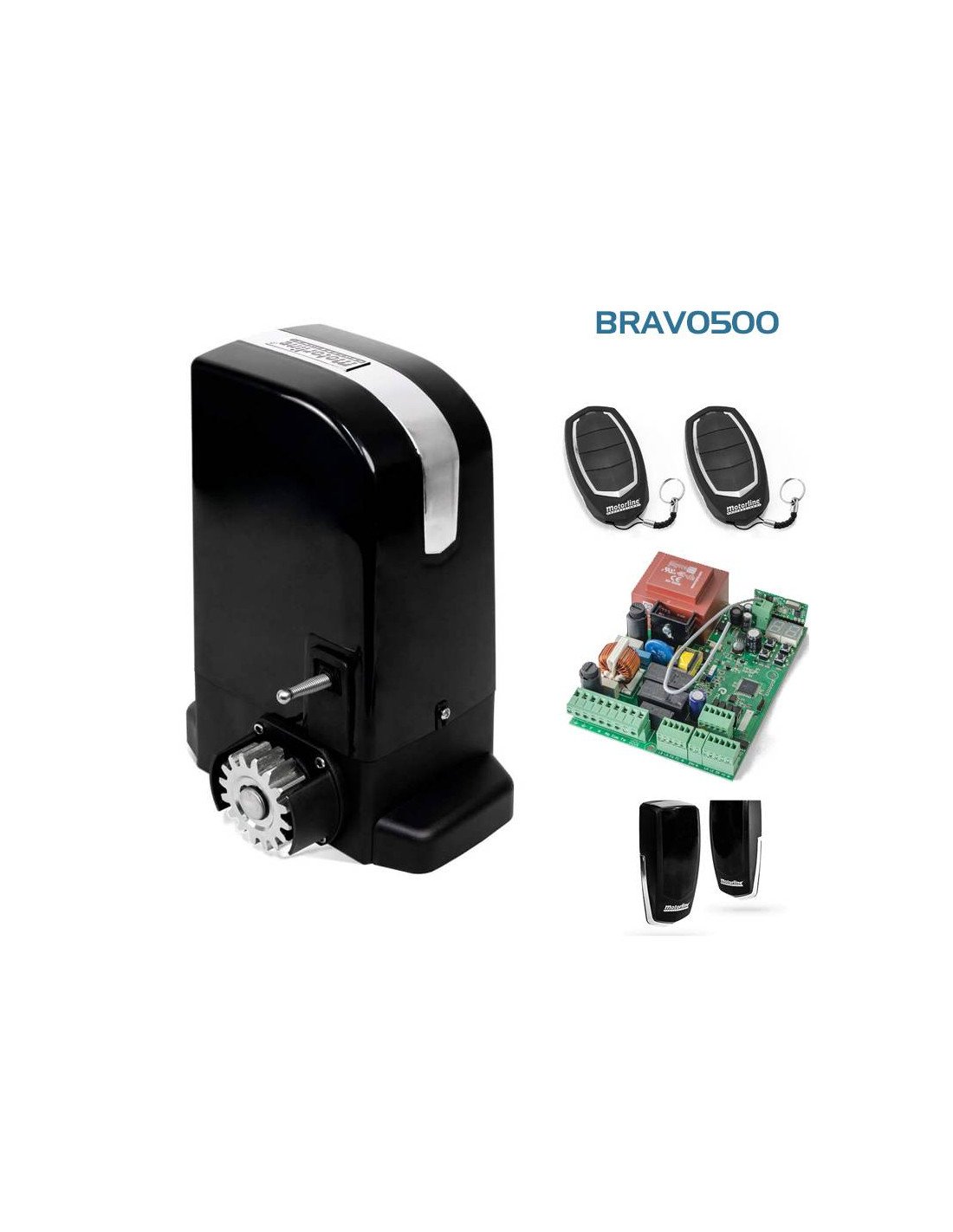

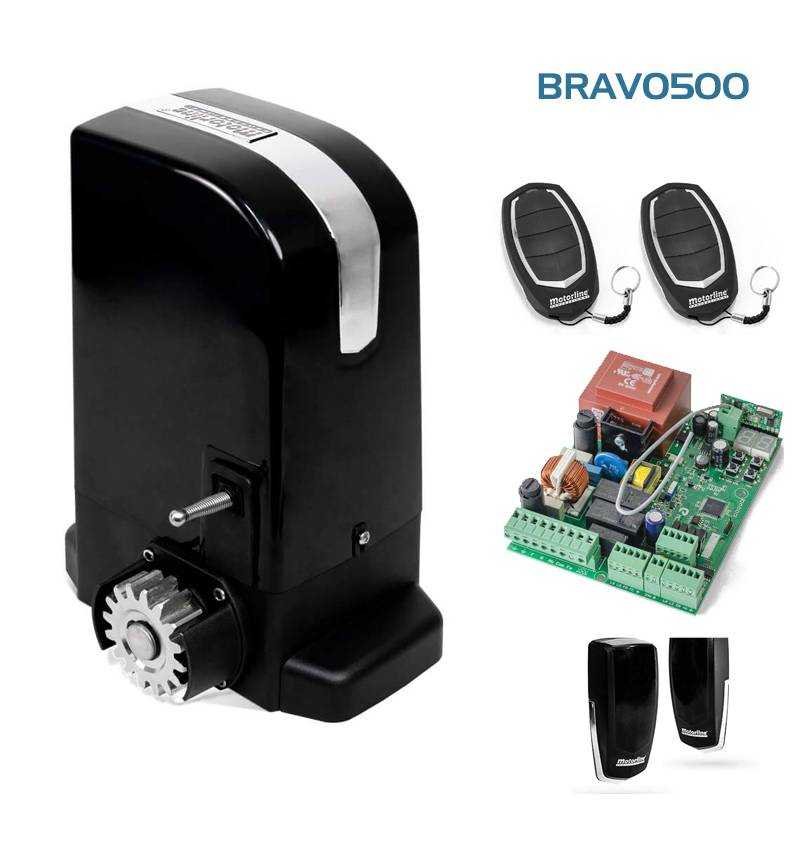

• 1 engine Motorline Bravo500 to 230 VAC with oil and grease lubricated reducing
• 1 Electronic Center Motorline Mc50
• 2 remote controls Motorline FALK
• 1 game of photocells Motorline MF30, Emitter and Receiver

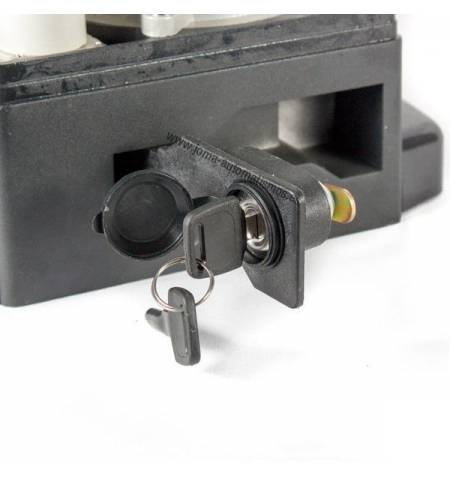

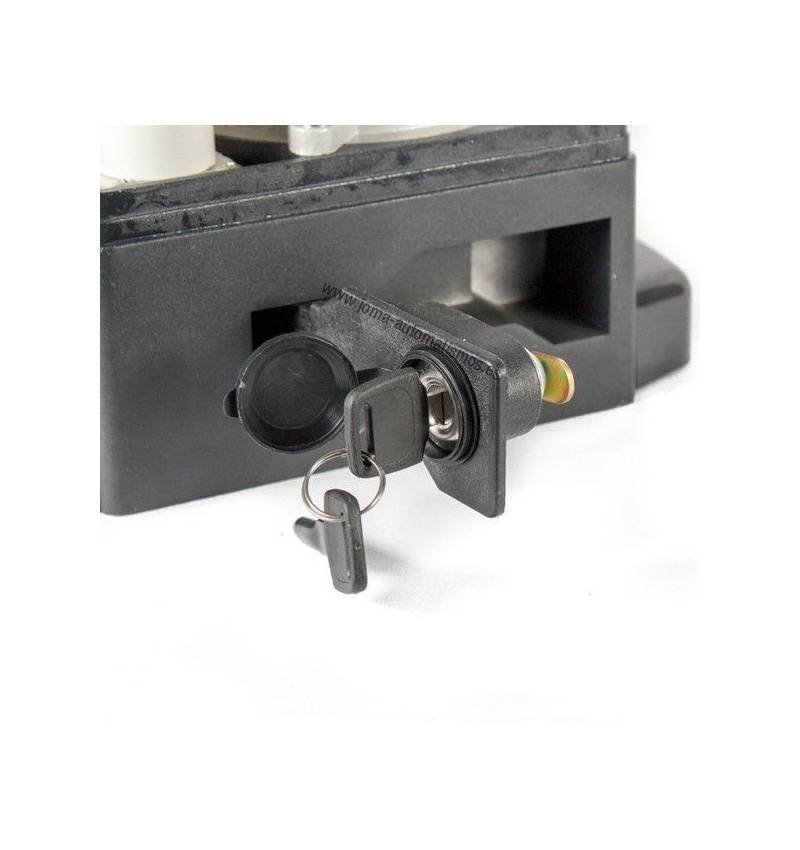

• 2 keys for motor manual unlock

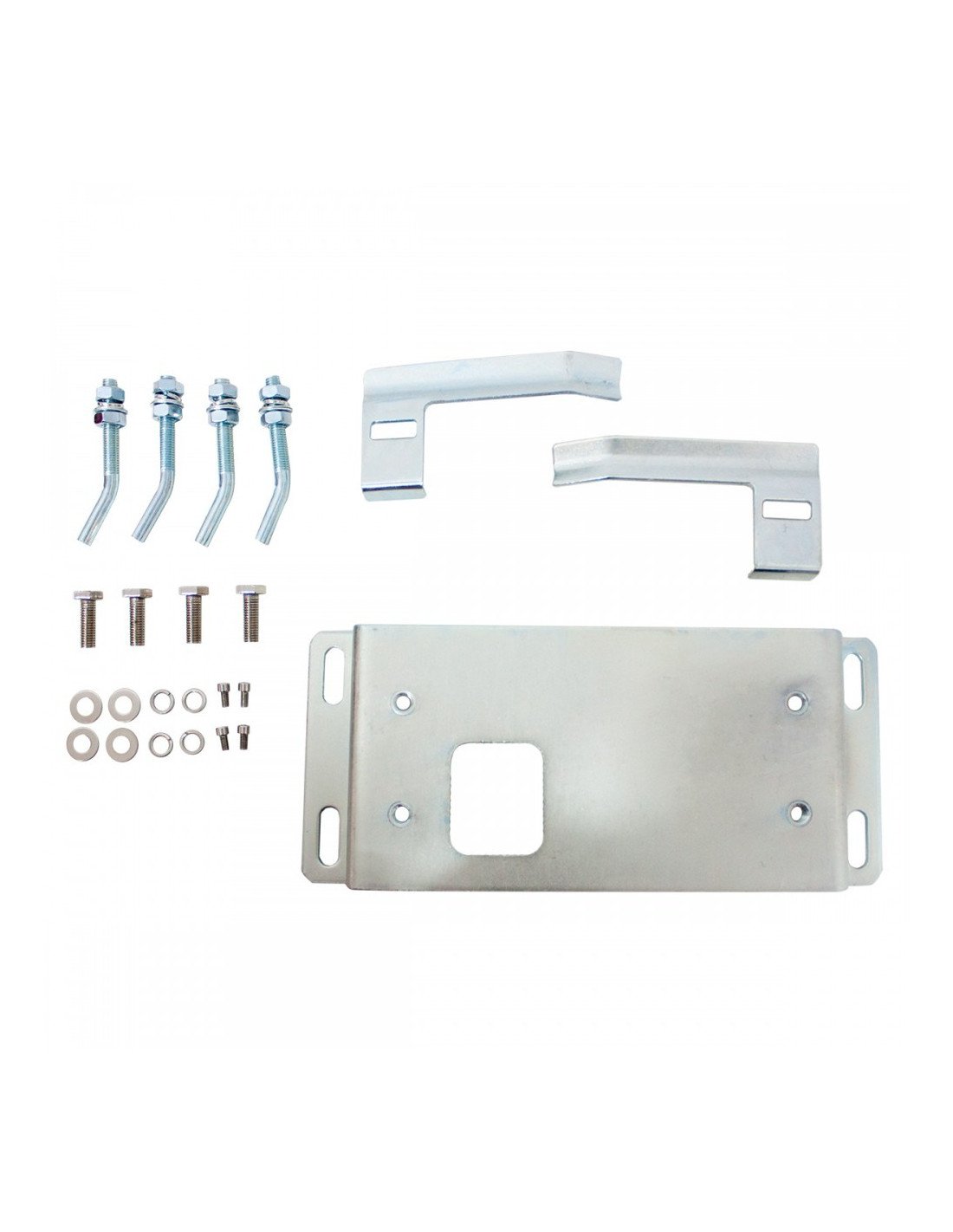

• 1 Automation fixing plate
• Drive plates of the race end

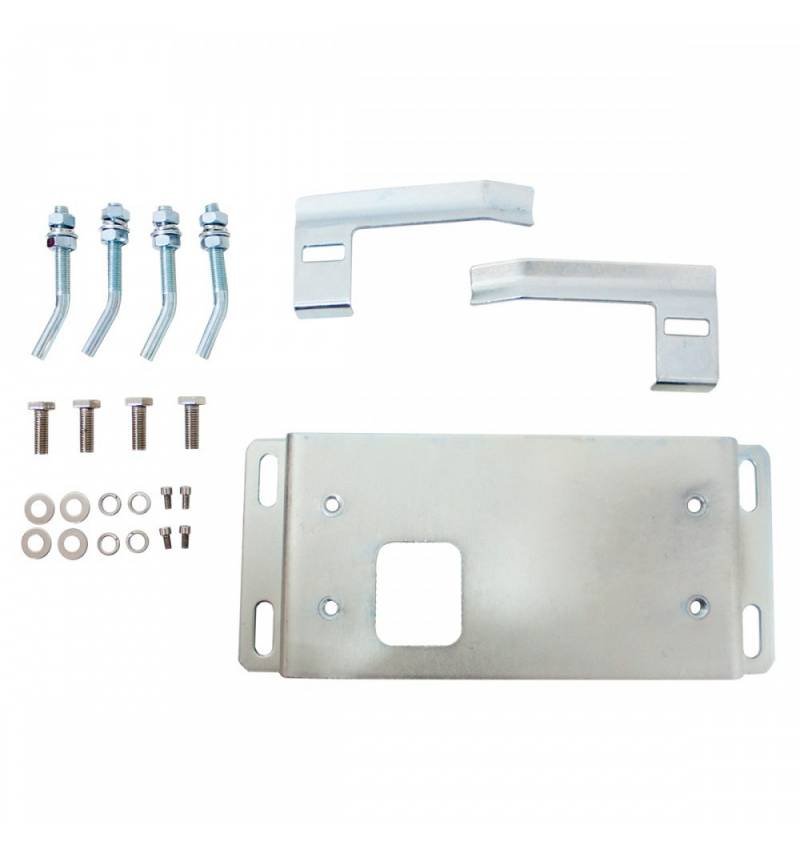

• Screws, anchors and mounting accessories

Technical characteristics Motorline Bravo500

Installation video of the Motorline Bravo500

Programming video of the MC50 center

Manuals and technical information

• Installation manual Motorline Bravo500
• Programming Manual Motorline Mc50
• Exploited Motorline Bravo500

Important: installation, electrical connection, configuration of securities and force regulation should be performed by a professional installer. Before selecting the motor, it should be checked that the door moves manually gently, it is correctly level and does not have friction points.
