Kit VDS AG Future 800K 230V for sliding door up to 800 kg

Kit VDS AG Future 800K 230V for sliding doors up to 800 kg

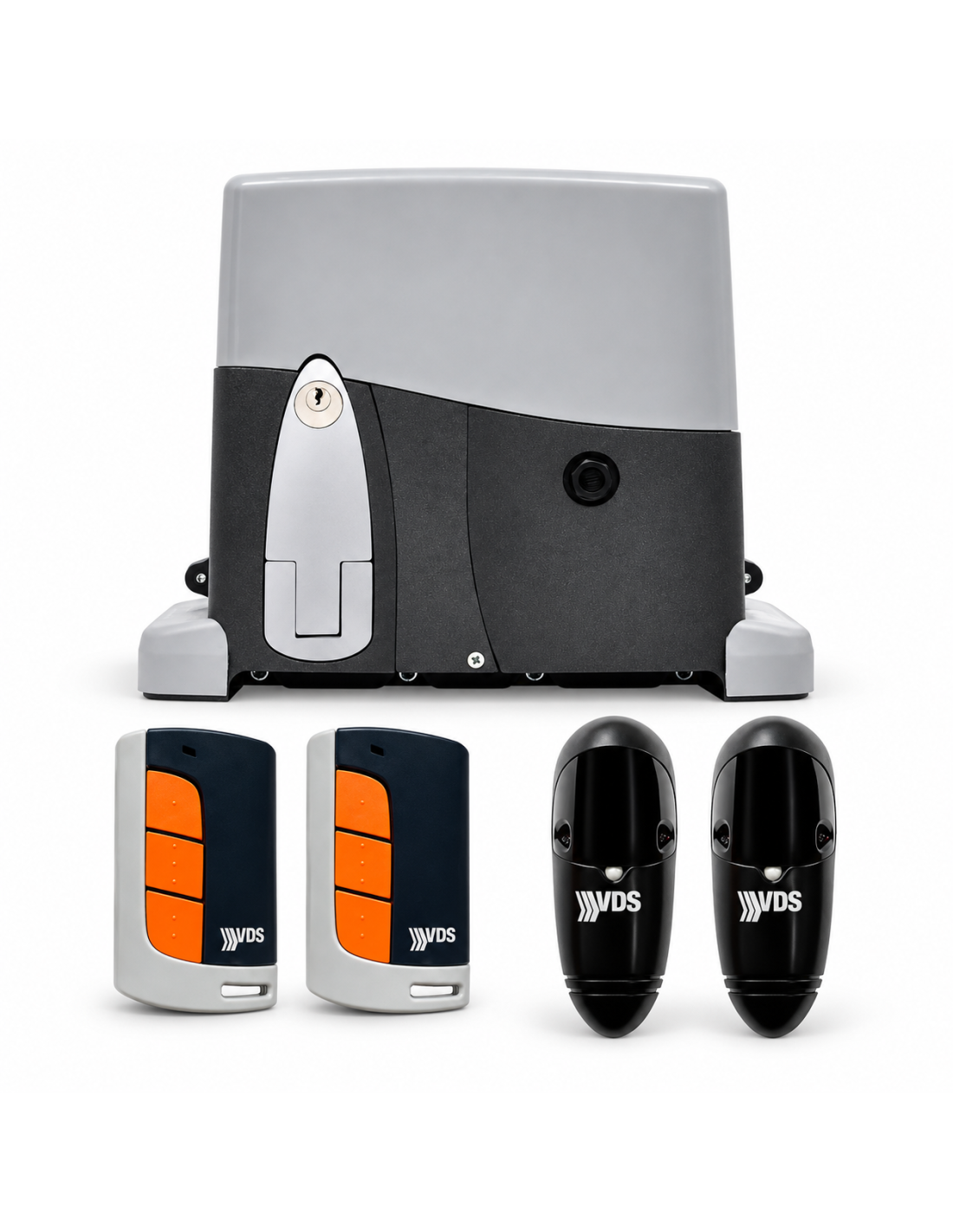

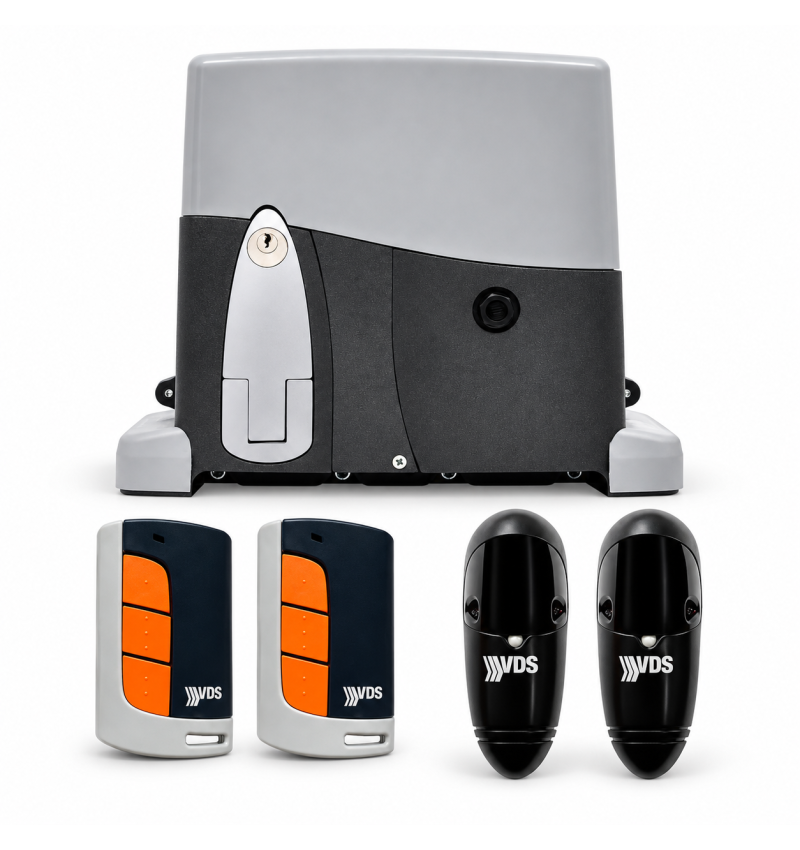

The kit VDS AG FUTURE 800K it is a complete set for the automation of sliding doors up to 800 kg, equipped with electromechanical gearmot 230Vac, electronic maneuver table, two remote controls and security photocells.

The motor AG FUTURE 800K develops a power of 280 W and has electromechanical race end, unlocking manual by key and protection IP44.

The set incorporates the control panel VDS EURO230M1, designed to manage a scroller engine of 230VAC and equipped with independent regulation of force in normal operation and during the phase of slowing.

The kit is completed with 2 controls VDS ECO R OF 433 MHz and a game of photocells VDS 12 / T with reach up to 50 meters.

Complete kit for sliding door

✓ VDS AG Future 800K 230VAC.

✓ For sliding doors up 800 kg.

✓ Maneuver box EURO230M1.

✓ 2 controls E010 Eco R 433.

✓ photocells 12 / T up to 50 m.

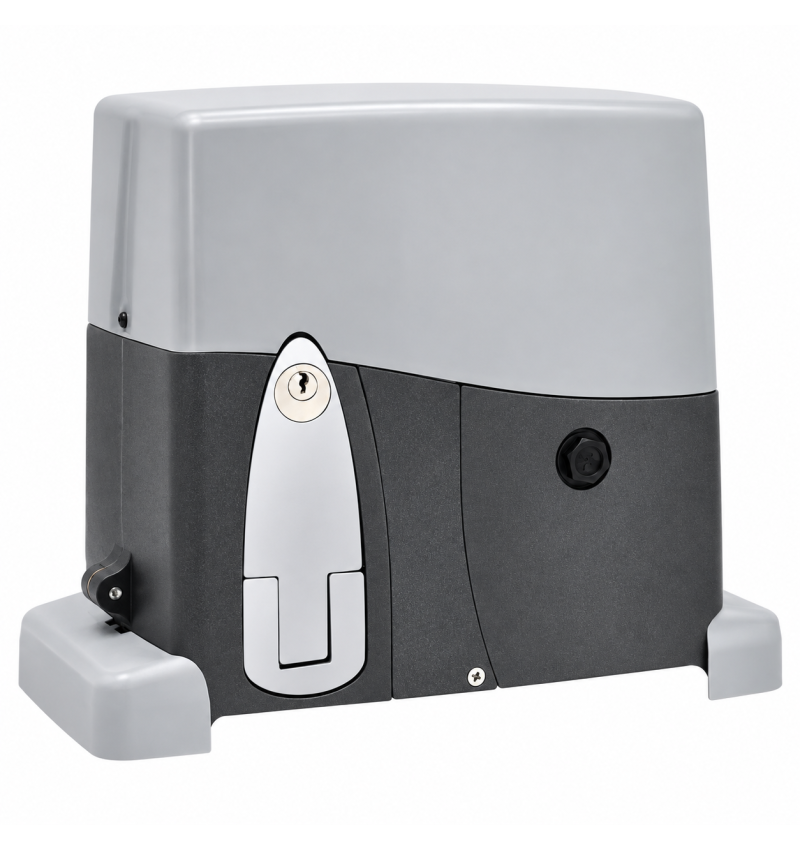

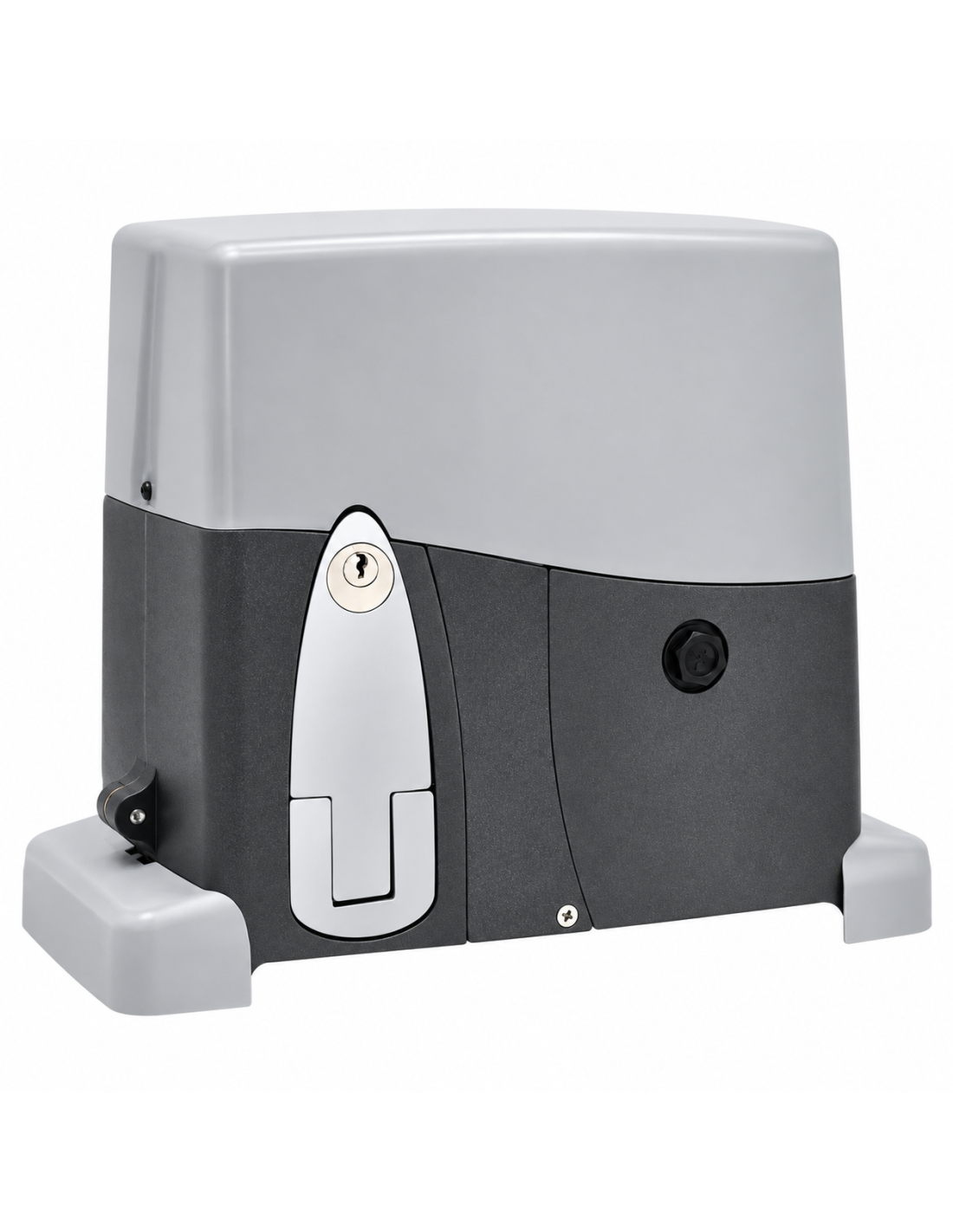

The AG FUTURE 800K it is an electromechanical gearmotor intended for the automation of sliding doors up 800 kg.

Work with feeding 230Vac and has electromechanical race end they allow establishing the end opening and closing points using the cams installed on the rack.

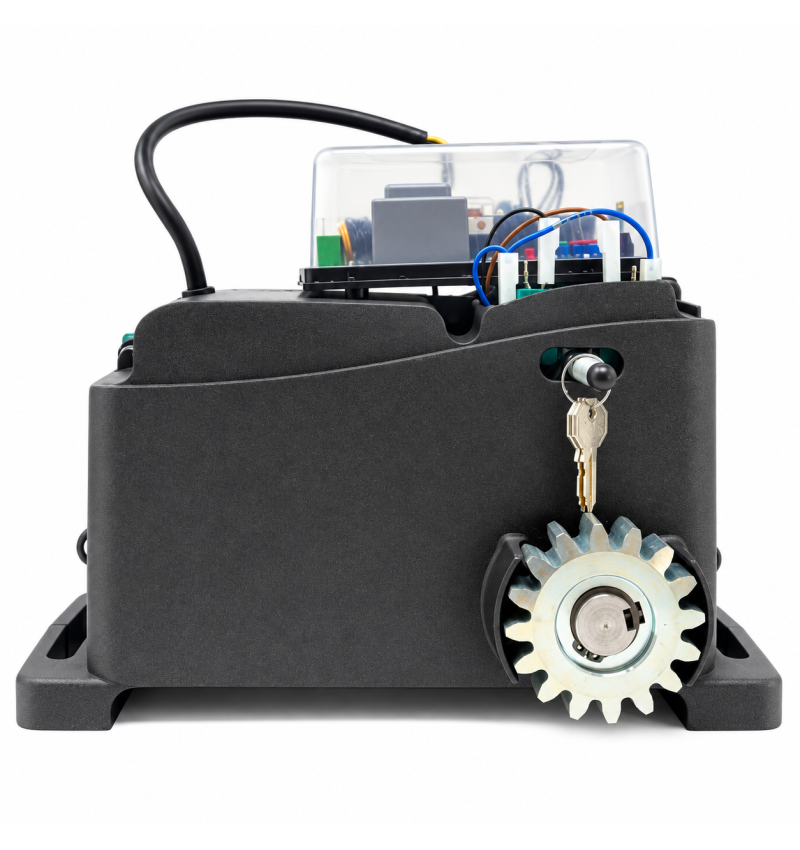

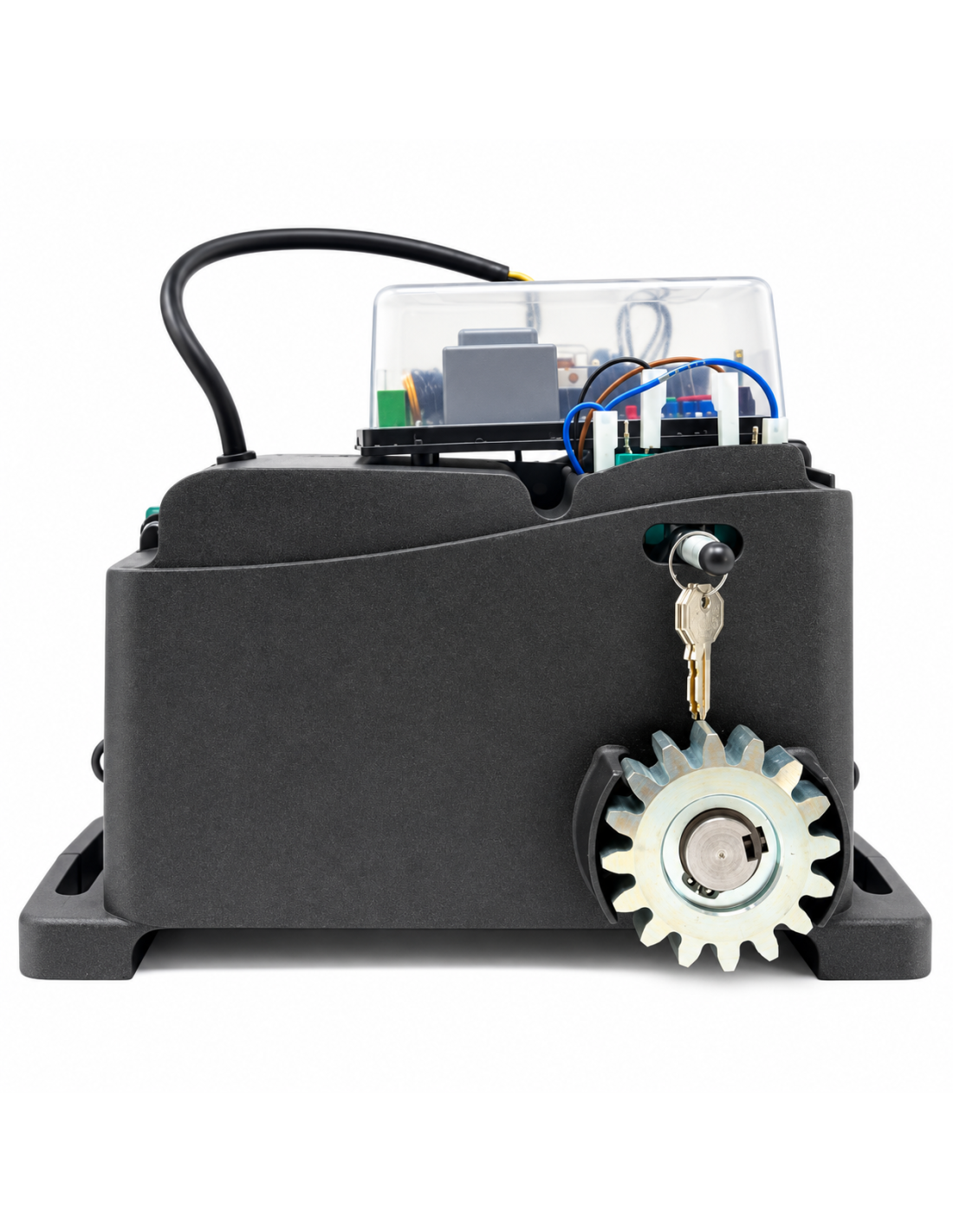

In case of absence of current, the engine has manual unlocking system by key, allowing you to release the mechanism and move the door manually.

The nominal speed indicated by the manufacturer is approximately 10 m / min.

Width: approximately 310 mm.

Background: approximately 150 mm.

Height: approximately 264 mm.

The central EURO230M1 it is designed to manage a 230VAC engine and it can be used in sliding, tilting and barriers.

In this kit is configured to manage the AG Future 800K sliding.

It has independent regulation using trimmers T1 and T2: one allows adjusting the force during normal path and the other during the slowdown phase.

It also incorporates automatic programming of the control and management of controls through the corresponding radio receiver.

✓ 230VAC ± 10%.

✓ Maximum power of admitted motor: 550 W.

✓ Exit for accessories 24VAC / 250 mA.

✓ START.

✓ Entry of pedestrian opening.

✓ STOP.

✓ Entry for closing photocell.

✓ Entry for security band / photocell in opening.

✓ Management of career end opening and closing.

✓ Exit for 230vAC flashing lamp.

✓ Exit for 230vAC courtesy light.

✓ Automatic closure configurable.

✓ Residential or community operation.

✓ Function of slow down / soft stop.

✓ Regulation of force during travel and slowdown.

✓ Automatic travel programming.

✓ Management of up 254 controls, according to the coding system used.

The kit includes 2 controls VDS E010 ECO R for the remote control of the door.

The controls included correspond to the version of 433 MHz indicated in the composition of the kit.

A game of photocells VDS 12 / T to protect the passage zone from the door.

The composition of the kit indicates a range of up 50 meters.

The Central has a specific entrance of a closing photocell; When security detects an obstacle during closing, the logic of the Euro230M1 can stop and reverse the maneuver according to the configuration performed.

Important before installing

The door must be moved manually in shape soft, regular and without frogs. The lower guide must be correctly level and the wheels and upper guides must be in good condition.

The manual also requires having a physical mechanical safety stop to prevent the door from being out of your guides.

Installation and start-up must be performed by qualified personnel, including checking and adjusting all
