The kit VDS AT PLUS 2500K is designed for automation of sliding doors of great weight, up to 2,500 kg, which require a robust and prepared gearmotor for intensive use.

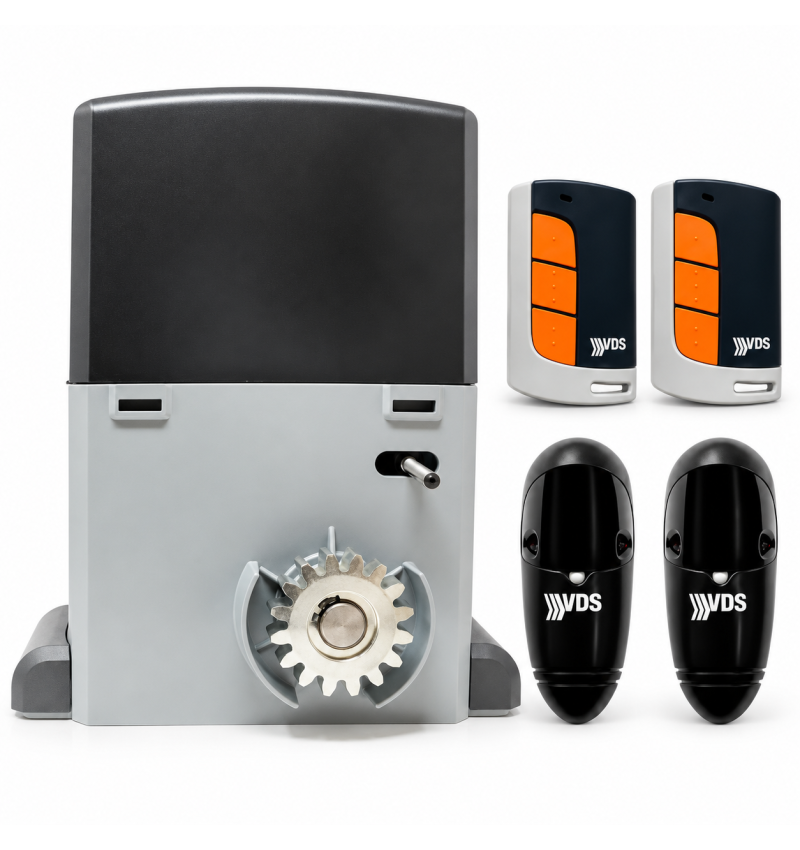

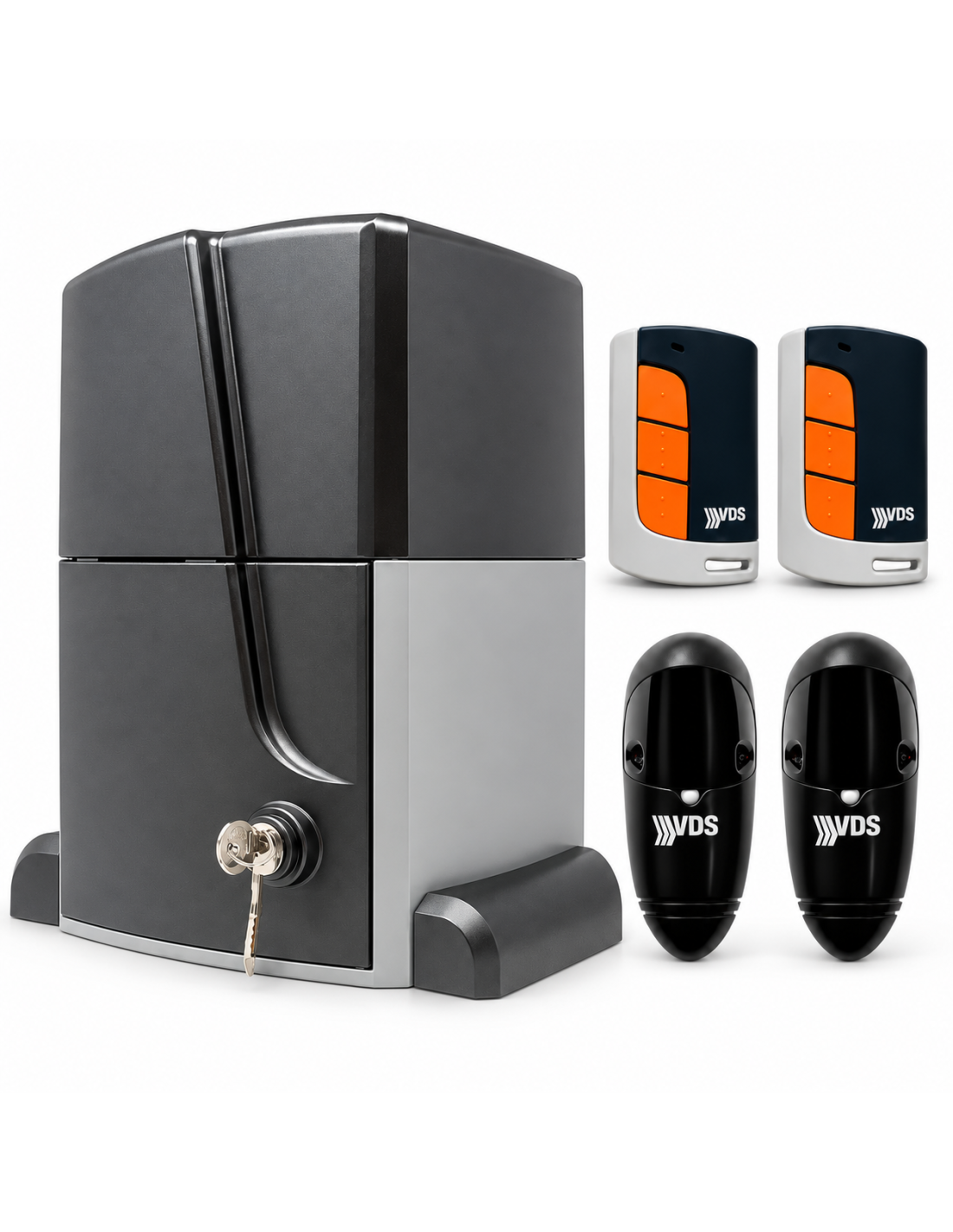

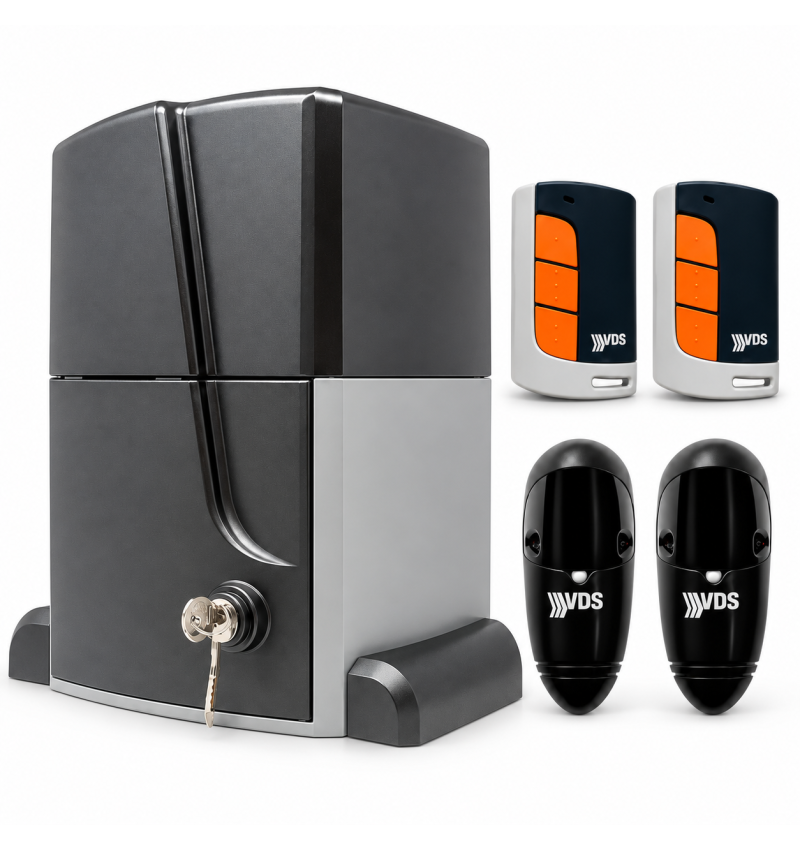

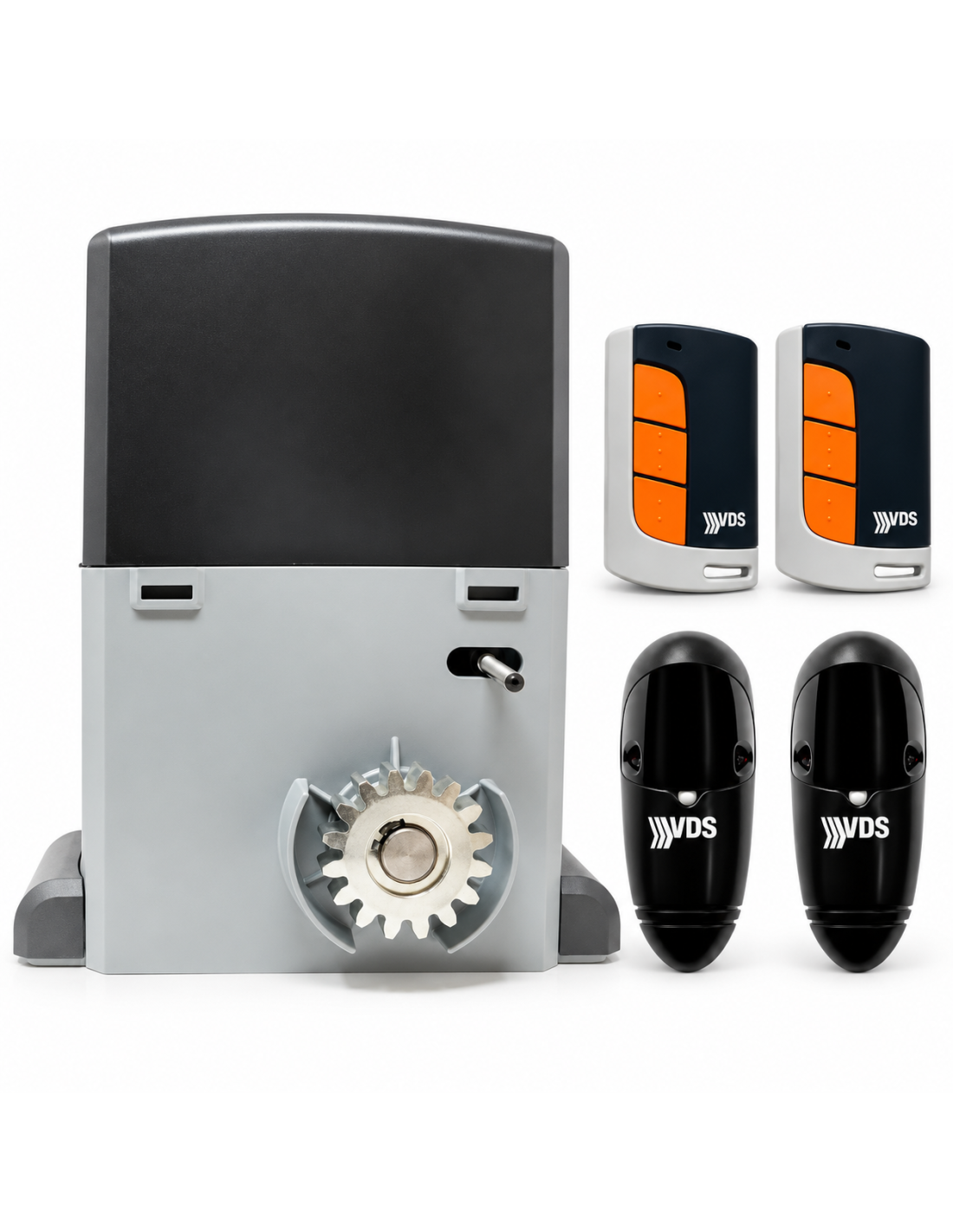

The set incorporates the electromechanical gearmotor VDS At Plus 2500 of 230VAC, A3500 code, equipped with fixing plate, reducer lubricated in oil bath, mechanical clutch and manual unlocking system.

The control unit is included for automatism VDS Euro230m1, E102 code, which allows you to manage the route, automatic closure, slowdown, force, race endings and safety devices.

The kit is completed with 2 controls VDS E010 Eco R 433,92 MHz and a game of photocells VDS 12 / T with reach up to 50 meters.

Is a specially indicated solution for heavy sliding doors of communities, industries, enclosures and accesses with a high mechanical requirement.

Kit for sliding doors up to 2,500 kg

✓ VDS At plus 2500 230vac.

✓ For doors up 2,500 kg.

✓ Lubricated reducer in oil bath.

✓ Electronic Central EURO230M1.

✓ 2 controls E010 Eco R 433,92 MHz.

✓ Photocells VDS 12 / T up to 50 m.

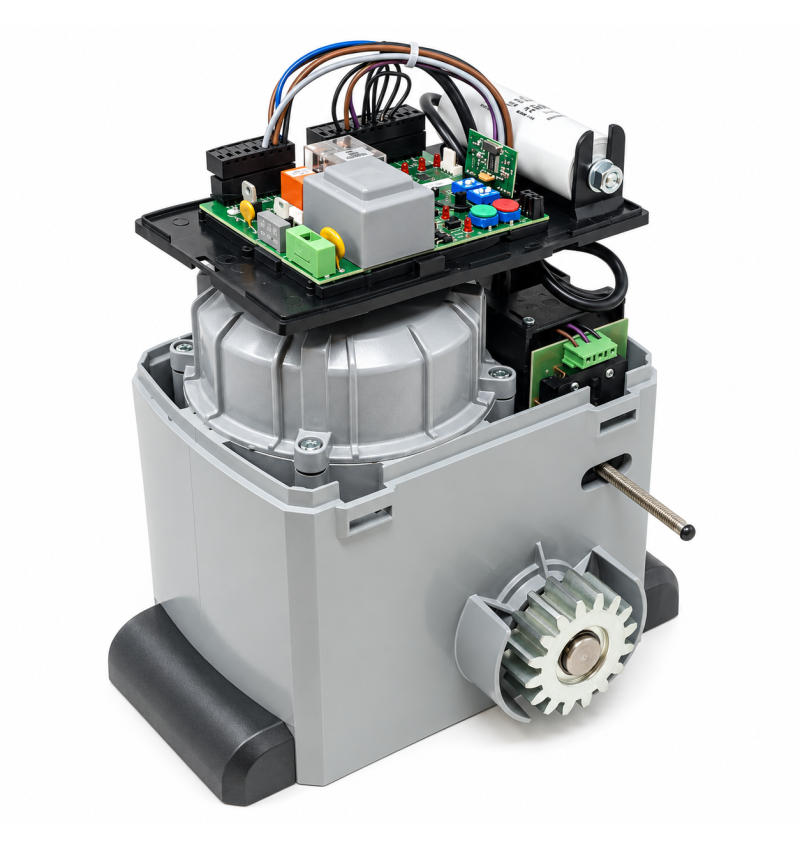

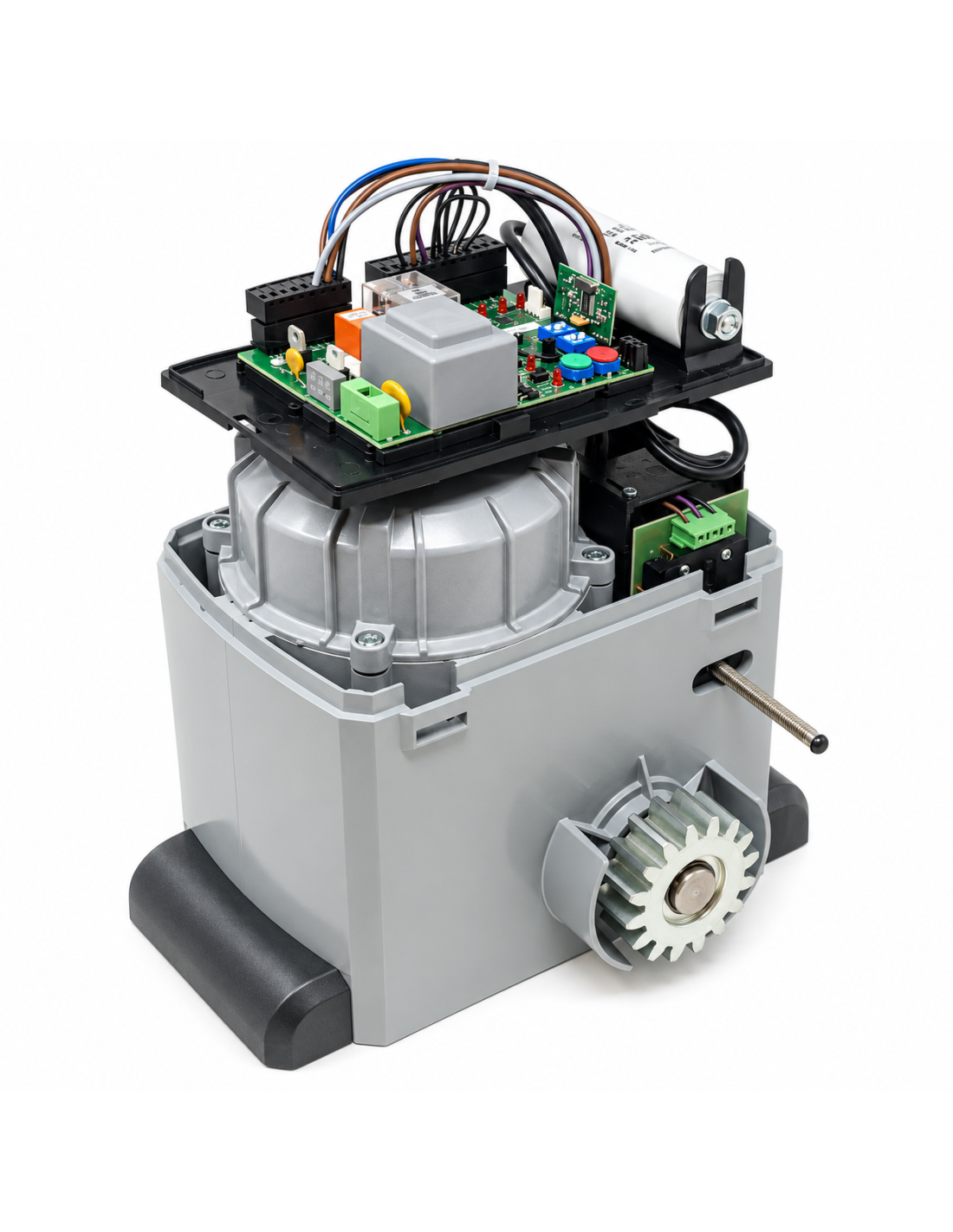

The AT PLUS 2500 is an electromechanical gearmotor for heavy sliding doors up 2,500 kg.

Your reduction system guarantees the mechanical door lock when the engine is stopped, so you usually do not need an additional electric lock.

The mechanical set works with lubrication in oil bath and has double disc clutch in oil.

It also incorporates a system of unlocking manual by lever and key that allows you to move the door manually in case of electric cut or maltography failure.

The movement is transmitted to the door by means of a pinion Module 4 Z16 and the corresponding zipper installed on the sheet.

✓ Electromechanical gearmotor for sliding door.

✓ 230VAC 50 Hz.

✓ Doors up 2,500 kg.

✓ Engine power 650 W.

✓ intensive.

✓ Lubricated reducer in oil bath.

✓ Mechanical clutch double disc in oil.

✓ Regulation of force.

✓ Anti-explashing system with compatible electronics.

✓ Ralenticization function by compatible central.

✓ Mechanical career end.

✓ User unlocking by lever and key.

✓ Piñón Module 4 - Z16.

✓ Degree of protection IP44.

✓ Approximate displacement speed of 9.6 m / min.

The EURO230M1 is a central to a 230VAC engine, used by VDS in sliding, tilting and barriers.

It has independent regulation by two Trimmers T1 and T2: one regulates strength during normal movement and second during slowdown.

Allows you to perform the self-learning of the route and program the starting starts points in opening and closing.

It also allows working with career, encoder, photocells, safety band, stop and pedestrian opening.

✓ 230VAC ± 10%.

✓ Food for accessories 24VAC / 250 mA.

✓ Start entry.

✓ Entry of pedestrian opening.

✓ Stop entry.

✓ Photocell input during closing.

✓ Input for security during opening.

✓ Management of opening and closing career end.

✓ Encoder input.

✓ Function of automatic closure.

✓ Community mode or step by step.

✓ Function of slow down / soft stop.

✓ Independent regulation of force in motion and slowdown.

✓ Exit for 230VAC flashing lamp.

✓ Exit for 230VAC courtesy light.

✓ Management of fixed code or ROLLING CODE.

✓ Memory for 254 controls.

The kit includes 2 controls VDS Eco R Reference E010 to control the remote automatism.

They work at a frequency of 433,92 MHz and they use a coding system Rolling code.

The controls must be memorized in the receiver of the box following the corresponding programming procedure.

The kit incorporates a game of photocells VDS 12 / T to protect the passage zone during the door maneuvers.

The scope indicated for these photocells is up to 50 meters.

The Euro230M1 has a specific entrance to a closing photocell; When detecting an obstacle during closing can invert the movement of the door according to the configuration of the plant.

Zipper not included

To transmit the movement of the motor to the door is necessary a zipper 4 compatible module. The zipper does not appear included in the composition of this kit and must be added according to the length of the door.

Important before installing

A large door must have a structure, bottom guide and wheels in perfect condition. Before installing the automation, it must be checked that the sheet moves manually smoothly and regularly.

They should also be installed physical mechanical safety tops to prevent the door from leaving your guide at the ends of the route.

The installation, force regulation and commissioning must be carried out respecting the manufacturer's manual and the safety devices required.

■ 1 × engine VDS AT Plus 2500 230VAC, code A3500.

■ 1 × motor fixing plate / base.

■ 1 × electronic central VDS EURO230M1 E102.

■ 2 × controls VDS Eco R E010 433,92 MHz.

■ 1 × photocell game VDS 12 / T up to 50 m.
