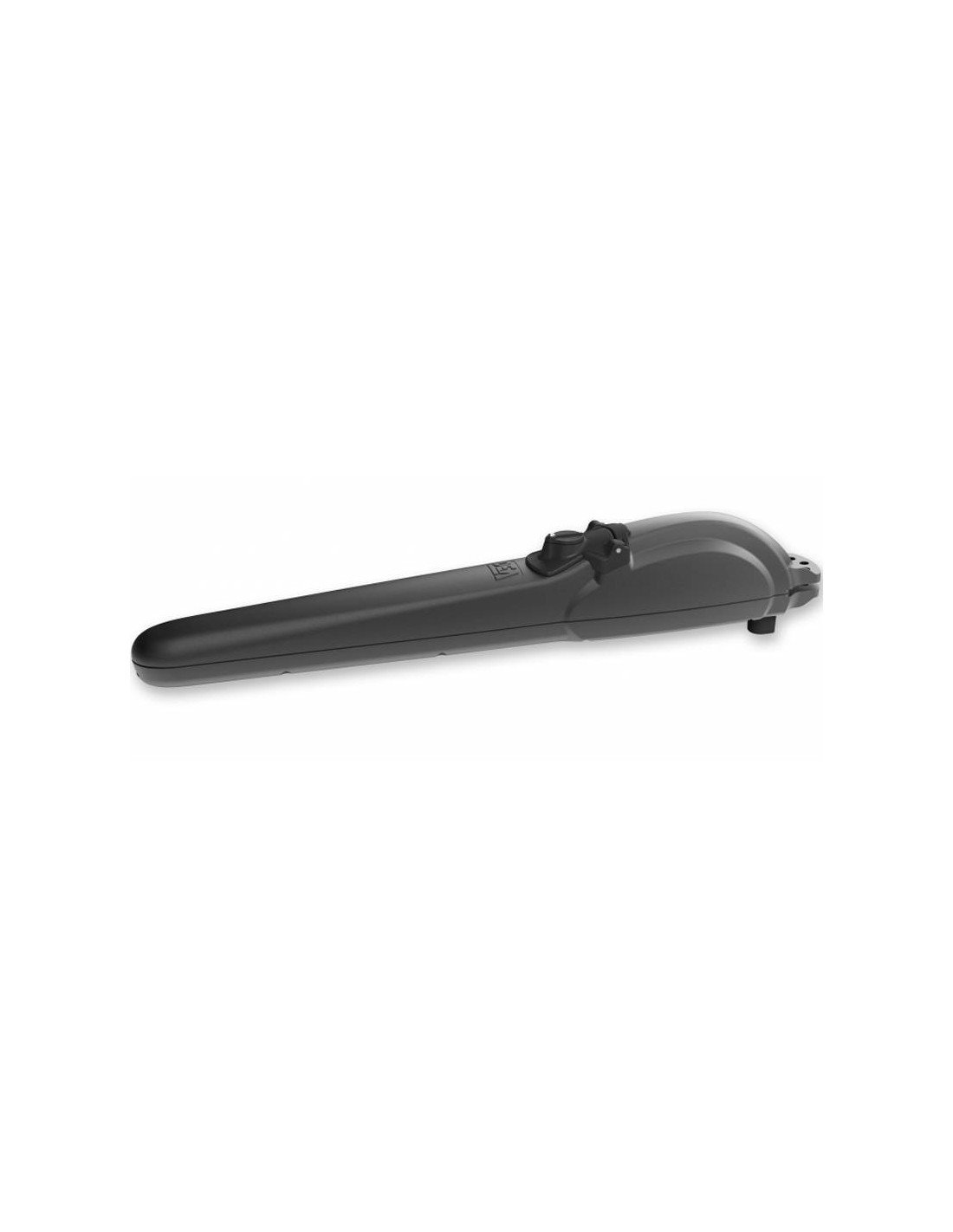

Electromechanical STING DEA motor in 230V and 24V version for swing doors for residential or community use up to 3 meters per leaf.

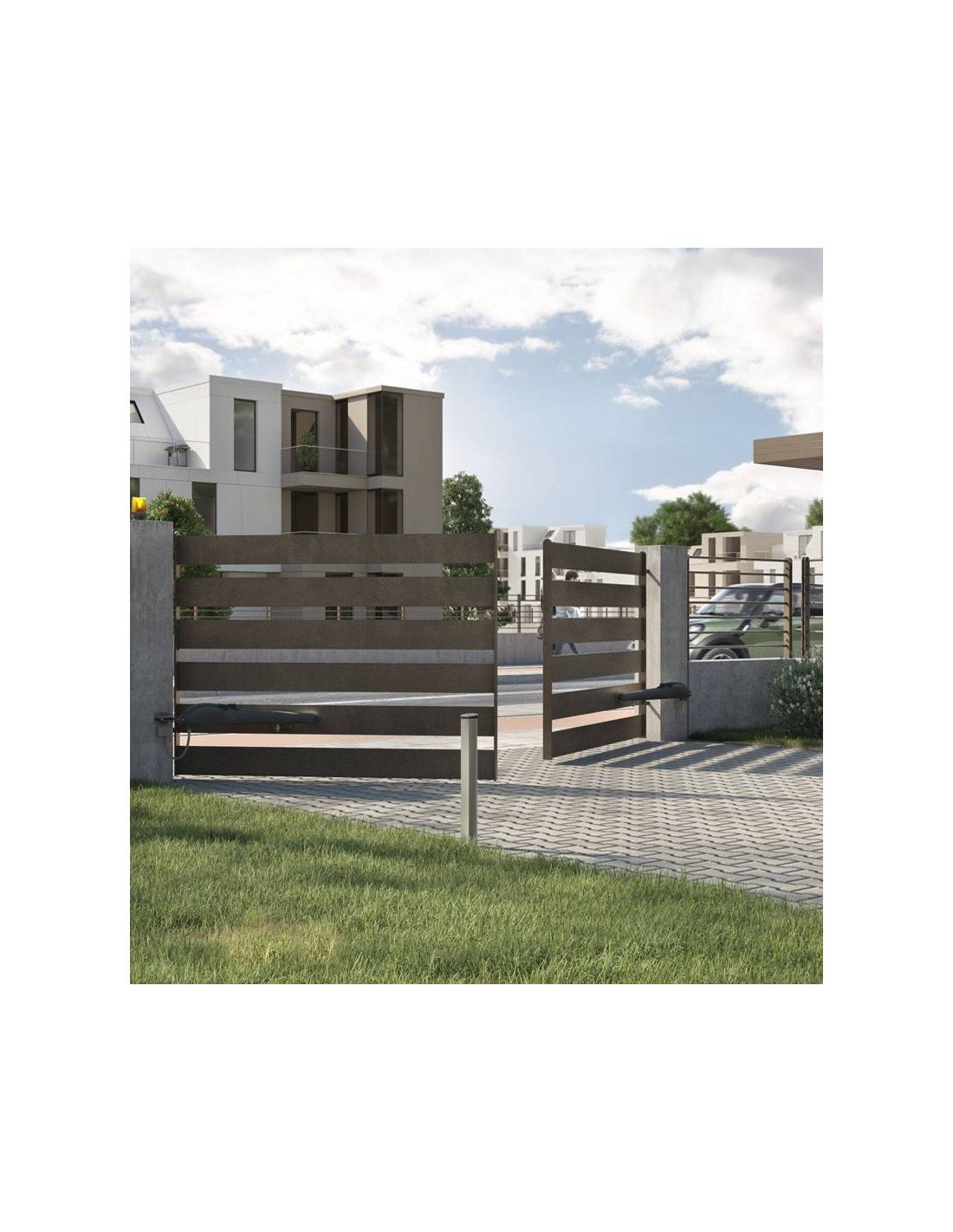

STING swing door automation handles doors for residential or community use, with leaves up to 3 meters in length and weighing up to 400 kg. Equipped with built-in mechanical stops, STING does not need stop stops on the ground, elements that could be annoying or inelegant.

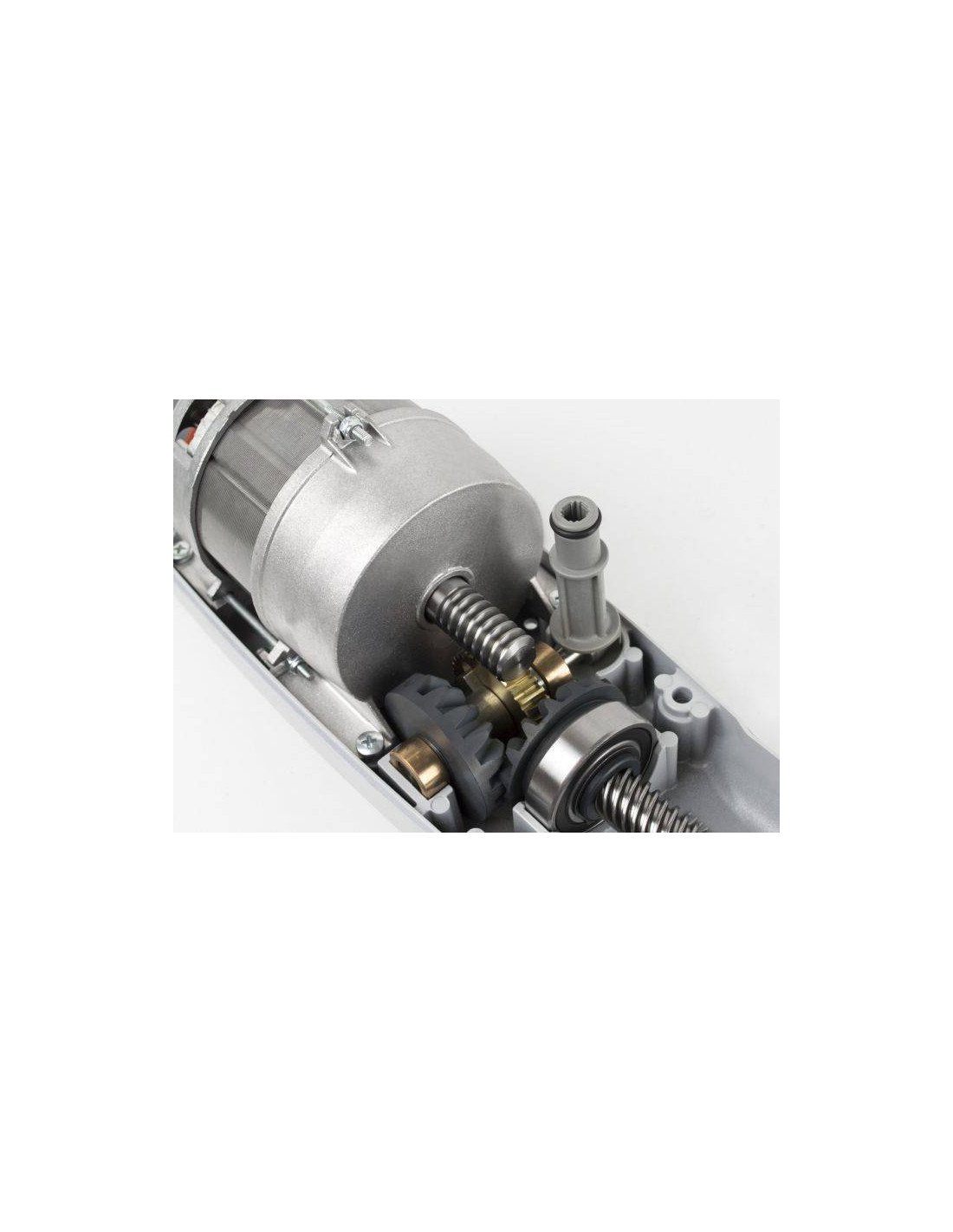

■ The robustness of this geared motor is guaranteed by its monobloc body.

■ Door opening up to 110°.

■ Unlocking the engine with a custom metal key.

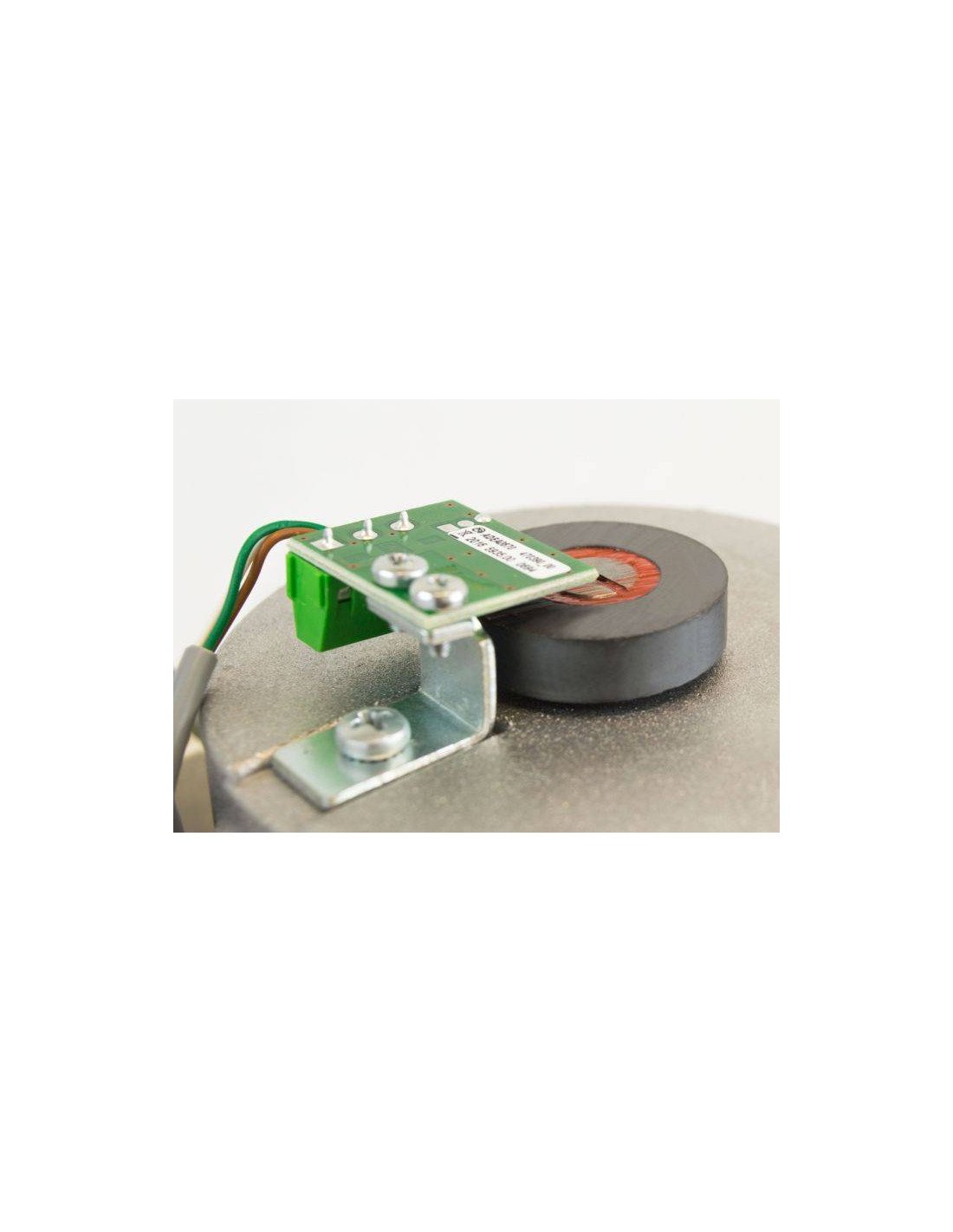

■ By installing mechanical limit switches (optional) you avoid putting stops on the floor.

■ Increased installation versatility thanks to adjustable screwdriving fixing plates included in the package

■ More speed with STING/BOOST: the new 24V model in the STING range with a minimum opening time of 9 seconds. Available as a kit.

AVAILABLE MODELS

■ 625050 STING: Electromechanical motor 230V, stem 334mm.

■ 625052 STING/EN: 230V electromechanical motor, 334mm rod with encoder.

■ 625051 STING/24: 24V electromechanical motor, 334mm stem.

■ 625056 STING/24-BOOST: 24V electromechanical motor, 334mm stem, quick opening.

STING ACCESSORIES

■ 925090L KIT KEY MAC/LOOK: Unlock key for MAC and LOOK (5 pcs)

■ 629300 MAC/FM: Mechanical limit switches for MAC/STING (2 pcs)

■ 629312 MLS/SFR: Adjustable fixing plate for screwdriving

SPECIFICATIONS

MANUAL

STING DEA Instruction Manual
