Engine FAAC S418 24V electromechanical for...

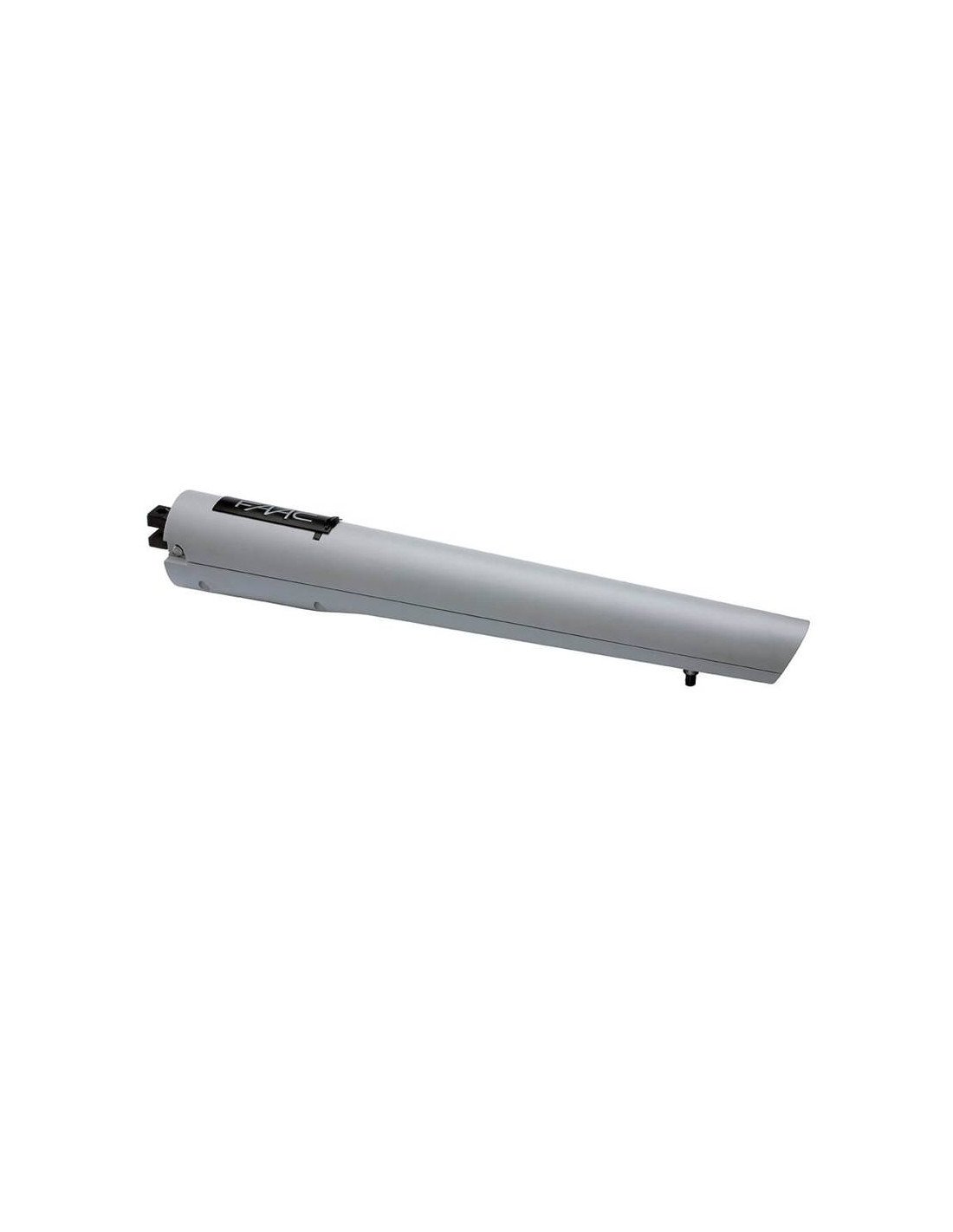

Engine FAAC S418 24V electromechanical for heavy duty swing doors

Engine FAAC S418 24V electromechanical for heavy duty swing doors

Reference 104301

€332.00

VAT excluded

401,72 €

Tax incl.

Engine FAAC S418 24V electromechanical for residential or communal high-voltage swing doors.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Engine FAAC S418 24V electromechanical for residential or communal high-voltage swing doors.

• Maximum blade width: 2.3 metres (without electric lock) or 2.7 metres (using electric lock)

• Mechanical locks on opening and closing (possibility of not installing mechanical caps).

• High adjustable movement speed.

• Multi-position fastening support which does not require welding.

TECHNICAL CHARACTERISTICS

Model	S418 24V
Power supply voltage	A voltage of not more than 250 V
Electric motor	With 24V brushes
Max power.	35 W
Maximum thrust force	1800 N
Maximum speed	37 mm/s (with E124)
Stem race

350 mm (390 mm without stops)

Maximum leaf opening angle

110°

Operating room temperature

-20°C ÷ + 55°C

Degree of protection

IP54

Weight

6 kg

Frequency of use

Continuous use

Maximum sheet width

2,3 m (2,7 m with electric lock)

Other, of circular cross-section

Rear threaded fastener, adjustable – front threaded fastener, adjustable

Dimensions (LxPxH)

823 x 104 x 137 mm

Electronic equipment

Not included

MANUAL

Instruction manual FAAC S418

Type of engine: Electromechanical 24V
Type of door: Community portal
