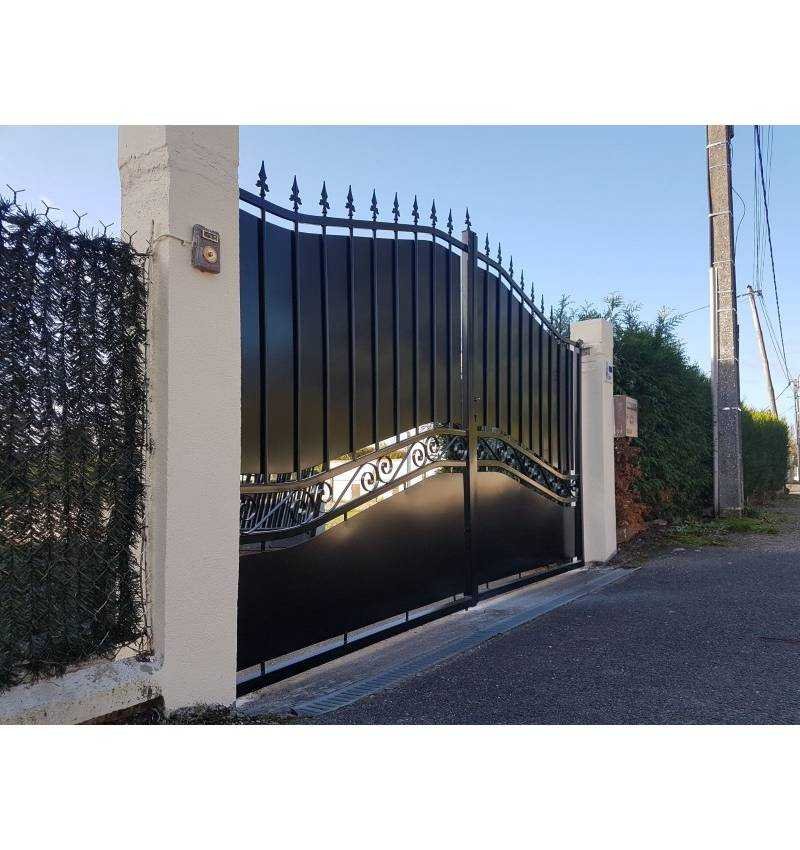

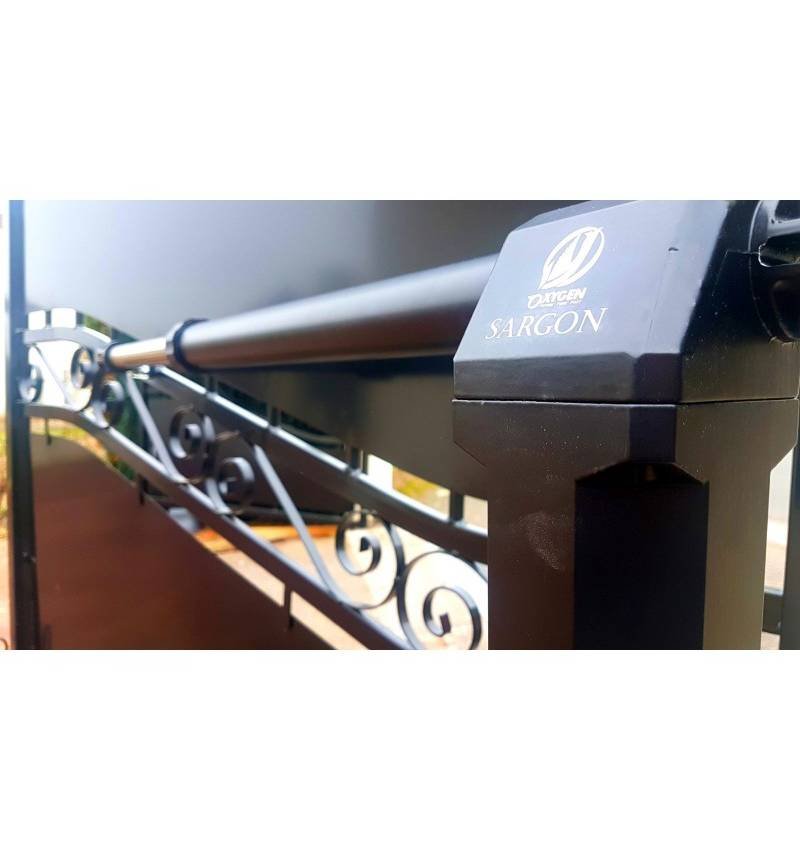

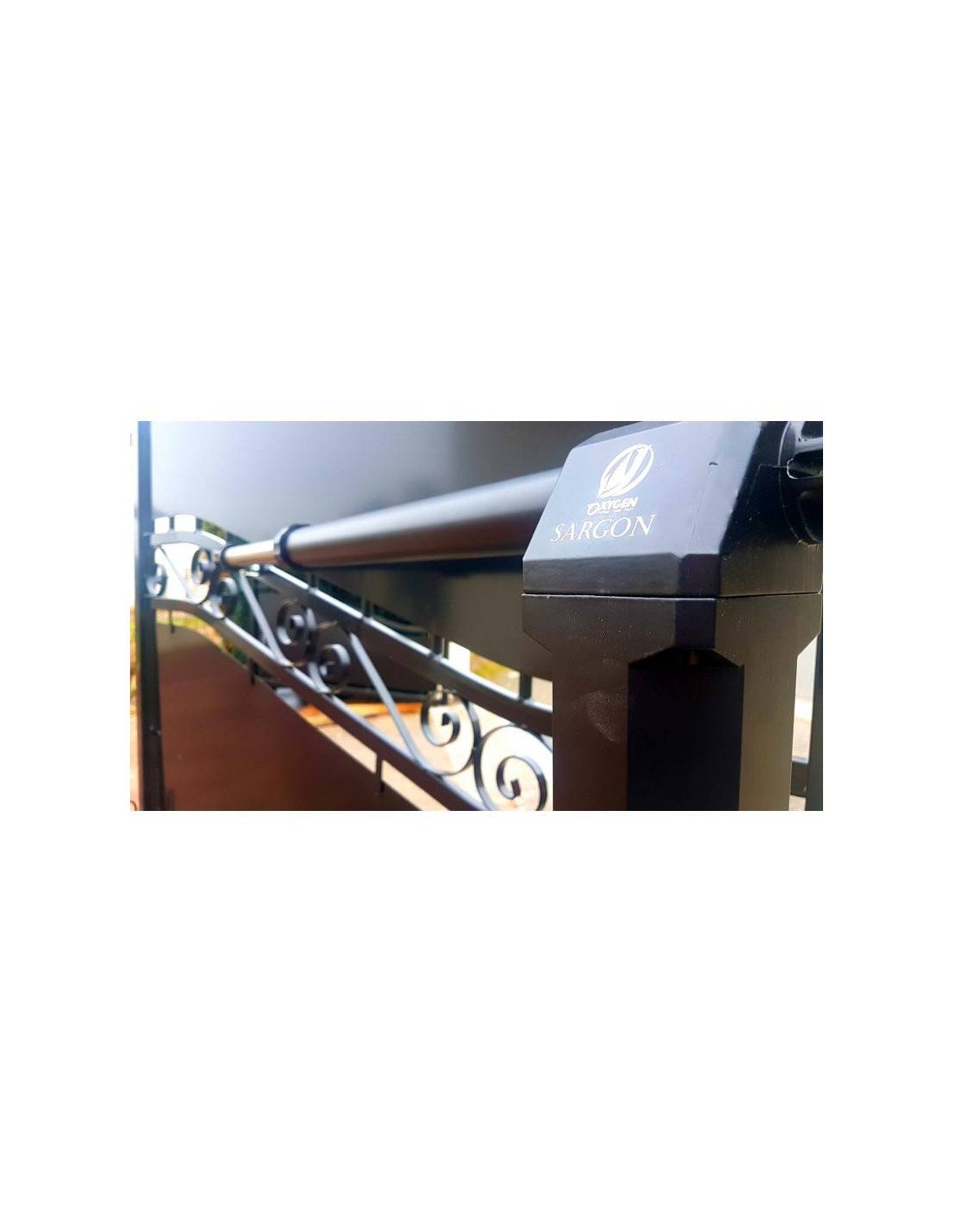

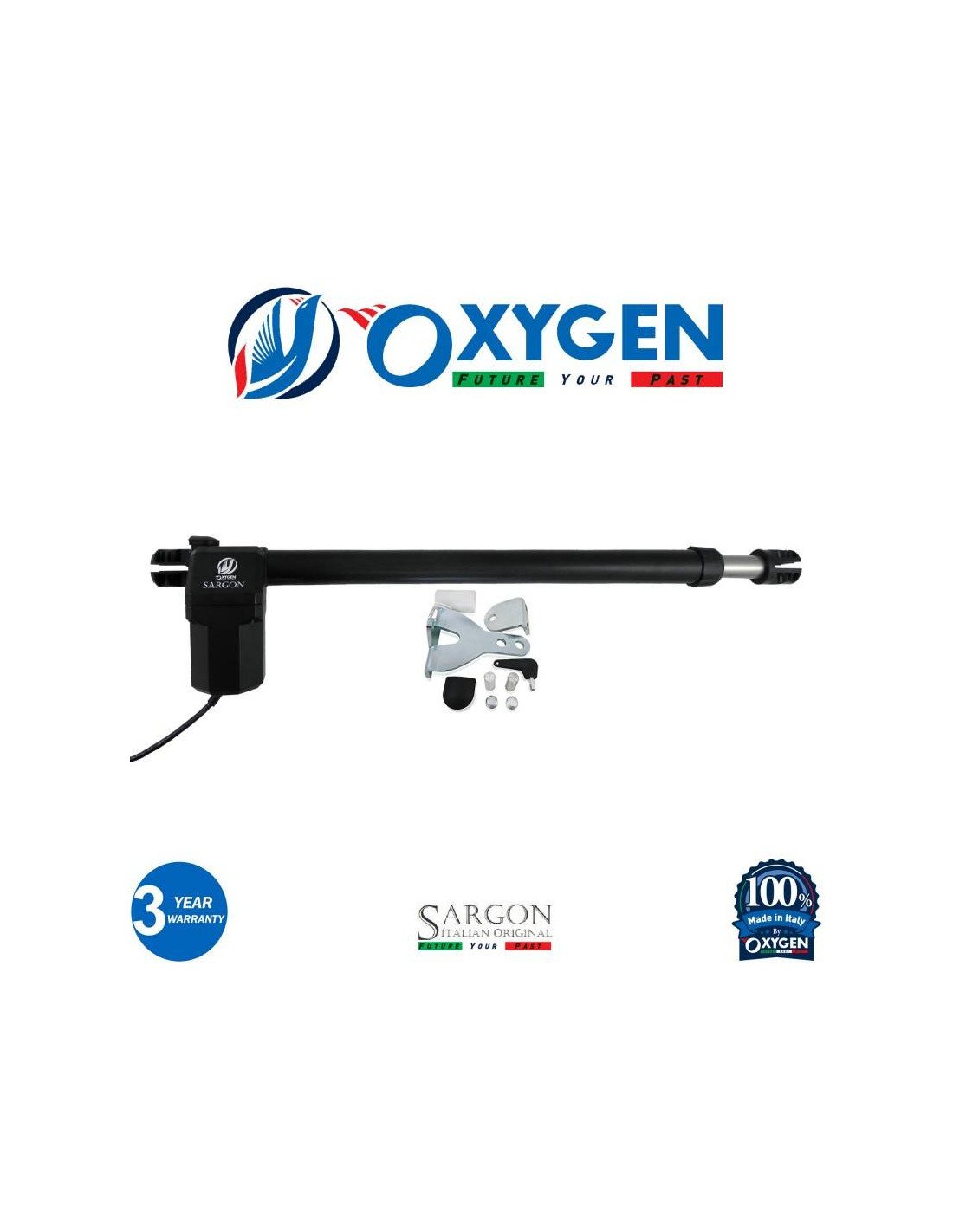

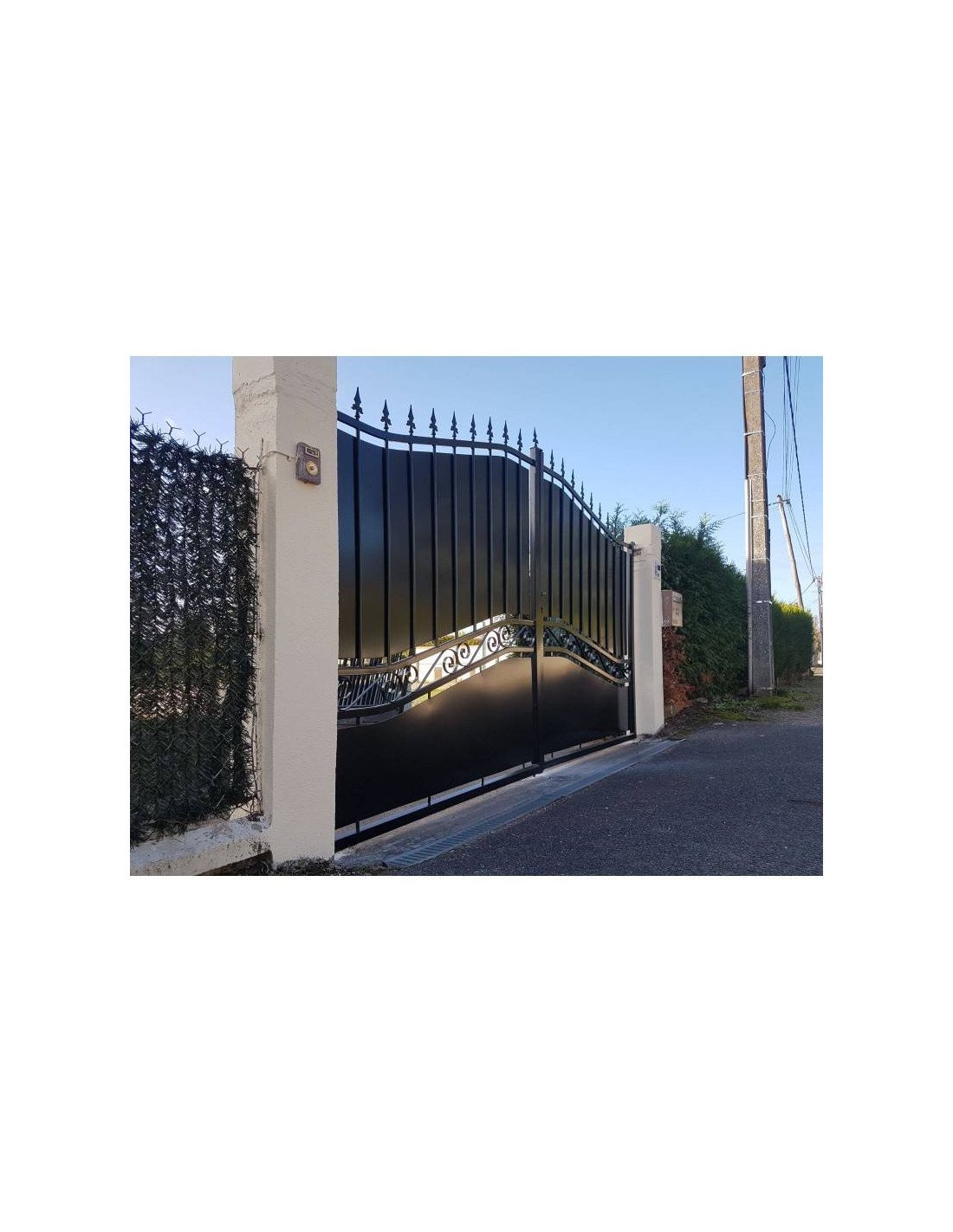

Electromechanical motor Oxygen Sargon at 230V for residential-use swing doors up to 3m (Sargon S) or up to 4m (Sargon M).

The motors of the Sargon series features a 300 mm (Sargon S) rod 400 mm (Sargon M), and are designed to be used in light doors of up to 250 kg.

Features Motor Sargon S

• Feed: 230VAC
• Stem: 300 m
• Maximum length door: 3 meters
• Maximum door: 250 kg
• Power: 330 W
• Absorbed: 1.8 a
• Maximum: 1600 N
• Operating temperature: - 25 ° C + 60 ° C
• Opening time: 17 sec
• Thermal protection: 150 ° C
• Work cycles: 35%
• Lubrication: Fat

Features Motor Sargon M

• Feed: 230VAC
• Stem: 400 m
• Maximum length door: 4 meters
• Maximum door: 250 kg
• Power: 330 W
• Absorbed: 1.8 a
• Maximum: 1600 N
• Operating temperature: - 25 ° C + 60 ° C
• Opening time: 17 sec
• Thermal protection: 150 ° C
• Work cycles: 35%
• Lubrication: Fat

Features Box Nerea

• Automatic operation or step by step (open-closes-for)
• Programmable automatic closure
• Programmable pedestrian opening
• Connection of security photocells
• Regulation of force and initial start by trimmer
• Deceleration regulation
• Connection for flashing light

Technical characteristics Nerea box

• Feed : 230 VAC 50-60 HZ 1600 W max.
• Intermittent output : 230 VAC 500 W max.
• Output of the engines : 230 VAC 50/60 Hz. 500 W max.
• Output : 12 VCC 15 W max.
• Feeding photoelectric cells : 24 VAC 3 W max.
• Safety devices and controls in BT : 24 VDC
• Working temperature : -10 at 55 ° C
• Radio receiver : See Model - OPRAWER TRANSMITTERS : 12-18 bit or Rolling Code
• TX codes max. In Memory : 150 (Code or Code PEAT.)
• Dimensions of the card : 140 x 125 x 45 mm.
• Dimensions of the container : 190 x 140 x 70 mm.
• Degree : IP 56

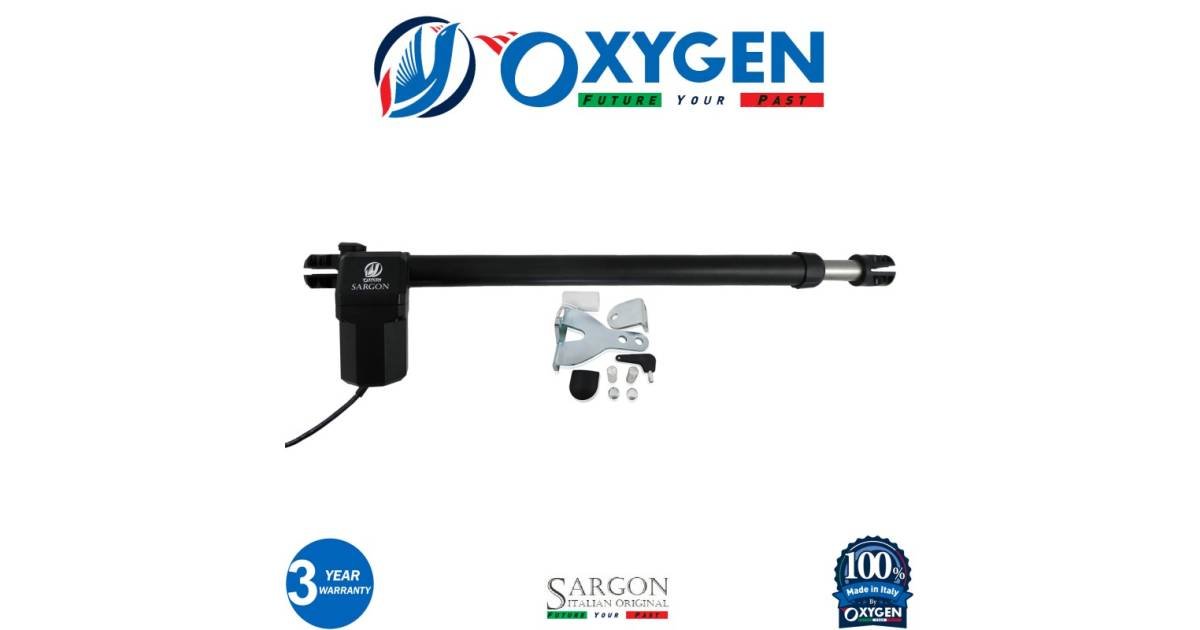

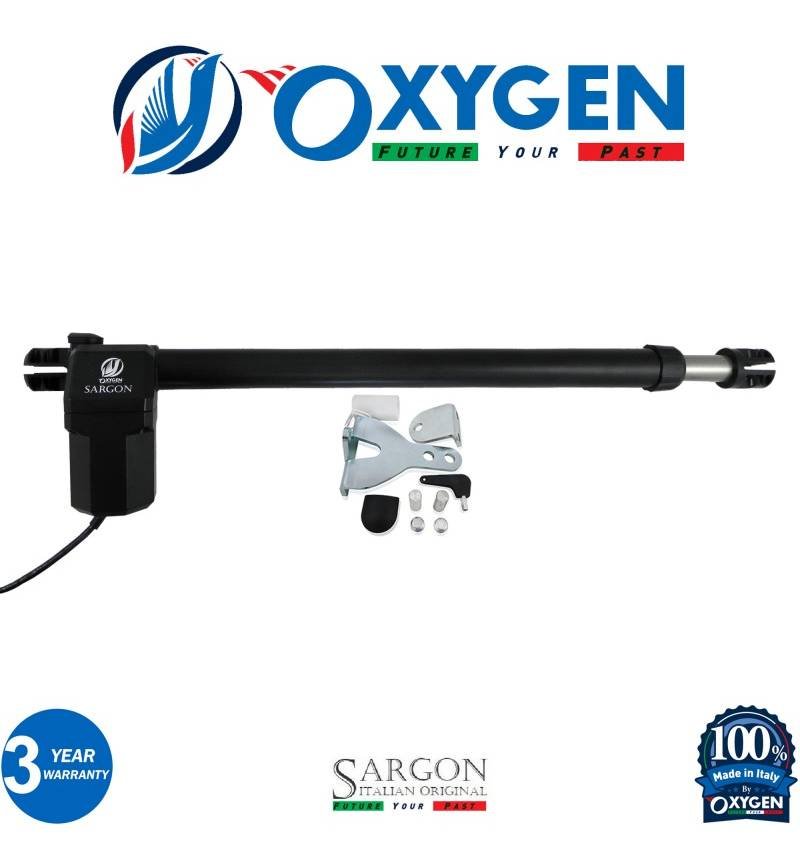

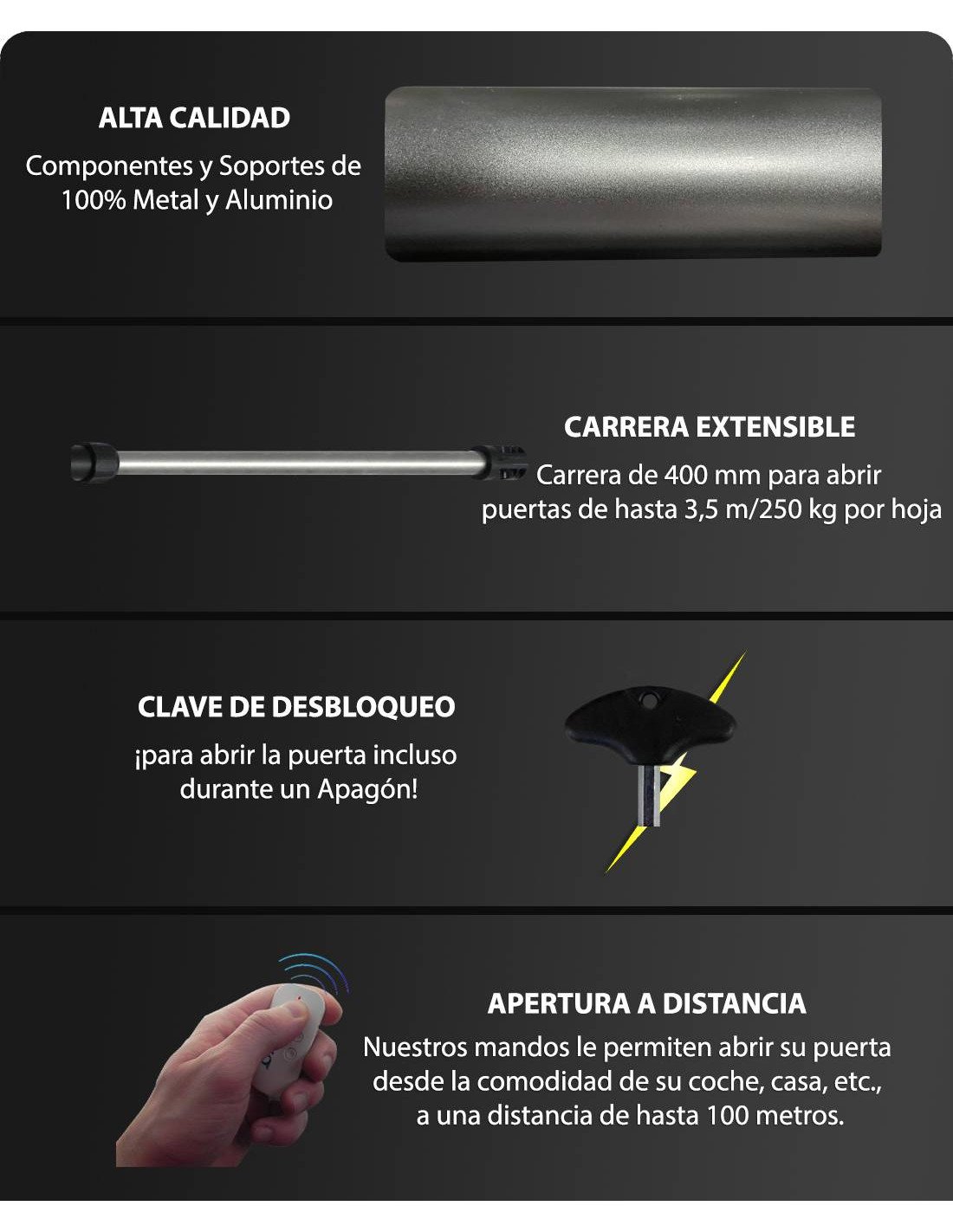

Package content

• 1x Sargon Sargon 300mm or 400mm
• 1x Front Support
• 1x Rear Support
• 1x condenser
• 1x key unlock

Manual

Sargon instruction manual
