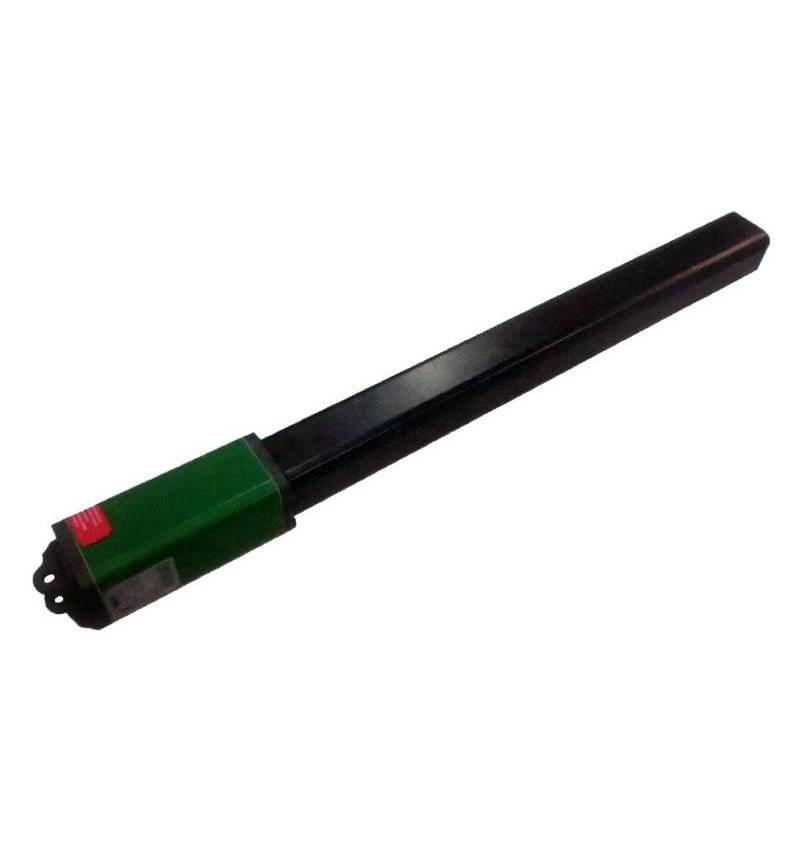

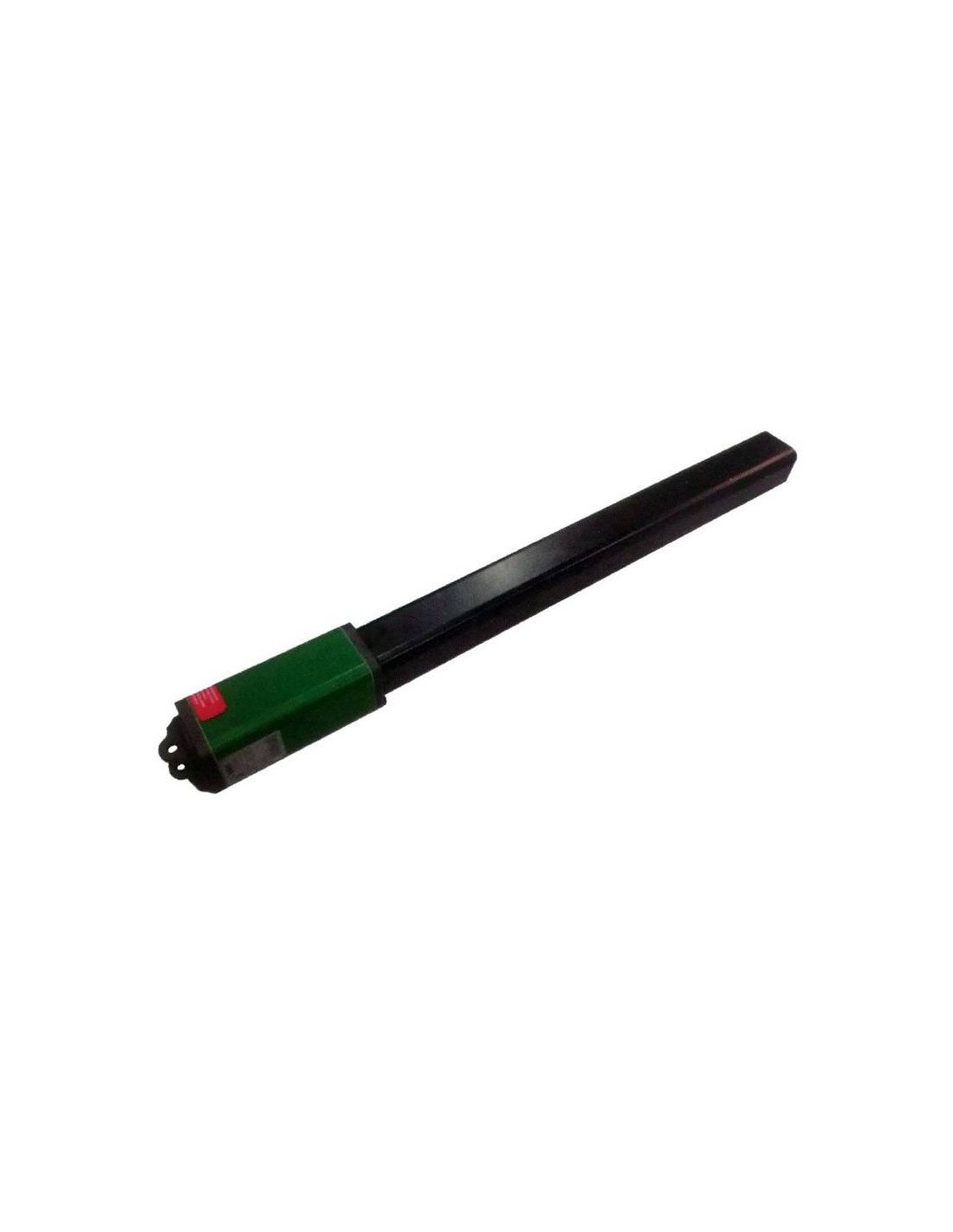

Engine Forsa Electromechanical Cougar Bathroom In Oil For Intensive Use Up to 5m

Forsa Cougar is an electromechanical operator reversible in oil bath for intensive use beating doors up to 5 meters and / or 400 kg of weight.

Your transmission system by spindle, Lubrication in engine oil and its mechanical components and maximum 600 DAN force make it a specially indicated solution for large and heavy swing doors.

It is available with piston routes 270 or 390 mm, with the possibility of choosing the standard version or the model with Integrated linear encoder To obtain a more precise positioning of the door.

Main features of Forsa Cougar

• Reversible electromechanical operator For swing doors.
• Intensive use: Up to 30 cycles per hour at an ambient temperature of 20 ° C.
• Lubrication in oil bath of the motor, reducer and ball spindle.
• Available with races of 270 and 390 mm To adapt to different installation geometries.
• Maximum pushing of 600 dan For large doors.
• Adjustable spherical union At the end of the stem to facilitate adjustment during installation.
• Strain stream reinforced For your application on heavy doors.
• Versions with integrated linear encoder For a precise reading of the position of the door.
• IP55 protection Faced with dust and splashing water.
• Opening of the sheet between 90 ° and 125 °, depending on the installation dimensions.

Models available

Technical characteristics

Versions with encoder

Models BATS082 and BATS083 incorporate linear encoder To obtain a precise reading of the position of the sheet. This system improves the electronic management of the route, slowdown and obstacle detection when used with a compatible maneuver box.

Regulation and operation

The Forsa Cougar operator does not incorporate a own mechanical system to regulate the pair. The force, the deceleration in opening and closing and the rest of the operating parameters must be configured from the compatible electronic box.

Being a reversible operator, The installation of an electronwork is mandatory to secure the door in closed position. In installations exposed to strong wind racks it is also recommended to have an opening electrobery or retention system.

Important installation indications

• The operator must be installed perfectly horizontal.
• It should always be placed on the inside of the property.
• It is advisable to have mechanical opening and closing stops.
• The front support can be installed welded or screwed, depending on the material of the door.
• Once the installation is finished, it is mandatory unscrew and remove the breathing screw Before putting the engine running.
• The selection of the model must be carried out taking into account the dimensions, the weight, the structure, the hinges and exposure to the wind wind.

Dimensions Forsa Cougar
