Control panel CAME ZM3E for 230V swing motors

Maneuvering CAME ZM3E 002Zm3E for swinging motors 230V

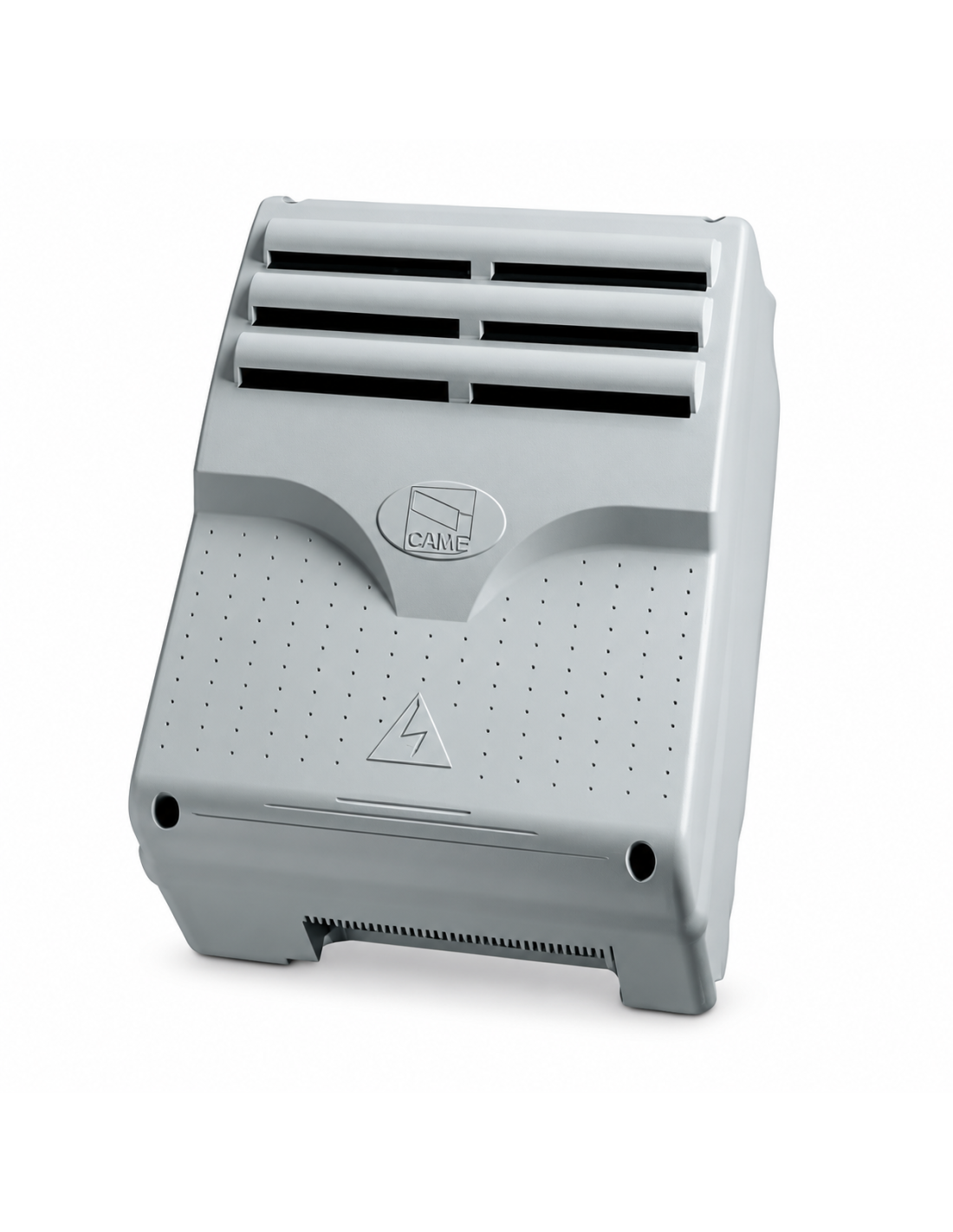

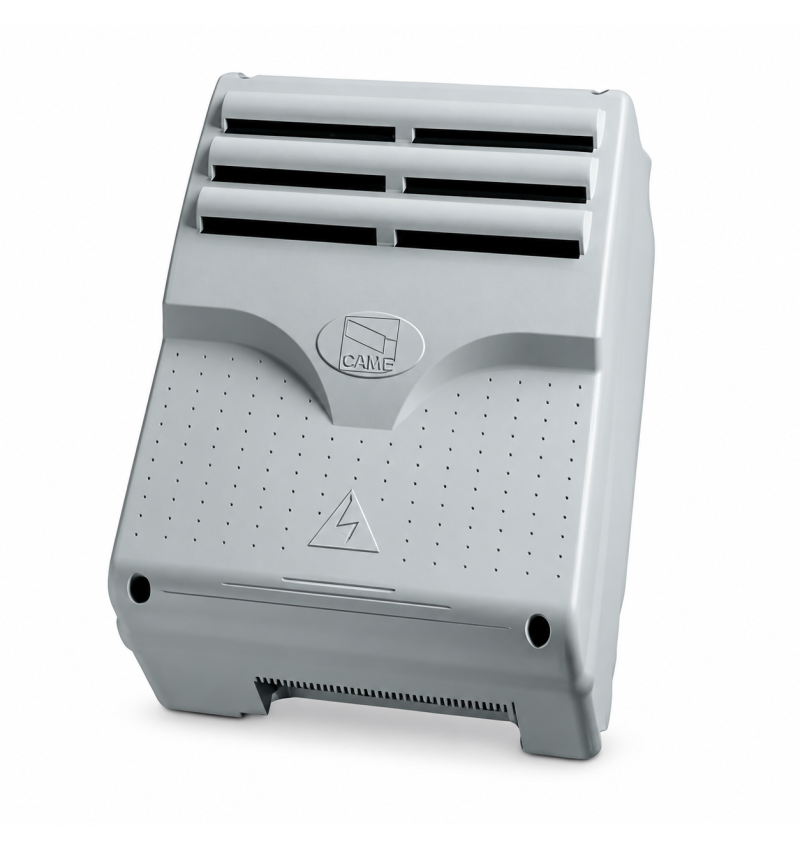

The CAME ZM3E, reference 002ZM3E, it is a multifunction control panel for automations of swing doors of one or two leaves, equipped with engines CAME of 230Vac compatible.

Incorporate a programming and diagnostic graphic screen it allows you to configure the functions of the automatism, display the operating status and consult error messages.

The plant has functions of self-diagnosis of security devices, management of engines with encoder, regulation of operating times, automatic closure and different opening modalities.

It also allows you to manage the remote controls through your radio decoding system, using a radiofrequency card CAME Compatible.

It is especially indicated for installations with engines CAME families ATS, AXO, FERNI, FROG and F4000, as long as they correspond to the compatible 230Vac versions.

Picture CAME ZM3E allows you to control different engines 230Vac for swing doors. The main compatible references are indicated below.

Important: Verify model and version

The ZM3E is designed for 230VAC engines. It should not be confused with the power plants used in 24VDC engine versions.

CAME it has different versions of the ZM3 family, as Zm3e, zm3ec and zm3ep, which can have different applications.

In particular, for automations F4000 the exact model of the engine and its connection scheme should be checked, since there are different versions and configurations of this family.

✓ Multifunction control panel CAME ZM3E.

✓ Reference CAME 002ZM3E.

✓ Power supply 230VAC 50/60 Hz.

✓ Control of one or two swinging engines of 230Vac.

✓ Graphic screen for programming and diagnosis.

✓ Self-diagnosis of security devices.

✓ Engine management with encoder compatible.

✓ Regulation of the time.

✓ Programming delays during the maneuvers.

✓ Function of automatic closure configurable.

✓ Functions of partial or pedestrian opening.

✓ Configuration of different operating modalities.

✓ 3 configurable security entries.

✓ Connection for photocells and safety bands.

✓ Function of test of security devices.

✓ Exit for connection electrocerradura.

✓ Connection for intermittent signaling lamp.

✓ Management of up 250 users.

✓ Radio decoding with compatible AF card.

✓ Prepared for integration with CAME Connect through the corresponding accessories.

✓ Picture with protection envelope IP54.

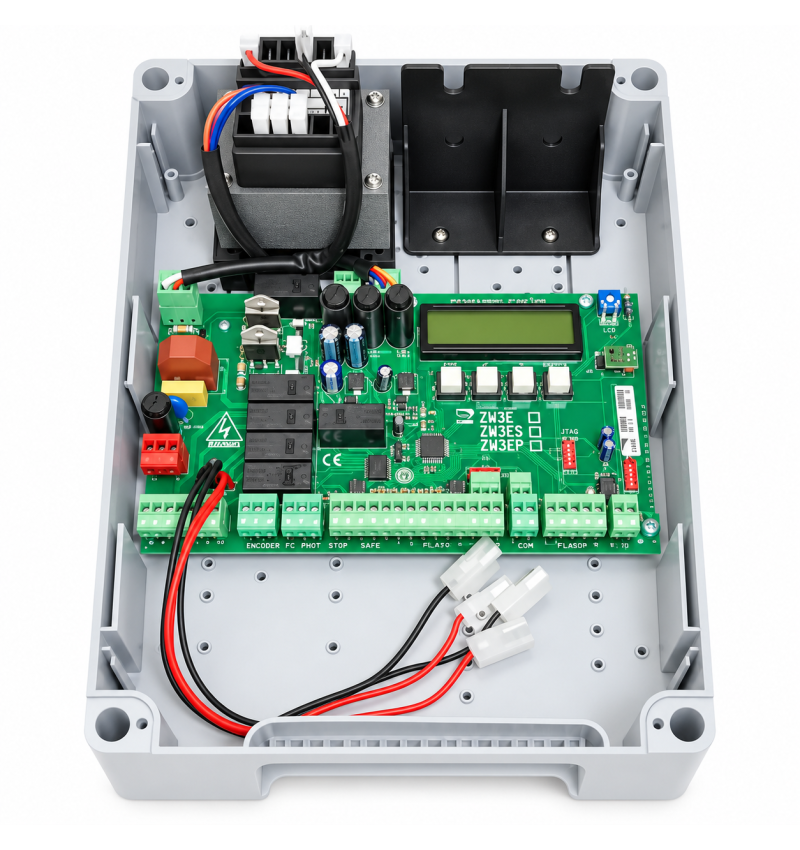

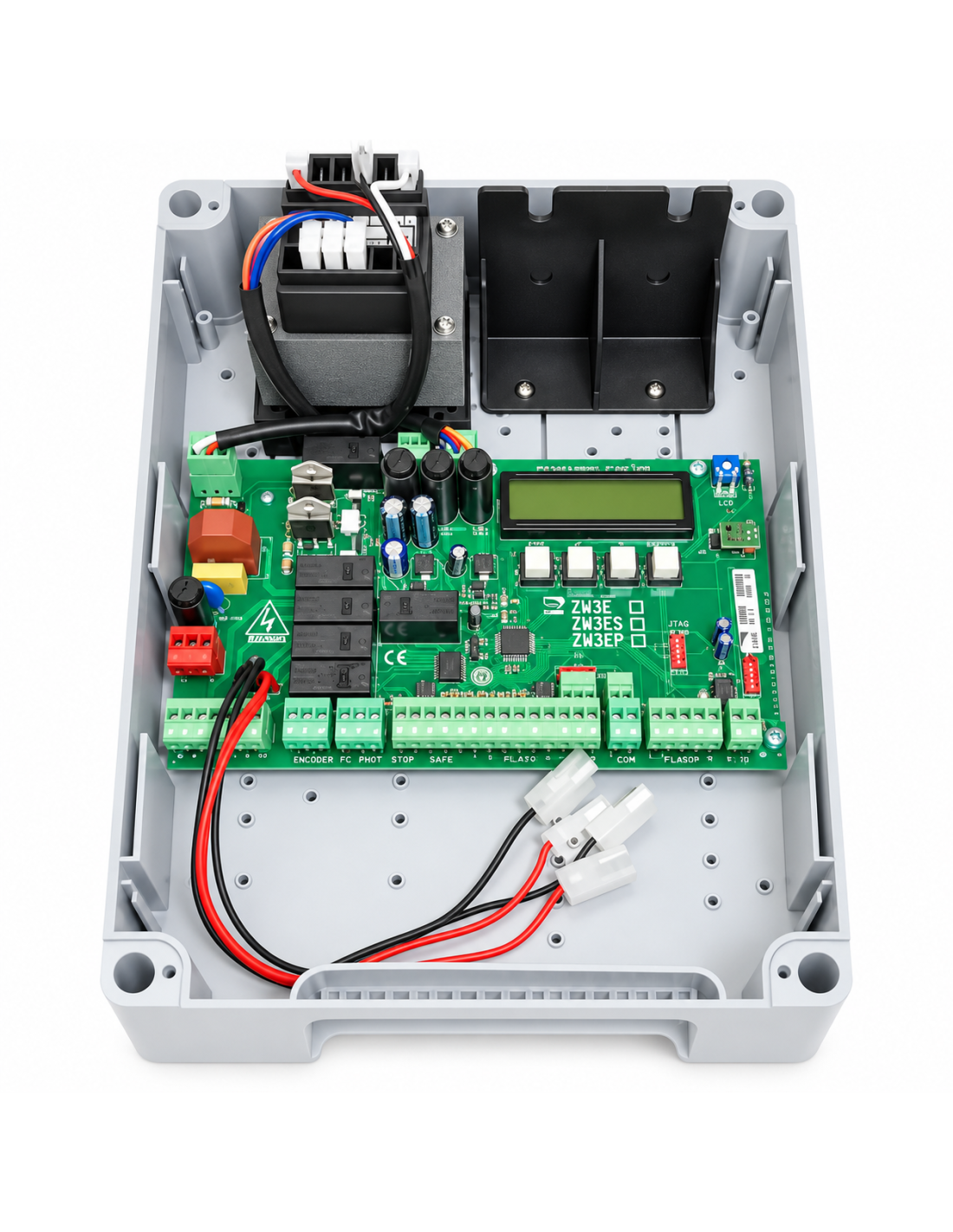

The central CAME Zm3e incorporates a graphic screen with programming menu that allows you to make the settings directly from the box.

Us the menu, the following functions can be configured, among others:

✓ Number and type of connected engines.

✓ Opening and closing times.

✓ Opening and closing delays between leaves.

✓ Sight time of automatic closure.

✓ Partial opening and pedestrian functioning.

✓ Operation of photocells and safety devices.

✓ Management and user memorization.

✓ Consultation of error and diagnostic messages.

Radiofrequency Card AF

Although the central ZM3E incorporates radio decoding and user management, to receive the orders of the controls you need a radiofrequency card CAME Compatible.

Among the available cards are:

CAME AF43S: plug-in card of 433.92 MHz.

CAME AF868: 868.35 mHz plug-in card.

The radio card and remote controls select separately, depending on the frequency and coding of the radio system used.

The central CAME ZM3E has 3 configurable security entries to connect devices such as photocells and compatible sensitive bands.

Through the menu, different behaviors can be assigned before the activation of a security, such as the reopening during the closing or the partial stop, depending on the configuration.

It also incorporates functions of checking safety devices before maneuvers, when these are correctly connected and configured.

The central CAME ZM3E it is prepared for its integration in the ecosystem CAME Connect.

To have remote management functions it is necessary to incorporate the compatible communication and gateway modules, depending on the installation. These accessories are not part of the basic control panel.

Information for installation and replacement

Before replacing the box, it should be checked that engines, final career, encoder and safety devices of the installation are compatible.

After assembly it will be necessary to perform the configuration of engines, programming of functions and checking of security systems.

The electrical connection and commissioning must be done following the Installation Manual CAME and with the power disconnected.

Official CAME ZM3E 002ZM3E and technical documentation

■ 1 × command box CAME ZM3E, Reference 002Zm3e, for compatible 230vac swing motors. It does not include engines, AF radio card or remote controls.
