CAME ZT6N | 400V three00V to 3200 W three-phase maneuver box

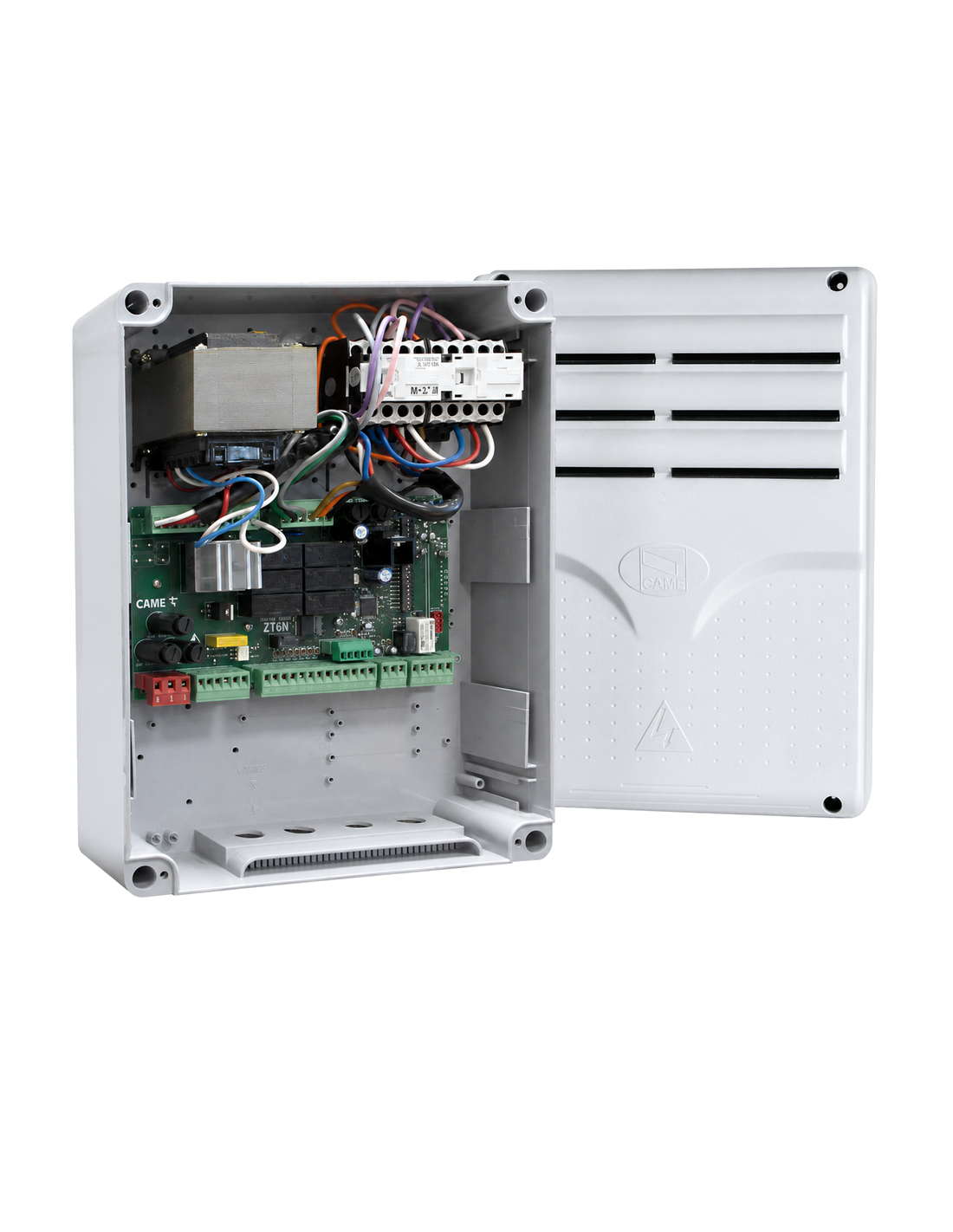

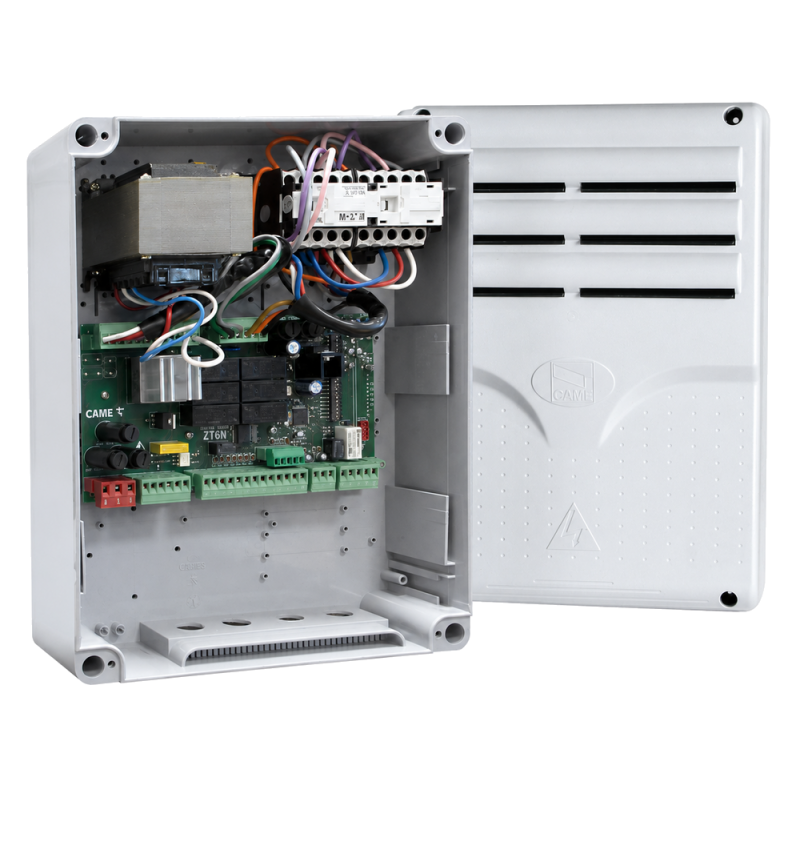

CAME ZT6N (002ZT6N) is a maneuver box for industrial automations CAME of 230-400 V, developed to control high power motors installed on sliding, sectional, folding doors and other industrial enclosures.

Is the updated substitute for the previous painting CAME Zt6 and incorporates new control and safety functions, such as the self-diagnosis of photocells, two configurable safety entries and the possibility of managing an external soft starter.

It is especially indicated for three-phase automatisms CAME like C-BXT, BK-2200T and BY-3500T, as long as the tension, power, racetime and engine configuration are compatible with the installation.

Main advantages of the picture CAME Zt6n

• Control for industrial automation: It supports a maximum power of up to 3200 W and a working time of up to 360 seconds.
• Autodiagnosis of security devices: Check the operation of the photocells before running the maneuvers.
• Configurable C1 and CX inputs: They allow you to connect photocells or resistive safety bands of 8.2 kΩ and select the response of the automation.
• External Soft Starter Management: It has a connection for a soft starter of up to 3000 W at 400 V three-phase, reducing electrical and mechanical efforts during startup.
• Optional radio control: Incorporate connector for radio frequency card CAME AF and allows you to memorize up to 25 users.
• Combined operation: It allows to control two automation configured as Master and Slave.
• Outdoor protection: Box with IP54 protection degree and operating range of -20 ° C to +55 ° C.

Programming functions

The control panel has 20 DIP microswitches and two regulators to adapt the operation of the door to the needs of each installation. Among its main functions are:

• Adjustable automatic closure between 1 and 120 seconds.
• Adjustable partial opening between 1 and 95 seconds.
• Sequential controls, step by step and opening.
• Operation in man mode present.
• Flashing light for 5 seconds.
• Detection of obstacles with the engine stopped.
• Total STOP and configurable security entries.
• Exit for complimentary lamp or cycle lamp.
• Brake function in automation closure CAME CBX and CBXT.

Connections and accessories available

The CAME ZT6N has independent tickets for opening, closing, partial opening, step by step and stop. It also allows connecting race end, photocells, sensitive bands, external antenna, signaling lights and a plug-in radiofrequency card.

The auxiliary output B1-b2 It allows you to drive an additional device by means of the second radio channel, while the signaling outputs support 24 V or 230 V flashing light, open and closed door status pilots, and an additional lamp.

Table of technical characteristics

Important: Change from a painting CAME Previous ZT6 requires checking the tension and connection of the motor, the position of the transformer bridge, the race endings and the safety devices. The installation and configuration must be performed by qualified personnel with the power supply disconnected.
