Maneuver box of 724RR for motor SPAZIO 702S 24V

Maneuver box of 724RR for motor SPAZIO 702S 24V

Name: Maneuver box of 724RR for motor SPAZIO 702S 24V
Brand: DEA SYSTEM
SKU: 724RR

Reference 724RR

This product has a special discount!

To view the price or buy the product you have to Register or you can ask us.

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

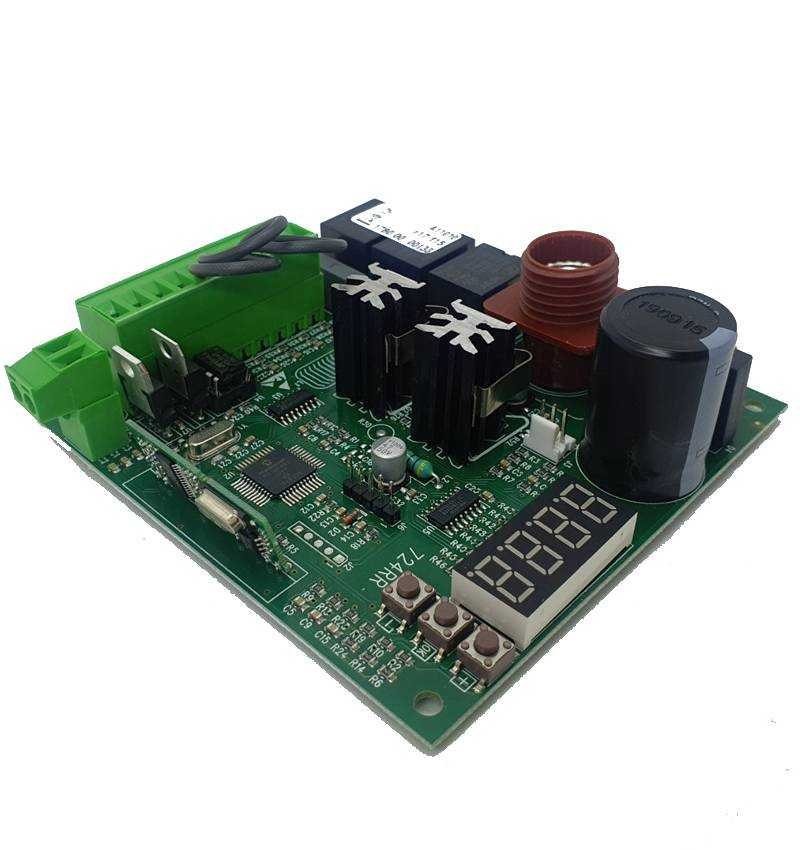

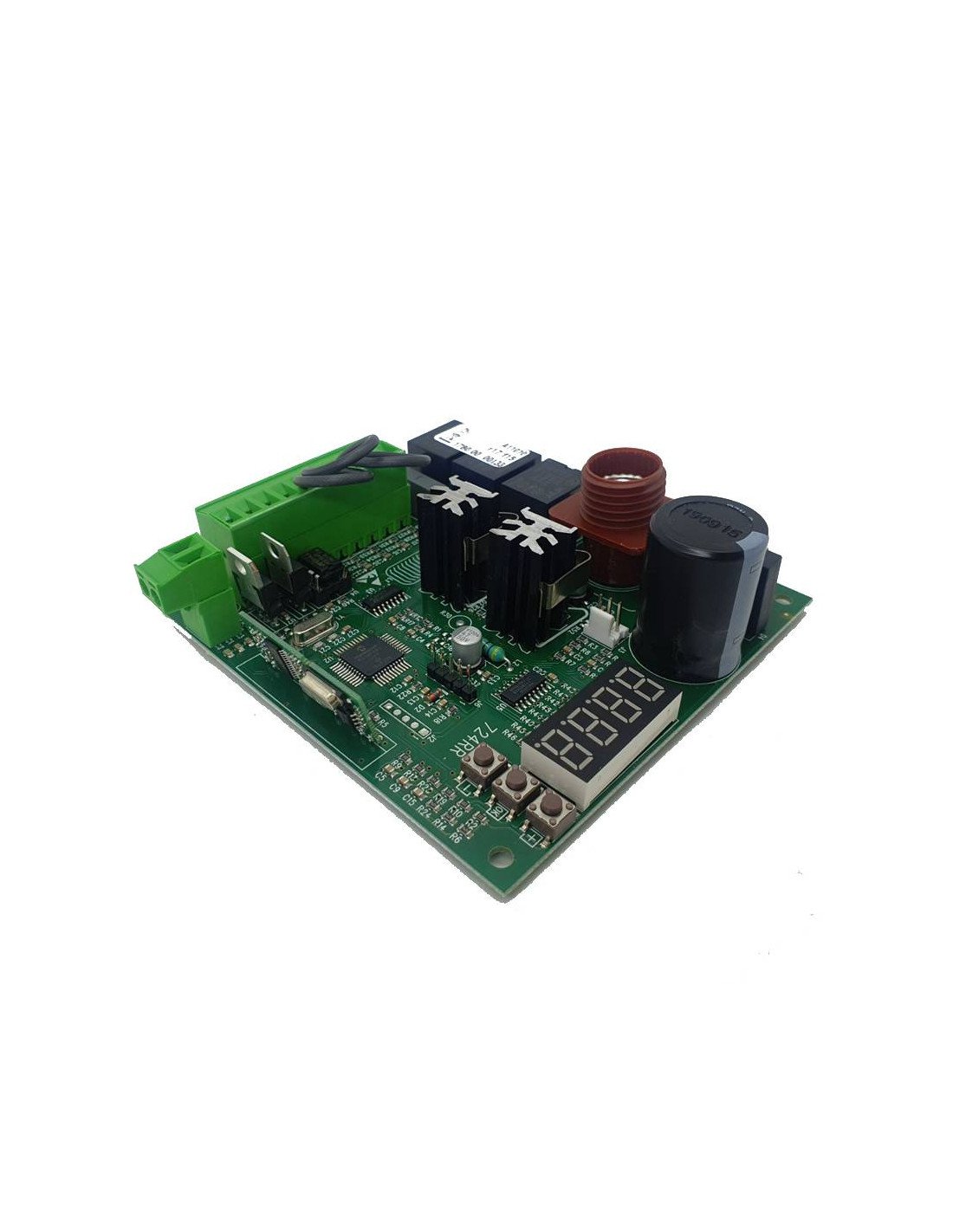

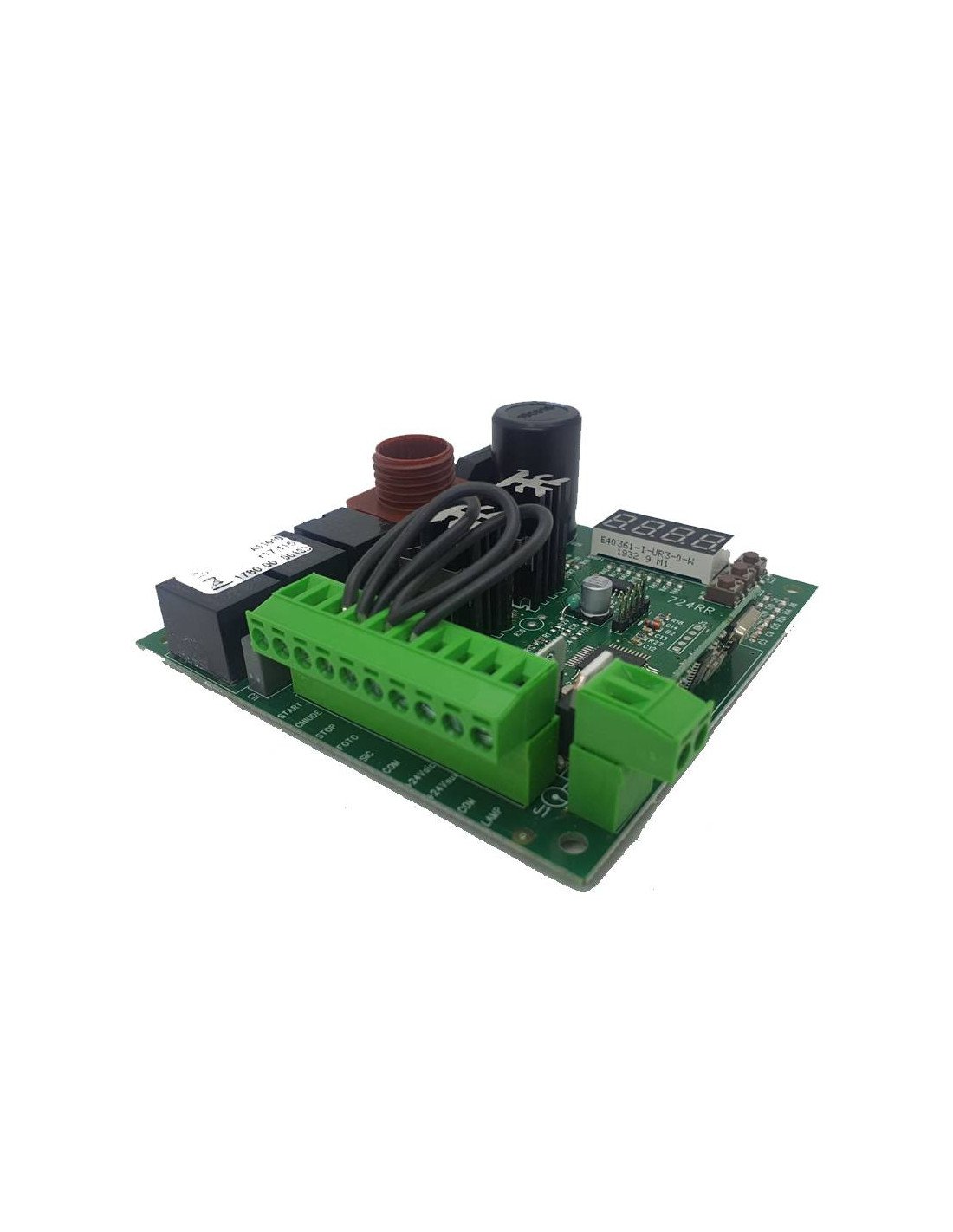

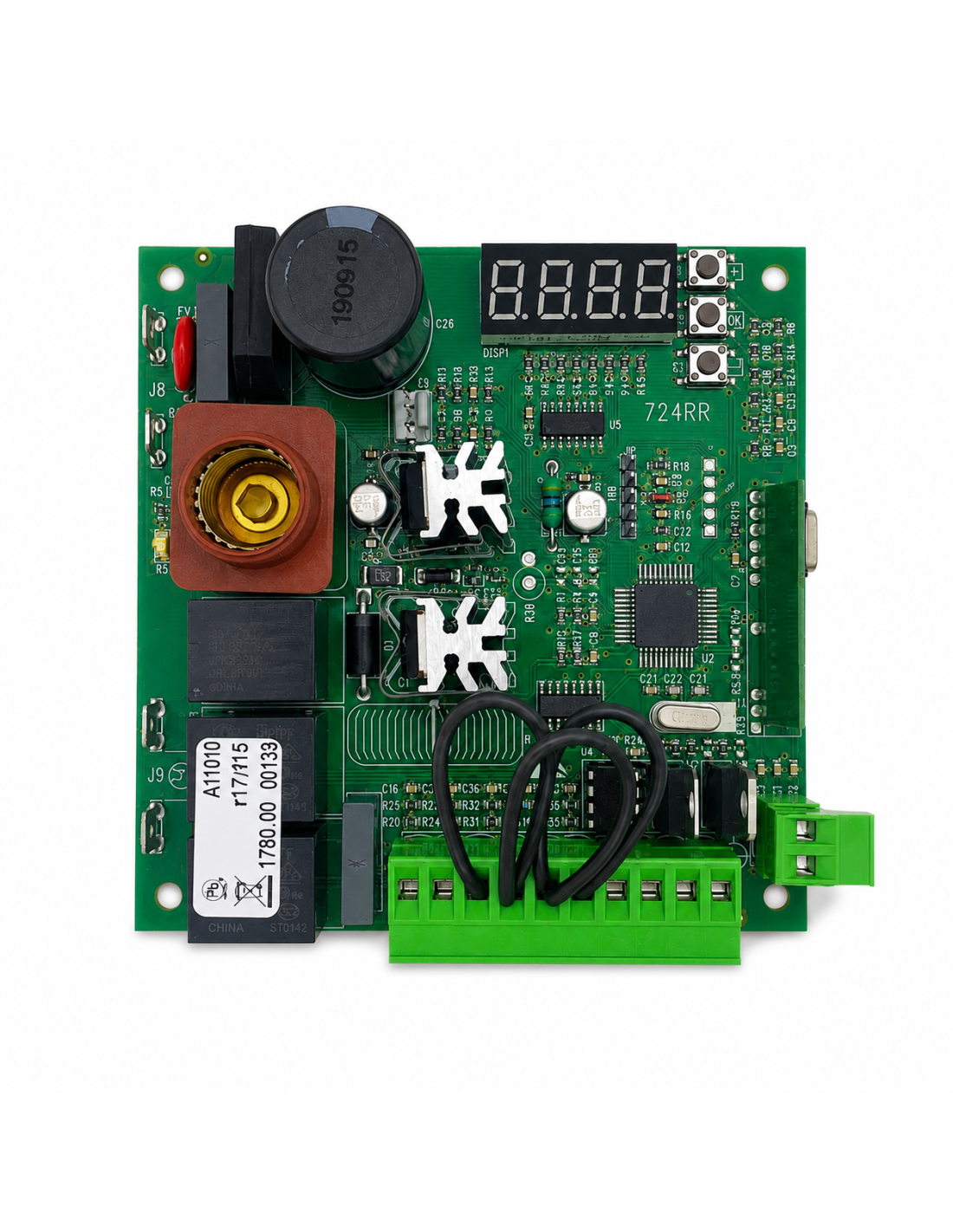

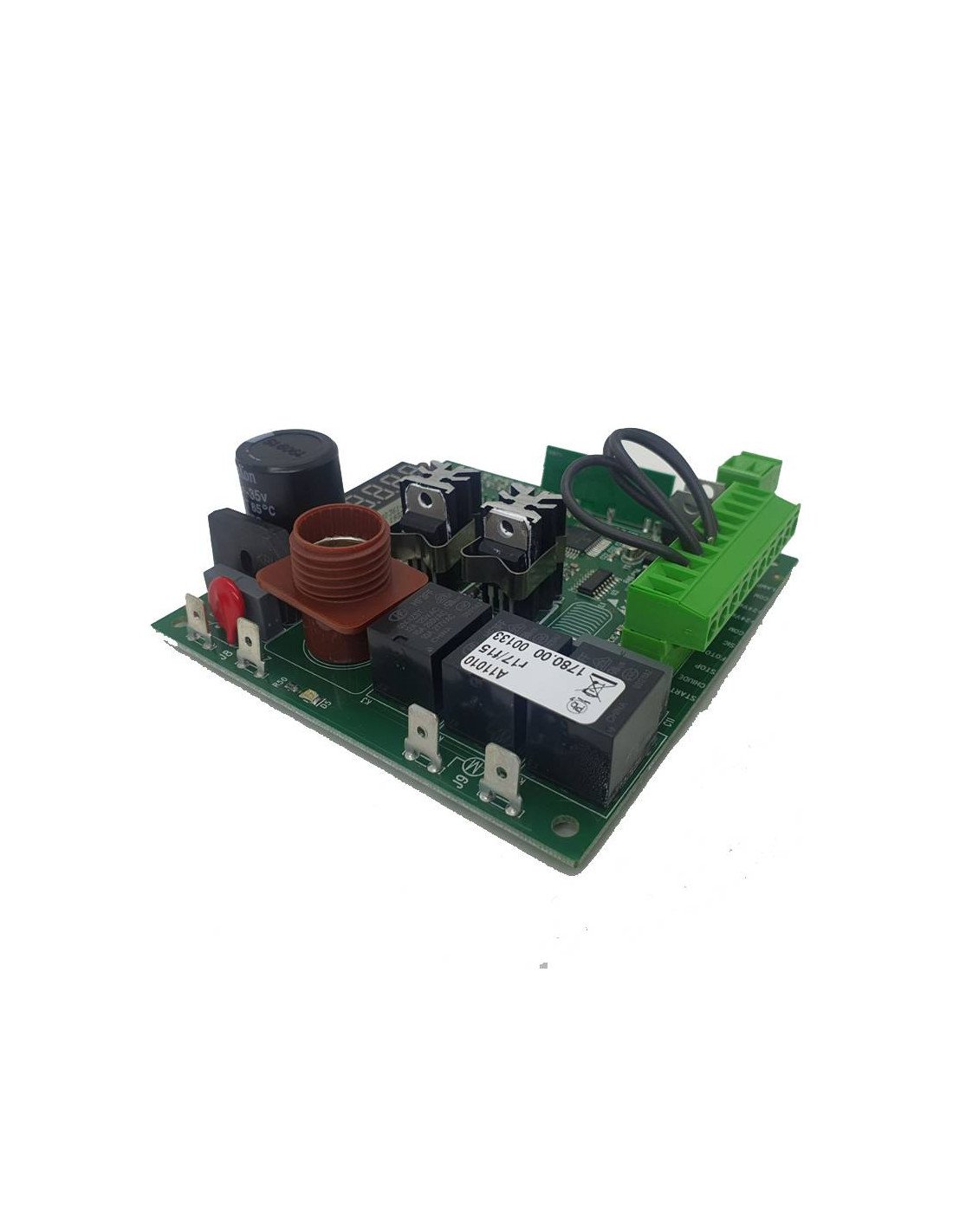

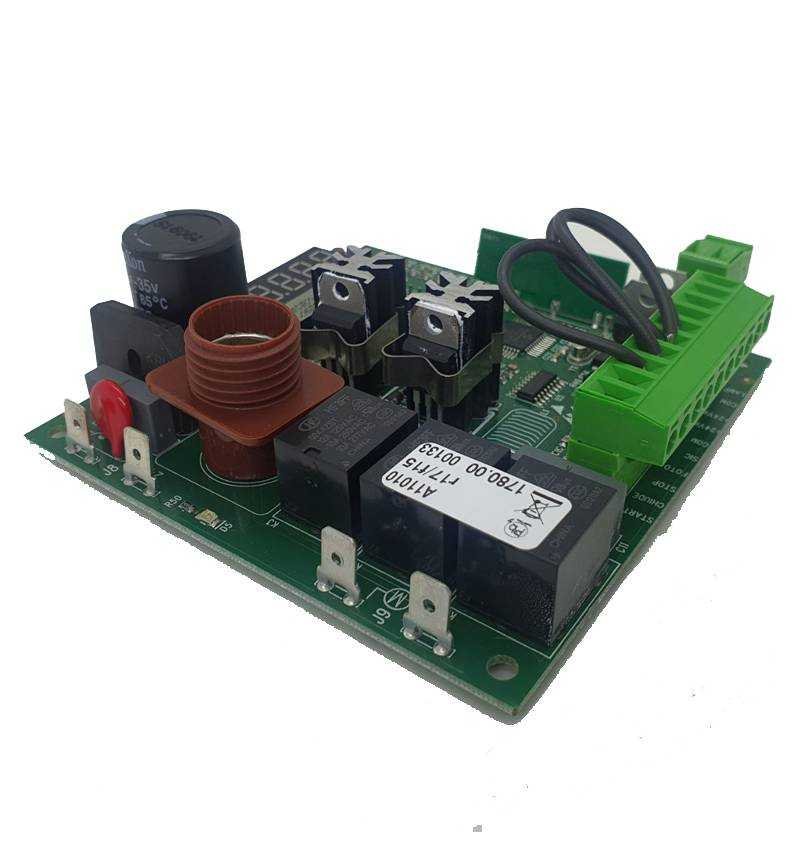

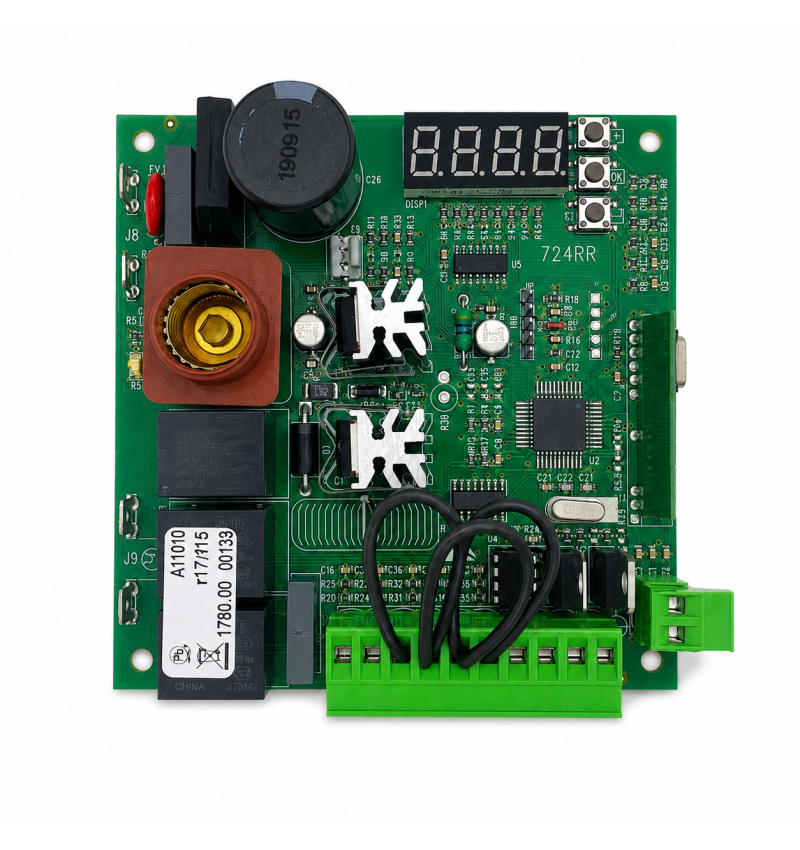

724RR maneuvering box o Original replacement electronics for the automation of sectional doors DEA SPAZIO 702S.

The electronic plant DEA 724RR It is designed to manage the 24 V motor of the operator Spazio 702S of 500 N, allowing configuring from the box the main operating parameters of the automation.

Has Display screen and programming pushbutt, from which it is possible to carry out travel learning, check the status of the entries, memorize emitters and adjust different parameters such as the speed, slowdown, motor force or automatic closing.

Main compatibility

Spare electronic central to DEA SPAZIO 702S, code 636000, 24 V and 500 N.

Main characteristics of the Central Dea 724RR

Spare electronic central to DEA SPAZIO 702S.
Motor management 24 V.
ENDOR 70 W.
Integrated Display For programming, configuration and diagnosis.
Procedure Learning of the motor tour.
Regulation of the Speed during normal route.
Regulation of the slowdown.
Adjustment of the Soft unemployment duration or deceleration.
Independent regulation of the Engine strength in opening and closing.
Electronic system Obstacle detection and anti-explashing.
Programming automatic closure and time of preinterming.
Operating configuration Step by step or investment.
Configuration of the behavior of the Photocells and security devices.
Entry End of opening and closing race.
START, STOP, photocell and safety device tickets.
Auxiliary output 24 V for accessory feeding.
Radio receiver 433.92 MHz integrated.
Memory for a maximum of 100 remote controls.

Radio receiver 433.92 MHz integrated

The DEA 724RR incorporates the receiver directly into the plant and has memory for up to 100 emitters.

The receiver allows working with different types of coding:

HCS ROLLING CODE.
HCS FIX-CODE or fixed part.
Coding HT12E via DIP-switch.

From the field display it is possible memorize new controls, erase all memory or locate and eliminate an emitter individually previously registered.

Programming and operation regulation

By means of the display and built-in push buttons it is possible to customize the behavior of the engine according to the needs of each installation.

Settings available from the Central

Normal speed, speed of slowdown, duration of deceleration, force in opening and closing, sensitivity to obstacles, automatic closure and operation of safety devices.

The regulation of Soft paros or slowdown It allows to reduce the speed of the engine before reaching the end of the travel, decreasing the mechanical blows on the door and on the automation itself.

Control and diagnosis by display

The DISPLAY of the DEA 724RR facilitates both the programming and the installation and diagnostic tasks.

The plant allows to directly check the State of the different entries, including career, Start, Stop, photocell and security entrance endings.

Advantage for installation and maintenance: By means of the display it is possible to check if the connected devices are being correctly recognized by the electronic board, facilitating the location of possible faults.

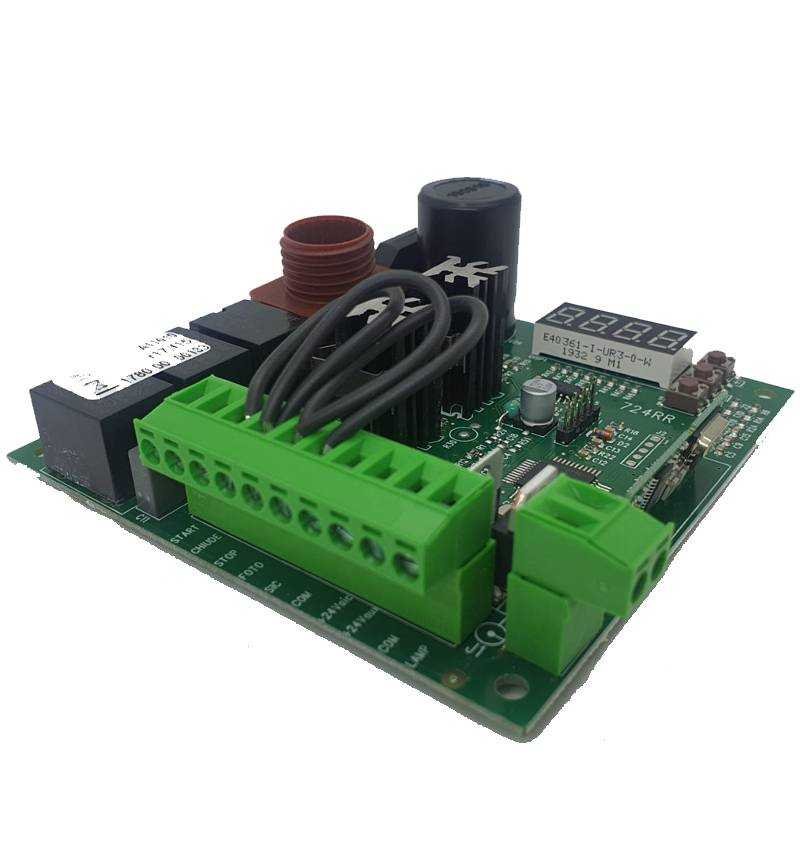

Available connections

The Central has connections for the main elements needed in a sectional door automation:

Engine 24 V.
End of opening race FCA.
Closing race end FCC.
Entrance Start.
Pedestrian entrance / closure.
Entrance Stop.
Entry photocell.
Entrance Sic For safety device.
Auxiliary power 24 V.
Connection for radio antenna.

Technical characteristics of 724RR

Feature	Specification
Manufacturer	Dea System
Model	724rr
Application	Maneuver box / spare electronic plate
Compatible engine	DEA SPAZIO 702S
Feed	230 V AC ± 10% - 50/60 Hz
Transformer	80 VA - 230/22 V
Motor output	24 V - Max. 70 W
Feeding accessories	24 V - Max. 200 mA
Receiving frequency	433,92 MHz
Coding	HCS FIX-CODE / HCS ROLLING CODE / HT12E DIP-SWITCH
Receiving capacity	Up to 100 emitters

Compatibility

This plant is indicated as SPARE ELECLATE PLATE FOR THE DEA SPAZIO 702S, Code 636000.

Important before placing the order

The motor DEA SPAZIO 703S does not use the central 724RR. This model originally equips the maneuver box DEA 124RRZ. We recommend checking the reference of the installed plate before making the purchase.
