Swinging CAME ATI50AGS 230V for hinged doors up to 5 m

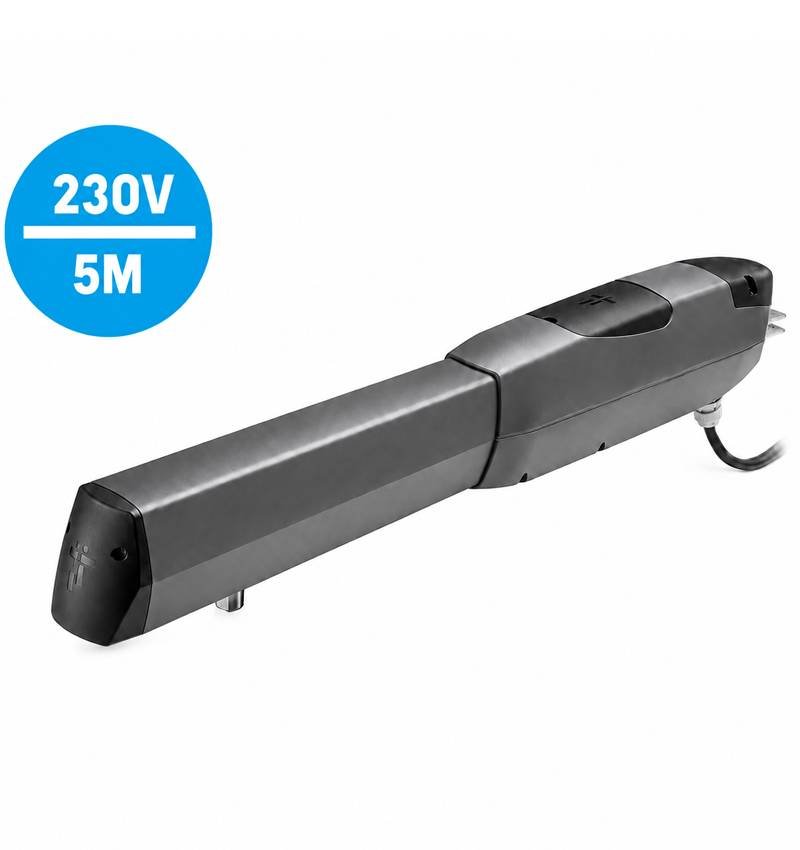

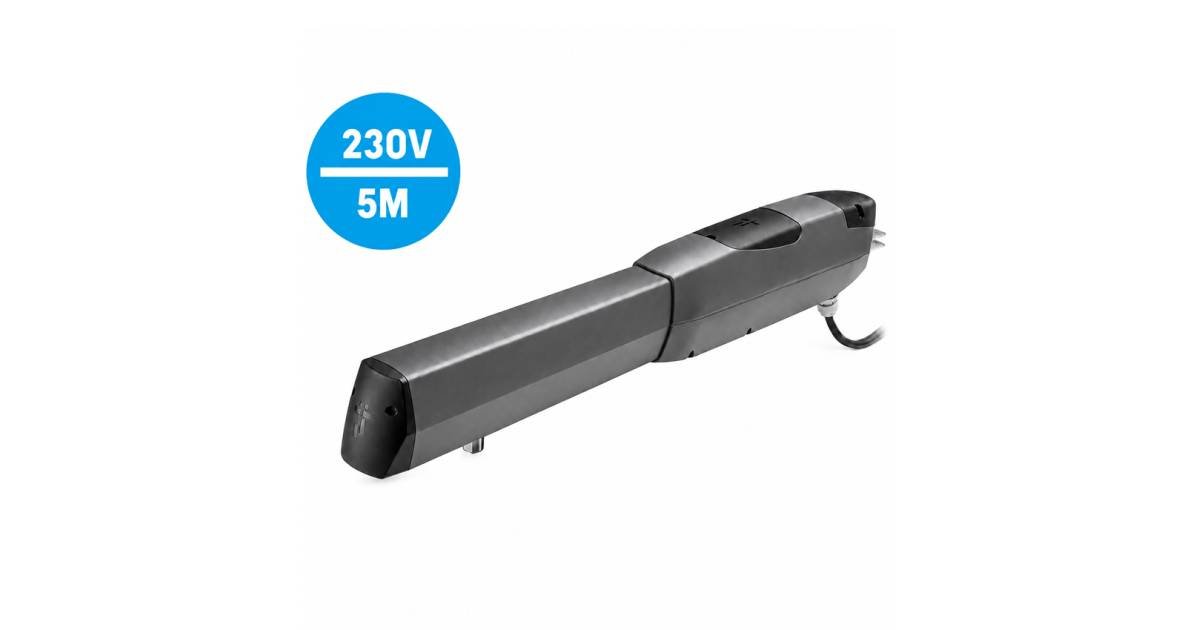

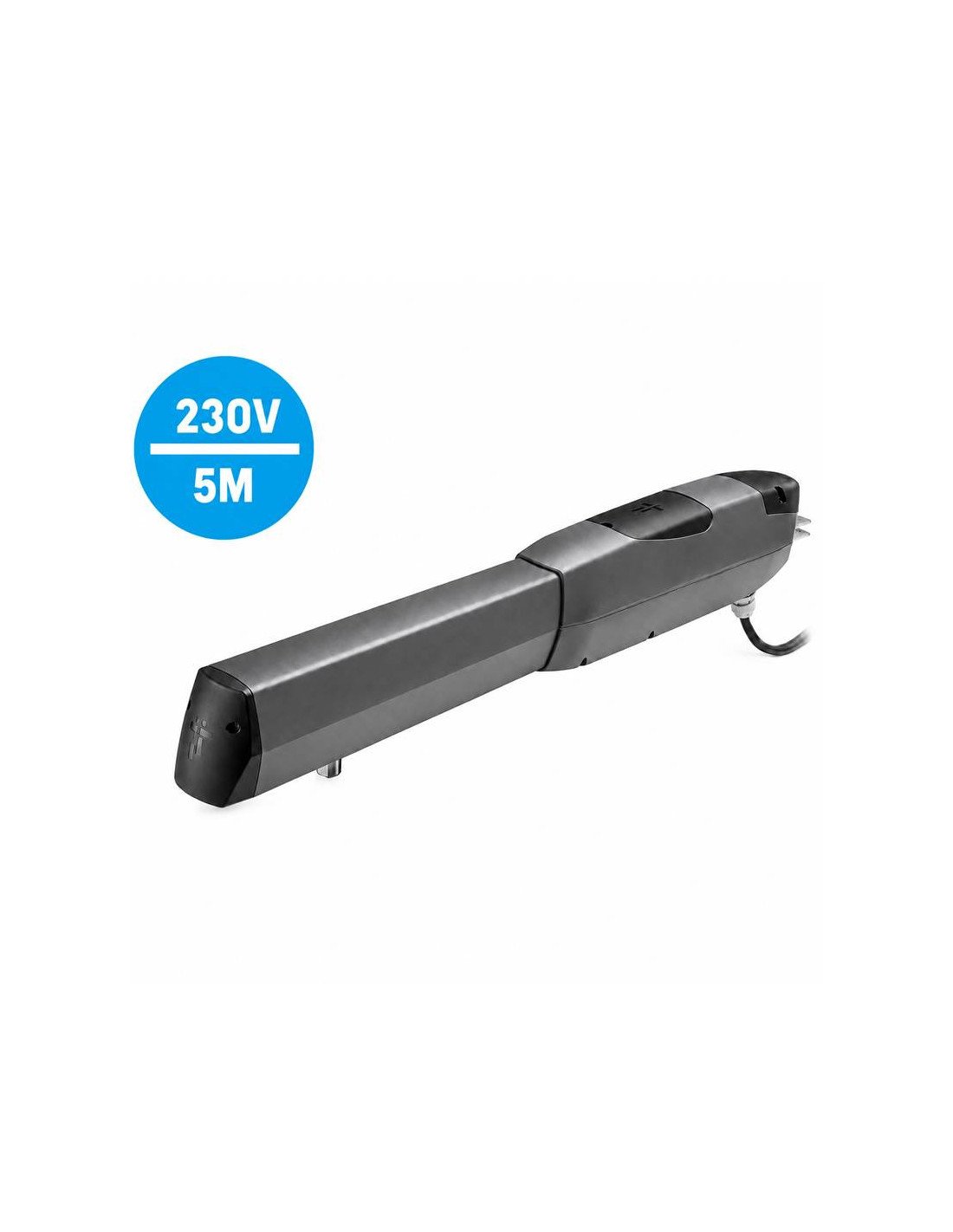

CAME Ati50ags, reference 801mp-0180, it is an irreversible electromechanical engine of 230v Designed to automate large swing doors in residential, community and industrial facilities.

This model belongs to the new range CAME ATI and is indicated for leaves up 5 meters long, always respecting the weight limits established according to the measurement of the sheet. It is a robust and reliable solution for heavy or large swing doors.

The motor incorporates a resistant structure with an aluminum body, transmission by endless screw and adjustable mechanical stroke endings in opening and closing. In addition, it offers a push up 4000 N, guaranteeing safe and effective operation.

Main advantages of the engine CAME Ati50ags

• For leaves up to 5 m: Ideal for large or heavy swing doors.
• Irreversible engine: It helps keep the blade blocked when the engine is stopped.
• 230V feeding: Compatible with maneuver frames CAME For swinging motors of 230V.
• Mechanical career end: Accurate regulation of the maximum point of opening and closing.
• C-Max up to 155 mm: It allows to adapt to larger pillars or more complex facilities.
• Robust construction: Aluminum body with modern and resistant design.
• High thrust: Workforce from 400 to 4000 N.
• IP54 protection: Suitable for outdoor installations.
• User unlocking: It allows to release the engine in case of need or lack of power.
• Substitution of ancient ATI: Compatible version to replace previous ATI 230V motors.

Recommended application

The motor CAME Ati50Ags 801MP-0180 It is designed to automate swing doors of one or two leaves, especially when a long running engine for doors of up is required 5 meters.

According to the length of the sheet, the maximum admitted weight varies:

• Up to 2 m: 1000 kg per leaf.
• Up to 2.5 m: 800 kg per leaf.
• Up to 3 m: 600 kg per leaf.
• Up to 4 m: 500 kg per leaf.
• Up to 5 m: 400 kg per leaf.

Versatile installation

Thanks to its design and its longest race, the CAME ATI50AGS Allows you to adapt to facilities with pillars of different shapes and dimensions. Its value C-Max up to 155 mm It facilitates assembly in situations where other shorter engines can be limited.

The pre-soldier rear support facilitates the installation of the engine and helps achieve a more comfortable and stable fixation.

Simple regulation of career finishes

The engine incorporates mechanical opening and closing endings. These elements allow to accurately adjust the maximum point of travel of the door, both opening and closing.

The regulation is carried out by accessing the interior of the engine and fixing the stroke endings in the desired position on the transmission system.

Security and reliability

The CAME ATI50AGS offers a solid construction, with degree of protection Ip54 and operation in temperatures -20 ºC to +55 ºC. Its irreversible system, its high thrust and its mechanical career end makes it a reliable solution for large swing doors.

On hinge doors of great length, especially from 3 meters, it is recommended to assess the installation of a electric lock To improve the closure and protect the mechanical set of automation.

Technical characteristics
