KIT CAME ATI30DGF 24V Beating Doors 2 Leaves Up to 3M

CAME ATI30DGF 24V it is a complete solution to automate two-leaf beating doors in residential and community facilities.

This kit includes two engines CAME Ati30dgf, reference 801mp-0210, irreversible electromechanical engines of 24v with encoder, designed for swing doors with leaves up 3 meters.

The ATI30DGF engine stands out for its quick operation, being able to reach an opening time up 13 seconds at 90 °, according to installation and regulation conditions. In addition, it incorporates mechanical stops in opening and closing, allowing adjusting the gateway precisely.

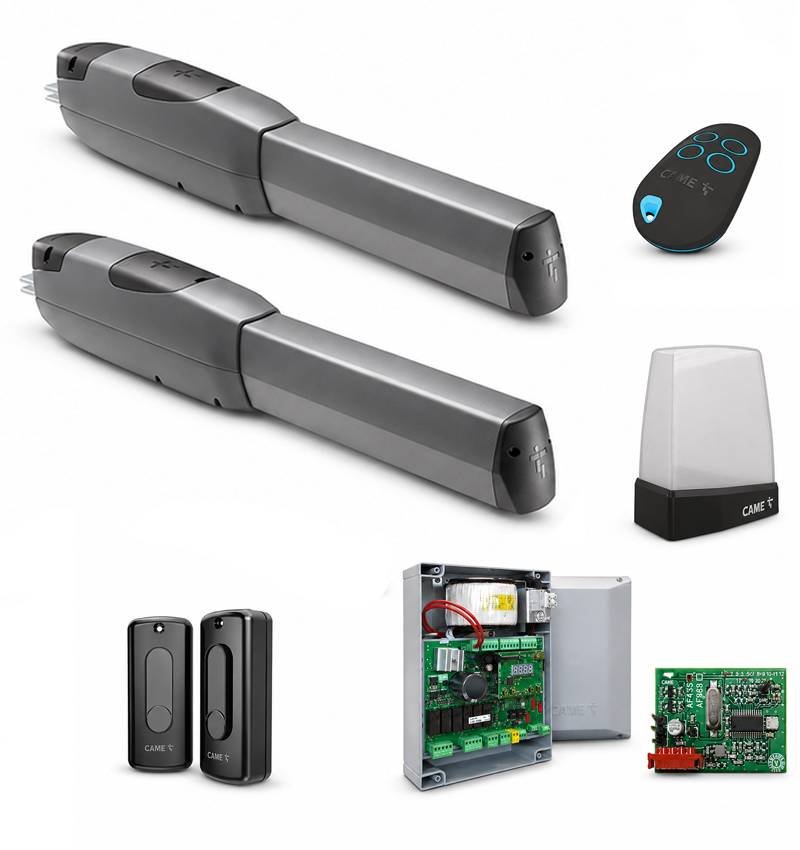

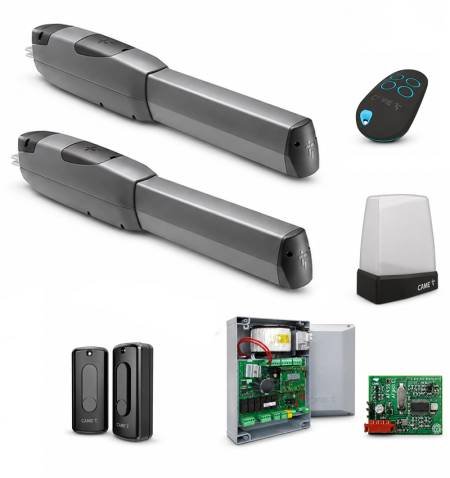

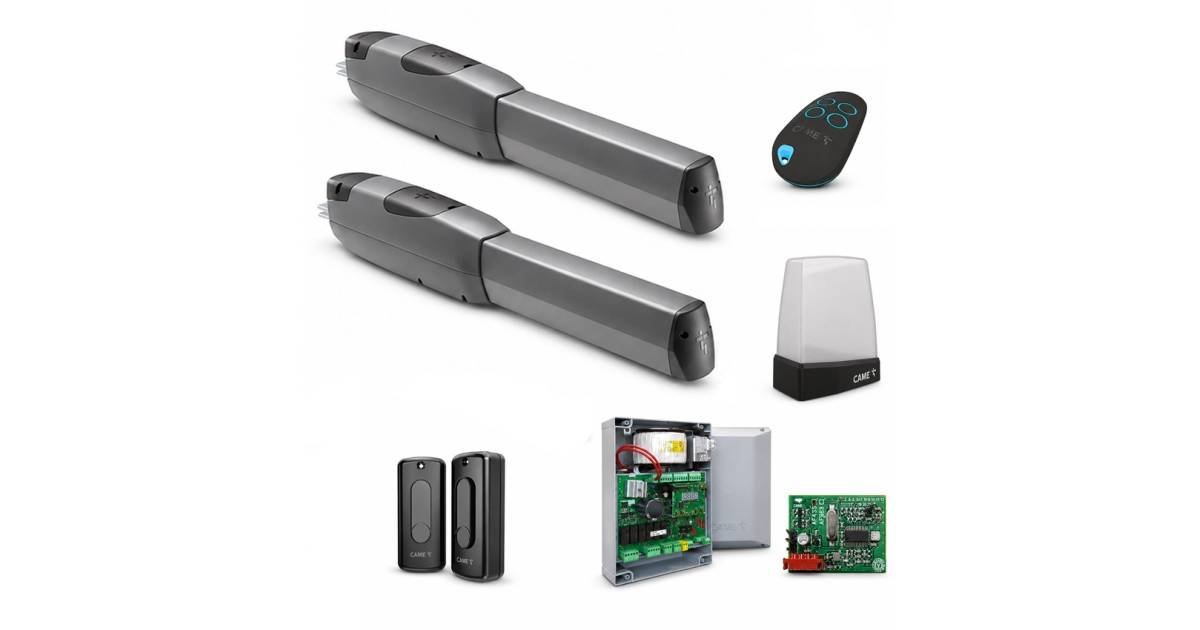

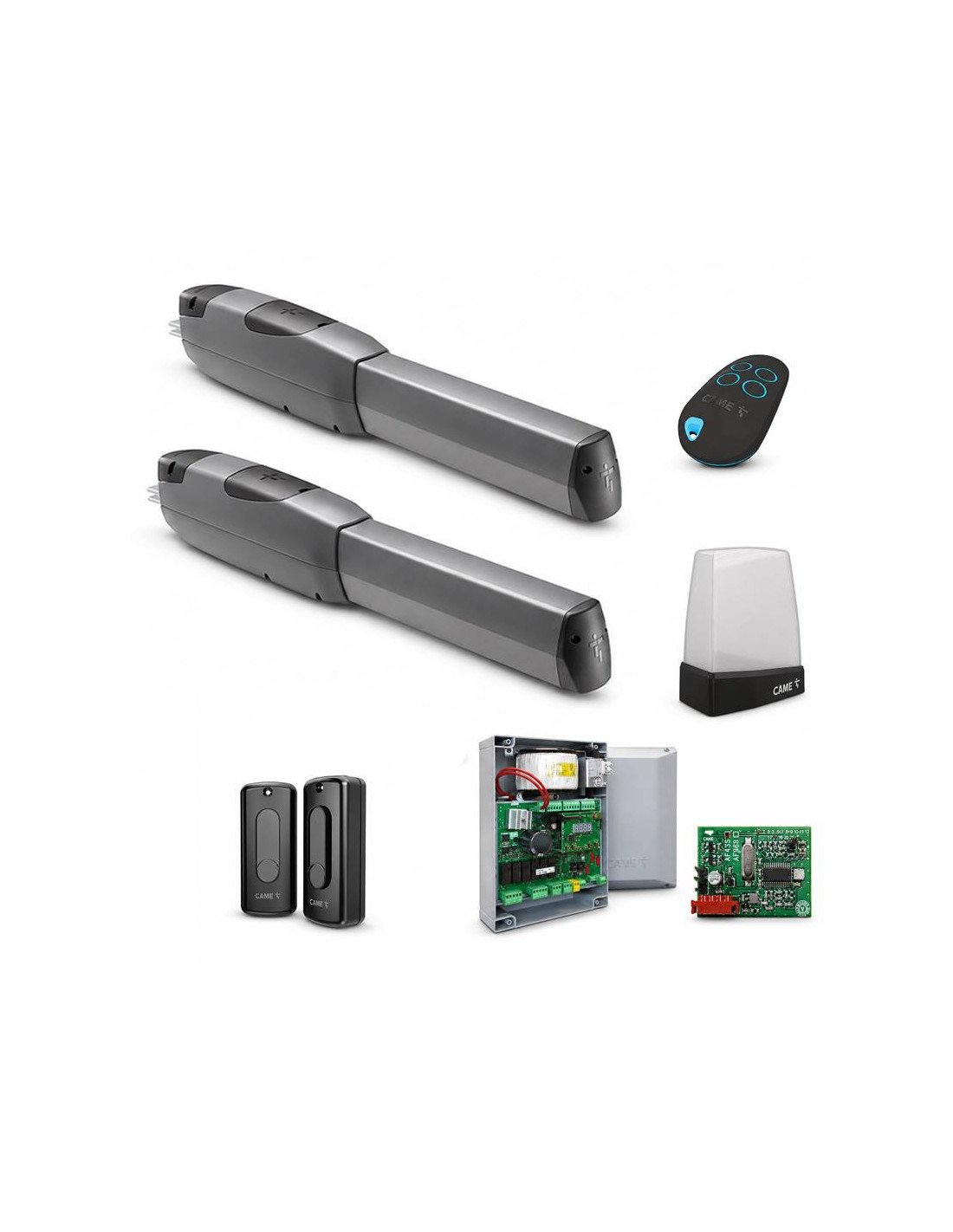

The kit is completed with the maneuver box CAME Zlx24ma, Radio Receiver, RollingCode Command, Safety Photocells and LED flashing lamp, offering a full and ready installation to automate a double-leaf swing door.

Kit content

Main advantages of the kit CAME Ati30dgf

• Complete kit for two leaves: includes engines, maneuver box, receiver, command, photocells and flashing lamp.
• Fast 24V engines: fast version with opening up to 13 seconds at 90 °, according to installation.
• Integrated encoder: improves the control of movement, safety and precision of maneuver.
• Irreversible engine: it helps keep the door blocked when the engine is stopped.
• Integrated mechanical stops: regulation of opening points and close directly on the engine.
• Table ZLX24MA: multifunction center for two-leaf swing doors with 24V engines.
• Security included: it incorporates DIR10 photocells to protect the passage zone.
• RollingCode Command: radio system CAME 433 MHz with evolutionary code.
• LED lamp included: luminous signaling during the door maneuver.

Recommended application

The kit CAME ATI30DGF 24V it is recommended to automate swing doors of two leaves in homes, communities and residential accesses where a fast, safe and reliable maneuver is sought.

Depending on the length of each sheet, the maximum recommended weight is:

• Up to 2 m: 800 kg per leaf.
• Up to 2.5 m: 600 kg per leaf.
• Up to 3 m: 400 kg per leaf.

On beating doors, it is recommended to install a electric lock to ensure a more reliable closure of the leaves and protect the gears from the gearmotors. In irreversible engines, this recommendation becomes obligatory when the length of the sheet exceeds the 2.5 meters.

Maneuvering CAME Zlx24ma

The kit includes the maneuver box CAME Zlx24ma, reference 801qa-0050, a multifunction center with feeding 230v for swinging engines 24v.

This picture incorporates programming display, self-diagnosis of security devices, technology Adaptive Speed & Torque, connection Bus cxn, two security and memory inputs for up 250 users.

Technical characteristics of the ATI30DGF engine

Technical characteristics of the ZLX24MA box
