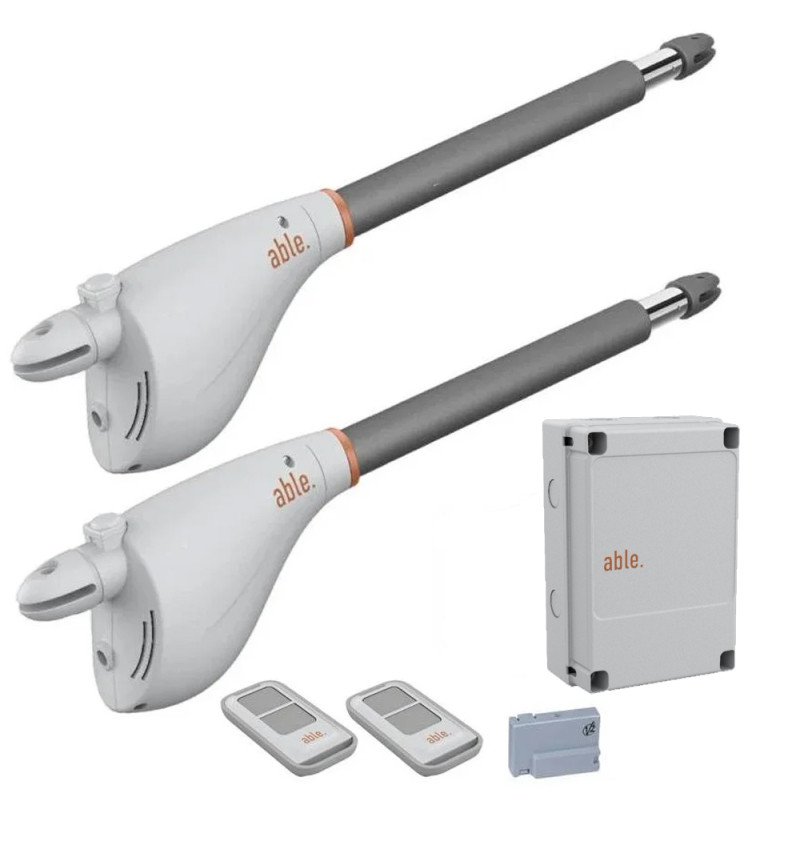

Motors kit V2 Calypso 600 230V for 2-leaf swing door

Featured features

• Complete kit to automate a swing door two leaves.
• Two irreversible engines V2 CALYPSO 600.
• For 4 m and 500 kg each.
• Feeding the engines 230 V - 50 Hz.
• The same version can be installed on the right or left sheet.
• Manual unlocking system by key to use the door in case of lack of current.
• Two controls Rolling Code of 433 MHz included.

Option City 11 - Ref. ZV6185

Maneuvering analog of 230 V for one or two engines, with regulation by means of Potentiometers and DIP switches.

• Regulation of power and operating times through potentiometers.
• Programming functions using DIP switches.
• Total opening and pedestrian opening.
• Configurable automatic closure.
• Regulation of the delay between the two leaves.
• Entrance for photocells and safety band.
• Test compatible safety devices.
• Output for 12 V electroning.
• Exit for signaling lamp.
• Contact for courtesy light.
• Connector for plug-in receiver of the MR series.
• Housing with protection degree IP55.

Option CX EVO 1 - Ref. ZV6184

Maneuvering digital 230 V with Screen, indicated for facilities that need a more complete configuration and greater control over the operation of the door.

• Screen for programming and viewing of the status of the entries.
• Control of one or two motor 230 V motors.
• Regulation independent of the power of each engine.
• Automatic learning of work times.
• Detection of obstacles by controlling motors.
• Control of the correct order of closure of the two leaves.
• Total opening and pedestrian opening.
• Independent entries for two types of photocells and two types of safety bands.
• Test of photocells, safety bands and Triac before each maneuver.
• Tickets for career endings or compatible coders.
• Output for 12 V electroning.
• Exit for signaling lamp of 230 V.
• Connector for plug-in receiver of the MR series.
• USB connector for programming, diagnosis and update using the manufacturer's compatible tools.
• ADI interface for compatible optional modules.
• Housing with protection degree IP55.

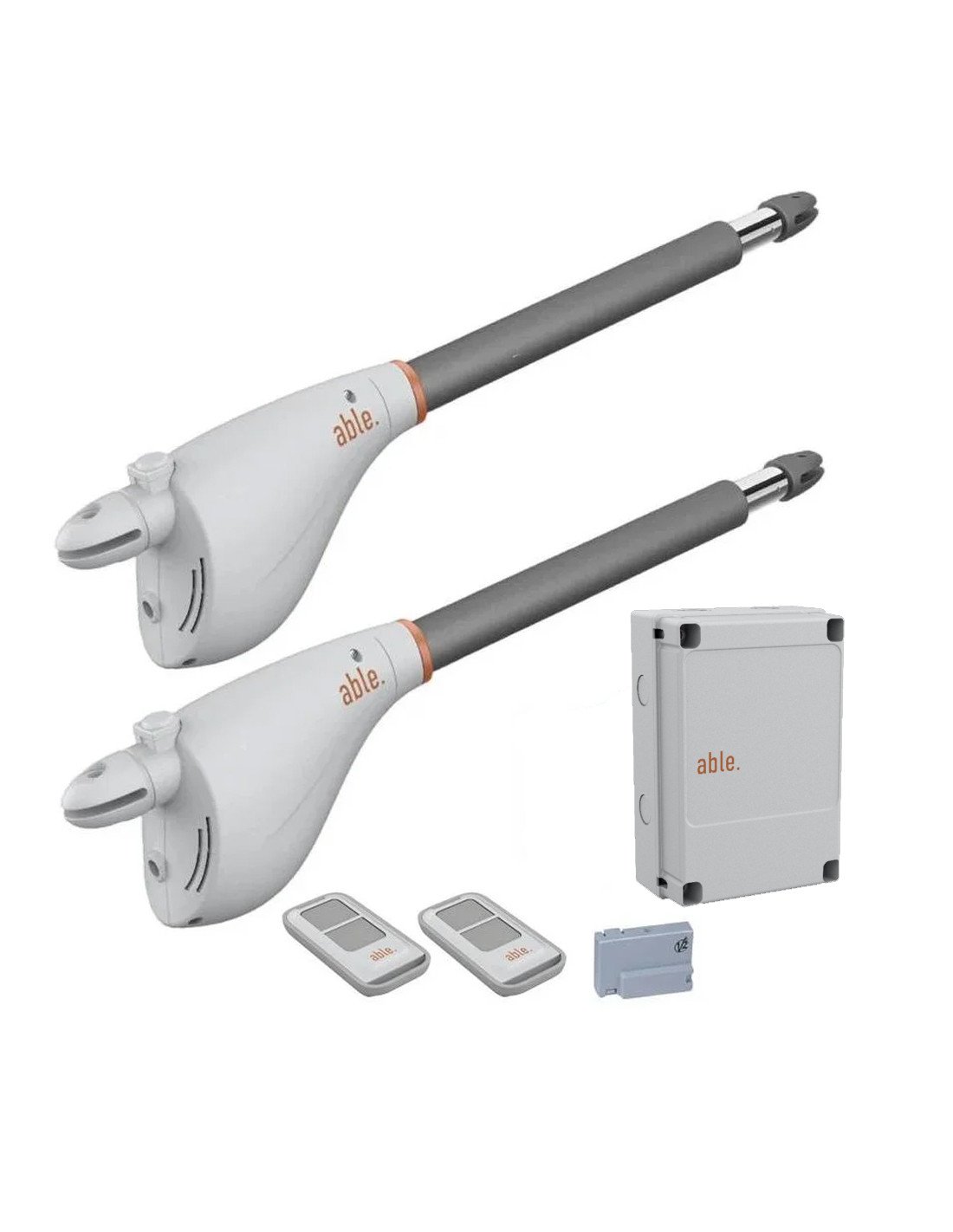

Kit ZV6185

• 2 engines V2 CALYPSO 600 230 v, with a maximum drag racer of 600 mm.
• 1 cITY 11 maneuver box analog of 230 V.
• 1 mR2 plug-in receiver of 433 MHz.
• 2 tX TOH2 emitters Rolling Code of 433 MHz and 2 channels.

Kit ZV6184

• 2 engines V2 CALYPSO 600 230 v, with a maximum drag racer of 600 mm.
• 1 maneuver box CX EVO 1 digital 230 V with screen.
• 1 mR2 plug-in receiver of 433 MHz.
• 2 tX TOH2 emitters Rolling Code of 433 MHz and 2 channels.

In case of lack of current, each engine can be unlocked manually by entering the supplied key in the front lock and performing half turn. To restore automatic operation, the key must be returned to the closing position.

Important before buying

Unless expressly indicated in another option or promotion, the kit does not include:

• Fotocells and other security devices.
• Signaling lamp.
• Electrocerradura.
• Key selector, pushbuttons or other opening devices.

Compulsory professional installation

• The electrical and mechanical installation must be performed by qualified personnel.
• The door must have central and lateral stops.
• The leaves must be scrolled without friction, being properly balanced and having a solid structure.
• The installation dimensions indicated by the manufacturer must be respected.
• For leaves of more 2 meters, the manufacturer indicates that it is necessary to install a electrocerradura to ensure effective closure.
• The limits of 4 m and 500 kg should not be interpreted independently: the suitability depends on the weight, longitude, structure, wind resistance and installation geometry.
• Automation must incorporate the security devices required by the regulations and by the analysis of risks of the installation.
