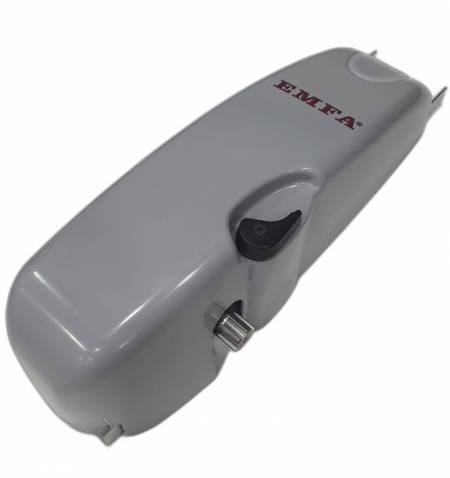

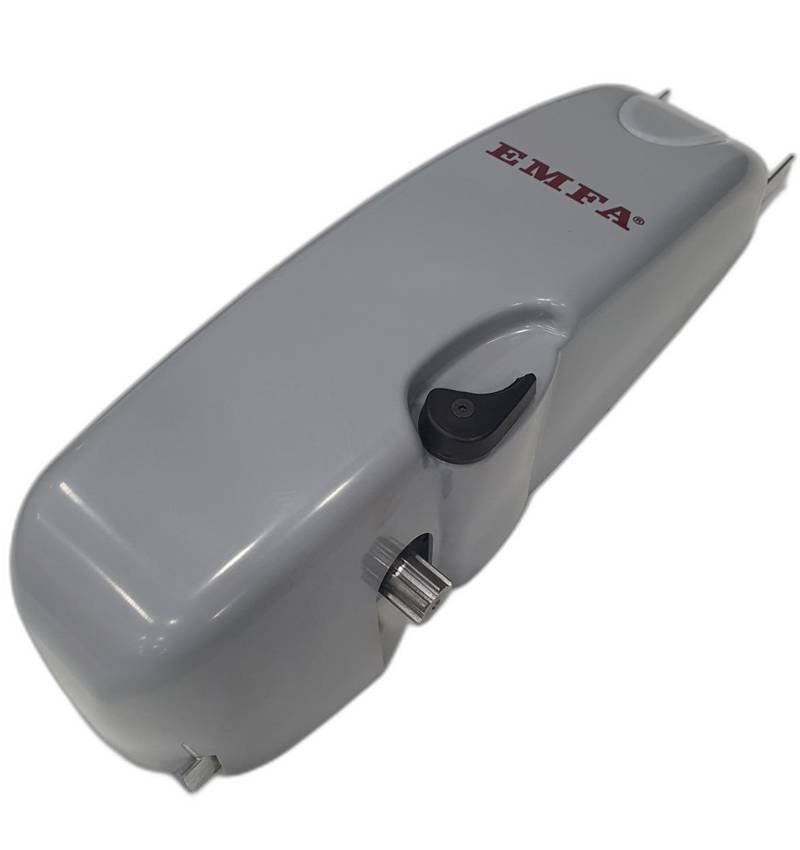

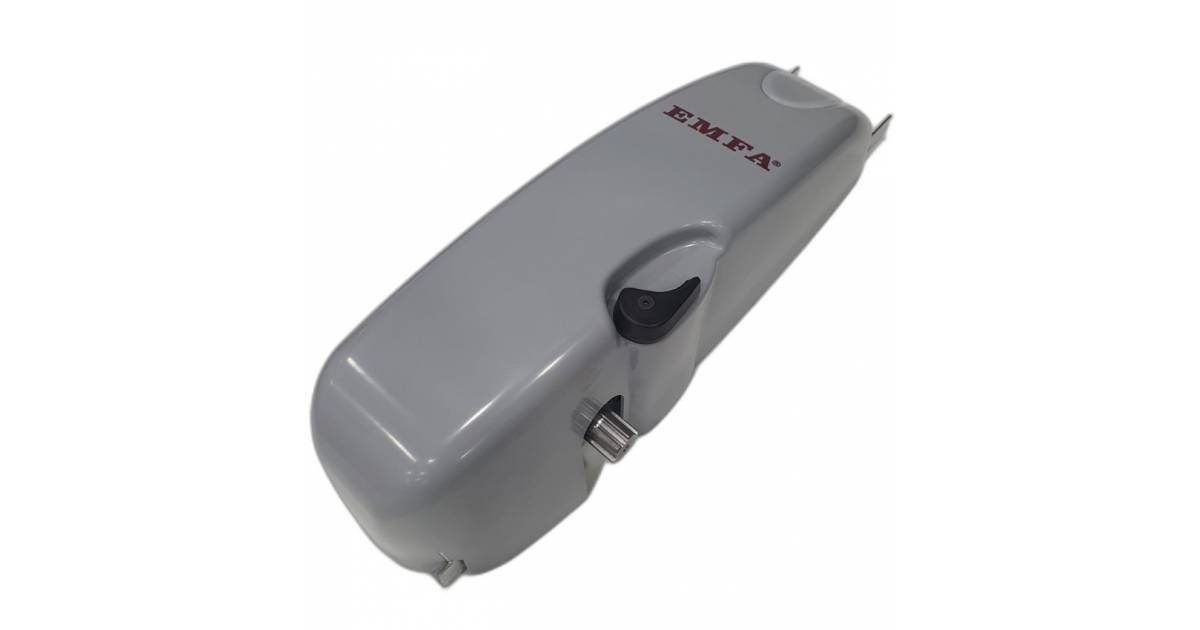

Electromechanical engine EMFA ROT MEC at 230V for residential tilting doors up to 8m2.

Self-locking mechanism with built-in box-receiver 433 MHz to drive 1 or 2 sheet counterweighted tilting doors.

Note: does not include telescopic fixtures or trailing bars. For that we have a complete kit.

CHARACTERISTICS

■ Interior and exterior opening.

■ With manual unlock.

■ With career ends. With a mounting base of 530 mm.

■ For centre-mounted or side-mounted counterweighted tilting doors.

■ Suitable for all types of sliding doors.

■ Continuous, regular and silent movement.

■ Easy installation (with screws or welding)

■ Irreversible. It ensures that the door closes without the need for an electric lock.

■ Possibility of automating articulated swing doors

In the event of an electrical failure, the door can be unlocked by turning the motor-reducer knob. When the device is actuated, unlocking may be performed from the outside or from the inside by means of the handle.

TECHNICAL CHARACTERISTICS

■ Power supply: 230 V - 50 Hz

■ Intensity: 0.85A

■ Power: 170W

■ Torque: 480 Nm

■ Intermittent operation: 30%

■ Operating time: 10 sec

■ Protection: IP40

■ Operating temperature: -20°C to +70°C

■ Condenser: 9 μf

■ Noise: < 70 dB

■ Lubrication: Grease

■ Weight: 13 kg

MEASURES

MANUAL

Instruction manual EMFA ROT MEC + C

Instruction manual box EMFA
