Universal 6-pin plug-in receiver

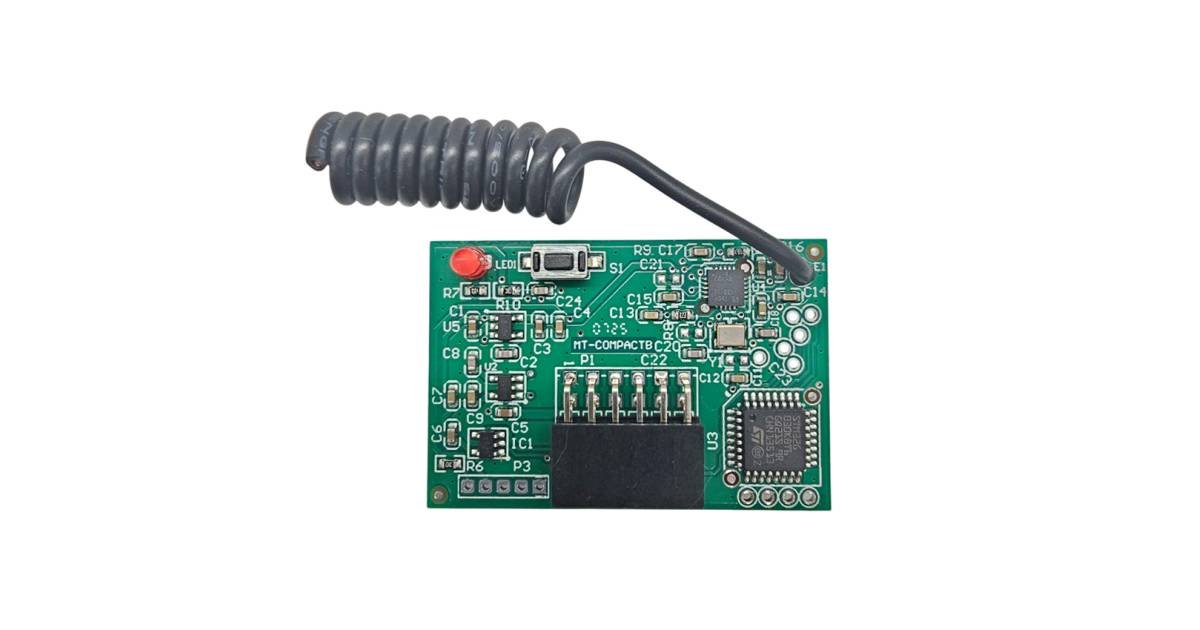

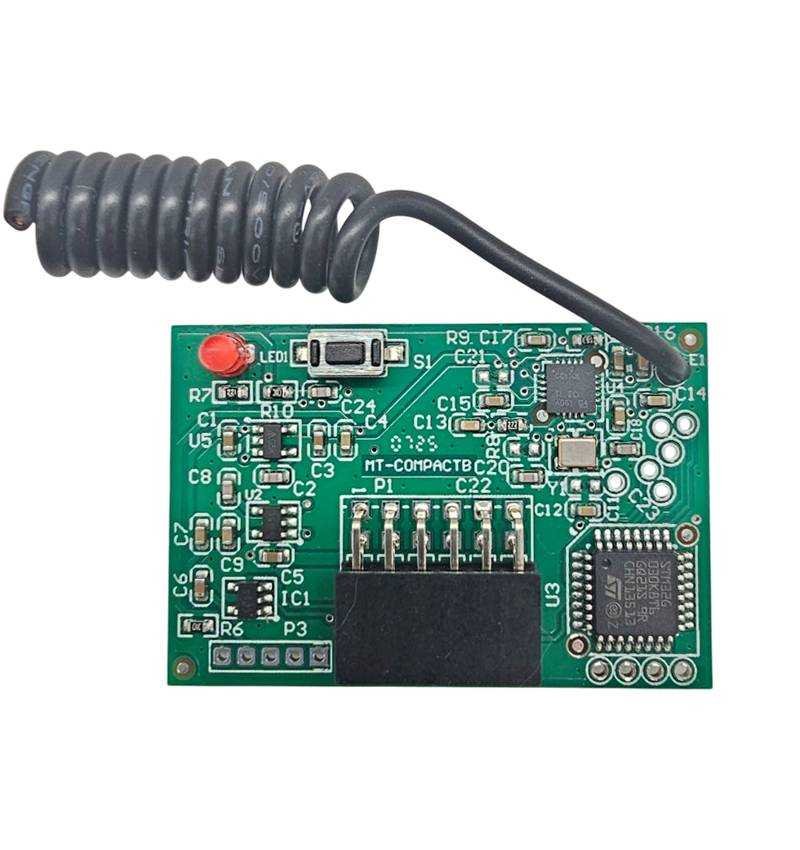

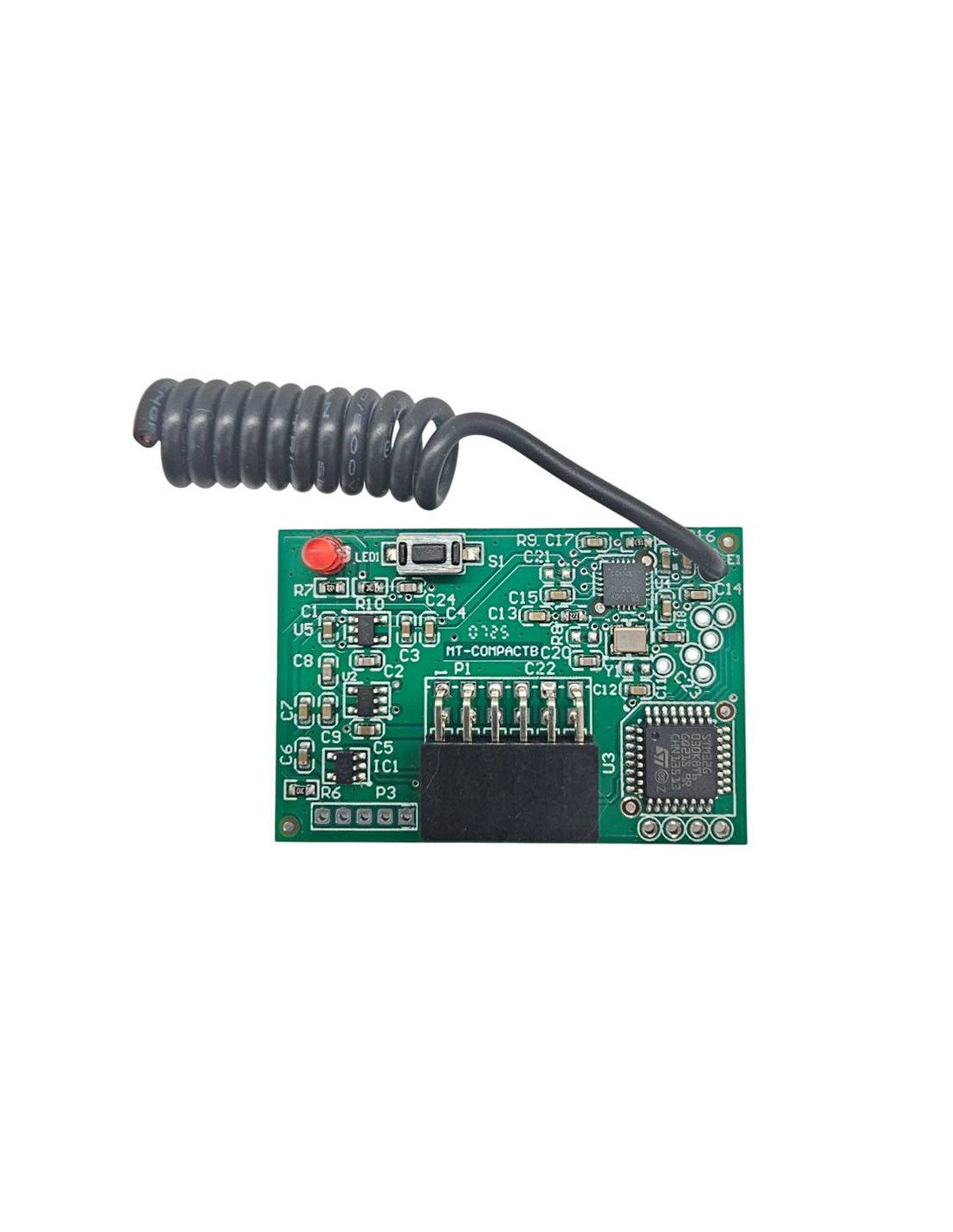

The MT-Compact receiver card is a receiver to connect in 6-pin sockets in maneuver frames, It is automatically tuned to the frequency of the remote control without needing to select the frequency by DIP-SWITCH.

It works with Fixed and evolutionary code controls at the same time.

The receiver is tuned to a single frequency.

Technical characteristics

• Feed: 5V in 6-pin sockets
• Frequencies: 433,92 - 868.35MHz- am / FM
• Codes: Fixed and evolutionary
• Capacity: 512
• Channels: 1 - Mono-stable
• Temperature: -20ºC at 60ºC

Operation

Pressing the S1 button:

• If the LED is kept fixed indicates that the receiver is not tuned at any frequency
• If the LED does slow intermittenance indicates that the receiver has already been tuned at a given frequency
• To tune the receiver to a new frequency, the memory must first be deleted.

Memory erase:

Maintain the S1 pressed button 10 seconds, the LED starts to do quick intermittenance and shut down, codes and frequency deleted.

Tune:

• Pressing the S1 and Release button, the LED lights up and remains fixed on.
• Tighten and without releasing the original control button as close as possible from the receiver to avoid environmental interference
• By detecting the frequency, the receiver begins to make slow flares, holding the original knob until the LED does 3 quick flashes and returns to slow flashes, the receiver is already tuned to the new frequency and the control is registered.

Programming control

Manual:

• Tighten the button S1 and drop, the LED starts to make slow intermittenance
• Pressing the command button you want to register, the LED will make 3 quick flashes and follow with slow flashes waiting for you to press another button or another new control of the same frequency.
• If no other button is pressed, at 5 seconds the LED is turned off and the receiver is ready to operate.
• If the LED does not make quick intermittent indicates that the command is not of the same frequency at which this tuning the receiver (to tune the receiver to another frequency, see the Tuning section) or is a control that the receiver does not detect it

Remote:

The remote high only works with evolutionary code controls by pressing the hidden push button of the original control. From here the process is the same as the manual

Aspect to consider:

• The command has to be discharged above in the receiver
• The serial of the hidden pushbutton must start by E or by F.

List of compatible controls

• AERFVda, Hydom, Aerf Standard, E. García, TMP Link, TMP Trim, Portamatic, Medva
• Aprimatic: TR, TM, TM4, TR4, TX2M, TX4M
• Clemsa: Mutancode, Mastercode
• Beninca: To.go, T2WV, IO, Cupid, Lot2wcv, Cupid 4, IO, Lot, Rollkey, T2 VW, T4, To Go2 VW, To Go4 VW
• BFT: Mitto, Kleio, TrC2, TRC4, Ghibli
• DEA: TR Mio, Genie Gray, Mio TR2, MIO TR4
• Erreka: SMAT, SOL, ROLLER, IRIS, Moon, Kuma
• FAAC: XT2 868 SLH, T3 868 SLH
• JCM: Neo, go
• Nice: SMILO, FLO, FLOWER, ONE, INTI
• Pujol: VARIOCODE
• V2: Phoenix, TCX, TSC, TRC, HANDY
