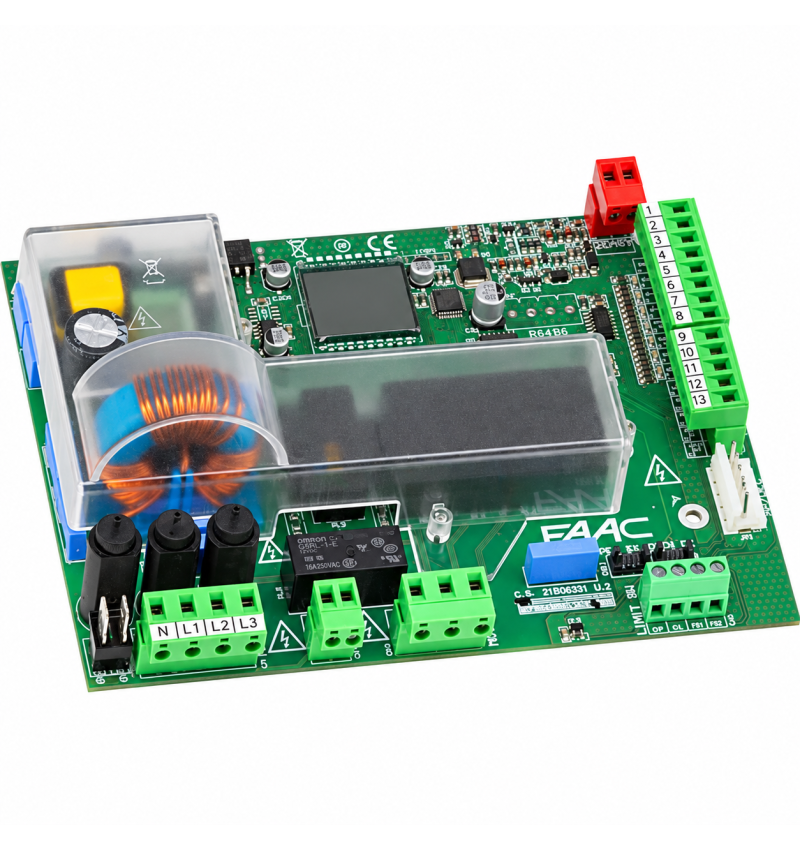

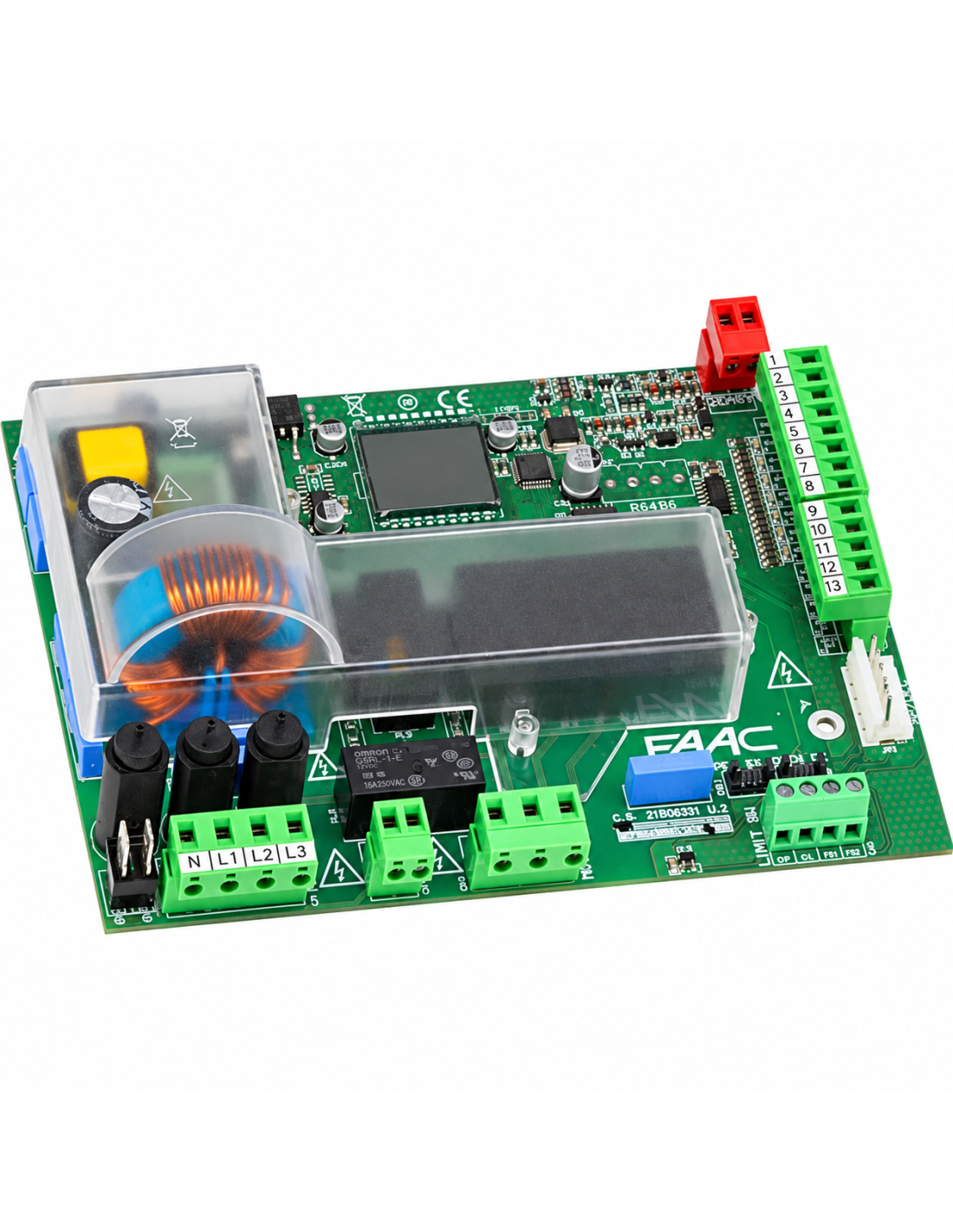

Electronic card FAAC E844 3PH | Reference 202073
The FAAC E844 3PH, reference 202073, it is an electronic control card for automatisms of Three-phase sliding doors FAAC.
It is designed to control the gearmotors FAAC 844 R 3PH and FAAC 884 Mc 3PH, used in industrial, commercial and residential sliding accesses.
The E844 3PH incorporates a more modern electronics with Programming Screen, 2Easy Bus Connection, Security Device Management and Different Functions of Automatism Configuration.
Substitute the old cards FAAC 844t and 884t
The new one FAAC E844 3PH It is compatible as replacing the previous electronic cards:
■ FAAC 844t
■ FAAC 884t
Compatibility
✓ FAAC 844 R 3PH
✓ FAAC 844 ER 3PH
✓ FAAC 884 Mc 3PH
✓ Replacement of the old central 844t and 884t.
Important: Three-phase electronics
The E844 3PH It is intended for three-phase automatisms. Before placing the order, check the exact model of the gearmotor and the electrical features of the installation.
Main features
✓ Original electronic card FAAC E844 3PH.
✓ Manufacturer reference 202073.
✓ Control of a three-phase motor up 1500 W.
✓ Programming through LCD screen and 3 push buttons.
✓ FAAC 2easy bus For compatible accessories.
✓ Independent entries for security devices in Opening and closing.
✓ Compatible with resistive safety edges 8k2 and compatible electromechanical devices.
✓ Specific entries for priority opening and closing orders in mode present man.
✓ Two programmable status outputs.
✓ Additional control and deceleration functions available according to the gearmotor FAAC used.
Technical characteristics FAAC E844 3PH
| Feature |
E844 3PH |
| Reference FAAC |
202073 |
| Feed |
380-415 V ~
3ph + n
50/60 Hz |
| Maximum power of the card |
3 W |
| Maximum motor power |
1500 W |
| Output accessories |
24 V DC
500 mA max. |
| 2easy bus |
500 mA |
| Exit flashing lamp |
230 V ~
60 W max. |
| Operating temperature |
-20 ° C
+55 ° C |
| Programming |
LCD screen
+ 3 push buttons |
Functions of the E844 3PH central
2easy bus: Allows you to connect accessories FAAC Compatible as photocells, control devices, keyboards, tag readers and security systems.
Independent assurances: It has specific entries for safety devices during opening and during closure.
Priority managers: It incorporates specific entries for opening and closing in man's present mode.
Programmable outputs: It has two configurable status outputs.
Advanced control: with certain configurations FAAC 844 R 3PH Allows functions as a progressive start, deceleration before the end of race and management of the encoder.
Replacement of pictures FAAC old
The E844 3PH was developed by FAAC As an evolution of the centrally used in three-phase automatisms.
■ 844T → Substitutable by E844 3PH
■ 884T → Substitutable by E844 3PH
Supply content
■ 1 × Electronic Card FAAC E844 3PH - Ref. 202073
Installation by qualified personnel
This product works with High voltage three-phase feeding. The installation, connection, configuration and commissioning must be carried out by respecting the electrical scheme and the manufacturer's instructions.
