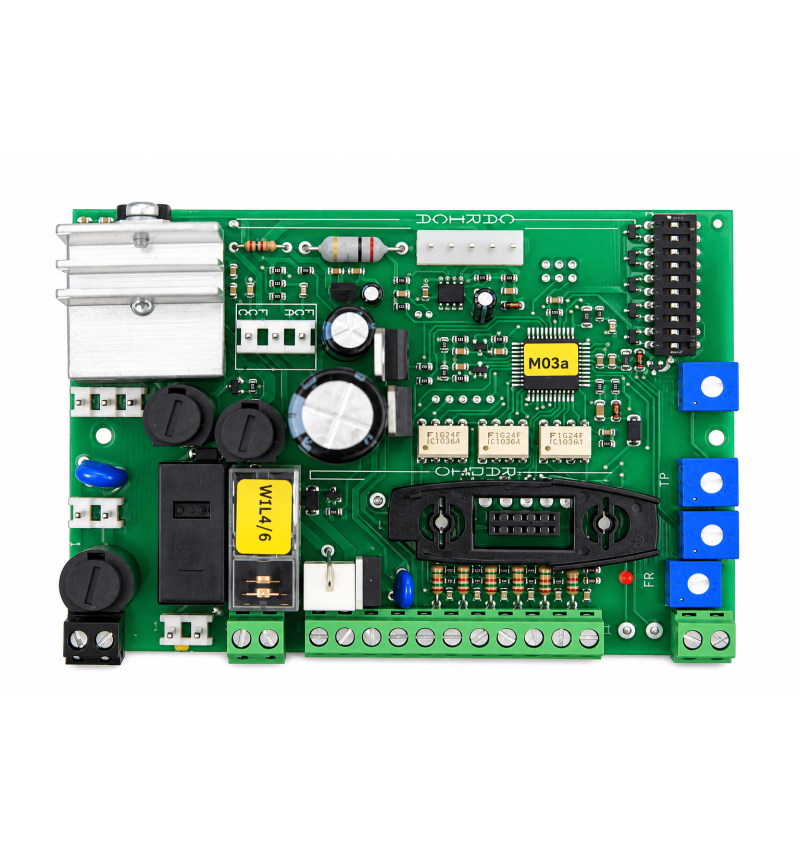

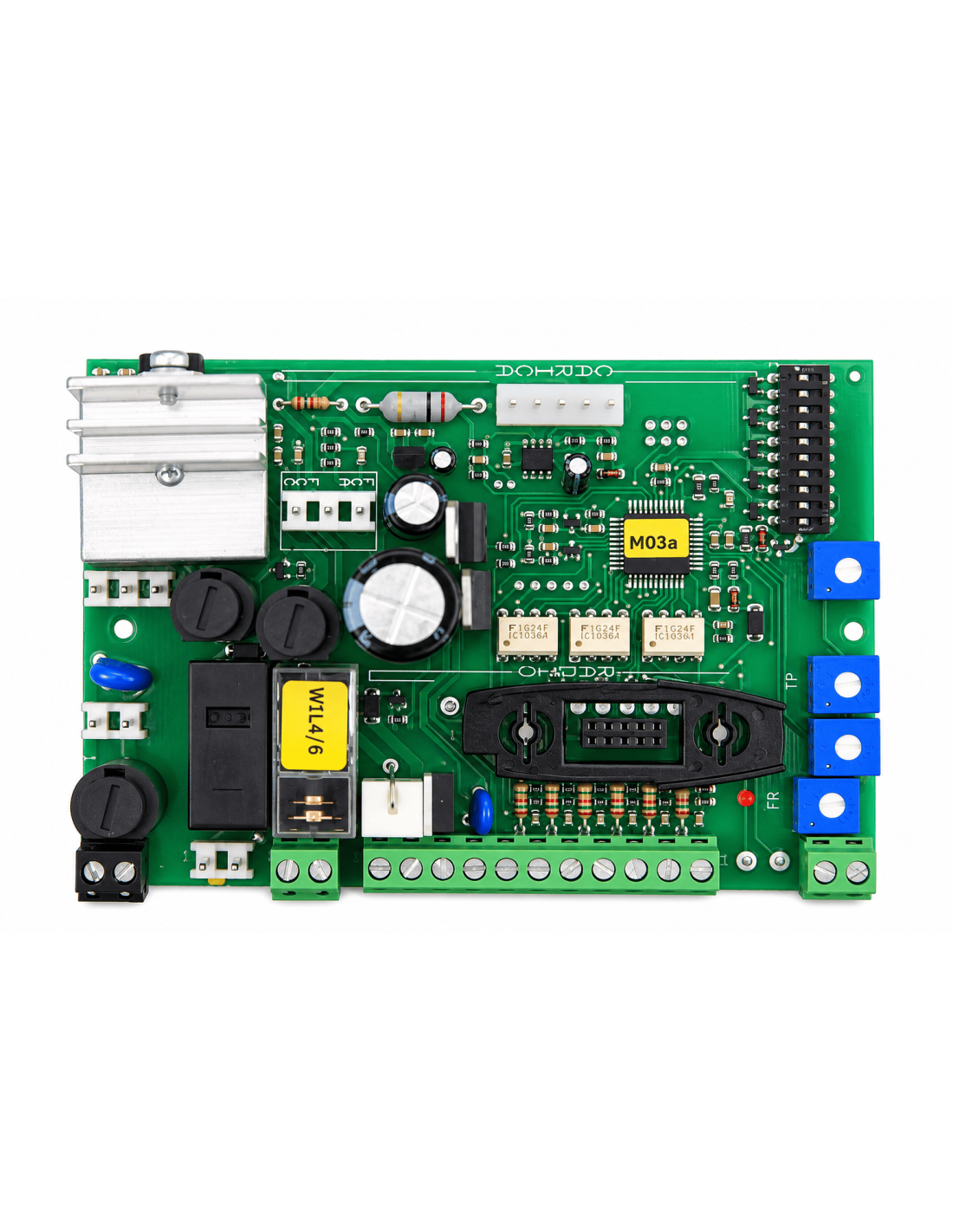

Electronic plate Nice SPWA20 for WIL4 / WIL6 BARRIERS
The Nice SPWA20 is the original replacement electronics used in the automatic barriers of the old range Nice WIL.
Is intended to replace control electronics WA20 when the original plate has a breakdown, allowing the engine, transformer and other mechanical components of the barrier whenever they are in good condition.
The plant manages the operation of the engine, the end of the race, decelerations, safety devices, opening and automatic closure and the different programmable functions of the barrier.
The plate has connector for plug-in radio receiver. The radio receiver it is not included with this spare part.
Compatibility
✓ Nice WIL4
✓ Nice WIL4I
✓ Nice WIL6
✓ Nice WIL6I
Replacement data
| Feature |
Information |
| Manufacturer |
Nice |
| Reference |
SPWA20 |
| Associated |
WA20 |
| Application |
Automatic barriers |
| Compatible models |
WIL4 / WIL4I / WIL6 / WIL6I |
| Radio receiver |
Not included |
| Receiver connector |
SM / SMXI TYPE |
Main functions of the WA20 power station
✓ Electronic Management of Barriers Nice WIL.
✓ Control of opening and closing.
✓ Management of the race.
✓ Regulation of the labor force.
✓ Regulation of force during the deceleration phase.
✓ Management of the soft unemployment at the ends of the route.
✓ Adjustable pause time for automatic closure.
✓ Tickets for control devices and security.
✓ Management of photocells.
✓ Exit for 24vdc flashing lamp.
✓ Exit for courtesy light.
✓ Exit for indicator open barrier.
✓ Connector for plug-in radio receiver Nice.
Characteristics of the WA20 plant
| Feature |
Value |
| Food WIL4 / WIL6 AUTOMATION |
230VAC ± 10% - 50/60 Hz |
| Output accessories |
24VDC - 200 mA max. |
| Flashing |
24VDC - 25 W max. |
| Courtesy light |
24VDC - 10 W max. |
| Open barrier indicator |
24VDC - 10 W max. |
| Pause time |
3 - 120 s |
| Operating temperature |
-20 ° C / +70 ° C |
Radio receiver not included
The plate SPWA20 does not incorporate integrated radio receiver.
Has a connector to install a plug-in receiver Nice compatible, like the receptors originally used in the family SMXI.
Replacement of the electronic plate
When replacing the plant may be necessary to carry out the configuration of functions, times, strength and deceleration.
Before disconnecting the old plate it is recommended identify and document the position of all cables and configuration of microswitches and regulations.
Single spare electronic plate
This product corresponds only to the electronic plate Nice SPWA20. It does not include radio receiver, transformer, gearmotor, barrier housing, mast or other components of automatism.
Check the model before order
The SPWA20 is destined to the old family Nice WIL4 / WIL4I / WIL6 / WIL6I. It should not be confused with the centrals used in the barriers Nice WIDE, M-BAR, L-Bar or other generations.
Manual
See the official manual Nice WIL / WA20 to verify the connection, programming, regulations and security devices of the plant.
Supply content
■ 1 × original electronic plate Nice SPWA20 / WA20.
