Electronic plate CAME ZL39B 88003-0124 for GT3750 and Gard4 barriers

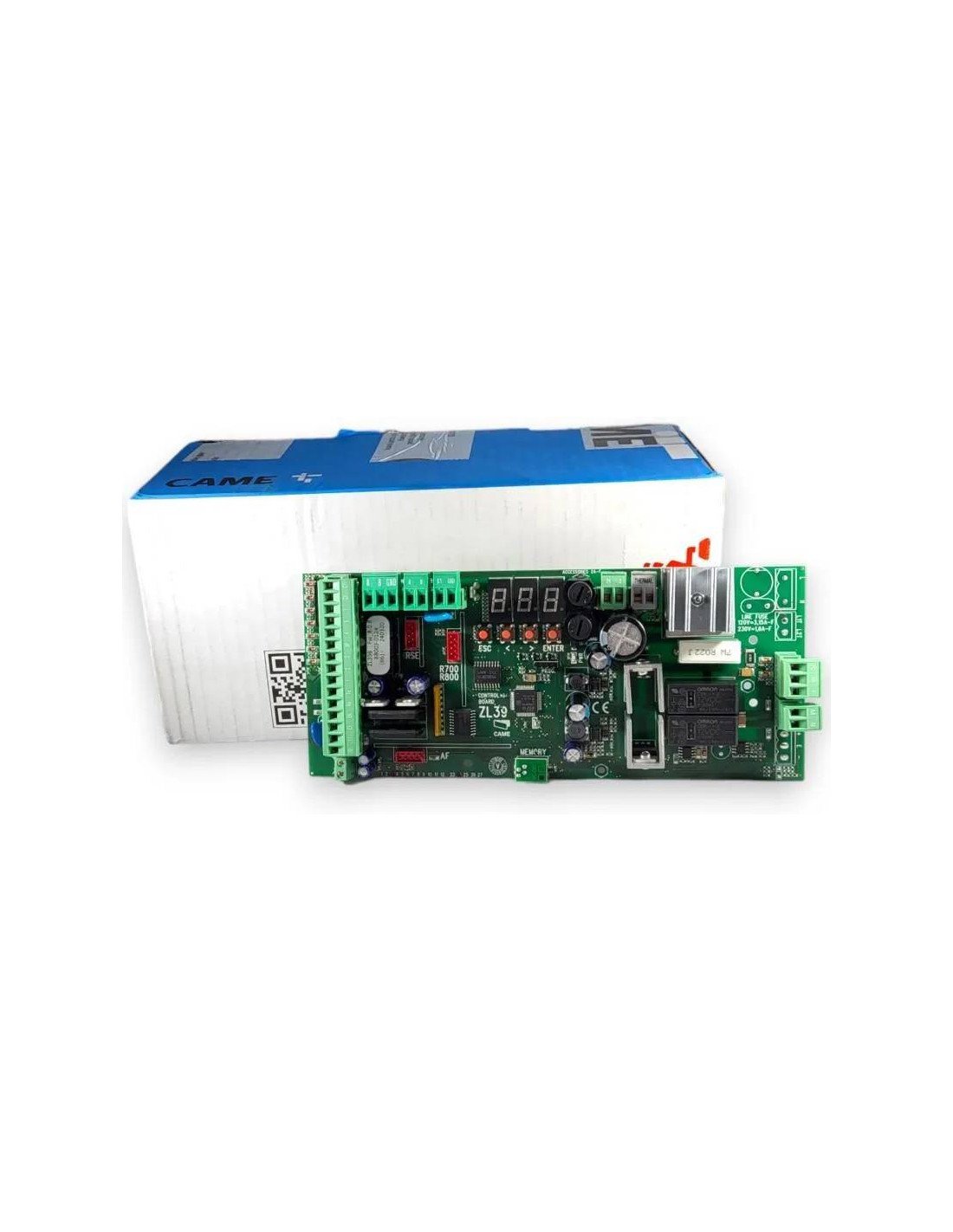

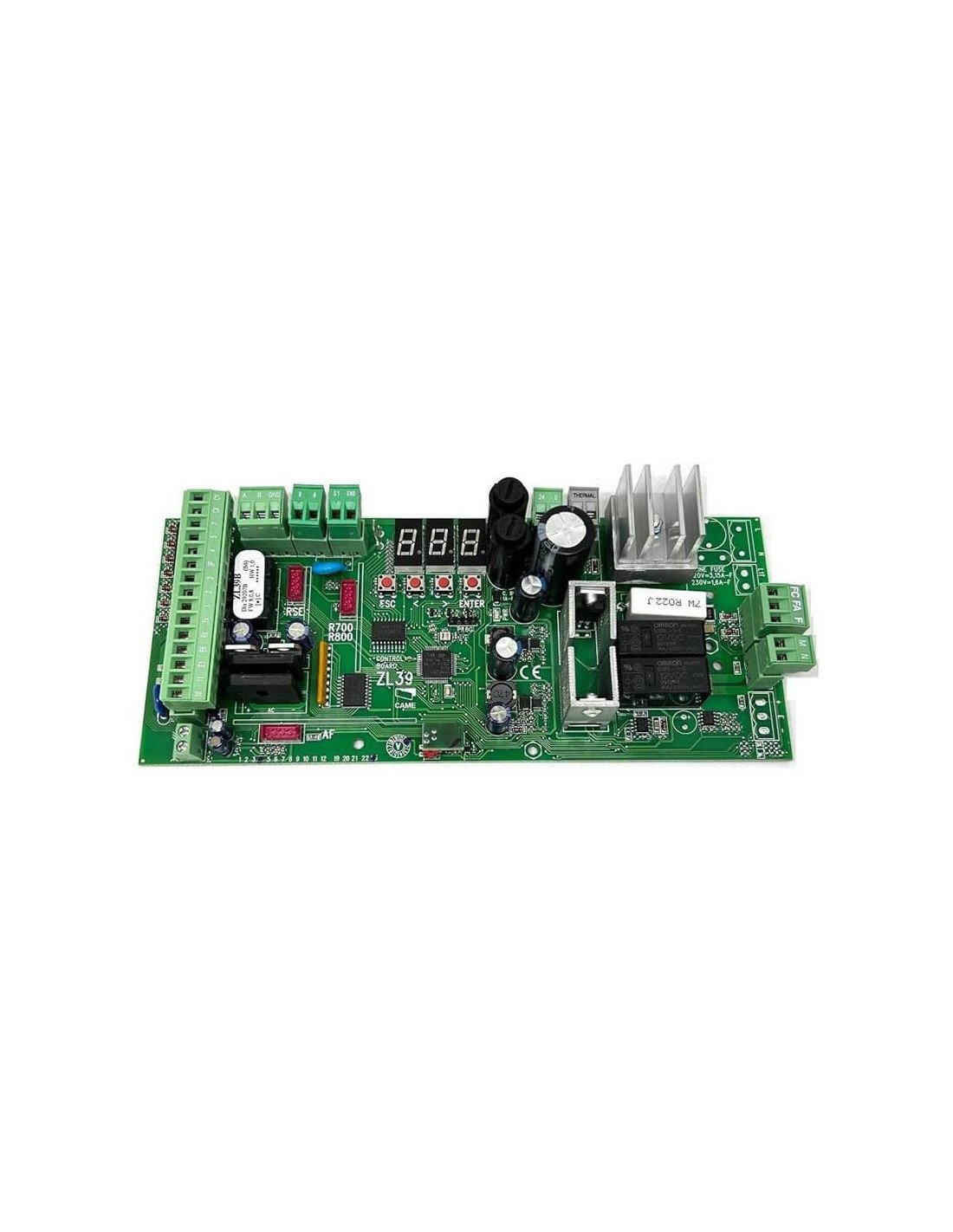

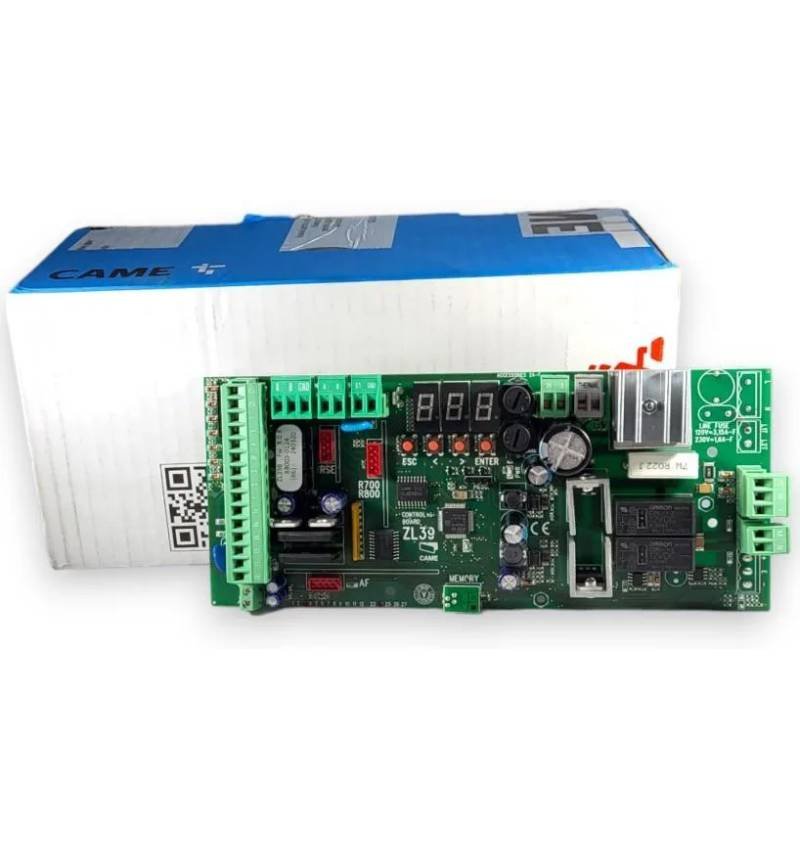

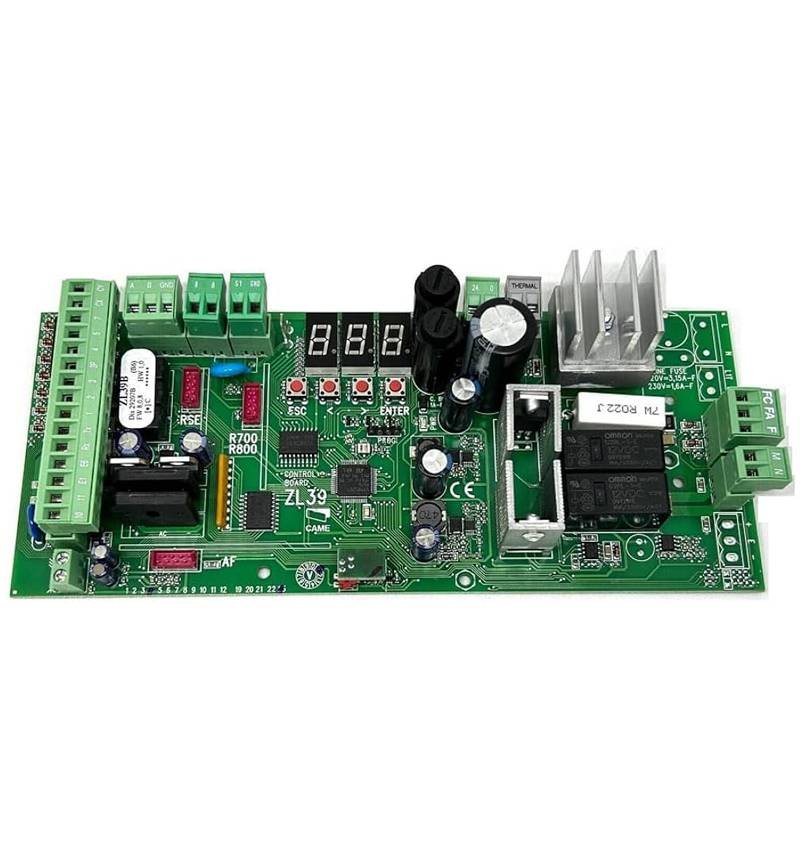

Electronic card CAME ZL39B | Ref. 88003-0124

The CAME Zl39b, reference 88003-0124, it is an electronic control card for automatic barriers CAME GARD 4 and certain facilities that the plant previously used Zl38.

This plate is especially indicated as Repair for repair or replacement From an existing ZL38 / ZL39B electronics, allowing to preserve the rest of the barrier components when they are in good condition.

The center incorporates screen and programming pushbuttons, connections for control devices and safety, plug-in radio receiver, memory roll and different interfaces used by automation CAME compatible.

Compatibility

The card ZL39B 88003-0124 It is mainly indicated for:

✓ Barriers CAME GARD 4.

✓ Facilities equipped originally by card CAME Zl38, as long as they correspond to a compatible configuration.

✓ CAME Gt3750 In documented configurations for this central.

Important: Gard 4 is not GT4 GT4

The CAME ZL39B 88003-0124 does not correspond to the new GT4 GARD barrier.

For the barriers CAME GARD GT4, the corresponding spare card is the ZL392B, reference 88003-0083.

Replacement of the old ZL38

The Zl39b It can be used as replacement of the previous Zl38 In compatible applications.

In facilities with Two barriers running in a combination form, a ZL38 central center should not be mixed with a ZL39B: both automation must work with the same card model.

✓ Electronic card CAME Zl39b.

✓ Reference CAME 88003-0124.

✓ indicated for family barriers CAME GARD 4.

✓ Replacement of the old card Zl38 In compatible facilities.

✓ Power compatible with networks 120 / 230VAC.

✓ Screen For programming and diagnosis.

✓ Built-in programming pushbuttons.

✓ Connector for receiving card CAME Af.

✓ Connector for Memory Roll.

✓ Connector for decoding cards R700 / R800.

✓ Connection for antenna.

✓ Connections for control devices, safety and career end.

Radio: Connector for radio frequency receiver CAME AF type and antenna connection.

Memory Roll: Connector for storage and transfer of compatible data.

R700 / R800: Connector for compatible decoding cards.

CSR: Connection available for compatible combined operation or communication functions.

Controls and assurance: Specific connections for pushbuttons, control devices, photocells and barrier securities.

Important if the installation uses batteries

The ZL39B is not compatible with the LB38 battery charging card. For installations with battery operation, the system should be used Lb39 compatible.

Radio receiver not included

This product corresponds only to the electronic card CAME Zl39b. The radio receiver card, controls and other accessories are supplied separately, unless expressly indication.

■ 1 × Electronic Card CAME ZL39B - Ref. 88003-0124.

Check the model before placing the order

Before applying for the plate, check the barrier label and the reference of the installed card. CAME Gard 4 and CAME Gard GT4 are different ranges and use different electronics.
