Electronic card CAME ZL392B 88003-0083 for GT4 GT4 and GT8 barriers

Electronic card CAME ZL392B for GT4 GT4 and GT8 barriers

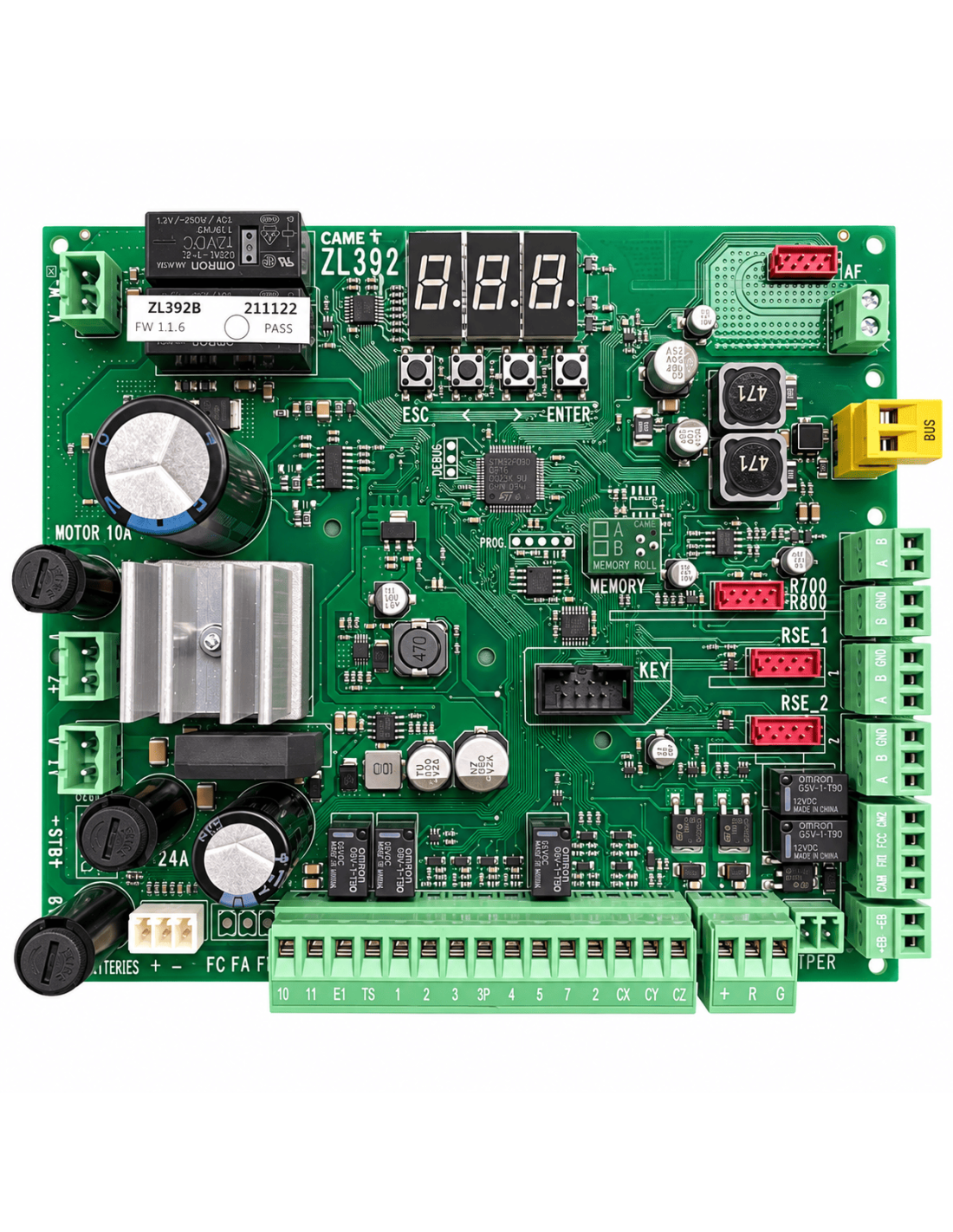

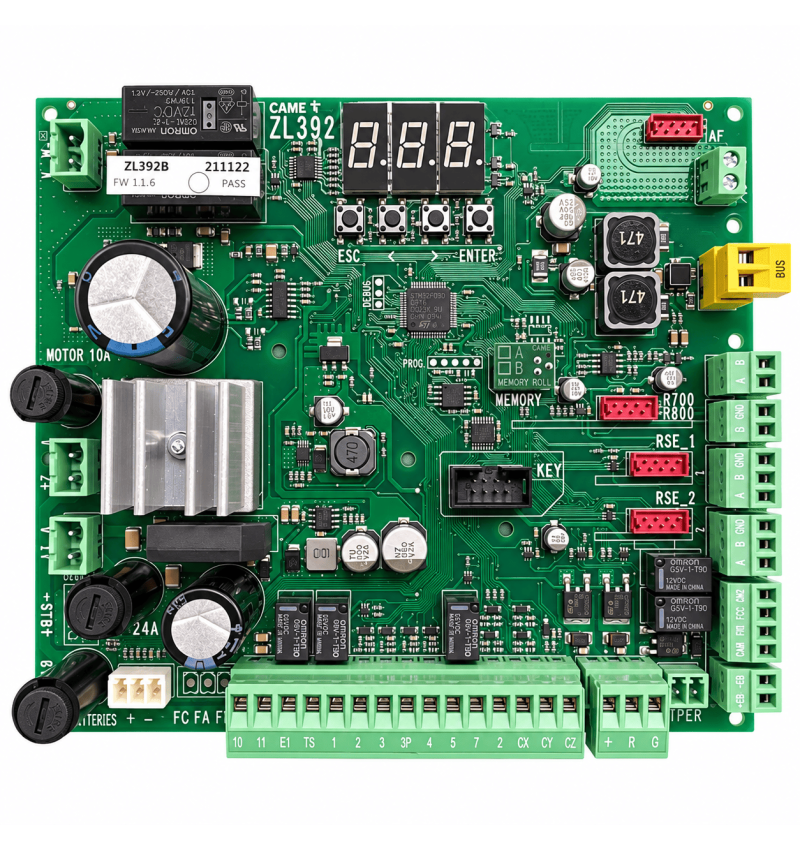

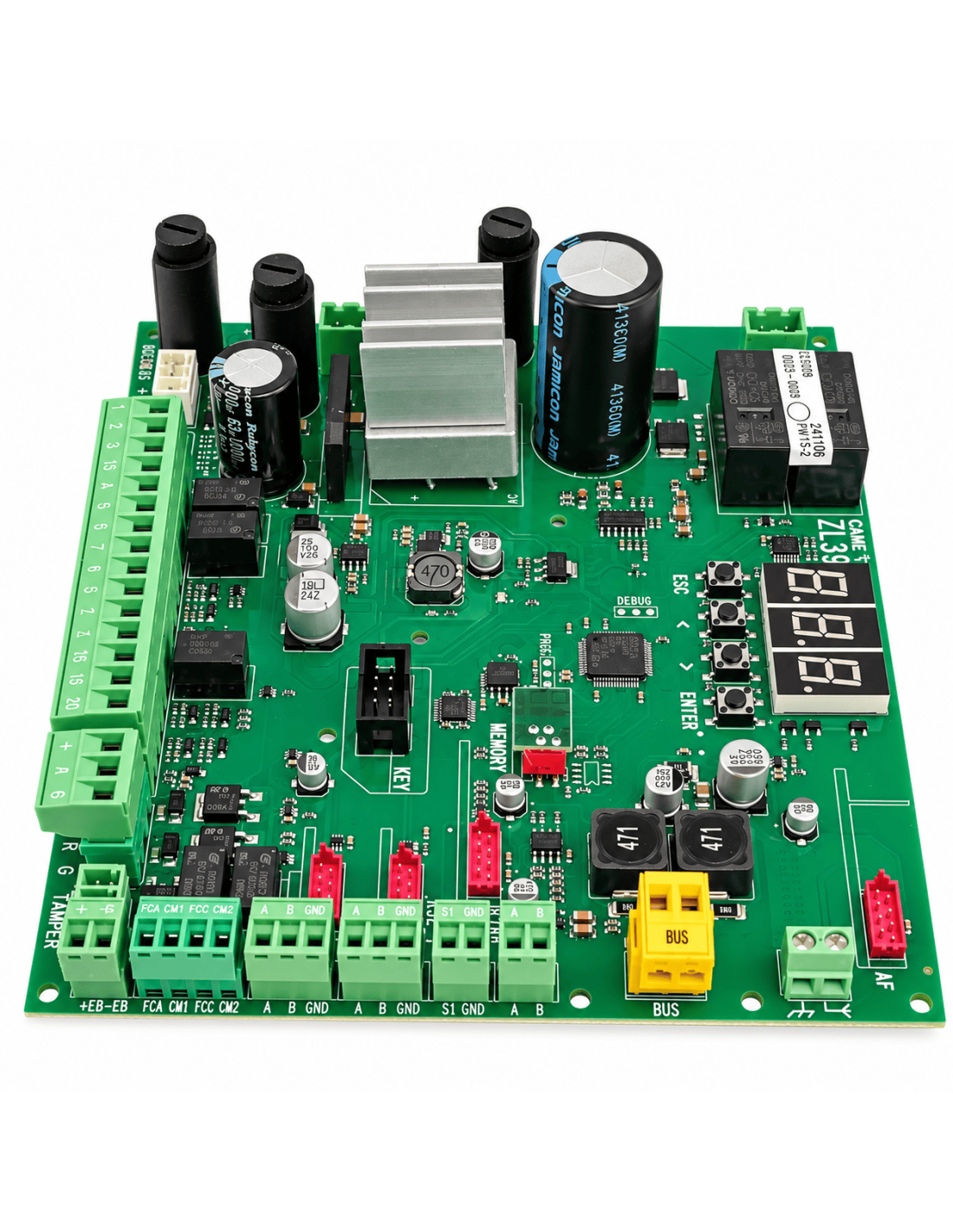

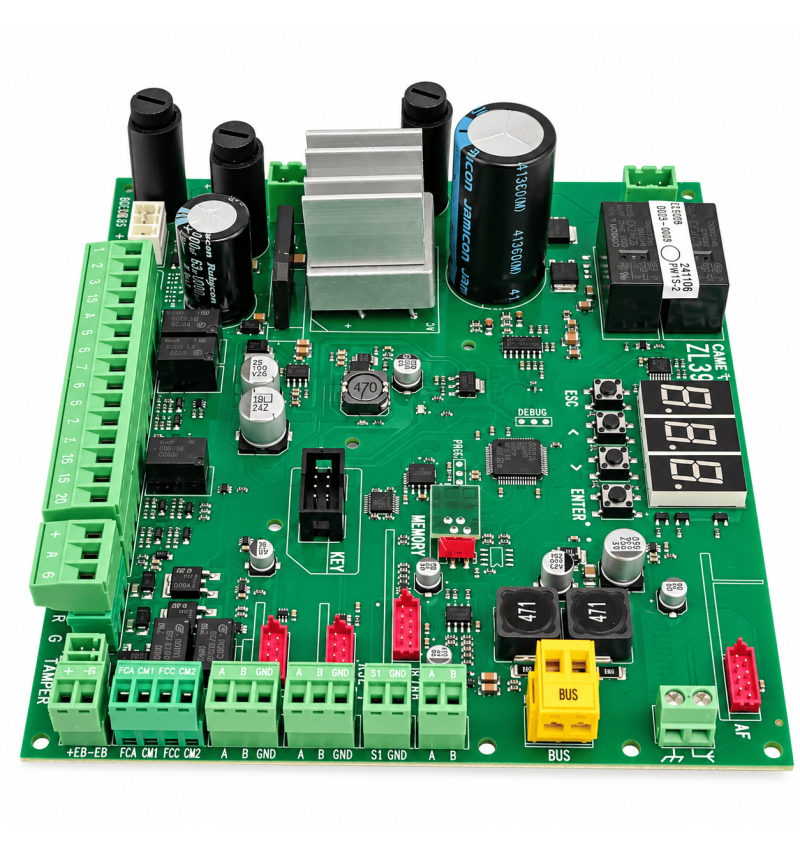

The CAME 88003-0083 is the electronic control card Zl392b used in automatic barriers CAME Gard GT4 and GARD GT8.

Is mainly destined to the Repair or replacement of a fault electronic plant, allowing to preserve the rest of the barrier components when they are in good condition.

The plant manages the operation of the barrier, the engine, encoder, control devices and safety, accessories and the different programming functions of the automatism.

Compatibility

✓ CAME GARD GT4

✓ CAME GT8 GARD

Important: ZL392 card version B

The reference 88003-0083 corresponds to the ZL392B / ZL392 Version B. Before placing the order, check the reference of the installed center and the exact model of the barrier to avoid confusing it with other versions of plates CAME.

✓ Electronic card CAME Zl392b.

✓ Replacement reference 88003-0083.

✓ Compatible with barriers CAME Gard GT4 and GT8.

✓ Screen and programming pushbuttons incorporated.

✓ Engine management and encoder.

✓ Tickets for devices Command and Safety.

✓ Connection for accessories Bus.

✓ Connector for Radiofrequency receiver card CAME Af.

✓ Connector for decoding cards R700 / R800.

✓ Connectors CSR For compatible functions and communications.

✓ Connector for CAME KEY.

✓ Card connector Memory Roll.

Radio: Connector for plug-in receiver CAME AF and antenna connection.

Bus: Connection for accessories compatible with the bus system.

Security and controls: Specific Borners for installation control and safety devices.

Encoder: Entrance dedicated for position and movement control.

CSR: Connections for communication functions, CRP and compatible configurations.

Modbus: Possibility of integration through the corresponding interface connected to the control panel.

Programming and maintenance: It has a screen, programming and connection pushbuttons for CAME KEY.

Receptive card not included

The ZL392B has a specific connector to install a Radio receiver card CAME AF. The radio receiver, controls and other accessories are not included with this card unless expressly indicated.

■ 1 × Electronic Card CAME ZL392B - Ref. 88003-0083.

Replacement of the electronic card

Before dismantling the existing plant, we recommend identifying and documenting the position of the connectors, wiring and accessories installed.

After replacing the card, it will be necessary to perform the Configuration, programming and checking of control devices and security of the barrier.
