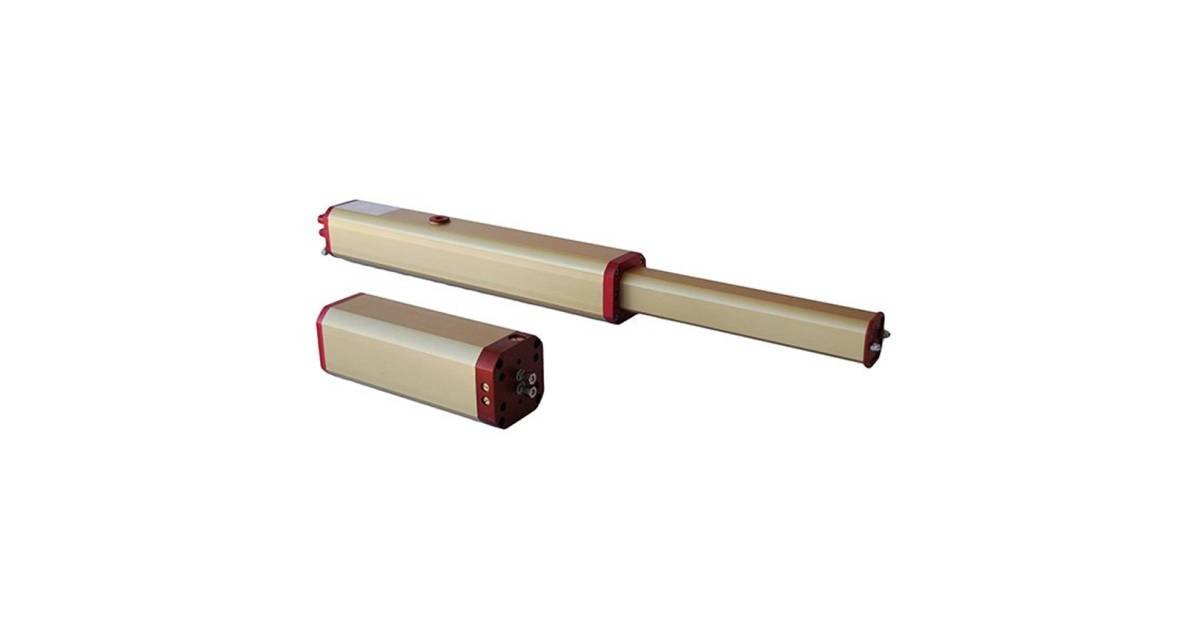

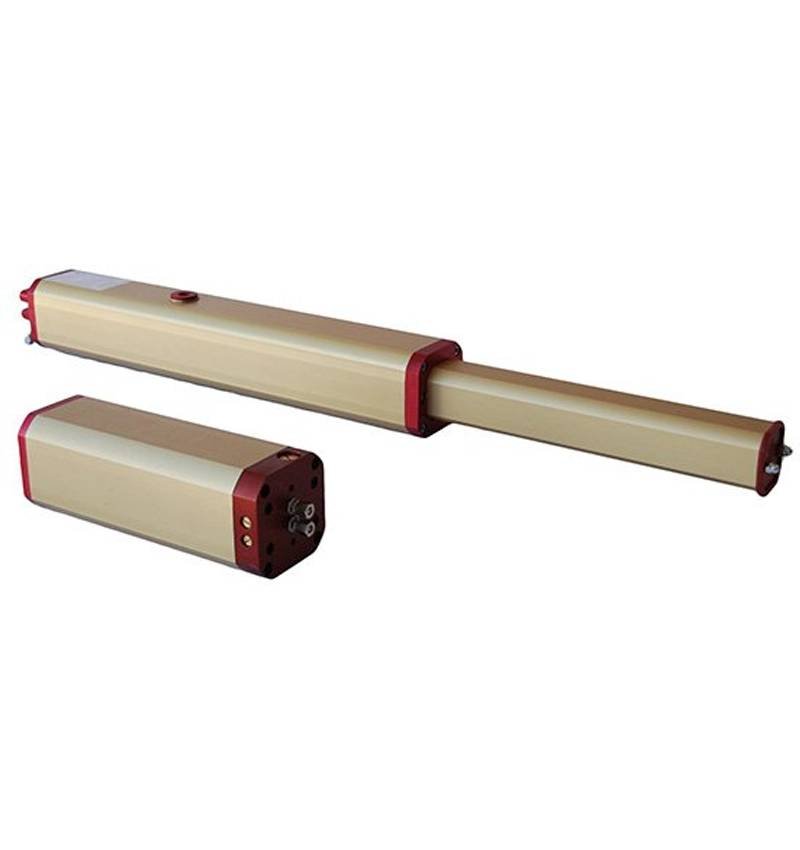

EMFA Tor Silence Δ Hydraulic motor with independent motorbomba

Hydraulic Automation for Batent Doors with Separate Pump allowing to motorize abatible doors of 1 or 2 leaves minimizing noises and vibrations.

Operators can be configured as REVERSIBLE or IRREVERSIBLE, and have soft strike and air retention, in opening and closing adjustable.

✓ Intensive use level

✓ Unappreciable sound level

✓ MBD independent motorbike kit and TOR 4/5 without pump and motor

✓ Hermetic hydraulic circuit. No need for purging

✓ No risk of leakage

Features EMFA Tor Silence

• Self-unlocking.
• Soft patch and air retention, opening and closing adjustable.
• It adapts to all the cancelled models, already installed, or new installation.
• Extremely silent operation.
• It has a gentle adjustable hydraulic strike (in closing and opening) avoiding knocks of the doors.
• It has regulation for wind retention, SEMI-BLOQUEO (in closing and opening).
• Allows to dispense with the pedestrian door.
• In case of a lack of current, it is possible to manually maneuver the electro-closure by means of its key, from the inside or outside.
• The system allows to regulate the retention by effectively controlling the acceleration of the blade by effect of air currents.
• Set supports and axle cover included.

Technical specifications Tor Silence

• Tension: 230Vac, 50Hz/120, 60Hz
• Power: 276 W
• Intensity: 1.2 A
• R.P.M.: 1450
• Protection level: IP55
• Thermal protection: 100oC
• Operating service: Intensive
• Caudal bomb: 1 litre/min
• Working pressure: 0/55 bars
• Linear opening force: 6890 N
• Linear force closure: 8540 N
• Race: 250 / 400 mm
• Damping: Opening and closing (regulated in speed and route)
• Closure: With lock / hydraulic lock
• Speed Opening: 18 s (16 mm damping)
• Speed Close: 22 s (17 mm damping)
• Weight: 12 KG

Available models

• GLOBAL XL SILENCE (101030): Linear hydraulic accessories race 250 mm + separate motor pump planned for configurable lock (reversible). MBD support + 2 1.20 m latiguillos and rácors included. Reversible and Irreversible on one team. Force regulation in opening and closing. Soft patch in opening and closing. Doors up to 1200 kg and 6m. Intensive use level.
• GLOBAL XL SILENCE C (101031): Linear hydraulic accessories race 250 mm + separate motorbike planned hydraulic output and configurable block (reversible and irreversible). MBD support + 2 1.20 m latiguillos and rácors included. Reversible and Irreversible on one team. Force regulation in opening and closing. Soft patch in opening and closing. Doors up to 1200 kg and 6m. Intensive use level.
• GLOBAL XL SILENCE 400 (101034): Linear hydraulic accessories race 400 mm + separate motorbike planned for configurable lock (reversible and irreversible). MBD support + 2 1.20 m latiguillos and rácors included. Reversible and Irreversible on one team. Force regulation in opening and closing. Soft patch in opening and closing. Doors up to 1500 kg and 7m. Intensive use level.
• GLOBAL XL SILENCE C 400 (101035): Linear hydraulic accessories race 400 mm + separate pump planned hydraulic output and configurable lock (reversible and irreversible). MBD support + 2 1.20 m latiguillos and rácors included. Reversible and Irreversible on one team. Force regulation in opening and closing. Soft patch in opening and closing. Doors up to 1500 kg and 7m. Intensive use level.

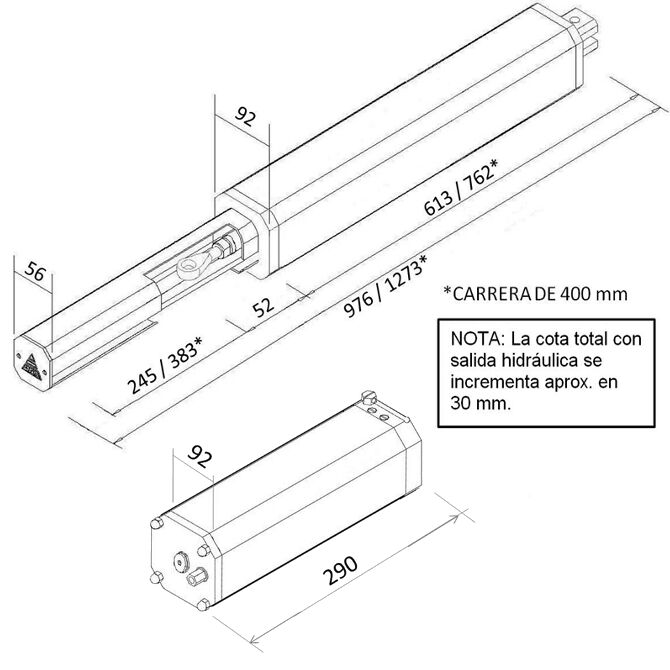

Measures
