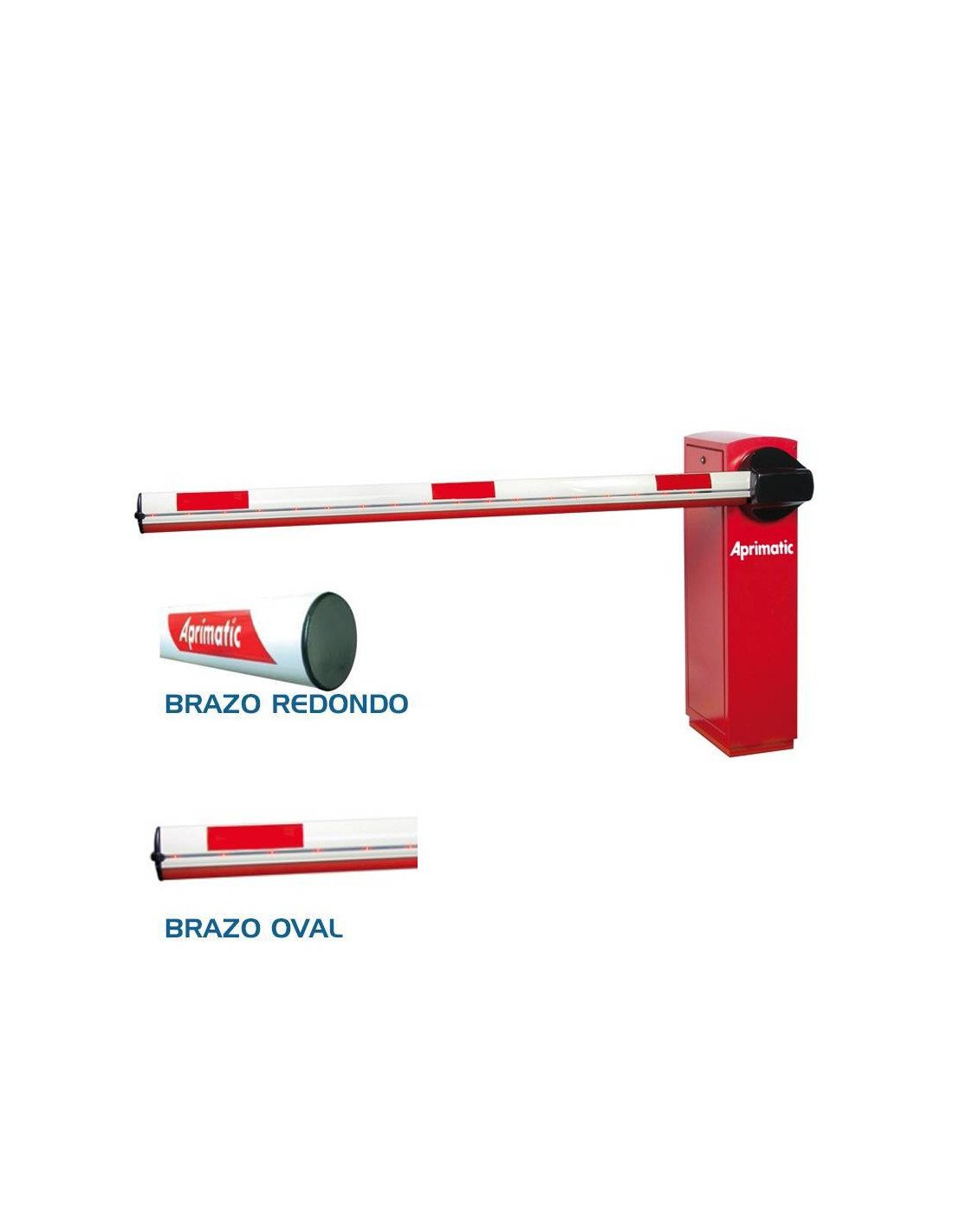

Electromechanical barrier Aprimatic PARK PLUS at 24V very intensive use with mast from 3 to 8 meters with built-in maneuver box.

The automatic PARK PLUS barrier is designed for the control of vehicles in restricted access with very heavy traffic. What. Steel outdoor furniture with cataphoresis treatment painted in polyester. Reducer to 230 Vac in oil bath and encoder. Programmable manoeuvre board with end-of-course deceleration functions and obstacle detection system. The automatic barrier incorporates manual unlock for emergency manoeuvring. Optionally an oval arm with LED lighting can be installed, up to 8 m.

Recommended for use in industrial areas.

• Motor reducer at 230 Vc in oil bath
• Deceleration at the end of the journey
• Torque control with reversal in case of obstacle.
• Manual release.
• Easy left/right switch.
• Valid for very heavy traffic

MATTILATE TIPES

• KTP30PLUSOV: Oval arm H65 mm, L=3 m. Opens in 1.7s, 10,000 cycles a day.
• KTP30PLUSOVLED: Oval arm H65 mm with LEDs, L=3 m. Opens in 1.7s, 10,000 cycles a day.
• KTP60PLUSRD: round arm D80 mm, L=6 m. Opens in 9.0s, 2,000 cycles a day.
• KTP60PLUSOV: Oval arm H118 mm, L=4+2 m. Opens in 9.0s, 2,000 cycles a day. Internal reinforcement for arm.
• KTP60PLUSOVLED: Oval arm H118 mm with LEDs, L=4+2 m. Opens in 9.0s, 2,000 cycles a day. Internal reinforcement for arm.
• KTP80PLUSOV: Oval arm H118 mm, L=4+4 m. Opens in 9.0s, 2,000 cycles a day. Internal reinforcement for arm.
• KTP80PLUSOVLED: Oval arm H118 mm with LEDs, L=4+4 m. Opens in 9.0s, 2,000 cycles a day. Internal reinforcement for arm.

Notes 1 and 2The following: all barriers come without receiver and without controls, so if you need them you can add them additionally from the product accessories.

Notes 2 and 3The following: for barriers with a mast of 8 metres and in areas with strong winds, double anchorage is recommended.

MANUAL

Instruction manual Aprimatic PARK PLUS

Technical data sheet Aprimatic PARK PLUS

Instruction manual Aprimatic barrier lights

Instruction manual Traffic Park
