24V ATS 8K01MP CAME motor for double swing gates up to 3m per page.

ATS is the universal telescopic motor for swing gates.

CHARACTERISTICS

The 24-volt system has been designed to provide a performance solution in heavy-duty contexts with repeated opening and closing.

It is therefore ideal not only for residential contexts but also for professional or industrial contexts.

The electronic encoder allows you to manage the gate travel accurately and efficiently by slowing down near the limit switches at both opening and closing

BATTERY EMERGENCY SYSTEM

A special system with high-performance lithium batteries allows ATS to operate even in the event of a power outage.

This emergency device kicks into operation as soon as it detects a power outage and recharges during normal operation to always ensure maximum operation.

ELECTRONIC LIMIT SWITCHES

The door path is regulated by high-precision electronic limit switches. Therefore, ATS allows you to operate even intensively without straining the motor, as the range of movements is not controlled by mechanical elements.

The adjustment of the microswitches is possible at any time and very quickly, even after installation, without having to open the motor. Simply unscrew the cover at the end of the telescopic arm and operate the two screws corresponding to the opening and closing limit switches.

The ZL65 card supports numerous additional functions, available as add-on modules that can be connected directly to the card.

Available features may vary depending on the card used

■ If necessary, the motor can be unlocked to manually open or close the door leaf.

■ A single emote is enough to unlock ATS.

■ The plug to be operated is protected by a flap that can be opened simply with a finger.

■ The new three-lobed wrench also has a completely redesigned design for greater ergonomics

■ Combines advanced performance with the need for refined design.

■ Thanks to the axial drive, the motor body does not protrude, for a slender and elegant shape.

■ Can be installed in any context, even on very deep pillars.

RUGGED AND RELIABLE

Entirely made of steel and aluminium to guarantee resistance and reliability over time.

SILENT MOVEMENTS

Thanks to the bevel gears, ATS offers very smooth and quiet movements.

ELECTRONIC LIMIT SWITCHES

The door travel is regulated by high-precision electronic limit switches that can be easily adjusted at any time by acting on the two dedicated screws.

SPECIFICATIONS

• Power supply: 230V
• Motor Working: 24V
• Degree of protection (IP) 54
• Motor power supply (V) 24 DC
• Absorption (A) 8
• Power (W) 80
• Operating Time at 90°(s) 15"-30"
• Cycles/Hour Continuous Service
• Thrust (N) 400 ÷ 3000
• Operating Temperature (°C) -20 ÷ +55

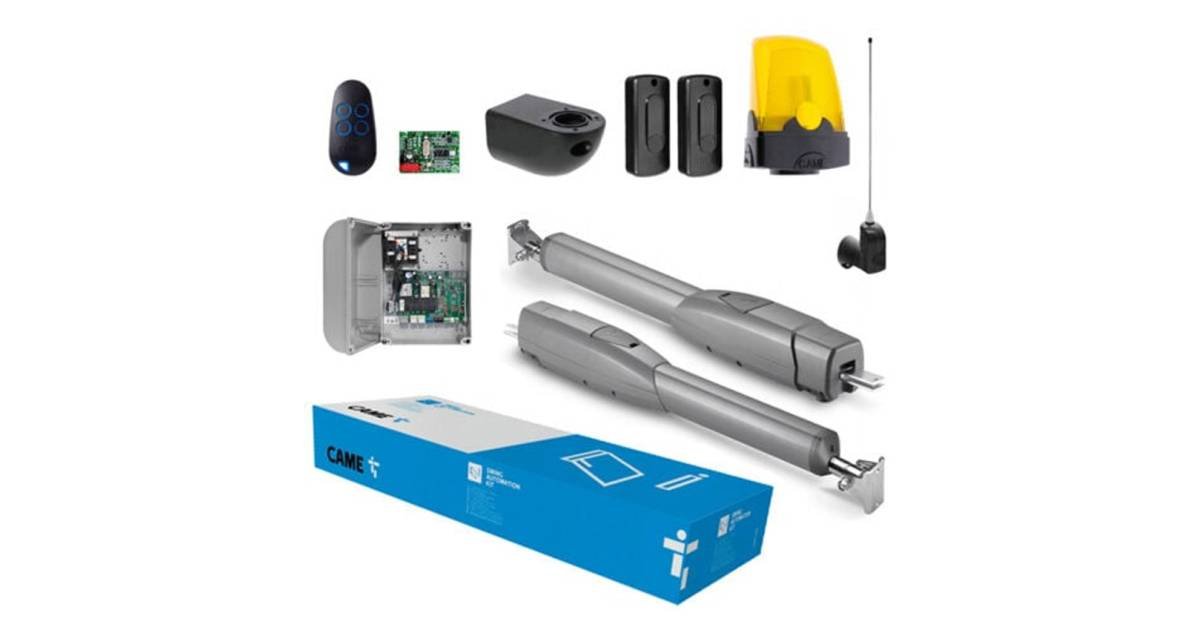

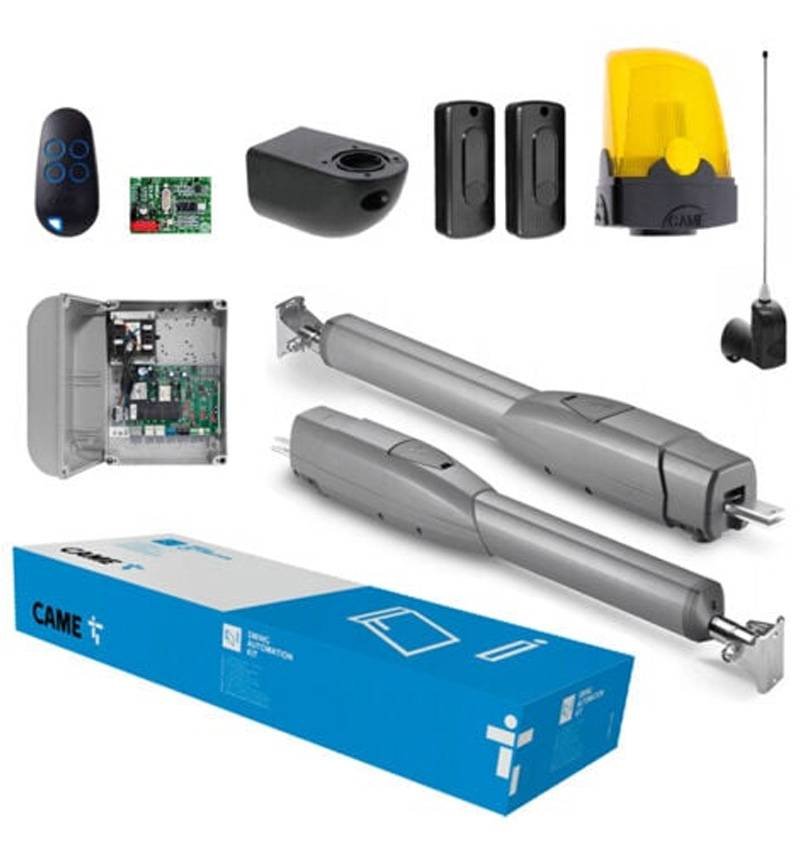

THE KIT CONTAINS

■ 801MO0070 - ATS30DGS 24V irreversible geared motors for blades up to 3 m + fixing bracket kit + 02 release keys

■ AF43S: Pluggable RF card

■ 806TS-0121 TOPD4RBS - Dual frequency transmitter variable code.

■ DIR10: Pair of photocells with a range of 10m

■ KIARON: Flashing light

■ Support for KIAROS flashes

■ R224: Door Plate

■ ZL65 - New control panel with built-in slowdown calibration multi-function radio decoding.
