KIT Motors Aprimatic XT524B electromechanical 24V 日本語 Residential doors up to 4.5m
Referencia: RKXT524AA
€638.00
IVA excluido

771,98 €

IVA incluido

KIT Motors Aprimatic XT524B electromechanical 24Vdc irreversible for residential or community doors of semi-intensive use up to 4.5 meters or 450KG.

Quantity



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain

APRIMATIC XT524B 日本語 Electromechanical motors Batteries

KIT Motors Aprimatic XT524B electromechanical 24Vdc irreversible for residential or community doors of semi-intensive use up to 4.5 meters or 450KG.

✓ Mechanical race ends in opening and closing.

✓ Robust chassis made of injected aluminium.

✓ The unlocking of these engines can be dismantled by Torx key.

Technical characteristics:

  • Leaf length4.5 m
  • Sheet weight: 450 kg
  • Food: 24Vdc
  • Type of transmission: Helical gear
  • Race: 540 mm
  • Push force: 3000 N
  • Working factor: 50%
  • Cycles: 90 maneuvers/day
  • Protection: IP44
  • Working temperature: -20 oC/+50 oC
  • Maximum current: 6 A
  • Power absorbed: 144 W
  • Unlock: Metal key
  • Dimensions: 1117,5 x 136 x 126 mm

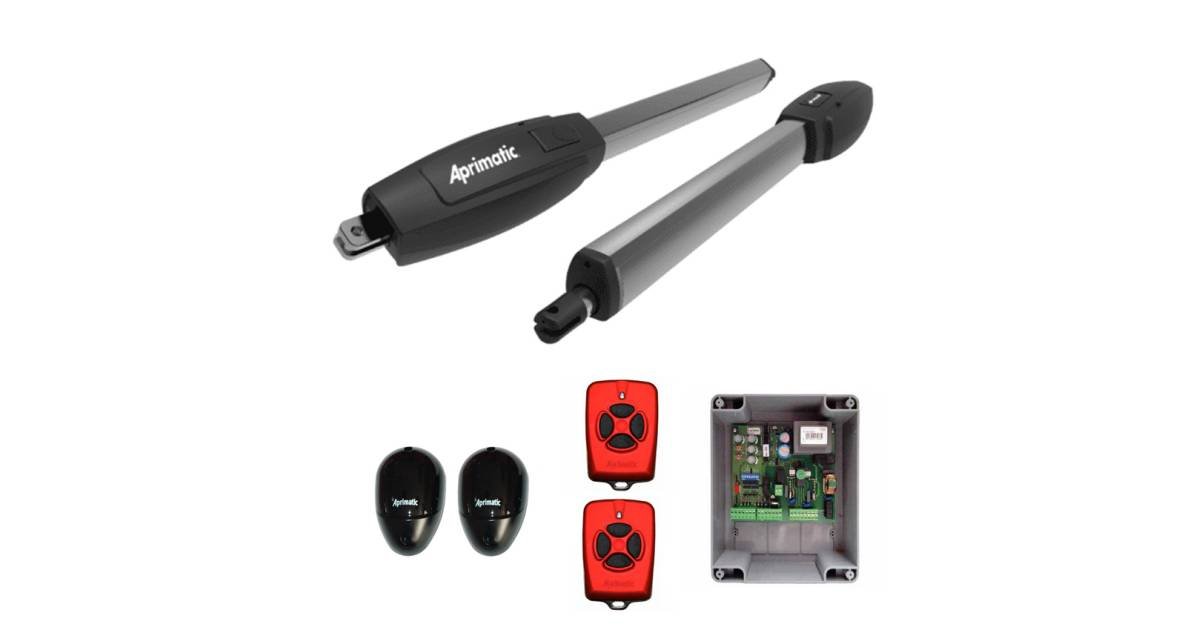

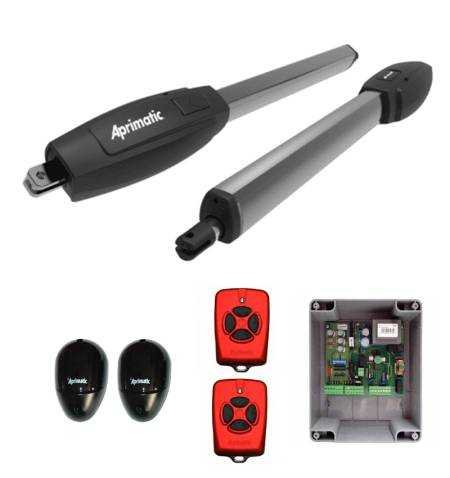

KIT Contents:

  • 2 operators XT 524B to 24 Vcc
  • Type of maneuvers AB 224DG
  • 2 TX4S quadrant transmitters
  • Couple photocells ER 10

Measures and details Aprimatic XT524B

Manual

Instruction manual Aprimatic XT524B

RKXT524AA

Data sheet

Type of engine
Electromechanical 24V
Full kit
Complete kit for 2 sheets
Type of door
Residential door

Specific References

Download

Manual Aprimatic XT524B

Download (601.82KB)
