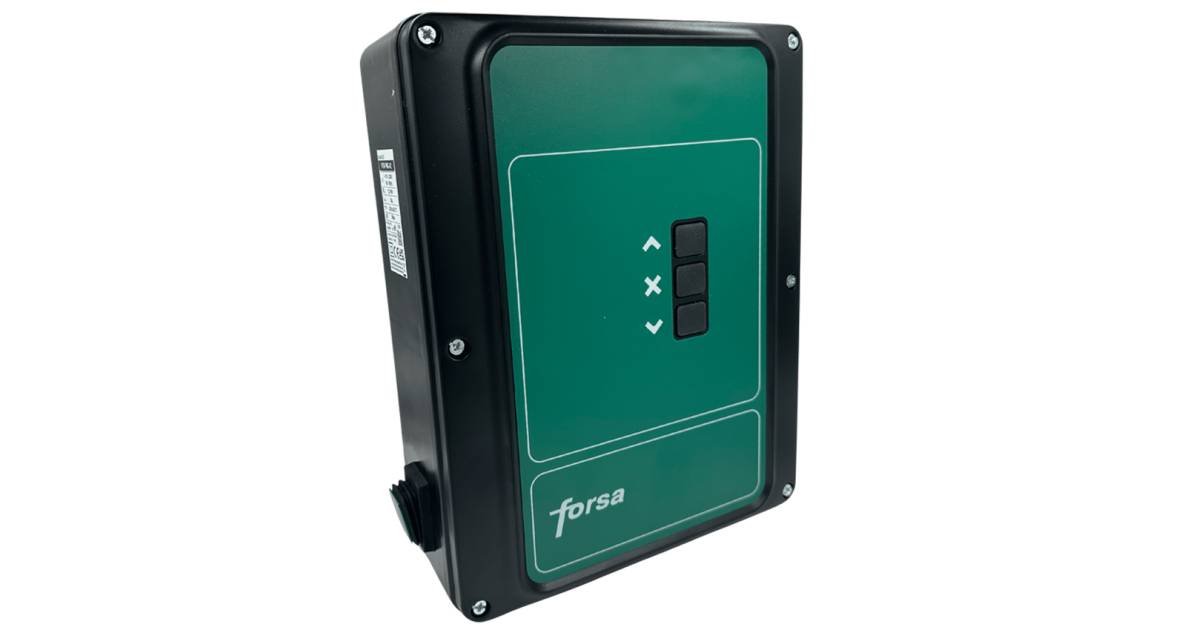

PNG42 FORSA manoeuvres

For Basculating Motors or Battens from 1 or 2 leaves to 230Vac

Advantages of the new maneuver box Forsa

✓ Reduction of energy losses (up to 15%)

✓ Adaptation to future expansions without changing table

✓ Compliance with European regulations (EN 61439-1/2)

✓ Saving time in installation and maintenance

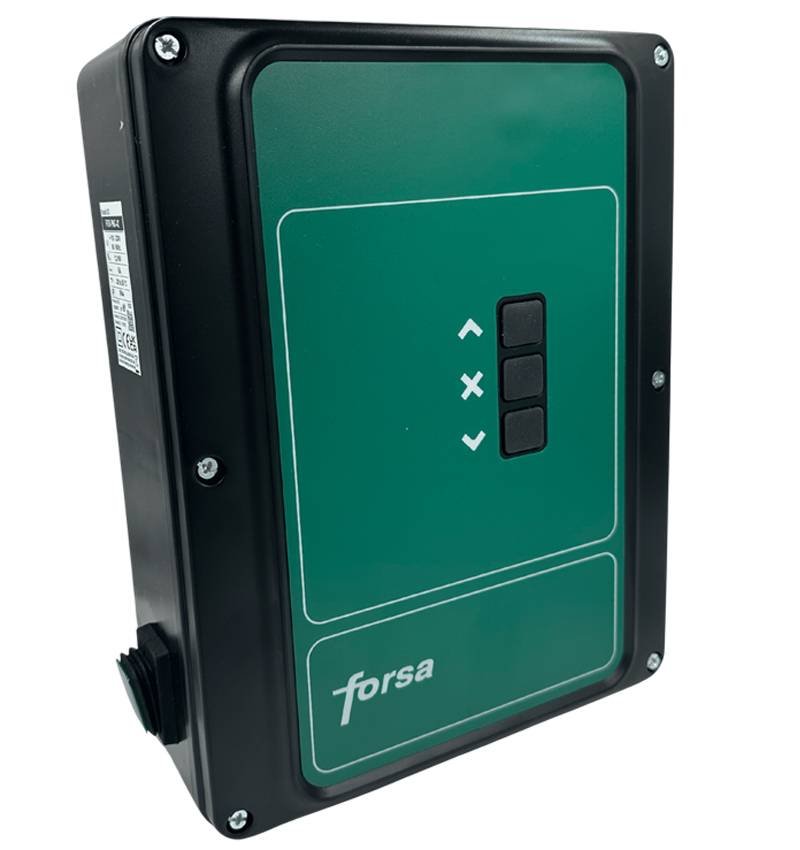

The new PNG-42 not only stands out for its technology, but also for its design!

Its housing, elegant and modern, looks corporate colors Forsa (green, black and white), reinforcing our brand identity. With clean lines and a resistant finish, not only is it functional, but adds a professional touch to any installation.

Features Forsa PNG42

▷ Compact and modular design – Optimization of space without losing functionality.

▷ Increased security – Protection against short circuits and overloads.

▷ Easy installation – Plug-and-play system for quick integration.

▷ High quality materials – Durability and resistance in demanding environments.

▷ Expanded compatibility – Ideal for residential, commercial and industrial facilities.

Conclusions Forsa PNG42

• The PNG 42 offers 60% more capacity, ideal for demanding facilities.
• Integrated technology: IoT, absolute encoder and autotest of security make it future-proof.
• Higher robustness: IP44 certification and extended thermal range (-20°C to +55°C).

Technical characteristics PNG42

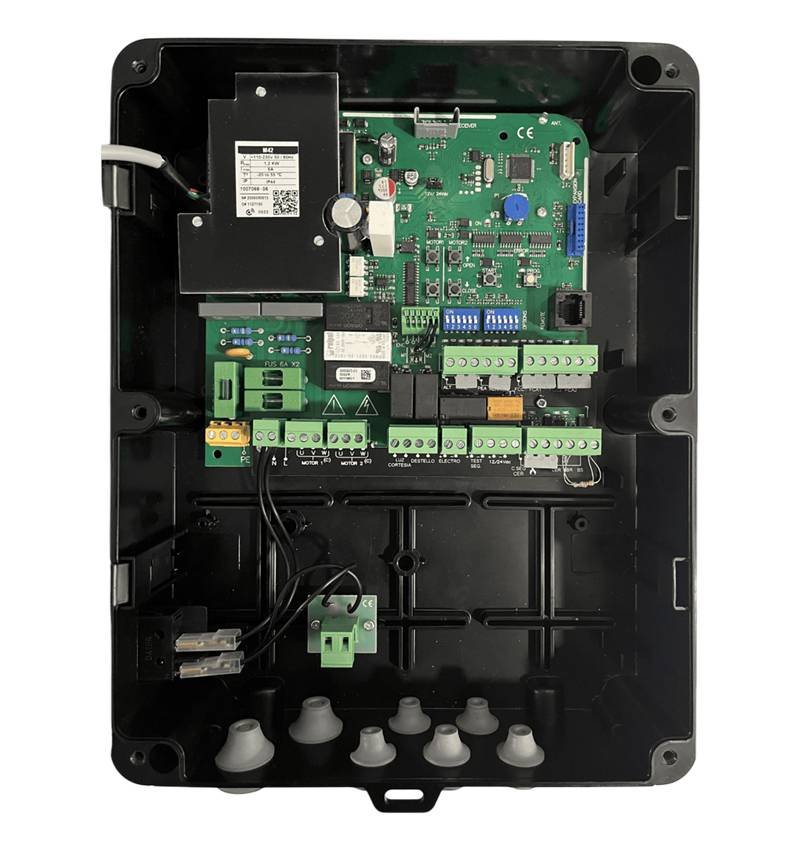

Connections of the manoeuvre box

1. RECEPTOR. Connection for DTP or DRT receiver.

2. MOTOR FORCE.

3. TABLE OF EXPANSION. Connection TL-CARD V / RSEC3.

4. ALTERNATIVE PULSER.

5. PULSADOR MANIOBRA PROGRAMME. Maximum time: 6 min.

6. PROGRAMME CONECTOR. Connection for portable programmer.

7. OPTION SELECTORS.

8. SIGN UP. Connection for alternative pushbutton inputs, open, close and end of race.

9. SIGN UP. Connection for pedestrian pulser, photocell and safety bands.

10. HEALTH 12/24VDC / TEST. According to selector 12/24 Vdc (No. 23 in scheme):

Rank to 12Vdc: 11,4V to 12,6V

Rank to 24Vdc: 23.9V to 27.3V

11. ELECTROCERRADURA. Output 12Vdc for electrolocking.

12. LIBRE TENSION. Power-free outputs for courtesy light and flashlight.

13. FOOD. 110V - 230Vac / 50Hz - 60Hz

14. MOTOR 2:. In 2 engine mode, it's the second to open.

15. _. For use in 1 motor mode. In 2 engine mode, it is the first to open.

16. PROTECTION LAND. Connection for installation and engine land grab.

17. FUSIBLE. Food. 1,25 A / 250 V fast.

18. FUSIBLES. Motors. 6 A / 250 V delayed.

19. SIGN UP. Encoder tickets.

20. PUERTAIN PROGRAMME POSITIONERS.

21. HEALTH LUZ GARAJE. Replica of the light output of courtesy.

22. EMERGENCY PARO. Remove the jumper for the NC connection.

23. SELECTOR 12/24 Vdc. It allows to select the voltage to feed external elements (photocells, etc.). It also applies to TEST output for photocell.
