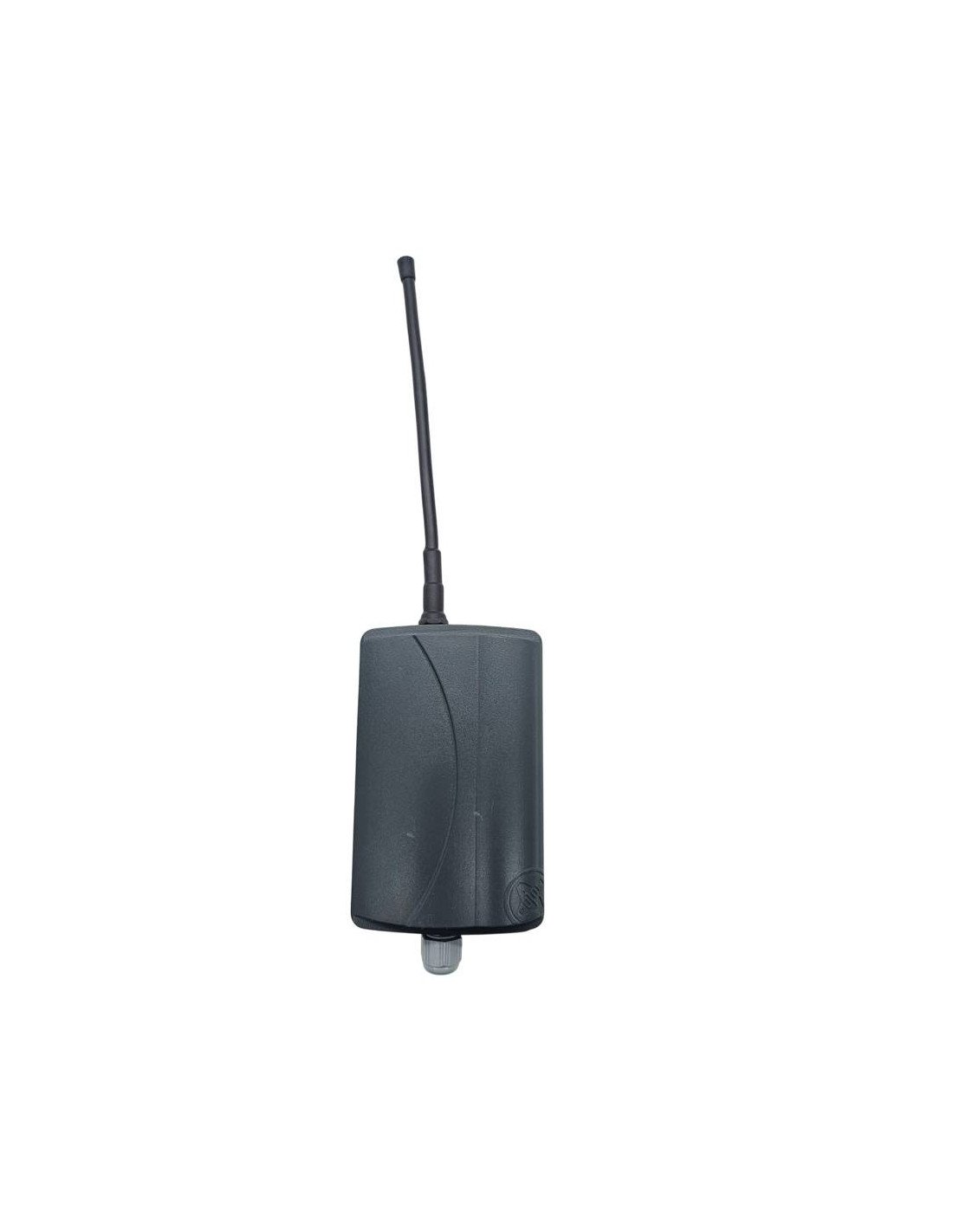

External receiving antenna wired PUJOL "ACTIVE" 433 MHz

PUJOL 'ACTIVE' wired external receiving antenna compatible with RollingCode 433 MHz transmitters.

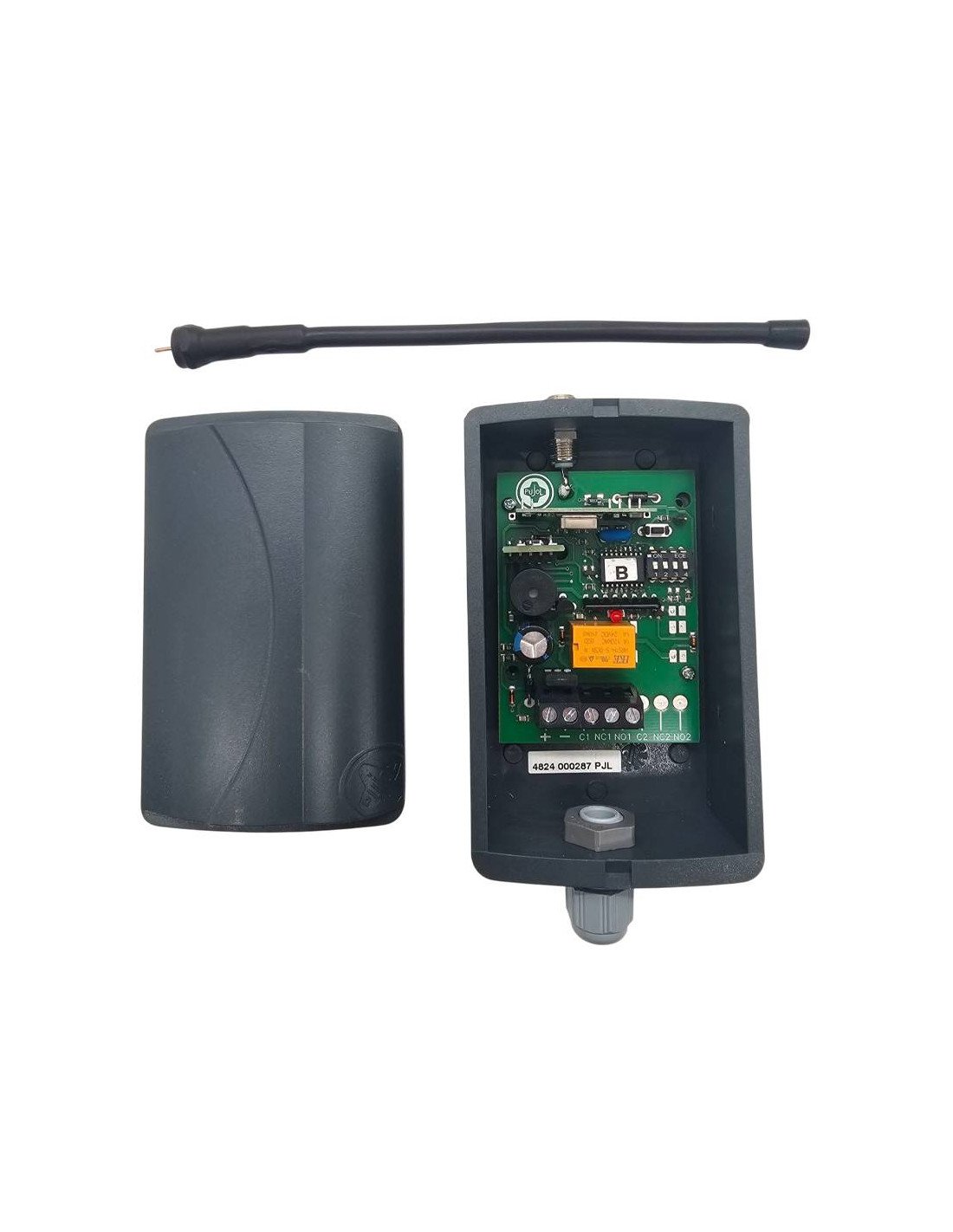

Connection:

It has 3 Bornes (+,-,s) that connect directly to the receiver.

(+,-) provide power to the device

(s) provides the received radio signal via the cable connecting ACTIVA to the receiver.

To ensure good signal reception over long distances it is necessary to connect the external antenna of the device and that the cable connecting ACTIVA to the receiver is braided, increasing its reliability if it is also backed up.

Technical specifications:

• Power supply: 12Vdc
• In the case of vehicles of categories M1 and N2 with a maximum mass exceeding 2000 kg:
• Detection of transmission errors: CRC
• Frequency: 433.32 MHz
• This Regulation shall enter into force on the day following that of its publication in the Official Journal of the European Union
• Scope: See connection table
• Working temperature: from -10o to +80oC

MANUAL

Instruction manual for the external receiving antenna Pujol ACTIVE
