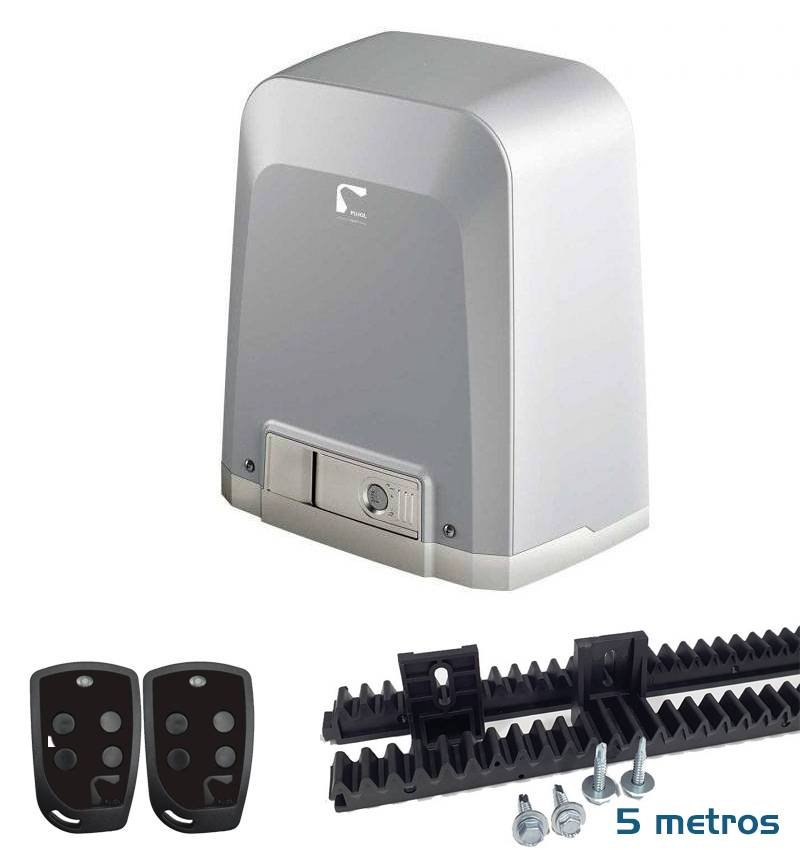

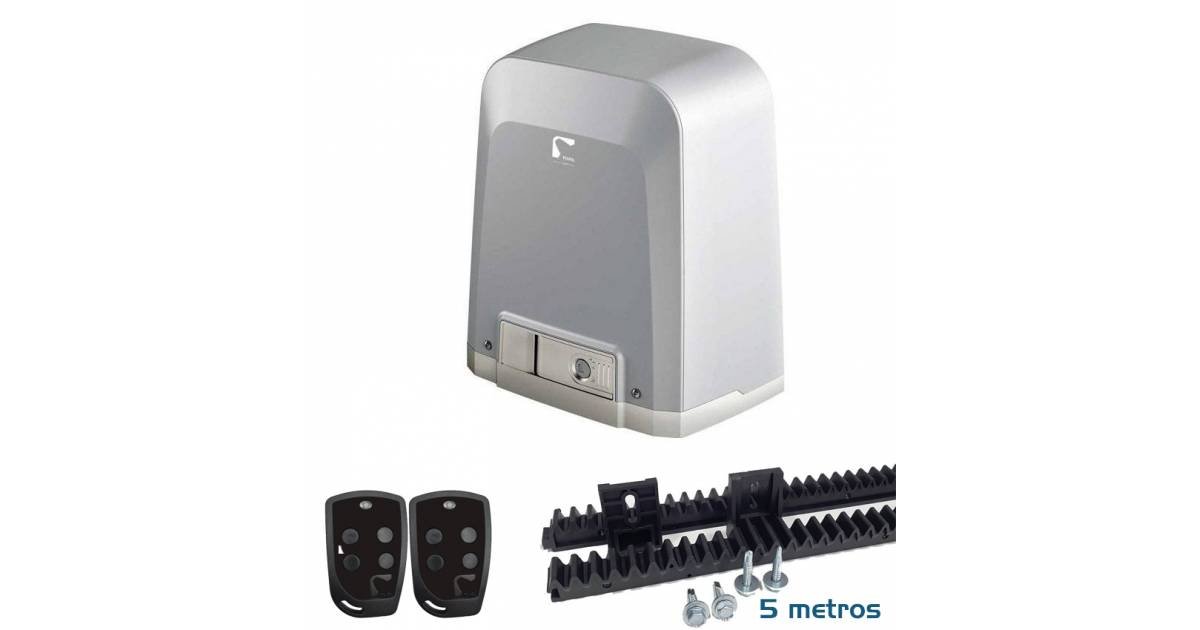

KIT engine Pujol SYROS at 230 V for residential sliding doors up to 600 or 800 kg. It includes a 5-meter NYLON zipper pack and 2 VARIO4U RollingCode 433.92 MHz transmitters.

New series of sliding motors Pujol with fixed anchorage system and built-in receiver box, which adapts easily to cancellation with m4 zipper and allows you to easily adjust the motor force.

SYROS600 KIT CONTAINS

• 1 unit of SYROS 600N: SYROS 230V sliding motor for doors up to 600 kg.
• 1 unit P3KCRE0010: Pack of 5 meters of nylon zipper with bolt.
• 2 unid VARIOUSRollingCode 4 broadcasts on 433.92 MHz.

SYROS800 CONTAINS

• 1 unit of SYROS 800N: SYROS 230V sliding motor for doors up to 800 kg
• 1 unit P3KCRE0010: Pack of 5 meters of nylon zipper with bolt.
• 2 units VARIO4URollingCode 4 broadcasts on 433.92 MHz.

TECHNICAL CHARACTERISTICS

• FoodFor the purposes of this Regulation:
• Engine revolutions1400 min-1
• Power absorbed: 400 W
• Capacitor: 14 μF
• Thermal protection: 150° C
• Class of insulation: F
• Pinion module: (standard) 4 mm (14 teeth)
• Leaf speed(standard) 9 m/min
• Maximum leaf weightstandard** 600 kg (≈6000N)
• Pinion module(fast) 4mm (18 teeth)
• Leaf speed(fast) 11m/min
• Maximum leaf weightIt shall be so designed and constructed that:
• Par max.: 18Nm
• Reduction ratio: 1/30
• Lubrication: Permanent fat
• Manual operation: Mechanical release of lever
• Type of useResidential:
• Control unit: SHYRA AC F SL 600 PJ
• Environmental conditions: from -20°C to + 55°C
• Degree of protection: IP24
• Operating weight: 8,1 kg (≈81N)
• Maximum cycle: 5 cycles/h at 50s

MEASURES

MANUALS

Manual electronic chart

The SYROS 600 manual

The SYROS 800 manual
