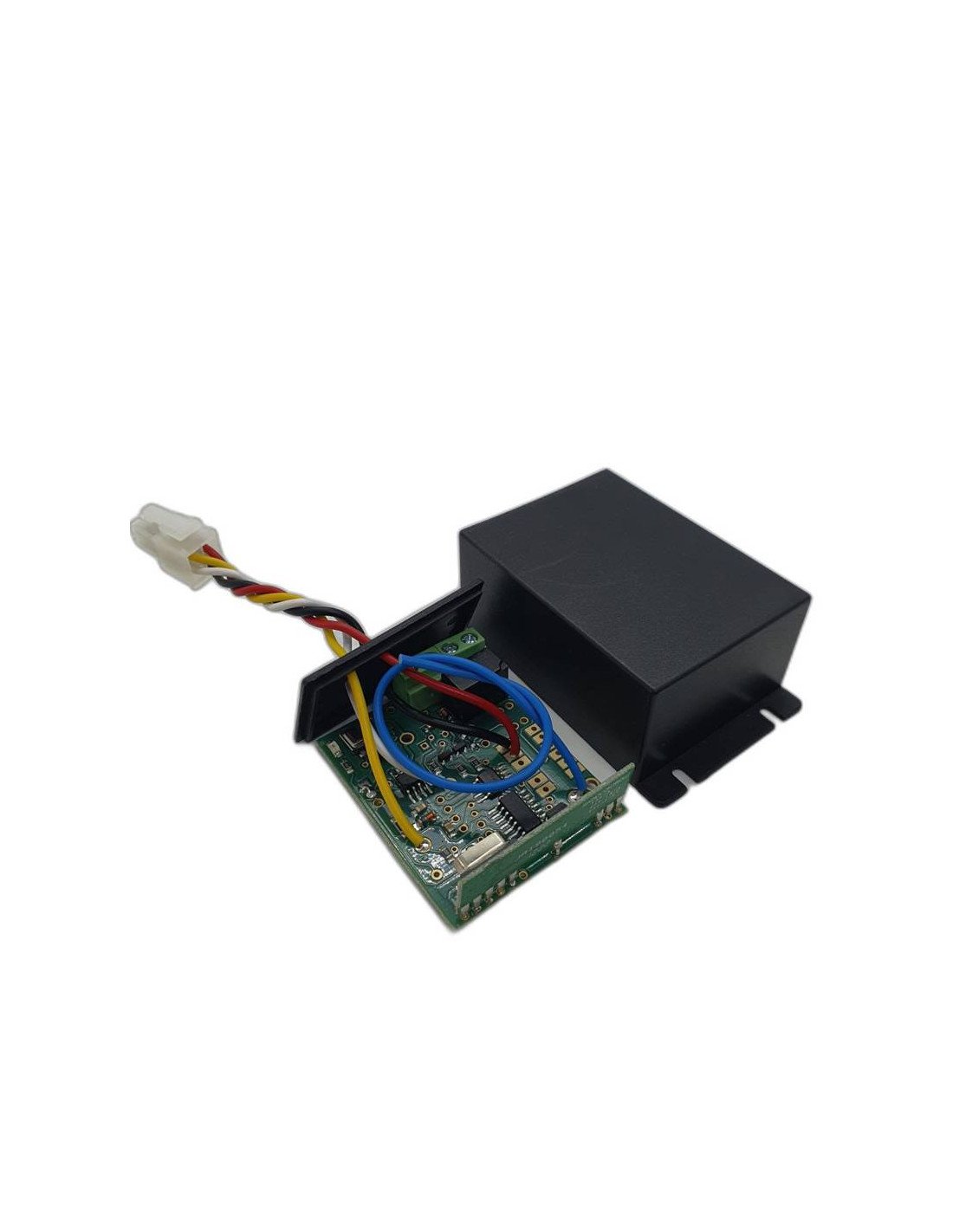

Radio receiver capable of recognising and working with a wide variety of scalable remote controls on the national and international market that use HCSXXX microchip encoders. It also incorporates detection algorithms that prevent the fraudulent use of fixed code copies.

On the basis of this new receiver, a receiver has been designed that is compatible with the three most widely established manufacturers in the tobacco machine sector, Azkoyen, Jofemar and GM Vending. There are three different connection modes available for this purpose:

AZK Compatible:

Connection via connector: For installation, simply connect and register the controls on the receiver.

GMV Compatible:

Connection by means of an internal power strip.

To install, simply connect the power strip and register the controls on the receiver.

JOFEMAR Compatible:

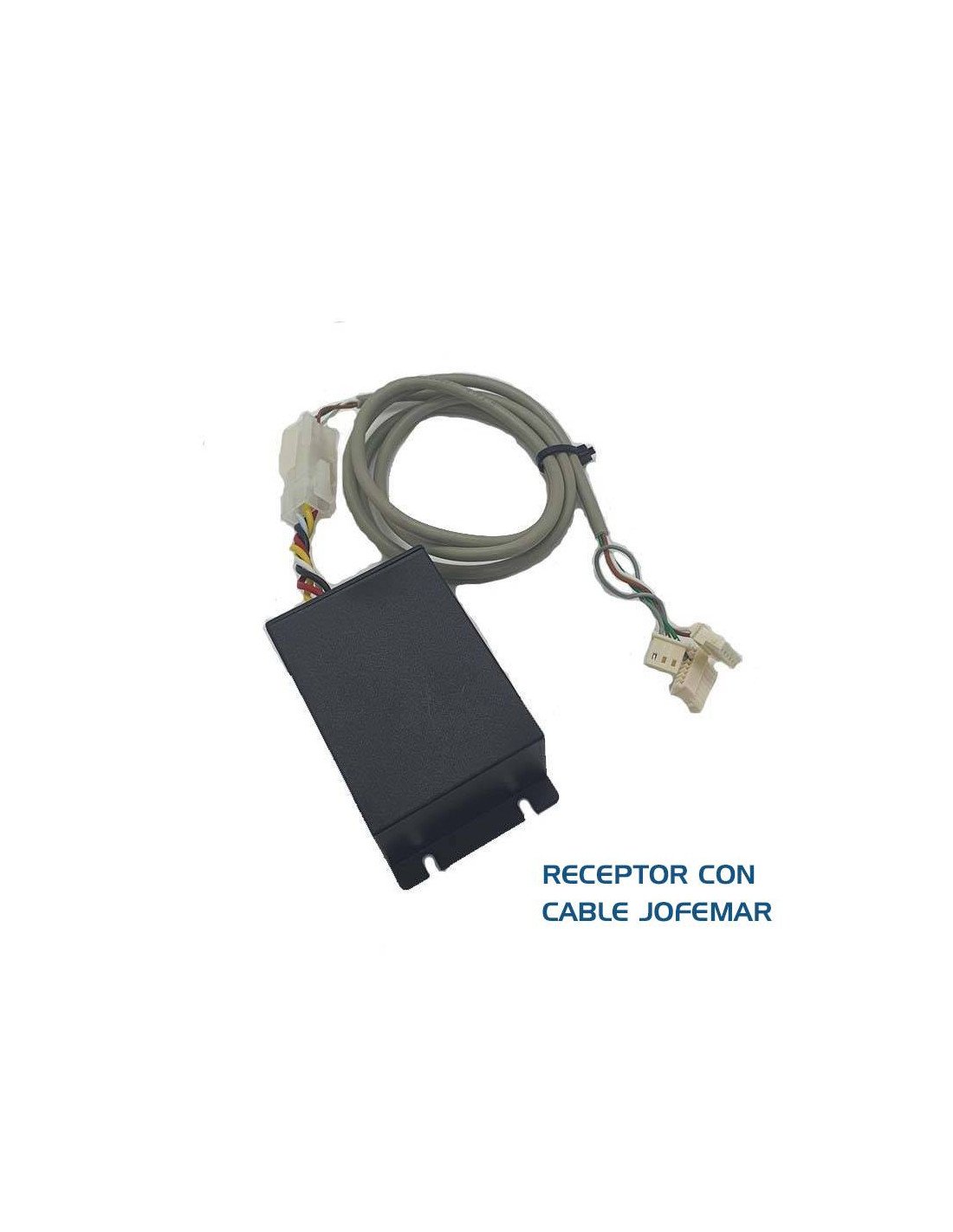

Connection via external wiring. To install, simply plug in and register the controls on the receiver.

Note: When connected in JOF compatible mode, the original Jofemar controls cannot be registered, it is necessary to use evolutionary controls, such as those of Via-AZK or Via-GMV

SPECIFICATIONS

• Working frequency: 433.92 MHz
• Number of users: 16

Memory Erase

Unlike other receivers, the receiver's memory can be easily erased by using the P button (see Figure 1).

This action deletes all the remote controls recognized by the control unit and the information related to them, and can be performed as many times as necessary.

OPERATION

1. Hold the push button (P).

2. The L1 LED will light up.

3. After 4 seconds, the buzzer will start three beeps to indicate the start of erasing.

4. The LED will then flash indicating that the memory wipe is taking effect. At this point, the button (P) can be released.

5. The moment the LED turns off, the memory will be completely erased.

REGISTRATION OF REMOTE CONTROLS

Registering a remote control means putting the receiver in a recognition state so that it can identify a remote control and start working with it.

REGISTRATION WITH PUSH BUTTON

1. Press the push button (P) until the LED lights up.

2. The receiver will beep.

3. Release the push button, the LED will remain lit.

4. Press the channel of the remote control you want to register.

5. If the remote control is compatible with the system, the receiver will beep indicating the registration of the remote control. From this moment on, we can use this remote control on this receiver.

IMPORTANT: If the remote control has several buttons and we want all of them to

If they work with the same receiver, we must register each button individually.
