THE FIRST. CHARACTERISTICS

The most complete and best-selling duplicator on the market for parking emitters with free upgrades.

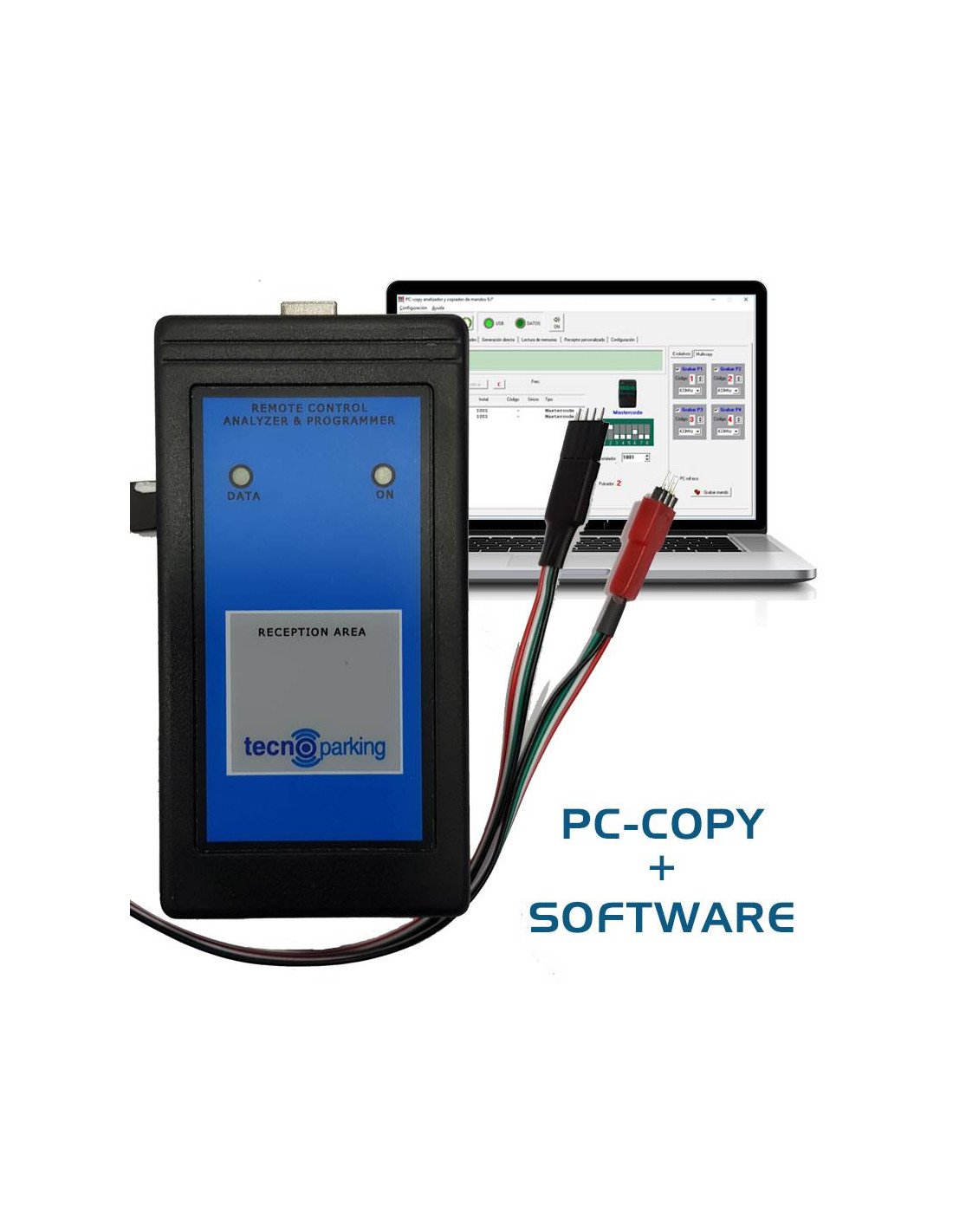

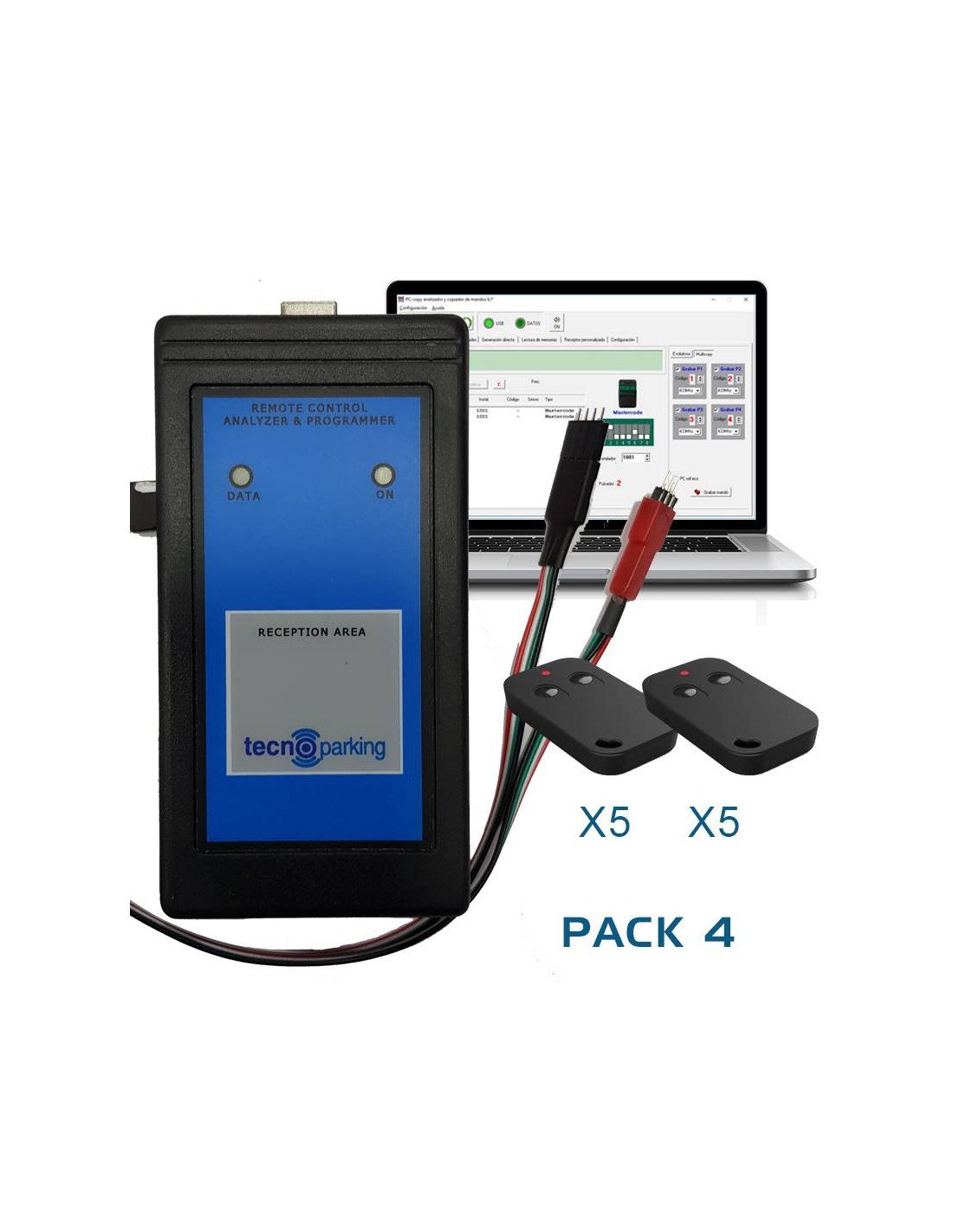

It is the most outstanding remote control duplicator for its system of connection via USB to the computer, allowing a quick and effective duplication of remote controls, also includes functions for the installer.

Functions: copy and original control analyzer, memory reader (GO, JCM, Nice, You know, MutantCode, AERF, Erreka, Pujol), generation of original transmitters and customized receiver with access control.

It allows us to generate different controllers without having to physically have it as aAND MUTAN, AND EREKA, AND PUJOL, AND SMILO, AND GIBIDI, DEA, IN THE CASE OF THE FOLLOWING PRODUCTS:, DITEC, I'M NOT GOING TO TELL YOU, KINGGATES, JOFEMAR, NICE FLOWER, FAAC, E20, MT2.

Parking remote control duplicator with USB connection to computer for fixed and evolutionary codes (low frequency from 240 MHz to 330 MHz, 433.92 MHz, 868 MHz and Quartz) with analyzer and quick and easy duplication.

Among the controls he duplicates are: Master code, mutan code, Erreka, BFT, Nice, Gibidi, Pujol, Doormatic, DEA, It's called Ditec, Sabutom, Cubells, Hydom, AERF, JCM, Jofemar, Beninca, Aprimatic, Novoferm, Allmatic, Roper, Forsa, DMIL, Norton, EMFA, GO, V2, etc

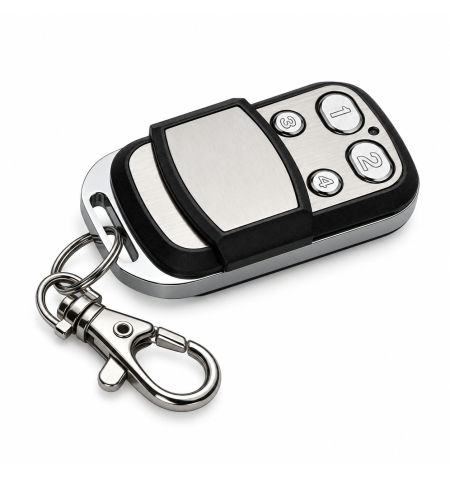

Allows unification of fixed and evolutionary code controls in a single emitter thanks to the issuers OTHER, OF CIRCULAR CROSS-SECTION PC ROLL V48 and PC ROLL ECO. What. It allows you to save read codes from a controller or a memory in the computer in TXT format for later recording without the need for the physical controller.

TWO. PC-COPY FUNCTIONS

It analyses, samples and duplicates fixed code such as binaries, trinaries and quartz.

It analyses, samples and duplicates evolving code / RollingCode 433.92 and 868 MHz.

It details the installer code, the control number, the pulse counter (synchronism) and the model of the control read. On the evolutionary controls it shows the 16 hexadecimal characters that the command emits.

Duplicates the control read on copy emitters or original emitters. With PC-copy you do not depend on specific models, you can use the desired controller thanks to its 3 and 4 pin connection probes.

Measuring the frequency of the signal emitted by the control from 20 to 900 MHz (including quartz)

It measures the relative level of the radio frequency signal, the output power of the controller.

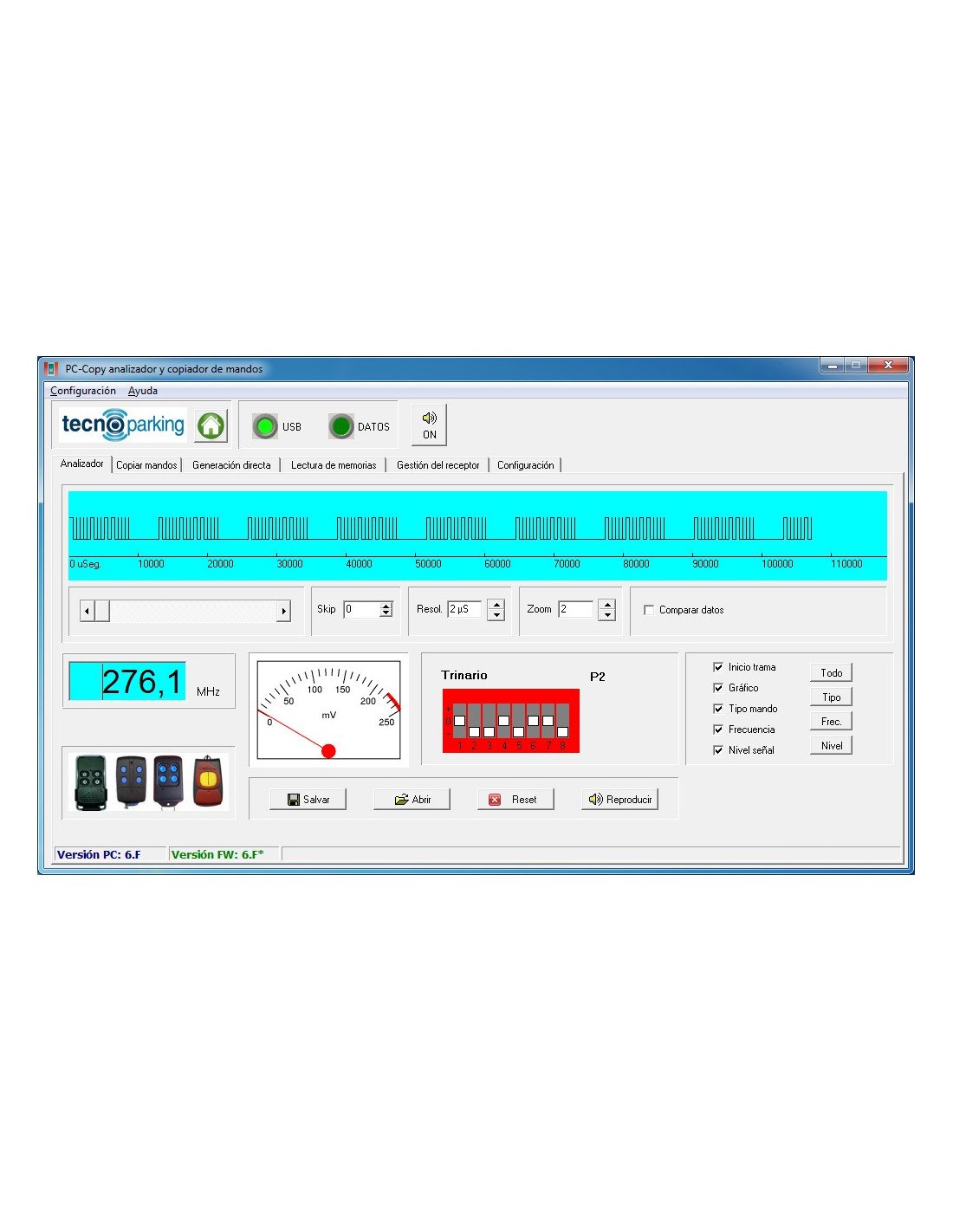

Displays a graph with pulses and emission times of a read control

In fixed-code controls it shows the configuration switches and their position, even if it is a copy command that does not have them.
In the Mastercode controls will also show the command number and the installation one, besides we can modify it to change the code.

It allows you to save the data of a read command to make copies later if you need to have a physical command, and even generate them by typing the frame with the computer keyboard.

OTHER FUNCTIONS
• Duplicate wired controller (3 and 4-pin probes), and wireless without the need to connect wires.
• It has sound and light indication of the received radio frequency signal.
• Displays the signal graph of the infrared controls and displays an emission LED.
• Enter frequencies into a ROLL V48 PC through the PC-Copy software. (NEW)
• Automatically discharge the PC ROLL V48 by pressing for 10 seconds. (NEW)

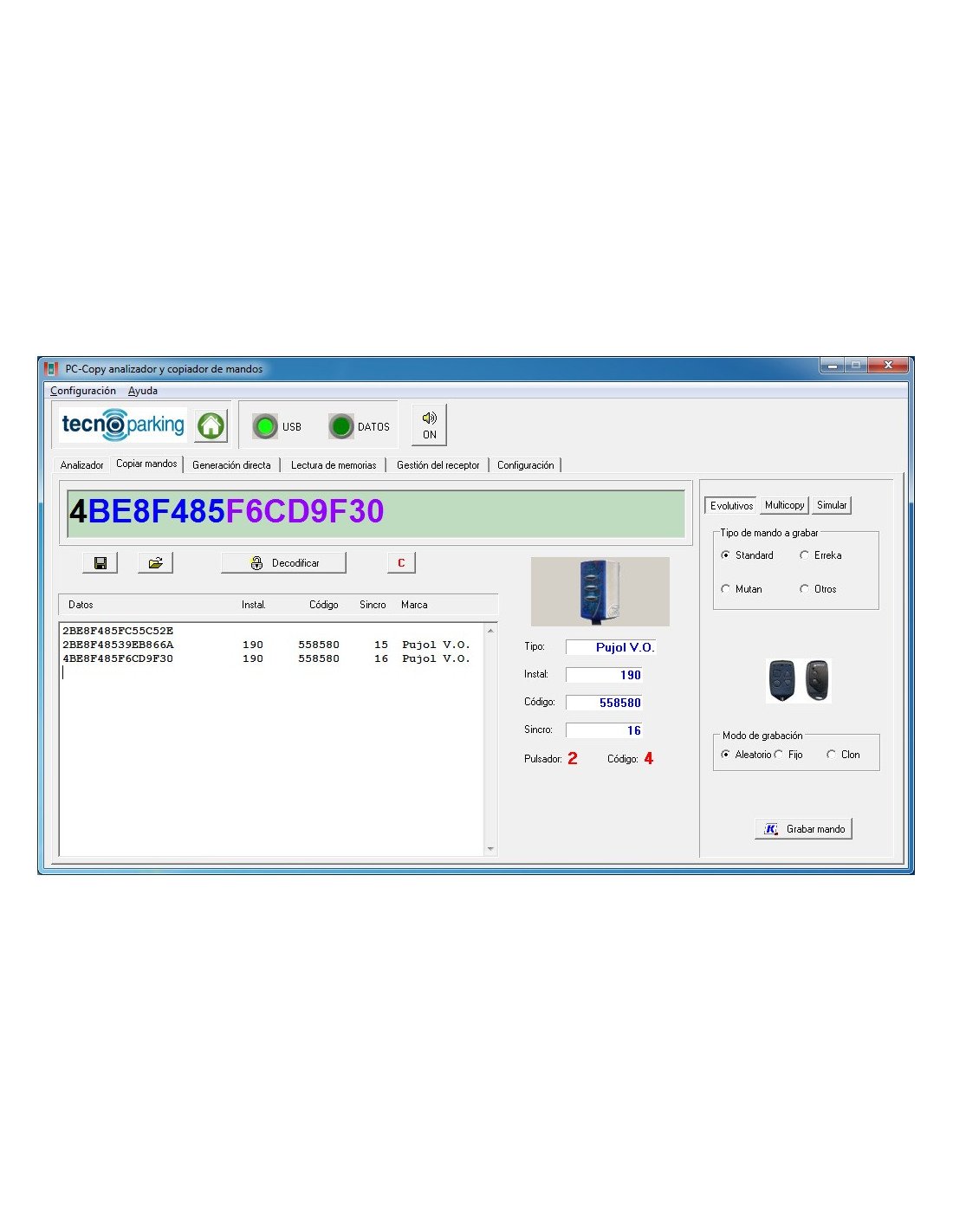

3. SOFTWARE IMAGES

Example of introduction of frequencies in the PC ROLL V48 transmitter.
It saves us from having to adjust the control trimmer, with the advantage of being able to unify up to 4 different frequencies.

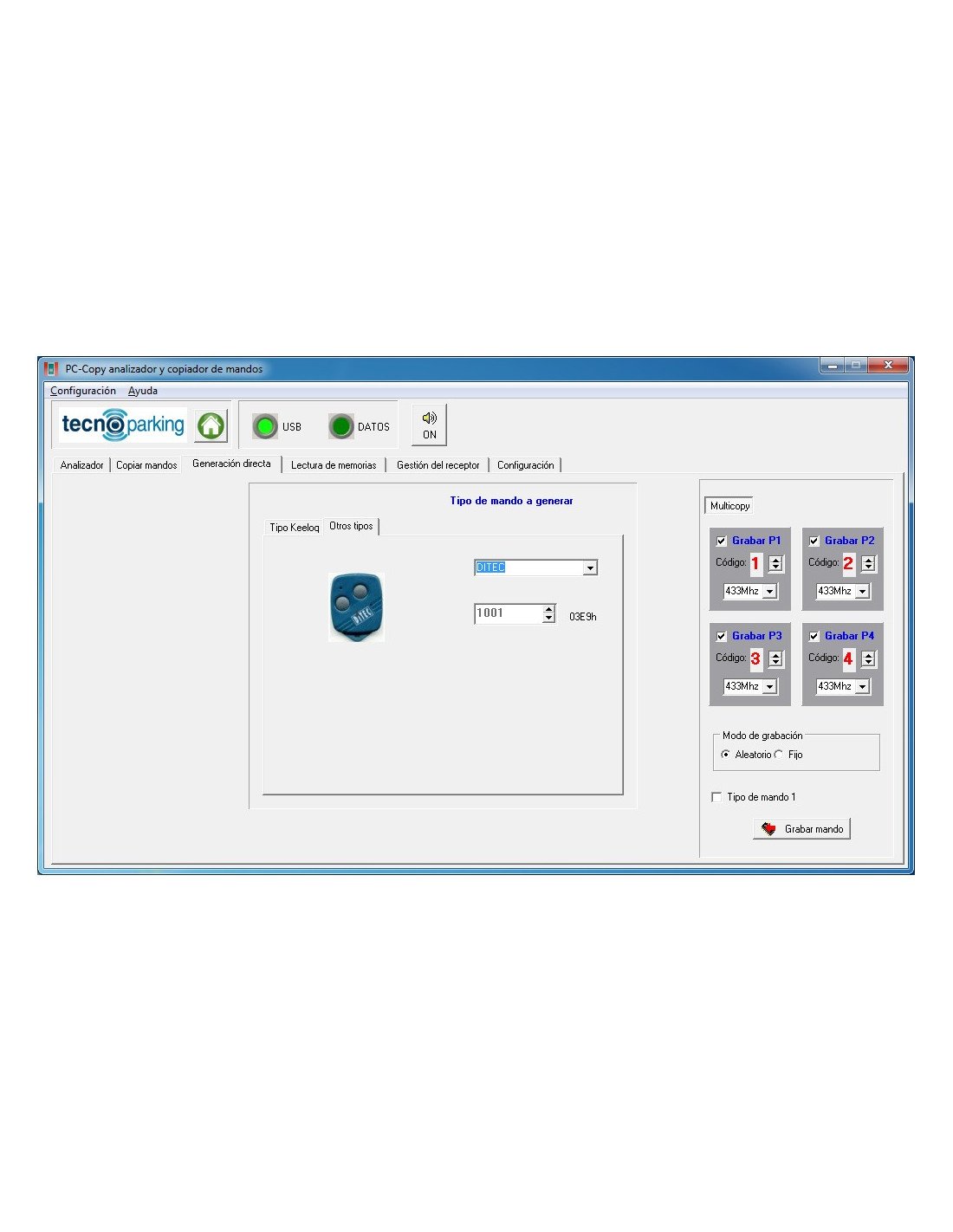

PistachioDirect generation” of controls that can be generated from the PC-Copy Software itself

Highlights include:

• Keeloq-type developersThey mutate, Erreka, Pujol, BFT, Gibidi, Dea, Beninca, Aprimatic, I mean, Novoferm, GM Vending
• Other evolutionaryDitec, Prastel, I'm not going to lie V2, Nice FloR, FAAC
• Fixed codesE-20/E-22, MT2 of Clemsa

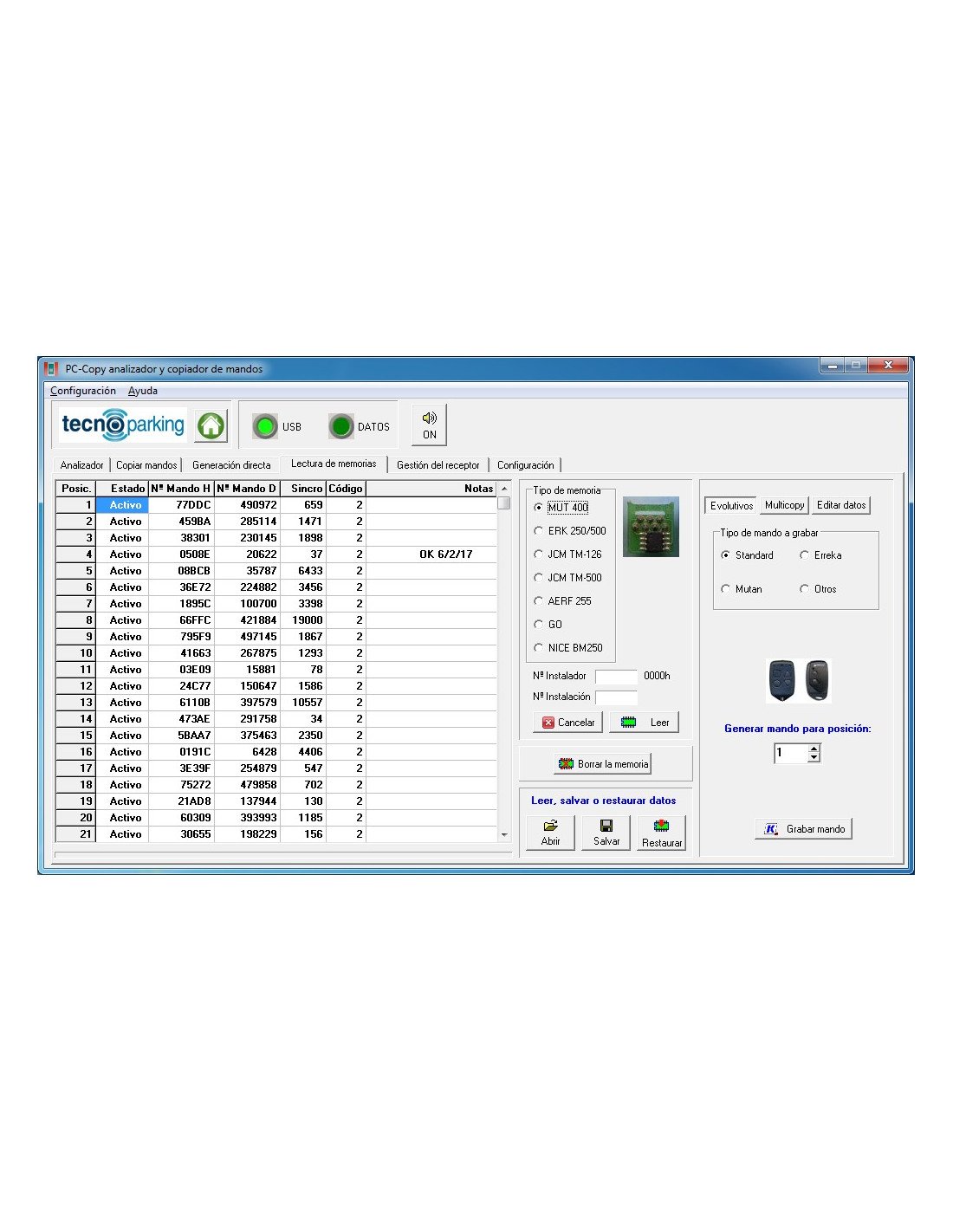

Example of reading a memory Mutancode where we can generate commands from that facility even if it's full or in reserve. We can save it, edit it, manipulate it and overwrite new data.

With memory adapters we can read: Mutant code, Erreka, JCM, AERF, GO, Nice, Pujol

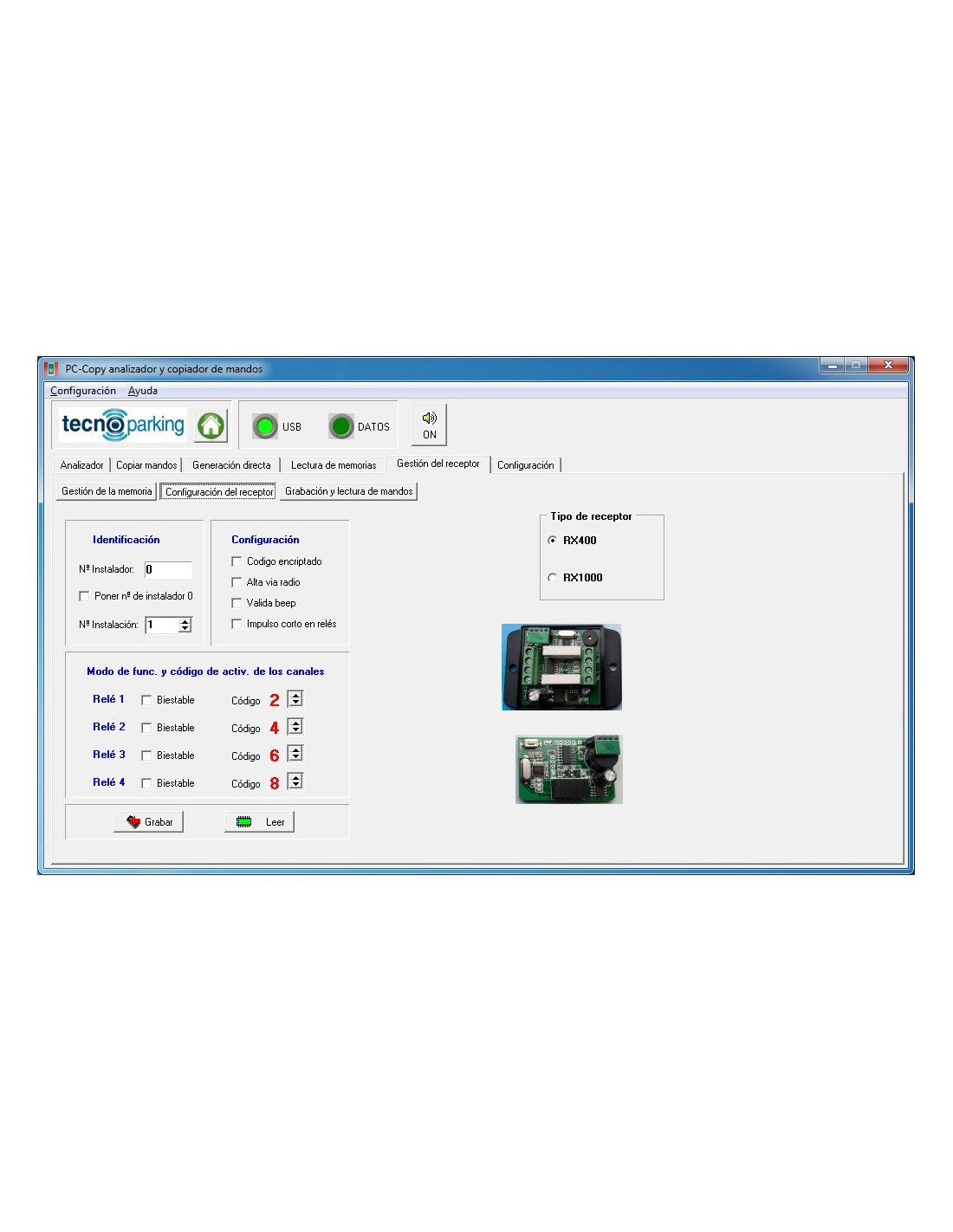

PistachioCustomized receiver” where we can install a personalized receiver with access control, we can encrypt our memory and our transmitter to prevent anyone from duplicating it, it also allows us to manage up and down controls without having to go to the installation. There are three types of encrypted receivers; 12/24v, 220V and 6-pin plug-in card.

PC-COPY INSTRUCTIONS

INSTRUCTIONS TO READ MEMORIES WITH PC-COPY

INSTRUCTIONS CUSTOM RECEIVER WITH PC-COPY

GRAPHICAL ANALYSER INSTRUCTIONS (Distinguish between fixed and moving controls)
